AtlasIED FA-TR8 - New Construction Ring for 8-Inch Strategy Series
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description

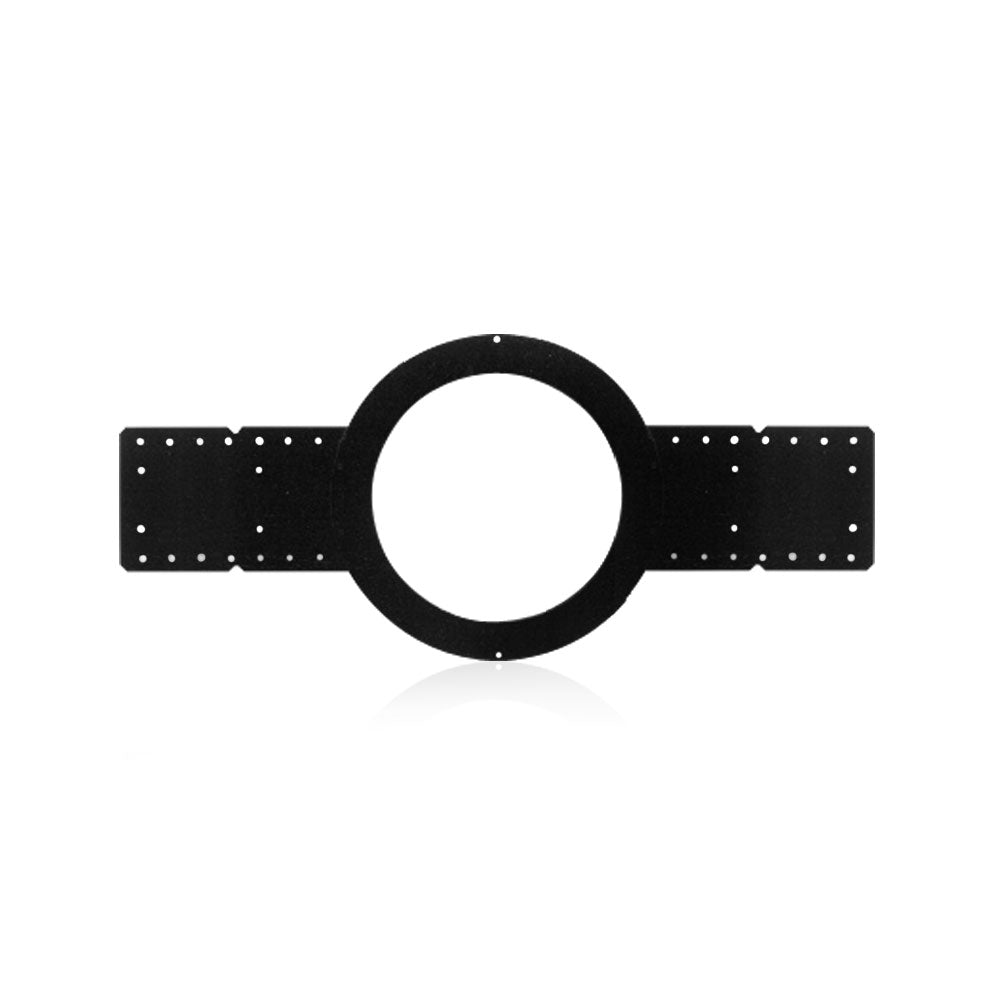

The Strategy Series FA-TR8 trim ring/rough-in bracket, for wall or ceiling-mount applications, installs prior to the drywall and serves as a pattern cut-out for the drywall contractor to finishout the wall leaving the proper opening for a FA97-8 or FA95-8 enclosure or FAPR-8 plaster ring.
This step identifies pre-wire location and expedites sound system installation.
Trim ring measures 25 5/8" L and will accommodate 3/8" to 1 1/4" drywall. Mounting holes are provided to match both 16" and 24" center studs.
FA-TR8 is constructed of #18 gauge galvanized steel.
NOTE: Trim ring alone will not allow installation of Strategy Series Grilles. Enclosure or FAPR Plaster Ring is required for grille installation.
Features:
- Accommodates from 3/8" to 1 1/4" Drywall Thickness
- Constructed of 20-Gauge Steel
- Installs Prior to Drywall and Serves as a Pattern Cutout for the Drywall Installer
- Mounts on Either 16" Centered or 24" Centered Joists or Studs
| HEIGHT | 25 5/8" (65.0875 cm) |
| DIAMETER | 9 3/4" (24.765 cm) |
| SHIPPING WEIGHT | 1.40 lbs (0.64 kgs) |
The Strategy Series FA-TR8 trim ring/rough-in bracket, for wall or ceiling-mount applications, installs prior to the drywall and serves as a pattern cut-out for the drywall contractor to finishout the wall leaving the proper opening for a FA97-8 or FA95-8 enclosure or FAPR-8 plaster ring.
This step identifies pre-wire location and expedites sound system installation.
Trim ring measures 25 5/8" L and will accommodate 3/8" to 1 1/4" drywall. Mounting holes are provided to match both 16" and 24" center studs.
FA-TR8 is constructed of #18 gauge galvanized steel.
NOTE: Trim ring alone will not allow installation of Strategy Series Grilles. Enclosure or FAPR Plaster Ring is required for grille installation.
Features:
- Accommodates from 3/8" to 1 1/4" Drywall Thickness
- Constructed of 20-Gauge Steel
- Installs Prior to Drywall and Serves as a Pattern Cutout for the Drywall Installer
- Mounts on Either 16" Centered or 24" Centered Joists or Studs
| HEIGHT | 25 5/8" (65.0875 cm) |
| DIAMETER | 9 3/4" (24.765 cm) |
| SHIPPING WEIGHT | 1.40 lbs (0.64 kgs) |
