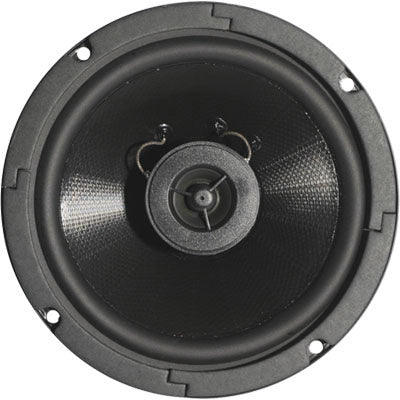

AtlasIED FA136T47 6-Inch Coaxial 70V 4W Speaker
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
This Model is a high-fidelity, coaxial, 6 loudspeaker that delivers 50-watts with full frequency response and wide dispersion. UL listed assembly is manufactured with highquality materials including a Kevlar, fiber-reinforced, polypropylene woofer and a Norsorex synthetic rubber surround for high-definition bass, structural integrity, effective damping and weather-resistance. Each unit includes a post-mounted dome tweeter with a mylar diaphragm and ferrofluid-cooled voice coil for smooth response and excellent power handling capability.
This Model has been engineered as a system with a high performance matched enclosure, choice of transformers and attractive grilles.Features- Achieves Fidelity Similar to an 8 (203mm) System with Wider DispersionFront Loads into Specially Designed, Acoustically Matched EnclosureOffers Choice of System UL Listed Components Including Transformers, Acoustic Enclosure, a Tile Bridge, Plaster Ring and Hardware-Free GrillesPatented, Easy-to-Install Loudspeaker Mounting SystemUses Advanced Materials to Deliver 50-Watts with Full Bass and Crisp Highs
| Depth | 5 1/8 (13.02 cm) |
| Diameter | 6 9/16 (16.67 cm) |
| Shipping Weight | 3.67 lbs (1.66 kg) |
| Frequency Response | 80 Hz- 20 kHz (+5dB) |
| Power Taps | 70.7V/25V |
| Speaker Type | Coaxial |
| Dispersion | 130¡ |
| Sensitivity | 88dB Average, 91dB Peak |
| UL Listed/Standard | 1480 |
This Model is a high-fidelity, coaxial, 6 loudspeaker that delivers 50-watts with full frequency response and wide dispersion. UL listed assembly is manufactured with highquality materials including a Kevlar, fiber-reinforced, polypropylene woofer and a Norsorex synthetic rubber surround for high-definition bass, structural integrity, effective damping and weather-resistance. Each unit includes a post-mounted dome tweeter with a mylar diaphragm and ferrofluid-cooled voice coil for smooth response and excellent power handling capability.
This Model has been engineered as a system with a high performance matched enclosure, choice of transformers and attractive grilles.Features- Achieves Fidelity Similar to an 8 (203mm) System with Wider DispersionFront Loads into Specially Designed, Acoustically Matched EnclosureOffers Choice of System UL Listed Components Including Transformers, Acoustic Enclosure, a Tile Bridge, Plaster Ring and Hardware-Free GrillesPatented, Easy-to-Install Loudspeaker Mounting SystemUses Advanced Materials to Deliver 50-Watts with Full Bass and Crisp Highs
| Depth | 5 1/8 (13.02 cm) |
| Diameter | 6 9/16 (16.67 cm) |
| Shipping Weight | 3.67 lbs (1.66 kg) |
| Frequency Response | 80 Hz- 20 kHz (+5dB) |
| Power Taps | 70.7V/25V |
| Speaker Type | Coaxial |
| Dispersion | 130¡ |
| Sensitivity | 88dB Average, 91dB Peak |
| UL Listed/Standard | 1480 |
