DALE SKU # ATLA-FAP42T

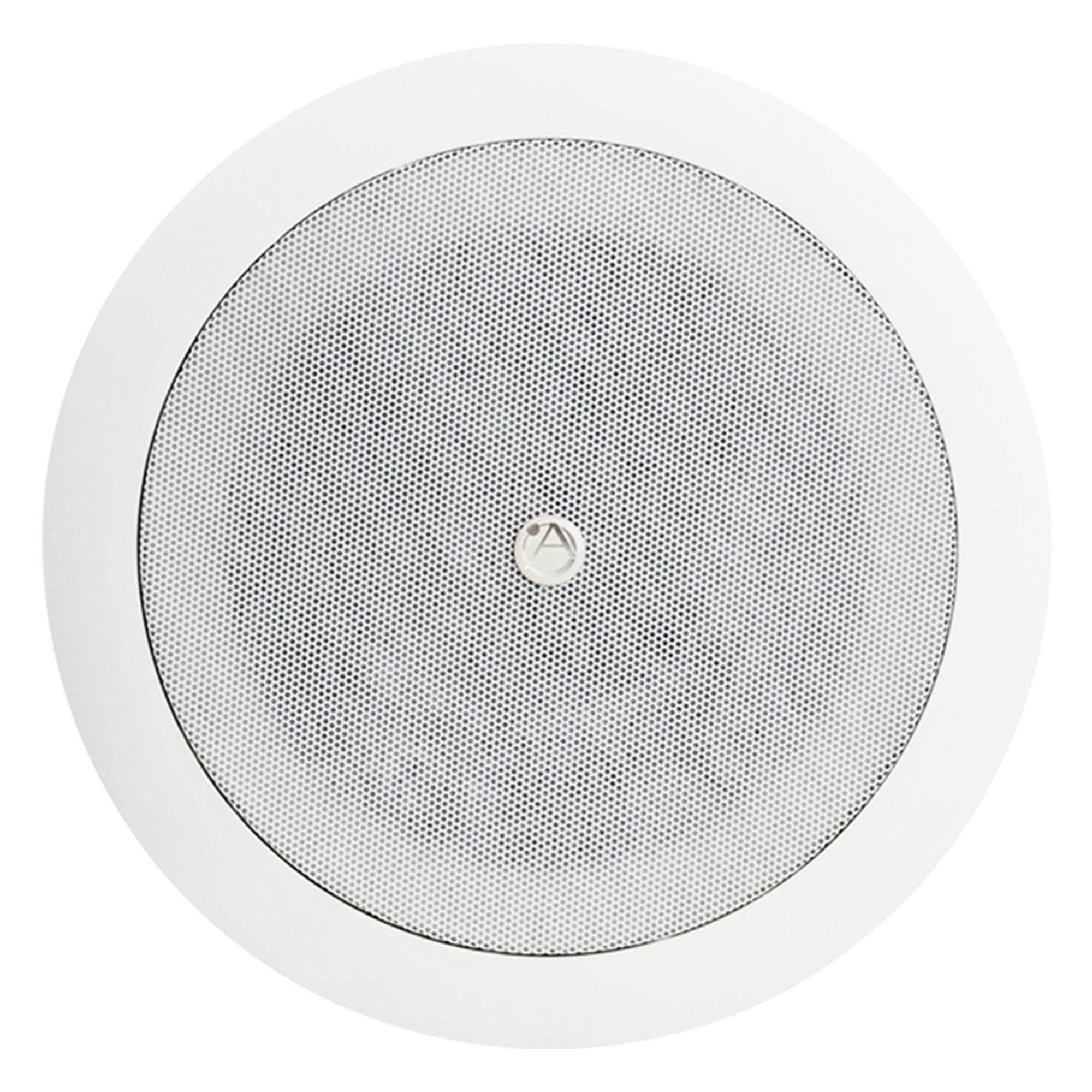

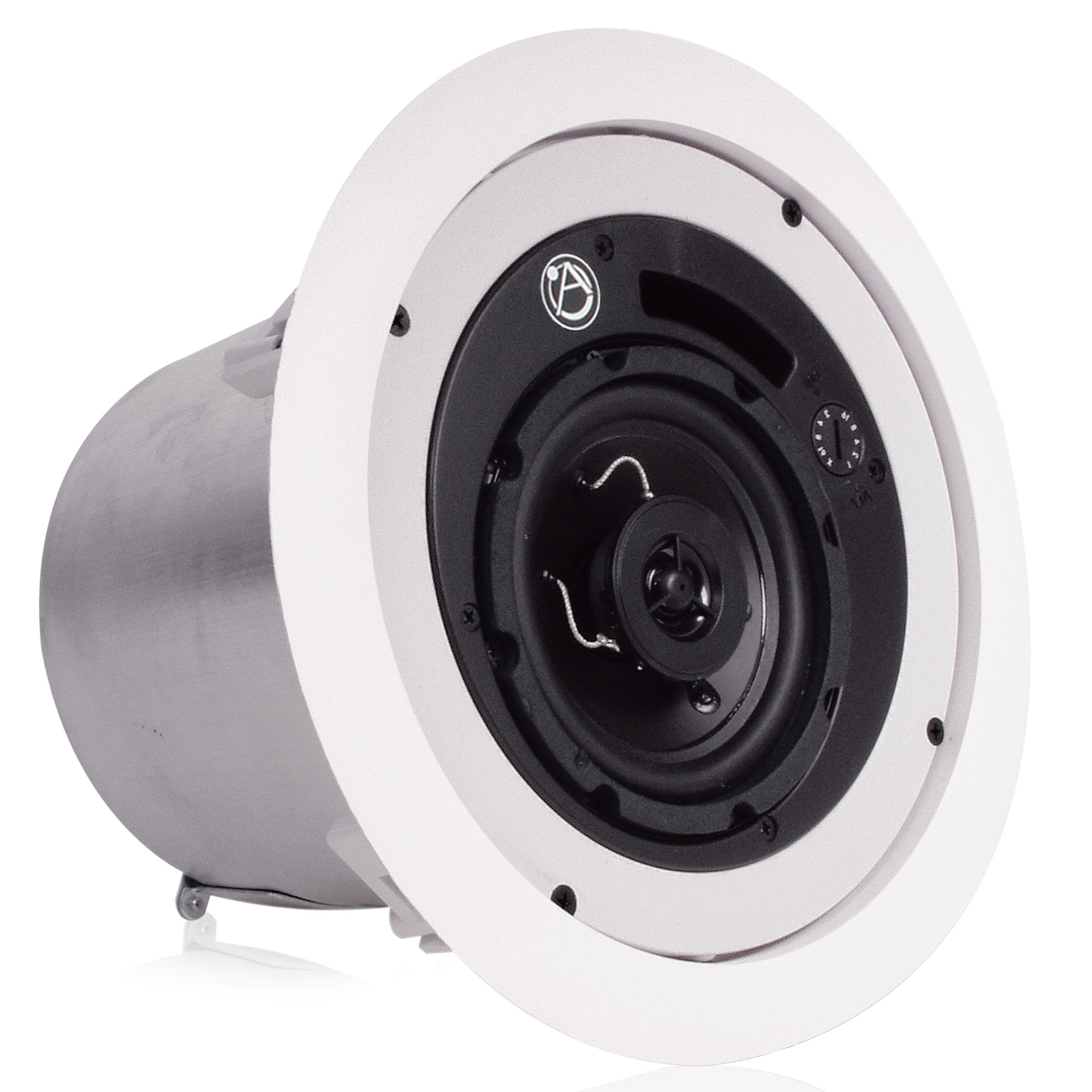

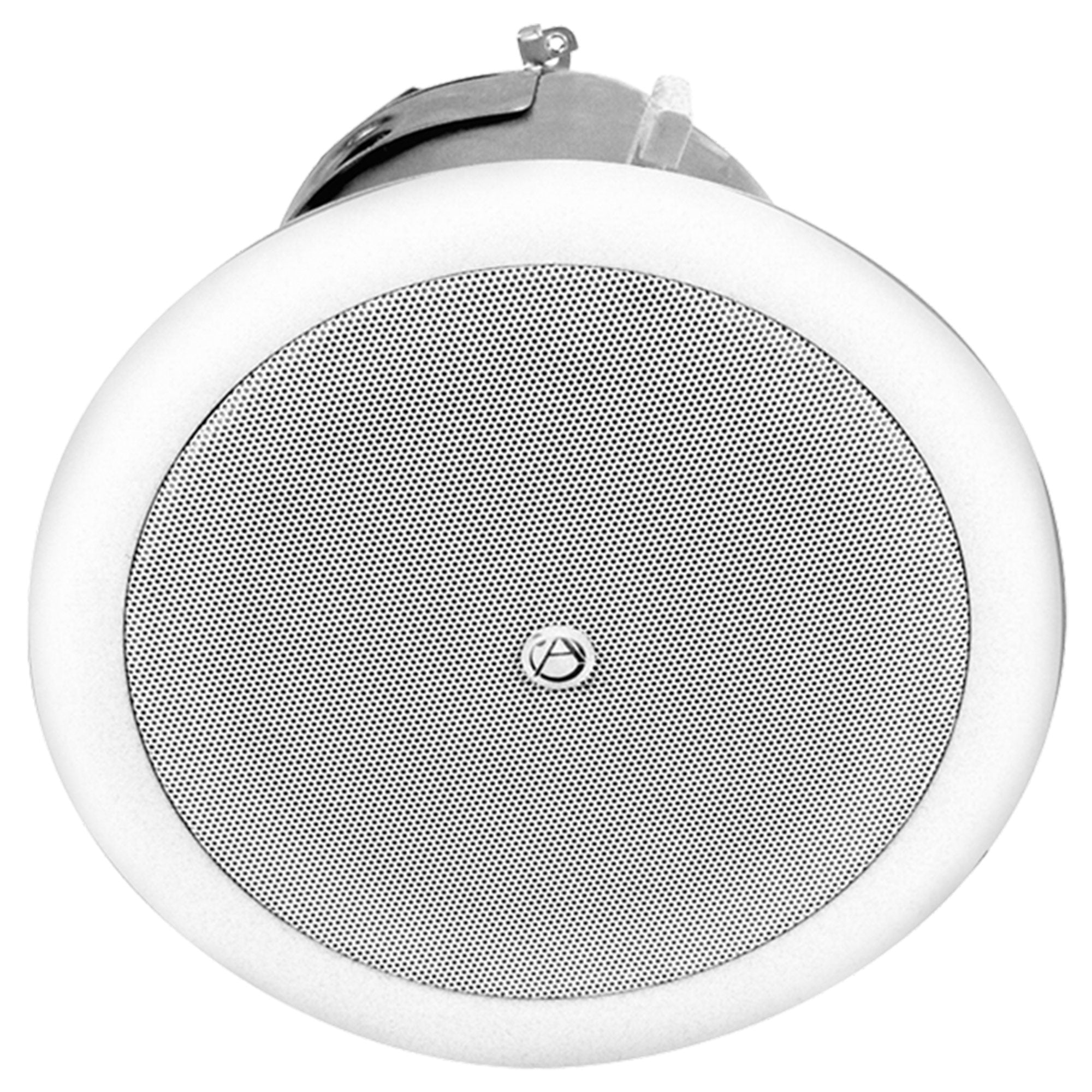

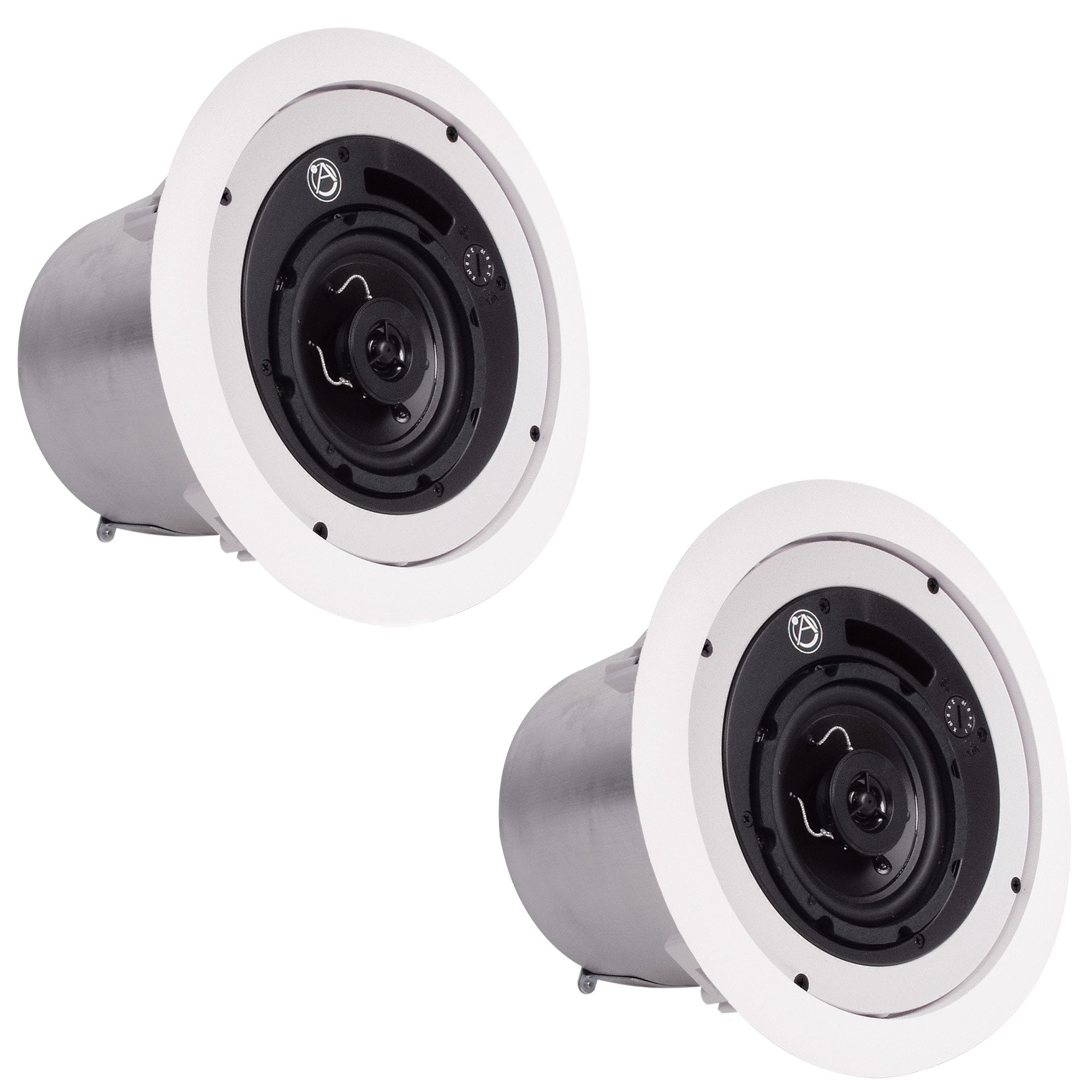

AtlasIED FAP42T 2-Way 4-Inch Ceiling Speaker System (8 Ohm/70.7V/100V)

Sale price$154.99 Regular price$192.99
Save $38.00
  • Availability:

    Special Order Item
  • This item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.


  • LET OUR TEAM OF EXPERTS ASSIST YOU

    Description

    Priced individually, but sold in pairs.

    Priced individually, but sold in pairs.

    FAP42T combines superiorÊcoaxial speakerÊperformance with wide dispersion and easy installation. A low profile enclosure and wide coverage make the FAP42T a perfect choice for low ceilings. The FAP42T will satisfy the needs of owners, architects, contractors, and consultants by delivering true, high fidelity sound reproduction in an attractive and easy-to-install system. The FAP42T is ideal for high-intelligibility voice, music, and signal reproduction in commercial, industrial, and institutional applications.

    Features:

    • 4 Pole Detachable "Phoenix" Style Connector Allows Easy Pre-Wiring and is Convenient for Daisy Chaining Additional Strategy Full Range Speakers or Subwoofers
    • Easy Installation in Drop Tile or Sheetrock Ceilings via C-ring/V-rail Tile Bridge and "Dog Leg" Mounting System (Included)
    • Enhanced Quality 70.7V/100V Internal Transformers Minimize Insertion Loss and Maintain Low Frequency Response While Providing increased Output for Higher SPL Applications
    • Extended Low Frequency Response from the 285 Cubic Inch Optimally Tuned and Ported Deep Drawn Galvanized Steel Enclosure
    • Front Mounted Tap Selector Switch for Easy System Tuning Adjustments Includes Transformer Bypass Setting for 8 ohm Direct Coupled Operation
    • Perfect Companion with the FAPSUB Subwoofer System When Sub Bass is Required
    • Press-Fit Grille Blends Perfectly into Contemporary Architecture
    Depth8 7/8 (22.5425 cm)
    Diameter10 1/2 (26.67 cm)
    Shipping Weight12.00 lbs (5.44 kgs)
    Frequency Response75Hz - 20kHz
    Power Taps1, 2, 4, 8, 16
    Speaker TypeCoaxial
    Dispersion130 deg.
    Sensitivity88dB Average
    UL Listed/Standard1480

    Priced individually, but sold in pairs.

    Priced individually, but sold in pairs.

    FAP42T combines superiorÊcoaxial speakerÊperformance with wide dispersion and easy installation. A low profile enclosure and wide coverage make the FAP42T a perfect choice for low ceilings. The FAP42T will satisfy the needs of owners, architects, contractors, and consultants by delivering true, high fidelity sound reproduction in an attractive and easy-to-install system. The FAP42T is ideal for high-intelligibility voice, music, and signal reproduction in commercial, industrial, and institutional applications.

    Features:

    • 4 Pole Detachable "Phoenix" Style Connector Allows Easy Pre-Wiring and is Convenient for Daisy Chaining Additional Strategy Full Range Speakers or Subwoofers
    • Easy Installation in Drop Tile or Sheetrock Ceilings via C-ring/V-rail Tile Bridge and "Dog Leg" Mounting System (Included)
    • Enhanced Quality 70.7V/100V Internal Transformers Minimize Insertion Loss and Maintain Low Frequency Response While Providing increased Output for Higher SPL Applications
    • Extended Low Frequency Response from the 285 Cubic Inch Optimally Tuned and Ported Deep Drawn Galvanized Steel Enclosure
    • Front Mounted Tap Selector Switch for Easy System Tuning Adjustments Includes Transformer Bypass Setting for 8 ohm Direct Coupled Operation
    • Perfect Companion with the FAPSUB Subwoofer System When Sub Bass is Required
    • Press-Fit Grille Blends Perfectly into Contemporary Architecture
    Depth8 7/8 (22.5425 cm)
    Diameter10 1/2 (26.67 cm)
    Shipping Weight12.00 lbs (5.44 kgs)
    Frequency Response75Hz - 20kHz
    Power Taps1, 2, 4, 8, 16
    Speaker TypeCoaxial
    Dispersion130 deg.
    Sensitivity88dB Average
    UL Listed/Standard1480
