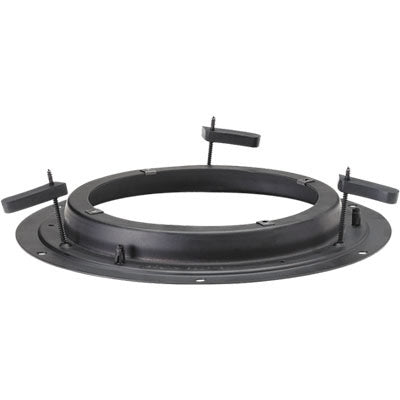

AtlasIED FAPR-4 Plaster Ring for 4-Inch Strategy Series Speakers
Availability:
In StockAvailable for shipment within one business day, or pickup from our Jamaica, NY warehouse during regular business hours.
Description
This Model plaster ring is used to mount Strategy Series 4 loudspeakers into ceilings and walls for applications where an enclosure cannot be used, or where it is not desired.Unit is constructed with the same internal mounting flange as FA97-4 and FA95-4 enclosures. It may be used to mount non-transformer equipped loudspeaker models into walls having a minimum. depth of 2 7/16. The FAPR-4 will facilitate installation of transformer-equipped loudspeaker models into walls with a minimum depth of 4 3/8.
Plaster ring is constructed of 20-gauge CRS and finished in textured black epoxy. It is equipped with four threaded inserts for loudspeaker installation and three stud receptacles for mounting Strategy Series grilles. The mounting mechanism is comprised of three rotating clamps (included).
Features- Constructed with the same internal mounting flange as FA97-4 and FA95-4 enclosure Includes flip tab dog ears for installation into wall or ceiling Threaded inserts for loudspeaker installation Tubular spring clips on flanged face accept ribbed weld studs on Strategy I grills Used to mount Strategy speakers where enclosure will not fit or is not desired
| Depth | 7/8 (2.22 cm) |
| Diameter | 6 1/2 (16.51 cm) |
| Shipping Weight | 0.67 lbs (0.30 kg) |
| UL Listed/Standard | 1480 |
This Model plaster ring is used to mount Strategy Series 4 loudspeakers into ceilings and walls for applications where an enclosure cannot be used, or where it is not desired.Unit is constructed with the same internal mounting flange as FA97-4 and FA95-4 enclosures. It may be used to mount non-transformer equipped loudspeaker models into walls having a minimum. depth of 2 7/16. The FAPR-4 will facilitate installation of transformer-equipped loudspeaker models into walls with a minimum depth of 4 3/8.
Plaster ring is constructed of 20-gauge CRS and finished in textured black epoxy. It is equipped with four threaded inserts for loudspeaker installation and three stud receptacles for mounting Strategy Series grilles. The mounting mechanism is comprised of three rotating clamps (included).
Features- Constructed with the same internal mounting flange as FA97-4 and FA95-4 enclosure Includes flip tab dog ears for installation into wall or ceiling Threaded inserts for loudspeaker installation Tubular spring clips on flanged face accept ribbed weld studs on Strategy I grills Used to mount Strategy speakers where enclosure will not fit or is not desired
| Depth | 7/8 (2.22 cm) |
| Diameter | 6 1/2 (16.51 cm) |
| Shipping Weight | 0.67 lbs (0.30 kg) |
| UL Listed/Standard | 1480 |
