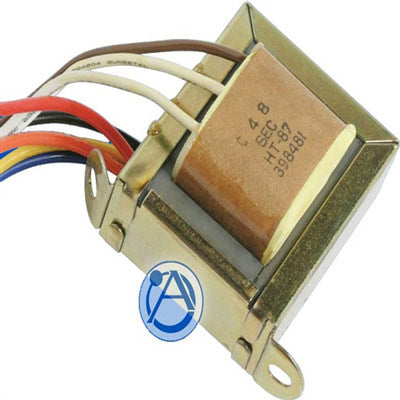

AtlasIED HT87 8-Watt 70-Volt Transformer
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
This product is a Industry standard, high quality transformer with audio grade laminations.The unit offers low insertion loss (not to exceed 1.0dB) and full-range frequency response (+1dB from 60 Hz to 12 kHz).Primary taps are 1, 2, 4 and 8 watts. Secondary impedance is 8 ohms. Model HT-87 is designed for use with 70.7-volt lines
Features- Constructed with audio grade laminations
- Frequency response is +/- 1 dB from 50Hz to 15KHz
- High quality matching transformer with only 0.6dB insertion loss
- Primary taps of 1, 2, 4, & 8 watts
| Height | 2 3/8(6.03 cm) |
| Width | 2(5.00 cm) |
| Depth | 1 1/16(2.62 cm) |
| Shipping Weight | 1.02 lbs(0.46 kg) |
| Frequency Response | +1dB-50Hz-15KHz |
| Power Taps | 1, 2, 4 / 8 |
| Power Rating | 8W |
| Primary Voltage | 70.7 |
This product is a Industry standard, high quality transformer with audio grade laminations.The unit offers low insertion loss (not to exceed 1.0dB) and full-range frequency response (+1dB from 60 Hz to 12 kHz).Primary taps are 1, 2, 4 and 8 watts. Secondary impedance is 8 ohms. Model HT-87 is designed for use with 70.7-volt lines
Features- Constructed with audio grade laminations
- Frequency response is +/- 1 dB from 50Hz to 15KHz
- High quality matching transformer with only 0.6dB insertion loss
- Primary taps of 1, 2, 4, & 8 watts
| Height | 2 3/8(6.03 cm) |
| Width | 2(5.00 cm) |
| Depth | 1 1/16(2.62 cm) |
| Shipping Weight | 1.02 lbs(0.46 kg) |
| Frequency Response | +1dB-50Hz-15KHz |
| Power Taps | 1, 2, 4 / 8 |
| Power Rating | 8W |
| Primary Voltage | 70.7 |
