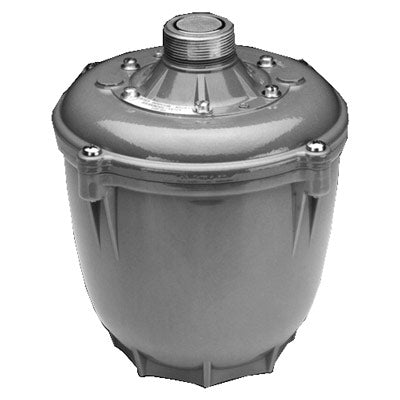

AtlasIED PD60AT 60-Watt Compression Driver with 70V Transformer


  • Dale #:

    ATLA-PD60AT
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock and needs to be ordered from the manufacturer. Your payment will be charged after completing checkout. We will strive to ship as soon as possible, pending availability.

Description

The PD-60AT is a fully environment-resistant 60 watt driver for indoor or outdoor applications recommended for use in expansive and/or high ambient sound-level areas. Features: Outstanding sound reproduction and power-handling for signaling, music and public address systems Extended frequency res... Read More

Free Shipping (Continental US)

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

The PD-60AT is a fully environment-resistant 60 watt driver for indoor or outdoor applications recommended for use in expansive and/or high ambient sound-level areas.

Features:
  • Outstanding sound reproduction and power-handling for signaling, music and public address systems
  • Extended frequency response range for Optimum intelligibility
  • 60 watt power rating
  • Environment-resistant construction for indoor/outdoor use
  • Offered with or without transformer

Models PD-60A and PD-60AT are fully environment-resistant 60 watt drivers for indoor or outdoor application and are recommended for use in expansive and/or high ambient sound-level areas. Models feature sound chamber, phasing plug, magnetic-structure components machined to optimum tolerances, 2" voice coil and offer a plane wave frequency response of 100 - 3,700 Hz (+5dB).

This series, which is comprised of a 16-ohm (PD-60A) and transformer (PD-60AT) versions,will meet a variety of applications. Model PD-60A provides screw-type terminals for matching direct to the 16 ohm voice coil impedance. The PD-60AT features a built-in varnish impregnated,multi-tap 70 volt line-matching transformer. Corrosion-resistant terminal connections are protected by a transparent, impact-resistant plastic cover which provides strain relief for the interconnecting cable.

Models PD-60A and PD-60AT are terminated in standard 1.375""–18" thread male couplings for use with screw-on horns, or with Atlas Sound Model DA-FH and YDA-TH adapters for bolt-on large format horns. Diaphragms are replaceable with appropriate equipment.Internal components are enclosed within protective die-cast housing and finished in grey baked epoxy.

More +

Product Specs

Height6⅞ (17.4625 cm)
Diameter6⅜ (16.1925 cm)
Shipping Weight8.66 lbs (3.93 kgs)
Frequency Response100 - 3,700 Hz
Power Taps2.5, 5, 10, 20, 40, 60W @70.7V
Power Rating60W
Sensitivity112.7 (avg) 100 - 3,700 Hz
VOICE COIL2(5cm)
sound level112.7(avg),100-3700hz(+/- 5db))
