Description

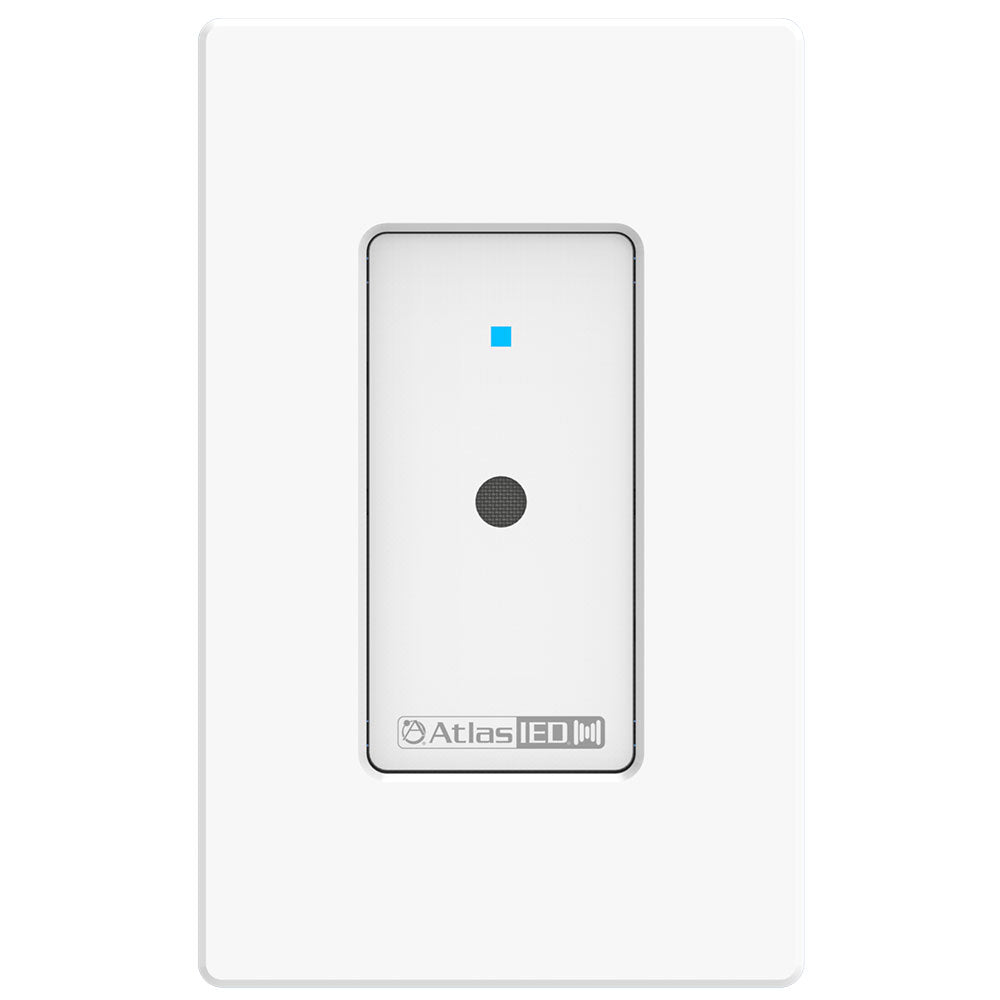

The Atmosphere X-ANS is an ambient noise sensor specifically for use with the Ambient Noise Compensation (ANC) functionality in the Atmosphere AZM. Ambient noise compensation allows for automatic adjustment of volume within a given zone based on how loud the environment is.
We’ve meticulously developed technology to better solve the installer/user experience by creating advanced DSP algorithms. Our patent-pending data collection technique pairs nicely with our patent-pending automatic ANC by learning from user adjustments at specific noise levels and enables the Atmosphere system to adapt a unique curve for each space. This learning algorithm results in environmental configurations that are worry-free.
The AZM can accept up to four X-ANS sensor per zone. And for those installations where privacy is of paramount importance, the X-ANS only sends sensor data back, not audio.
Each Atmosphere accessory is a plug-and-play, intelligent device, specifically designed to be approachable and intuitive. The Atmosphere accessory bus allows for up to 8 devices to be connected to a single accessory port, reliably sending audio and data over 1000ft per port.
Features:
- Calibration free design (manual calibration optional)
- No audio content is returned to host processor (AZM)
- Assign up to 4 X-ANS devices per zone
- Use up to 8 X-ANS devices per AZM
Data Returned to AZM | Non-audio |
Calibration | RMS, A-weighted, SPL |
Range | 30 - 110dBSPL |
Indicator | Blue = Locate |
Dimensions | 1.78" x 4.2" x 1.4" |
Minimum Box Depth | 2.25" |
