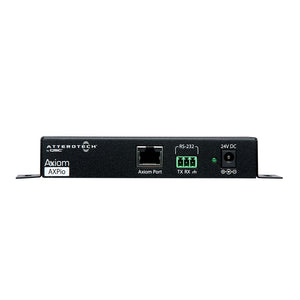

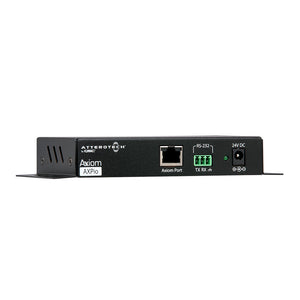

Attero Tech by QSC Axiom AXPio - Analog Audio Interface (for Axiom System)
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
Attero Tech by QSC Axiom Series products provide simple, flexible and cost-effective solutions for point-to-point analog audio extension over non-networked CAT-5 technology. The Axiom Series combines a single-gang USB, Bluetooth or XLR wallplate with an audio expander to offer easy integration of portable audio devices into an installed AV system, mixer or other audio destination.
Available with two Flex I/O channels, the Axiom AXPio audio expander pairs with up to two Axiom wallplates to integrate analog audio devices into your rooms audio system. Each expander unit offers RS-232 connectivity for control integration into a network AV system, such as the Q-SYS Ecosystem.
Features:
- Simple, flexible and installation-friendly solution for point-to-point analog audio signal extension over CAT-5/6

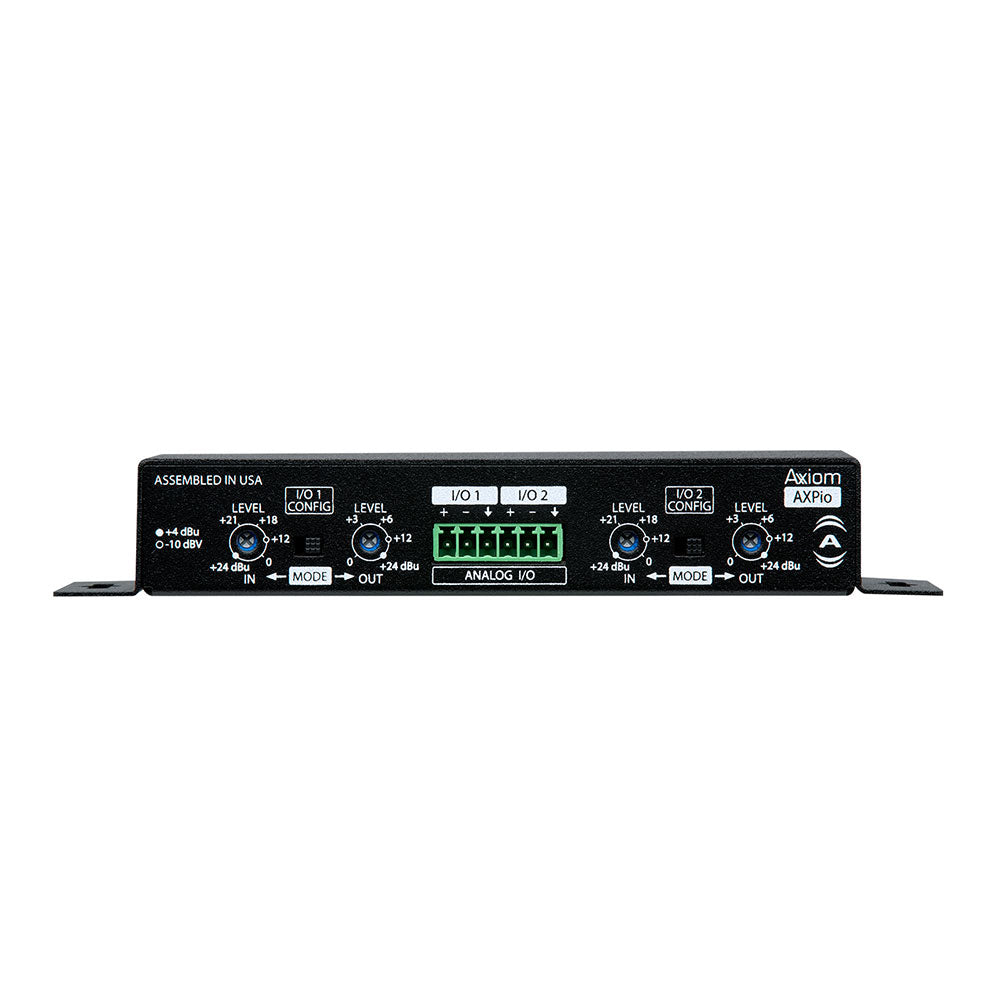

- Two balanced, line-level Flex I/O ports allow 2 x 0, 1 x 1 and 0 x 2 audio extension
- Supports up to +24 dBu analog audio signal level on inputs and outputs
- RS-232 allows for control integration into network AV systems
- Pairs with the Axiom ML1, USB1, BT1 wall plates.
| Audio Inputs / Outputs | |
| Connector type | 2 x line-level Flex IO on 3.81 mm depluggable terminal block connectors |
| Input gain | -4 dB to +20 dB |
| Output gain | 0 dB to +24 dBu |
| Maximum input level | +24 dBu |
| Maximum output level | '+24 dBuÊ |
| Axiom Port | |
| Physical layer | Analog audio, RS-232 control, 24 V DC power |
| Connector | 8P8C |
| Power requirements | +24 VDC @ 100 mA |
| Dimensions (HWD) | 2 x 10 x 5 in (51 x 254 x 127 mm) |
| Weight | 0.8 lb (0.4 kg) |
Attero Tech by QSC Axiom Series products provide simple, flexible and cost-effective solutions for point-to-point analog audio extension over non-networked CAT-5 technology. The Axiom Series combines a single-gang USB, Bluetooth or XLR wallplate with an audio expander to offer easy integration of portable audio devices into an installed AV system, mixer or other audio destination.
Available with two Flex I/O channels, the Axiom AXPio audio expander pairs with up to two Axiom wallplates to integrate analog audio devices into your rooms audio system. Each expander unit offers RS-232 connectivity for control integration into a network AV system, such as the Q-SYS Ecosystem.
Features:
- Simple, flexible and installation-friendly solution for point-to-point analog audio signal extension over CAT-5/6
- Two balanced, line-level Flex I/O ports allow 2 x 0, 1 x 1 and 0 x 2 audio extension
- Supports up to +24 dBu analog audio signal level on inputs and outputs
- RS-232 allows for control integration into network AV systems
- Pairs with the Axiom ML1, USB1, BT1 wall plates.
| Audio Inputs / Outputs | |
| Connector type | 2 x line-level Flex IO on 3.81 mm depluggable terminal block connectors |
| Input gain | -4 dB to +20 dB |
| Output gain | 0 dB to +24 dBu |
| Maximum input level | +24 dBu |
| Maximum output level | '+24 dBuÊ |
| Axiom Port | |
| Physical layer | Analog audio, RS-232 control, 24 V DC power |
| Connector | 8P8C |
| Power requirements | +24 VDC @ 100 mA |
| Dimensions (HWD) | 2 x 10 x 5 in (51 x 254 x 127 mm) |
| Weight | 0.8 lb (0.4 kg) |
