Attero Tech by QSC Axon DTH1620 - Dante / AES67 Networked Power Amplifier


  • Dale #:

    ATTE-DTH1620
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock and needs to be ordered from the manufacturer. Your payment will be charged after completing checkout. We will strive to ship as soon as possible, pending availability.

Description

The Attero Tech by QSC DTH1620 is multi-channel, low-power (16-channel x 20 watts) Dante/AES67 network amplifier, designed for themed entertainment usage and other specialized audio applications, and optimized for integration into the Q-SYS Ecosystem. Features: 16-ch, 20 W network amplifier... Read More

Free Shipping (Continental US)

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

The Attero Tech by QSC DTH1620 is multi-channel, low-power (16-channel x 20 watts) Dante/AES67 network amplifier, designed for themed entertainment usage and other specialized audio applications, and optimized for integration into the Q-SYS Ecosystem.

Features:

  • 16-ch, 20 W network amplifier designed for themed entertainment and other specialized audio applications
  • Ruggedized and vibration tested for use in mobile attractions
  • Dante/AES67 connectivity with remote control and monitoring
  • Loudspeaker outputs and power inputs use Molex connectors optimized for high vibration environments
  • Available Q-SYS Extension
  • Dante Domain Manager ready


Purpose built for themed entertainment and beyond – The Attero Tech by QSC DTH1620 Dante/AES67 network amplifier is designed to support high-channel, low power output audio applications, including individual theme park rides, attractions or parade floats. It features 16-channels at 20 watts per channel in a ruggedized and compact form factor, with the ability to support both traditional passive transducers and haptic transducers, enabling specialized audio applications beyond the theme park.

Q-SYS Ecosystem integration – Q-SYS drag-and-drop control programming simplifies the integration process, letting you deploy the DTH1620 Dante/AES67 network amplifier without complicated scripting.  A Q-SYS Extension allows for control and monitoring of the amplifier via native Q-SYS TSC series touch screen controller (as of Q-SYS Designer Software v8.4, the Q-SYS Scripting Engine license is not required to deploy designs with Attero Tech by QSC devices).

More +

Product Specs

Audio
Frequency response @ 1 W into 8 Ω 20 Hz - 20 kHz
Signal-to-noise 97 dB (20 W into 8 Ω)
Output circuitry Class D

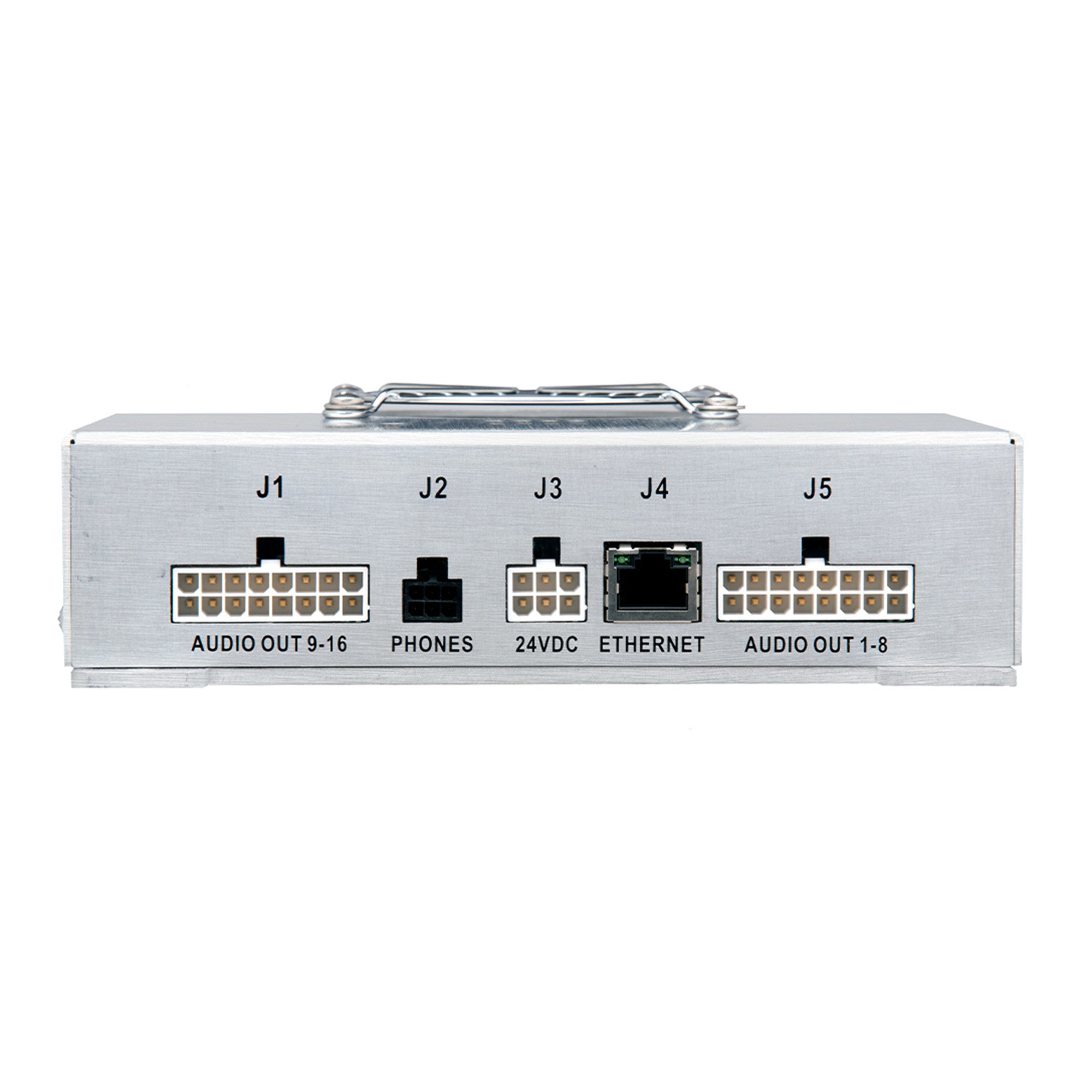

Connectors
Mic/line inputs Molex 6-pin, +24 V DC
Speaker outputs Molex 16-pin
Headphone/volume control Molex 6-pin
Ehternet RJ-45 with link and activity LED indicators
Power
Power Requirements +24 V DC @ 3 A, all channels 1/8 power
+24 V DC @ 17.5 A, all channels full power
Cooling Fan with thermal speed control
General
Dimensions 9 x 6.7 x 2.0 in (229 x 169 x 51 mm)
Weight 2.4 lbs (1.1 kg)
