Attero Tech by QSC Synapse D32Mi - Dante / AES67 Audio Interface
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description

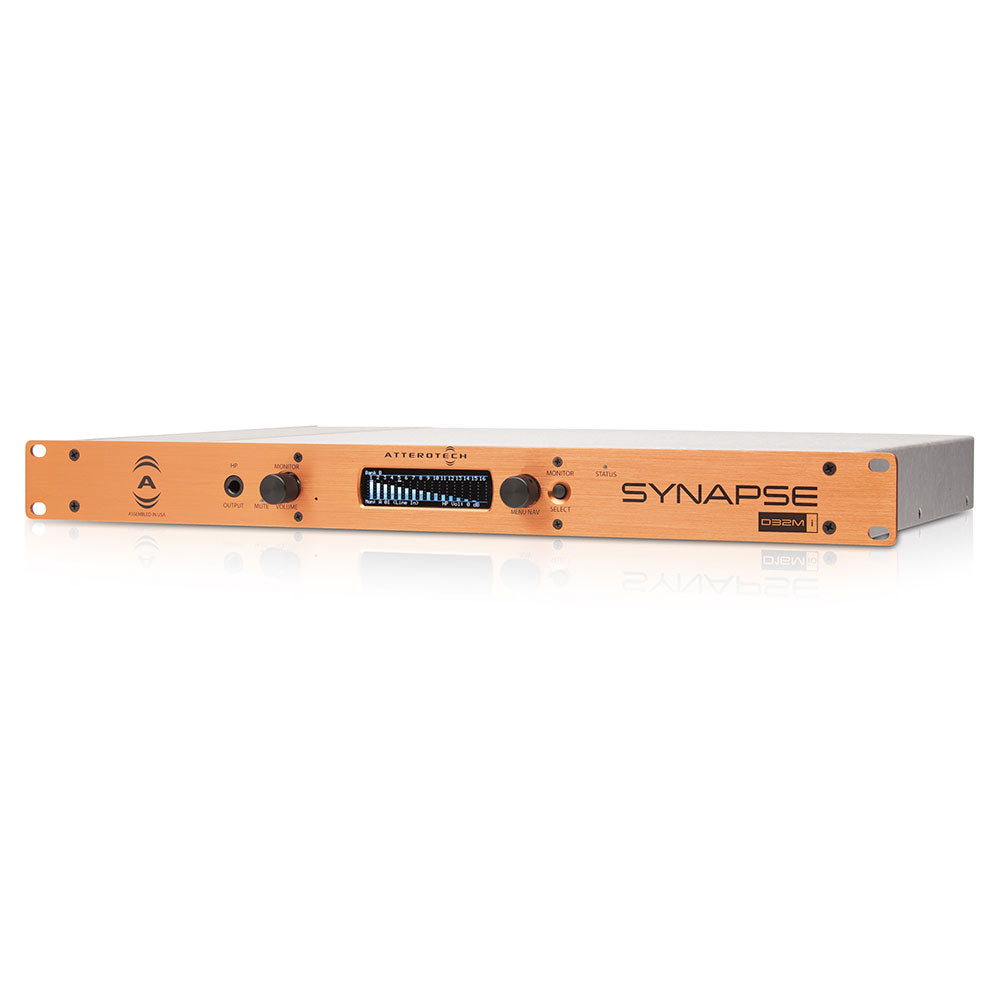

The Attero Tech by QSC Synapse D32Mi a high-performance, high-channel density networked audio interface supporting Dante™ with AES67 interoperability. It features 32 studio-grade mic/line preamps and is designed to address the needs of a wide range of commercial audio connectivity applications. It also offers quick access to gain, mute and phantom power controls along with front panel headphone access for local input and Dante™ confidence monitoring.
Features:
- 32 studio-grade mic/line preamps with line level capabilities
- Front panel offers network audio level control
- High performance analog-to-digital conversion on terminal block connectors.
- Software selectable pad can be configured for professional (+4 dBu) or consumer (-10 dBV) input levels for each 16 channel input bank.
- Available Q-SYS control plugin – no programming required
| Mic/Line Inputs | |
| Maximum input level | +24 dBu (pad active - Line mode) |
| Input impedance | 2k ½ (mic) | 10k ½ (line) |

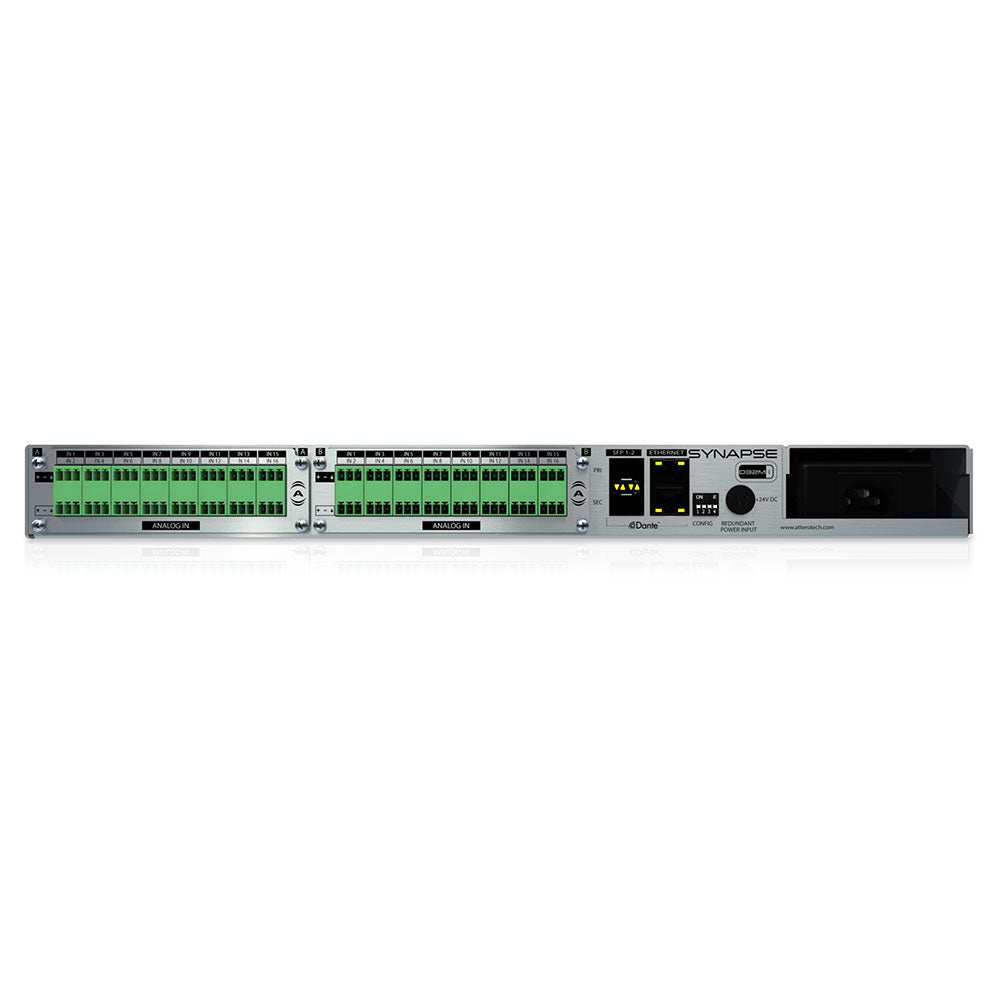

| Input type | 3-pin depluggable terminal block |
| Analog Outputs | |
| Maximum output level | +24 dBu |
| Output impedance | 200 ½ |
| Headphone Output | |
| Connector | 1/4 in TRS jack |
| Controls | Mute / volume encoder |
| Load | 32 ½ minimum |
| Audio Networking | |
| Protocol support | Danteª with AES67 support |
| Channel count | 32 Dante RX, 2 Dante RX |
| Modes | Switched or Redundant mode |
| Ports | 2 - Gb copper on RJ-45, 2 - Gb SFP |
| General | |
| Dimensions (HWD) | 1.75 x 19 x 12.5 in (44.5 x 482.6 x 5080 mm) |
| Weight | 6 lb (2.72 kg) |
The Attero Tech by QSC Synapse D32Mi a high-performance, high-channel density networked audio interface supporting Dante™ with AES67 interoperability. It features 32 studio-grade mic/line preamps and is designed to address the needs of a wide range of commercial audio connectivity applications. It also offers quick access to gain, mute and phantom power controls along with front panel headphone access for local input and Dante™ confidence monitoring.
Features:
- 32 studio-grade mic/line preamps with line level capabilities
- Front panel offers network audio level control
- High performance analog-to-digital conversion on terminal block connectors.
- Software selectable pad can be configured for professional (+4 dBu) or consumer (-10 dBV) input levels for each 16 channel input bank.
- Available Q-SYS control plugin – no programming required
| Mic/Line Inputs | |
| Maximum input level | +24 dBu (pad active - Line mode) |
| Input impedance | 2k ½ (mic) | 10k ½ (line) |
| Input type | 3-pin depluggable terminal block |
| Analog Outputs | |
| Maximum output level | +24 dBu |
| Output impedance | 200 ½ |
| Headphone Output | |
| Connector | 1/4 in TRS jack |
| Controls | Mute / volume encoder |
| Load | 32 ½ minimum |
| Audio Networking | |
| Protocol support | Danteª with AES67 support |
| Channel count | 32 Dante RX, 2 Dante RX |
| Modes | Switched or Redundant mode |
| Ports | 2 - Gb copper on RJ-45, 2 - Gb SFP |
| General | |
| Dimensions (HWD) | 1.75 x 19 x 12.5 in (44.5 x 482.6 x 5080 mm) |
| Weight | 6 lb (2.72 kg) |
