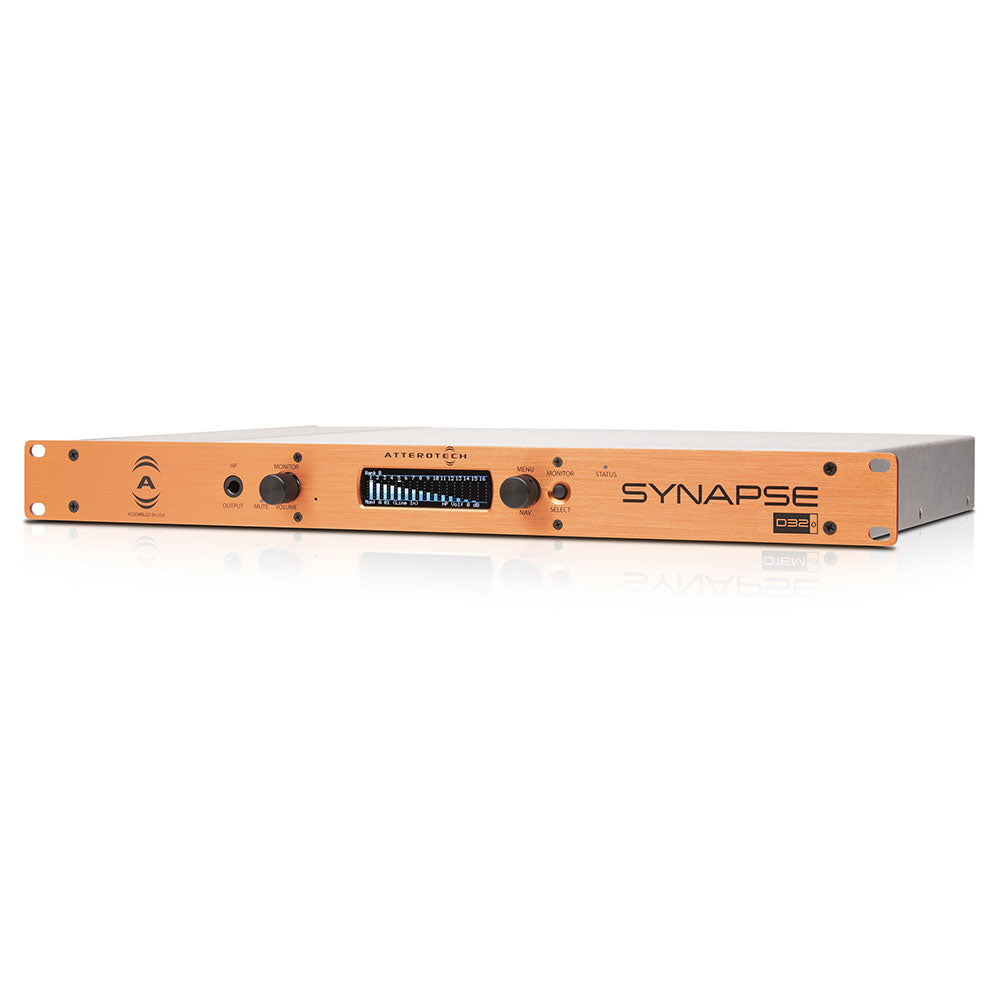

Attero Tech by QSC Synapse D32o - Dante / AES67 Audio Interface
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The Attero Tech by QSC Synapse D32o is a high-performance networked audio interface supporting Dante™ with AES67 interoperability. It features 32 balanced line level outputs with digitally controlled attenuation from 0 to -100 dB. All outputs are available independently for routing from the Dante / AES67 network audio interfaces.
Features:
- 32 balanced line level outputs
- Front panel for network audio level control
- Software-controllable output matrix routing
- Pairs with the Attero Tech by QSC Synapse D32i for high quality network audio signal extension, or driving large racks of analog input amplifiers
- Available Q-SYS Control plugin – no programming required
| Analog Outputs | |
| Maximum output level | +24 dBu |
| Output impedance | 200 ½ |
| Output type | 3-pin XLR-F |
| Headphone Output | |
| Connector | 0.25 in TRS jack |
| Controls | Mute / volume encoder |
| Load | 32 ½ minimum |
| Audio Networking | |
| Protocol support | Danteª with AES67 support |
| Channel count | 32 Dante RX |
| Modes | Switched or Redundant mode |
| Ports | 2 x 1 Gb copper on RJ-45, 2 x 1 Gb SFP |
| General | |
| Dimensions (HWD) | 1.75 x 19 x 12.5 in (44.5 x 482.6 x 5080 mm) |
| Weight | 6 lb (2.72 kg) |
The Attero Tech by QSC Synapse D32o is a high-performance networked audio interface supporting Dante™ with AES67 interoperability. It features 32 balanced line level outputs with digitally controlled attenuation from 0 to -100 dB. All outputs are available independently for routing from the Dante / AES67 network audio interfaces.
Features:
- 32 balanced line level outputs
- Front panel for network audio level control
- Software-controllable output matrix routing
- Pairs with the Attero Tech by QSC Synapse D32i for high quality network audio signal extension, or driving large racks of analog input amplifiers
- Available Q-SYS Control plugin – no programming required
| Analog Outputs | |
| Maximum output level | +24 dBu |
| Output impedance | 200 ½ |
| Output type | 3-pin XLR-F |
| Headphone Output | |
| Connector | 0.25 in TRS jack |
| Controls | Mute / volume encoder |
| Load | 32 ½ minimum |
| Audio Networking | |
| Protocol support | Danteª with AES67 support |
| Channel count | 32 Dante RX |
| Modes | Switched or Redundant mode |
| Ports | 2 x 1 Gb copper on RJ-45, 2 x 1 Gb SFP |
| General | |
| Dimensions (HWD) | 1.75 x 19 x 12.5 in (44.5 x 482.6 x 5080 mm) |
| Weight | 6 lb (2.72 kg) |
