DALE SKU # AUDT-ORIA

Audient ORIA - Immersive Audio Interface and Monitor Controller

Sale price$3,499.99 Regular price$4,899.99
Save $1,400.00
  • Availability:

    Special Order Item
  • This item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.


  • LET OUR TEAM OF EXPERTS ASSIST YOU

    Description

    Meet ORIA, the world's first audio interface and monitor controller designed specifically with immersive audio in mind. Built for creating immersive audio mixes for formats such as Dolby Atmos, ORIA lets you calibrate, control and monitor multi-channel speaker arrays from stereo up to 9.1.6 and everything in between. Perfect for music, film, TV, game and VR production.

    Features:

    • Supports up to 9.1.6 Speaker Setups
    • 2 x 16 Channel Surround Outputs (Analogue or AES)
    • 2 x Stereo Line Outputs (Relay Switched)
    • 2 x Independent Stereo Headphone Outputs
    • 2 x Audient Mic Preamps (Mic / D.I / Line)
    • 2 x ADAT Inputs
    • Word Clock Input
    • Word Clock Output
    • ORIA Motion UI
    • 24 bit / 96kHz
    • USB 2.0 / USB Type-C
    • Sonarworks SoundID Reference Measurement Microphone Included
    • Optional AoIP Card (Dante) for 16 Input channels

    Immersive Monitoring Control

    • Input / Output Switching
    • Master Volume Control
    • Global Delay (lip sync)
    • Individual Speaker Solo / Mute
    • Speaker Group Solo / Mute
    • Per Channel Metering (pre / post)
    • Down Mix Cycling – Dolby Renderer Integrated
    • Programmable Function Button

    Onboard Room Calibration DSP

    • Per Output EQ
    • Per Output Delay
    • Per Output Trim
    • Per Output Crossover (Bass Management)
    • Profile Switching – Sonarworks Integrated
    • Configurable Global Bypass


    A perfect fit

    Designed with a dual purpose, ORIA not only excels as a powerful USB-C audio interface providing 16 outputs for up to 9.1.6 mixing workflows, but can also effortlessly integrate into your existing studio setup as a standalone monitor controller via its ADAT Inputs. Flexibility where you need it.

    Advanced Speaker Processing
    Working with multi-channel speaker setups requires a precisely calibrated room but let's face it, calibrating your room is a difficult and time consuming process. But what if it didn't have to be?

    All Present And Correct
    ORIA's Advanced Speaker Processing lets you calibrate your room and create custom onboard calibration Profiles (presets) for any monitoring format from stereo to surround to 9.1.6 immersive setups, making reference checking your mix in different formats a breeze.

    Trim
    Adjust the level of every speaker individually to ensure a balanced soundfield.

    Speaker Delay
    Make sure audio from every speaker arrives at the mix position precisely at the same time.

    Bass Management
    Accurately hear ALL of the bass and low end frequencies in your mix with ORIA's bass management controls, featuring a per channel configurable crossover filter.

    8 Band EQ
    Deal with unwanted acoustic issues and colouration to ensure a flat and consistent translation of your audio. Add to that the ability to calibrate your room in one of two ways. Either create a Profile by manually taking room measurements and dialling in the calibration settings or take advantage of upgrading to SoundID Reference…

    It Just Works - SonarWorks
    Audient teamed up with room calibration heavyweights Sonarworks to bring you a seamless integration with SoundID Reference letting you accurately measure and calibrate multi-channel setups in less than an hour. With a SoundID Reference Microphone and 60 day free trial of SoundID Reference for Multichannel software included, ORIA lets you create custom SoundID Profiles for different monitoring formats and target modes, load them into ORIA and take advantage of consistently accurate and low latency immersive audio.

    CPU Later
    And the best part is, ALL of ORIA's Advanced Speaker Processing, whether using manual or SoundID calibrations, runs directly off its lightning fast onboard DSP Dual Processor Architecture. Delivering low latency audio and freeing up your computer's CPU for bigger and more demanding sessions. Unlock better performance and be more productive.

    All the information you need, in one place
    Easy to navigate, easy to control. ORIA gives you powerful new ways to truly take control of any stereo, surround or immersive environment courtesy of its beautifully simple software.

    Fast Profile Recall
    Use Profiles to quickly switch between speakers, listening levels and target curves. Imagine instantly switching from your perfectly calibrated stereo nearfield speakers to a 9.1.6 immersive setup with Dolby X-Curve. Now, you can with a touch of a button.

    Speaker Control
    Fly around your session at high speeds with true immersive monitor control. Featuring colour coded speaker groups, individual and group speaker mute/solo, global Volume Control, Cut and Dim and a Global Delay (Lip-sync) for post production workflows.

    Metering
    Keep an eye on your metering from multiple locations including ORIA's front panel LCD screen, desktop software or iPad remote. Still need more detail? Expand ORIA's desktop metering via an independent window, unlocking additional visual feedback.

    Dolby Atmos Support
    ORIA integrates with the Dolby Renderer, letting you take control of the down mix functionality directly from ORIA's user interface. Ideal for quickly checking your mix in different monitoring layouts, such as 7.1, 5.1, stereo and more.

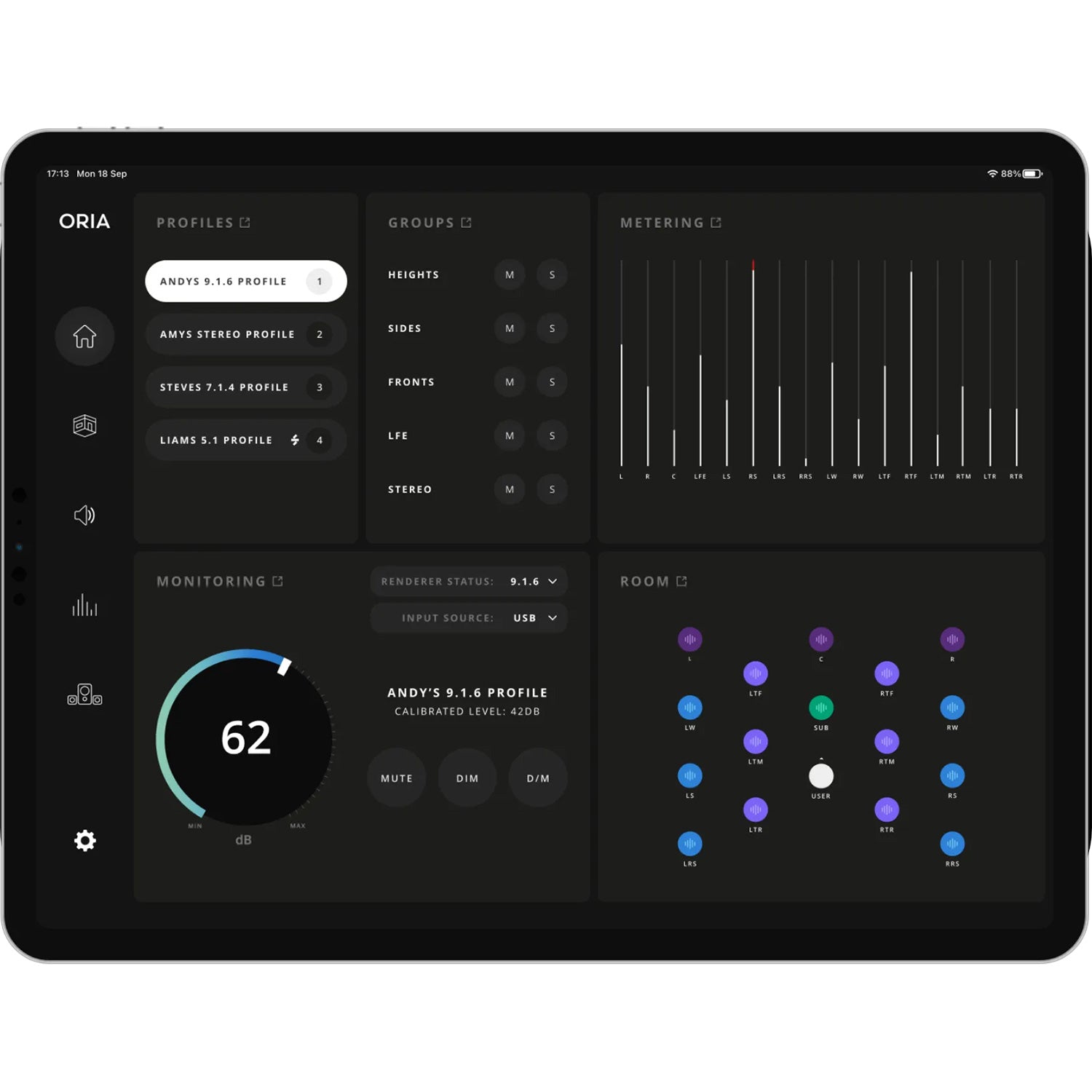

    Go remote
    Never miss a beat with ORIA's iPad Control App. The power of touch grants you remote access to all of ORIA's control features from one centralised control hub. Adjust levels, audition speakers, switch profiles and monitor your metering – all directly from your desktop. Precise control without the complexity.

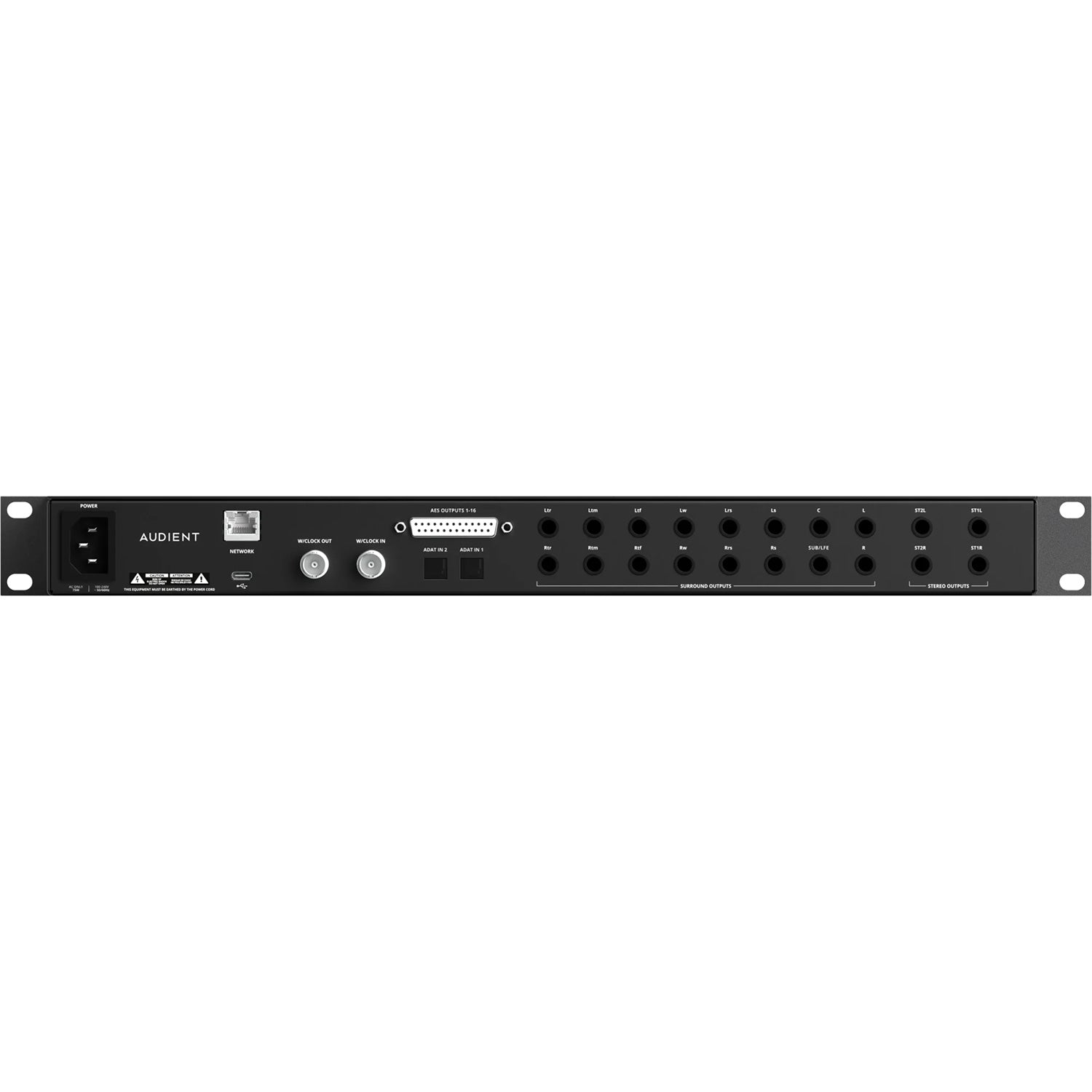

    Make that connection
    With a huge array of connectivity options, ORIA provides more than enough I/O to take on professional multi channel setups. Plug in your surround speakers via the line or AES outputs. Connect your nearfield speakers to the dedicated Stereo Outputs. And easily integrate an external interface or preamp using the ADAT inputs.

    • 1. Optional Dante Inputs
      Integrate into AoIP workflows with the optional Dante Card.
    • 2. Word Clock Input / Output
      BNC connections for integration into larger installations.
    • 3. AES Outputs
      8 pairs of AES Digital Outputs for interfacing with Digital Speakers.
    • 4. ADAT Inputs
      16 ADAT input channels for use as an external 9.1.6 monitor controller or traditional multi-channel recording.
    • 5. Surround Outputs
      16 Balanced Analog Outputs for up to 9.1.6 monitoring.
    • 6. Dedicated Stereo Outputs
      Dedicated stereo outputs for non-immersive integrated near fields.

    USB POWERED
    Connecting via a high-speed USB connection, ORIA offers ultra low latency monitoring, and rock solid driver performance for both macOS and Windows.

    OPTIONAL DANTE CARD
    Providing up to 16 input channels over AoIP, ORIA's optional Dante Card lets you quickly integrate with new or existing AoIP networks, making your move to immersive seamless. Ideal for large studio complexes and educational facilities.

    High Performance Converters
    Mix with confidence. Thanks to a massive 126dB of dynamic range, your mixes will sound more detailed than ever with ORIA's high performance AD/DA converters. Built to deliver the most honest translation of your audio, help you hear subtle detail, identify problematic issues and make better mix decisions. Total clarity, for taking your mixes to the next level.

    Audient Console Mic Preamps
    Designed to deliver ultra-low noise and low distortion with a touch of classic analogue warmth, ORIA's two Audient Console Mic Preamps deliver 60dB of gain and will work as mic, line or Hi-Z instrument inputs. Giving you clean, accurate and true to source translation of your audio.

    An analogue preamp, but smarter.
    And for the first time ever, the Audient Console Mic Preamp is now remote controlled. Optimised to give you the sonic benefits of its all analogue design alongside pinpoint accurate digital control.

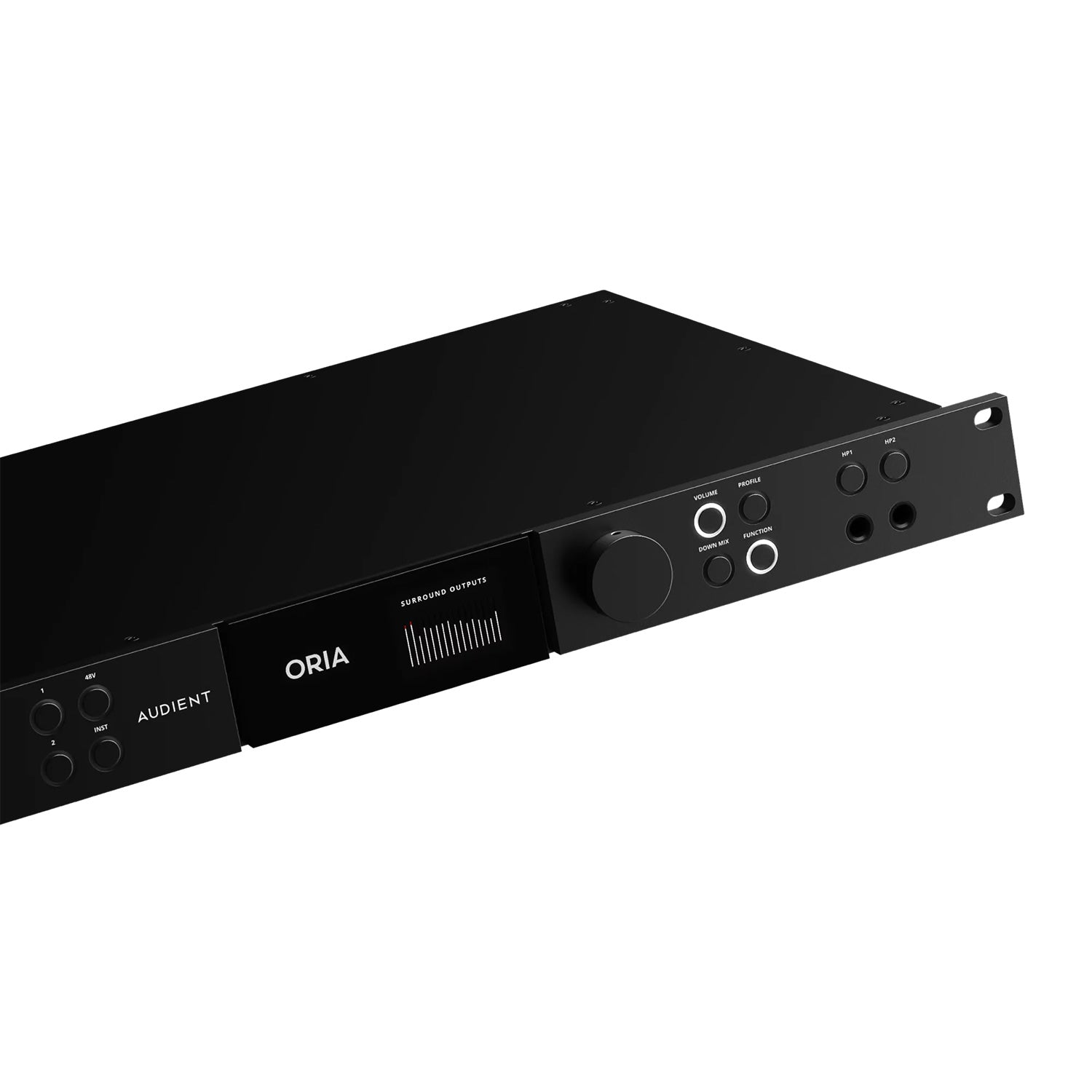

    A real head-turner
    A real jaw dropper. ORIA's Ring LED buttons and backlit LCD screen are designed to shine, and a striking all black finish adds a touch of class. Who said studio gear has to look boring?

    Ready to face the world
    An 8mm thick faceplate and solid steel design means ORIA is ready to withstand studio wear and tear. And ORIA's fanless design means it is whisper quiet, ready to sit front and centre in your studio.

    Microphone Inputs
    Gain 60dB
    Max Input Level +18dBu
    Crosstalk <105dB
    THD+N 0.0015% / -96dB
    EIN -129dB
    CMRR -85dB
    SNR 100dB
    Frequency Response ±0.5dB 20Hz to 40kHz
    Input Impedance 1.5k½ Balanced
    Line Inputs
    Gain -10dB to +50dB
    Max Input Level +18dBu
    THD+N 0.0015% / -96dB
    Input Impedance 4.7k½ Balanced
    D.I / Instrument Input
    Gain 60dB
    Max Input Level +18dBu
    THD+N 0.16%
    SNR 100dB
    Frequency Response ±0.5dB 20Hz to 40kHz
    Input Impedance 370k½ Unbalanced
    Line Outputs
    Lineup Level +18dBu
    THD+N 0.0006%, -105dB
    Dynamic Range 126.5dB
    Crosstalk -123dB
    Frequency Response ±0.3dB 10Hz to 40kHz
    Output Impedance <100½ Balanced
    Headphone Outputs
    Lineup Level +18dBu
    THD+N 0.0007% (-103dB)
    Dynamic Range 124dB
    Crosstalk -115dB
    Frequency Response ±0.25dB 10Hz to 40kHz
    Output Impedance <50 ½ Unbalanced
    Max Level @ 30R 5.47V Peak, 3.87Vrms, 997mW
    Max Level @ 60R 7.4V Peak, 5.29Vrms, 912mW
    Max Level @ 600R 8.6V Peak, 6.09Vrms, 123mW
    USB-C
    Connector USB Type C
    Included Cable USB Type-C to Type-C
    Number of Input Channels 34 (2x Analogue, 16 Digital, 16 AOIP*)
    *With AOIP card fitted
    Number of Output Channels 38 (20 Line Outs, 2x Stereo Headphone Outs, 16x AES)
    Digital Inputs
    ADAT 16 Channels 44.1kHz to 48kHz
    ADAT 8 Channels (SMUX) 88.2kHz to 96kHz
    Digital Outputs
    AES Outputs 16 Audio Channels (8x AES Data Streams)
    Word Clock Input and Output
    Word Clock 44.1kHz to 96kHz
    DSP Latency
    Round Trip TBC
    AOIP (Optional Dante Expansion Card)
    AOIP Inputs 16 (44.1kHz to 96kHz)
    Power Supply
    Input Voltage 85 Ð 264 VAC
    Input Frequency 47 Ð 63Hz

    Meet ORIA, the world's first audio interface and monitor controller designed specifically with immersive audio in mind. Built for creating immersive audio mixes for formats such as Dolby Atmos, ORIA lets you calibrate, control and monitor multi-channel speaker arrays from stereo up to 9.1.6 and everything in between. Perfect for music, film, TV, game and VR production.

    Features:

    • Supports up to 9.1.6 Speaker Setups
    • 2 x 16 Channel Surround Outputs (Analogue or AES)
    • 2 x Stereo Line Outputs (Relay Switched)
    • 2 x Independent Stereo Headphone Outputs
    • 2 x Audient Mic Preamps (Mic / D.I / Line)
    • 2 x ADAT Inputs
    • Word Clock Input
    • Word Clock Output
    • ORIA Motion UI
    • 24 bit / 96kHz
    • USB 2.0 / USB Type-C
    • Sonarworks SoundID Reference Measurement Microphone Included
    • Optional AoIP Card (Dante) for 16 Input channels

    Immersive Monitoring Control

    • Input / Output Switching
    • Master Volume Control
    • Global Delay (lip sync)
    • Individual Speaker Solo / Mute
    • Speaker Group Solo / Mute
    • Per Channel Metering (pre / post)
    • Down Mix Cycling – Dolby Renderer Integrated
    • Programmable Function Button

    Onboard Room Calibration DSP

    • Per Output EQ
    • Per Output Delay
    • Per Output Trim
    • Per Output Crossover (Bass Management)
    • Profile Switching – Sonarworks Integrated
    • Configurable Global Bypass


    A perfect fit

    Designed with a dual purpose, ORIA not only excels as a powerful USB-C audio interface providing 16 outputs for up to 9.1.6 mixing workflows, but can also effortlessly integrate into your existing studio setup as a standalone monitor controller via its ADAT Inputs. Flexibility where you need it.

    Advanced Speaker Processing
    Working with multi-channel speaker setups requires a precisely calibrated room but let's face it, calibrating your room is a difficult and time consuming process. But what if it didn't have to be?

    All Present And Correct
    ORIA's Advanced Speaker Processing lets you calibrate your room and create custom onboard calibration Profiles (presets) for any monitoring format from stereo to surround to 9.1.6 immersive setups, making reference checking your mix in different formats a breeze.

    Trim
    Adjust the level of every speaker individually to ensure a balanced soundfield.

    Speaker Delay
    Make sure audio from every speaker arrives at the mix position precisely at the same time.

    Bass Management
    Accurately hear ALL of the bass and low end frequencies in your mix with ORIA's bass management controls, featuring a per channel configurable crossover filter.

    8 Band EQ
    Deal with unwanted acoustic issues and colouration to ensure a flat and consistent translation of your audio. Add to that the ability to calibrate your room in one of two ways. Either create a Profile by manually taking room measurements and dialling in the calibration settings or take advantage of upgrading to SoundID Reference…

    It Just Works - SonarWorks
    Audient teamed up with room calibration heavyweights Sonarworks to bring you a seamless integration with SoundID Reference letting you accurately measure and calibrate multi-channel setups in less than an hour. With a SoundID Reference Microphone and 60 day free trial of SoundID Reference for Multichannel software included, ORIA lets you create custom SoundID Profiles for different monitoring formats and target modes, load them into ORIA and take advantage of consistently accurate and low latency immersive audio.

    CPU Later
    And the best part is, ALL of ORIA's Advanced Speaker Processing, whether using manual or SoundID calibrations, runs directly off its lightning fast onboard DSP Dual Processor Architecture. Delivering low latency audio and freeing up your computer's CPU for bigger and more demanding sessions. Unlock better performance and be more productive.

    All the information you need, in one place
    Easy to navigate, easy to control. ORIA gives you powerful new ways to truly take control of any stereo, surround or immersive environment courtesy of its beautifully simple software.

    Fast Profile Recall
    Use Profiles to quickly switch between speakers, listening levels and target curves. Imagine instantly switching from your perfectly calibrated stereo nearfield speakers to a 9.1.6 immersive setup with Dolby X-Curve. Now, you can with a touch of a button.

    Speaker Control
    Fly around your session at high speeds with true immersive monitor control. Featuring colour coded speaker groups, individual and group speaker mute/solo, global Volume Control, Cut and Dim and a Global Delay (Lip-sync) for post production workflows.

    Metering
    Keep an eye on your metering from multiple locations including ORIA's front panel LCD screen, desktop software or iPad remote. Still need more detail? Expand ORIA's desktop metering via an independent window, unlocking additional visual feedback.

    Dolby Atmos Support
    ORIA integrates with the Dolby Renderer, letting you take control of the down mix functionality directly from ORIA's user interface. Ideal for quickly checking your mix in different monitoring layouts, such as 7.1, 5.1, stereo and more.

    Go remote
    Never miss a beat with ORIA's iPad Control App. The power of touch grants you remote access to all of ORIA's control features from one centralised control hub. Adjust levels, audition speakers, switch profiles and monitor your metering – all directly from your desktop. Precise control without the complexity.

    Make that connection
    With a huge array of connectivity options, ORIA provides more than enough I/O to take on professional multi channel setups. Plug in your surround speakers via the line or AES outputs. Connect your nearfield speakers to the dedicated Stereo Outputs. And easily integrate an external interface or preamp using the ADAT inputs.

    • 1. Optional Dante Inputs
      Integrate into AoIP workflows with the optional Dante Card.
    • 2. Word Clock Input / Output
      BNC connections for integration into larger installations.
    • 3. AES Outputs
      8 pairs of AES Digital Outputs for interfacing with Digital Speakers.
    • 4. ADAT Inputs
      16 ADAT input channels for use as an external 9.1.6 monitor controller or traditional multi-channel recording.
    • 5. Surround Outputs
      16 Balanced Analog Outputs for up to 9.1.6 monitoring.
    • 6. Dedicated Stereo Outputs
      Dedicated stereo outputs for non-immersive integrated near fields.

    USB POWERED
    Connecting via a high-speed USB connection, ORIA offers ultra low latency monitoring, and rock solid driver performance for both macOS and Windows.

    OPTIONAL DANTE CARD
    Providing up to 16 input channels over AoIP, ORIA's optional Dante Card lets you quickly integrate with new or existing AoIP networks, making your move to immersive seamless. Ideal for large studio complexes and educational facilities.

    High Performance Converters
    Mix with confidence. Thanks to a massive 126dB of dynamic range, your mixes will sound more detailed than ever with ORIA's high performance AD/DA converters. Built to deliver the most honest translation of your audio, help you hear subtle detail, identify problematic issues and make better mix decisions. Total clarity, for taking your mixes to the next level.

    Audient Console Mic Preamps
    Designed to deliver ultra-low noise and low distortion with a touch of classic analogue warmth, ORIA's two Audient Console Mic Preamps deliver 60dB of gain and will work as mic, line or Hi-Z instrument inputs. Giving you clean, accurate and true to source translation of your audio.

    An analogue preamp, but smarter.
    And for the first time ever, the Audient Console Mic Preamp is now remote controlled. Optimised to give you the sonic benefits of its all analogue design alongside pinpoint accurate digital control.

    A real head-turner
    A real jaw dropper. ORIA's Ring LED buttons and backlit LCD screen are designed to shine, and a striking all black finish adds a touch of class. Who said studio gear has to look boring?

    Ready to face the world
    An 8mm thick faceplate and solid steel design means ORIA is ready to withstand studio wear and tear. And ORIA's fanless design means it is whisper quiet, ready to sit front and centre in your studio.

    Microphone Inputs
    Gain 60dB
    Max Input Level +18dBu
    Crosstalk <105dB
    THD+N 0.0015% / -96dB
    EIN -129dB
    CMRR -85dB
    SNR 100dB
    Frequency Response ±0.5dB 20Hz to 40kHz
    Input Impedance 1.5k½ Balanced
    Line Inputs
    Gain -10dB to +50dB
    Max Input Level +18dBu
    THD+N 0.0015% / -96dB
    Input Impedance 4.7k½ Balanced
    D.I / Instrument Input
    Gain 60dB
    Max Input Level +18dBu
    THD+N 0.16%
    SNR 100dB
    Frequency Response ±0.5dB 20Hz to 40kHz
    Input Impedance 370k½ Unbalanced
    Line Outputs
    Lineup Level +18dBu
    THD+N 0.0006%, -105dB
    Dynamic Range 126.5dB
    Crosstalk -123dB
    Frequency Response ±0.3dB 10Hz to 40kHz
    Output Impedance <100½ Balanced
    Headphone Outputs
    Lineup Level +18dBu
    THD+N 0.0007% (-103dB)
    Dynamic Range 124dB
    Crosstalk -115dB
    Frequency Response ±0.25dB 10Hz to 40kHz
    Output Impedance <50 ½ Unbalanced
    Max Level @ 30R 5.47V Peak, 3.87Vrms, 997mW
    Max Level @ 60R 7.4V Peak, 5.29Vrms, 912mW
    Max Level @ 600R 8.6V Peak, 6.09Vrms, 123mW
    USB-C
    Connector USB Type C
    Included Cable USB Type-C to Type-C
    Number of Input Channels 34 (2x Analogue, 16 Digital, 16 AOIP*)
    *With AOIP card fitted
    Number of Output Channels 38 (20 Line Outs, 2x Stereo Headphone Outs, 16x AES)
    Digital Inputs
    ADAT 16 Channels 44.1kHz to 48kHz
    ADAT 8 Channels (SMUX) 88.2kHz to 96kHz
    Digital Outputs
    AES Outputs 16 Audio Channels (8x AES Data Streams)
    Word Clock Input and Output
    Word Clock 44.1kHz to 96kHz
    DSP Latency
    Round Trip TBC
    AOIP (Optional Dante Expansion Card)
    AOIP Inputs 16 (44.1kHz to 96kHz)
    Power Supply
    Input Voltage 85 Ð 264 VAC
    Input Frequency 47 Ð 63Hz
