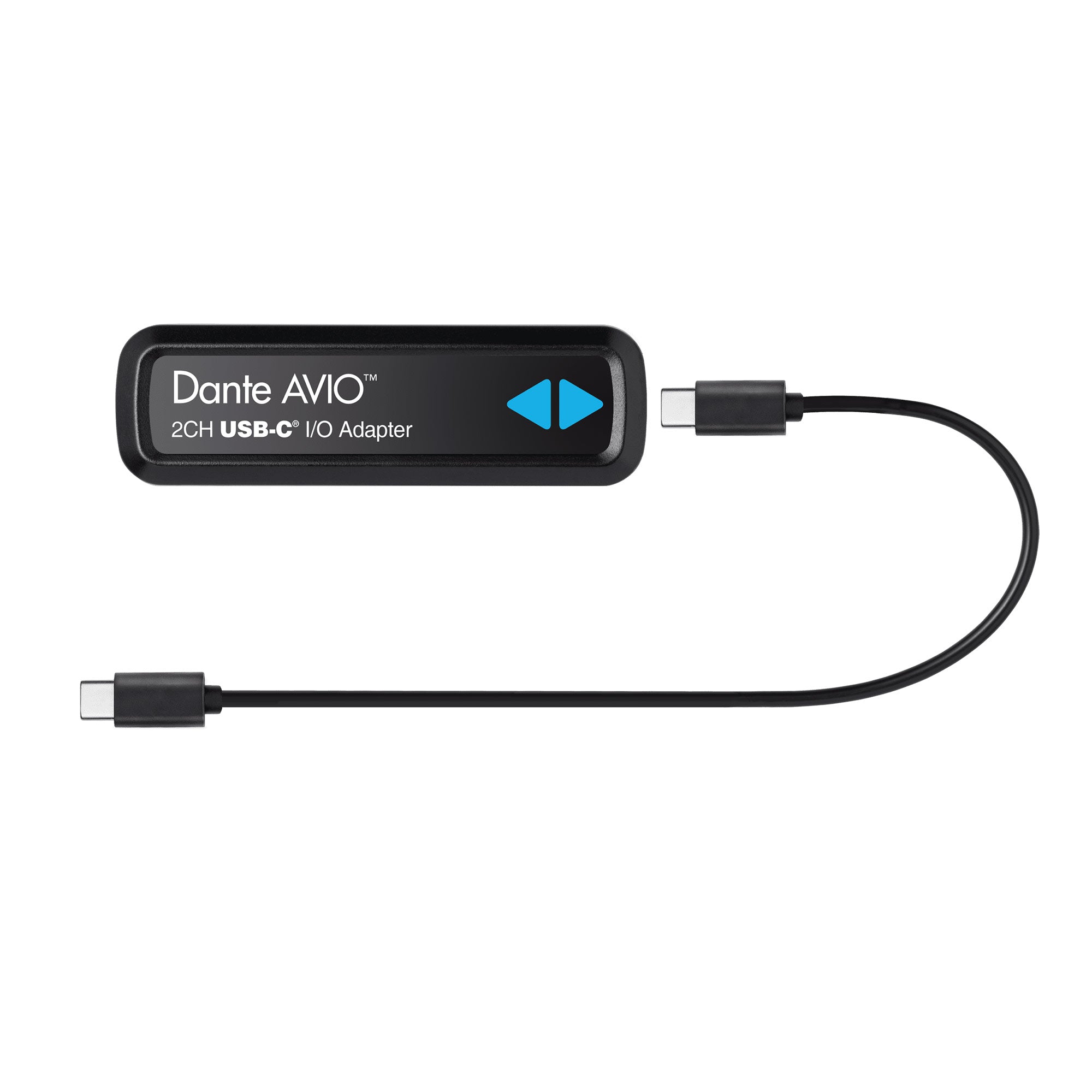

Audinate ADP-USBC-AU-2X2 Dante AVIO 2x2 USB-C I/O Adapter

  • Dale #:

    AUDN-ADPUSBCAU2X2
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock and needs to be ordered from the manufacturer. Your payment will be charged after completing checkout. We will strive to ship as soon as possible, pending availability.

Description

Dante AVIO USB Adapters support 2 x 2 channels of bidirectional audio, allowing PCs and mobile devices to playout and record audio with any Dante-enabled devices over a standard IP network. Use audio applications like media players, conferencing software, presentations and recorders with network-... Read More

Free Shipping (Continental US)

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

Dante AVIO USB Adapters support 2 x 2 channels of bidirectional audio, allowing PCs and mobile devices to playout and record audio with any Dante-enabled devices over a standard IP network. Use audio applications like media players, conferencing software, presentations and recorders with network-connected speakers, microphones, mixers and DSPs. Cost effective, compact and built for the road, the Dante AVIO family of adapters bring the modern network connectivity that every audio pro needs in their toolbox.

Features:

  • Easy audio drop-point for laptops in conference settings, no need to reconfigure your Dante network for different computers
  • USB Type-C® connectors
  • Record or playout 2-channel audio from any PC or Mac with no additional software at all
  • Connect mobile devices to a Dante network (with adapters as required)
  • Plug and play operation
  • Built for the road
  • 24-bit audio support
  • Dante Audio over IP and AES67 RTP transport formats
  • Power over Ethernet (PoE) support
  • USB-C edition supports power pass-through for mobile devices
  • USB-C to USB-C cable included with USB-C model
  • Dante Domain Manager ready


PLUG AND PLAY

Each Dante AVIO USB adapter is a complete, high performance Dante device, delivering all the automation and ease of use that have made Dante the most popular audio networking solution worldwide. Dante AVIO USB adapters is automatically discovered and ready to use when connected, and no separate power supplies are required – just use a common PoE (Power over Ethernet) switch or the USB power built-in to your computer and the Dante AVIO USB adapter is ready to go.

USB-C PASS THROUGH POWER FOR ALL DAY PERFORMANCE
The Dante AVIO USB-C® edition delivers the same great performance as the AVIO USB adapter and delivers power from any PoE network switch to your mobile device for continuous connectivity.

BUILT FOR THE ROAD
All Dante AVIO adapters are road ready and tour-tough. Sonically welded ABS enclosures and quality hardware are used throughout, while cable assemblies are stress-tested to ensure reliable operation under grueling conditions. Toss them in your toolbox, show after show.

ALL DANTE
Dante AVIO adapters are all fully functional Dante interfaces, with all the features you’d expect from Dante audio networking. Each one delivers bit-perfect audio reproduction, super-low latency and sample-accurate synchronization across the entire network. All Dante devices automatically discover one another, and the entire system is managed by the easy-to-use Dante Controller software on any connected PC or Mac. Most importantly, every Dante device can connect to every other Dante device – no questions asked. All Dante AVIO adapters are fully compatible with Dante Domain Manager (DDM) for IT-level security and management, while AES67 is supported for connection to non-Dante networks.

COST-EFFECTIVE
The Dante AVIO family of products are a cost-effective addition to any system or piece of gear, so that everyone can enjoy the benefits of Dante. Audio networking has never been easier to or more affordable, no matter how you choose to use it.

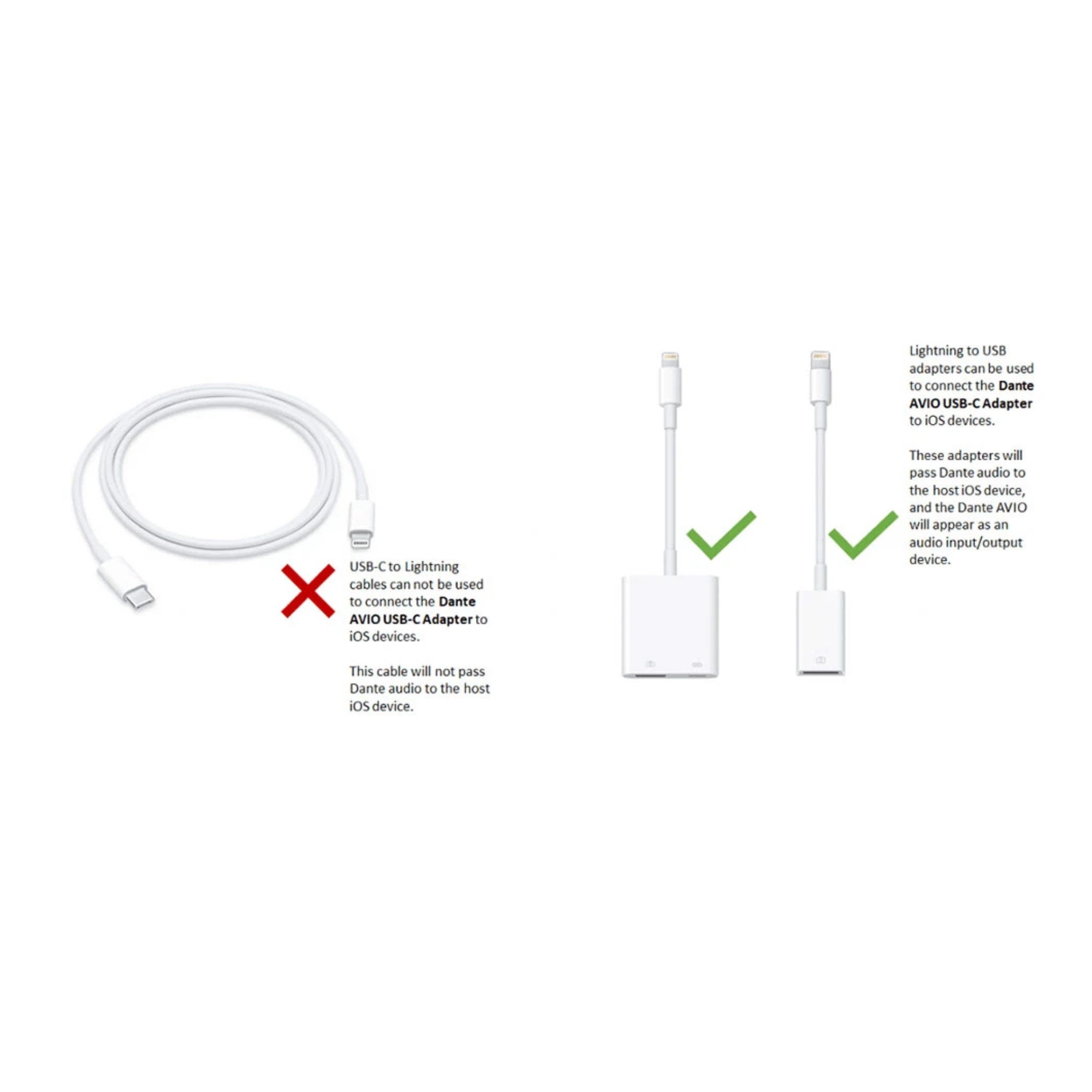

Notes On Using With iOS Devices
The USB-C to Lightning cables do not support the host/peripheral roles required to directly connect the Dante AVIO USB-C Adapter to an iOS device. This is a limitation defined by Apple. With the USB-C to Lightning cable, the Dante AVIO USB-C Adapter will provide power only to the iOS device.

Lightning to USB-C adapters (with USB type-A ports) can be used to connect either Dante AVIO USB Adapters (ADP-USB-2X2) or Dante AVIO USB-C Adapters (ADP-USBC-2X2) to iOS devices. When connected, the AVIO will appear as available input and output devices.

Apple devices with USB-C ports, such as new iPads, can be connected directly to a Dante AVIO USB-C Adapter with a USB-C to USB-C cable.

More +

Product Specs

Audio channels 2 in, 2 out
Connectors RJ45 / USB Type-C®
Power Class 1 802.3af PoE or USB
USB Power Delivery 5V 1.5A
Sample Rates 48 kHz
Bit Depth 24
Dante Device Latency 1, 2, or 5ms (configurable using Dante Controller)
Network Transport Dante Audio over IP, AES67 RTP
USB Class compliant USB 2.0 device
Part Number ADP-USBC-AU-2X2
