Audio-Technica ATDM-0604a - Digital SmartMixer for Install or Conference
Contact us
Availability:
In StockAvailable for shipment within one business day, or pickup from our Jamaica, NY warehouse during regular business hours.
Description
The ATDM-0604a automatic mixer is ideal for meetings, conferences, soft codec applications, courtroom proceedings, radio and TV broadcasts and other applications involving the use of multiple microphones or other media inputs. Audio-Technica's SmartMixer¨ technology allows channels to be mixed automatically in gate or gain sharing mode, ensuring consistent, high-quality audio output from all inputs in a setup, without the introduction of feedback, excessive ambient noise, or comb filtering.

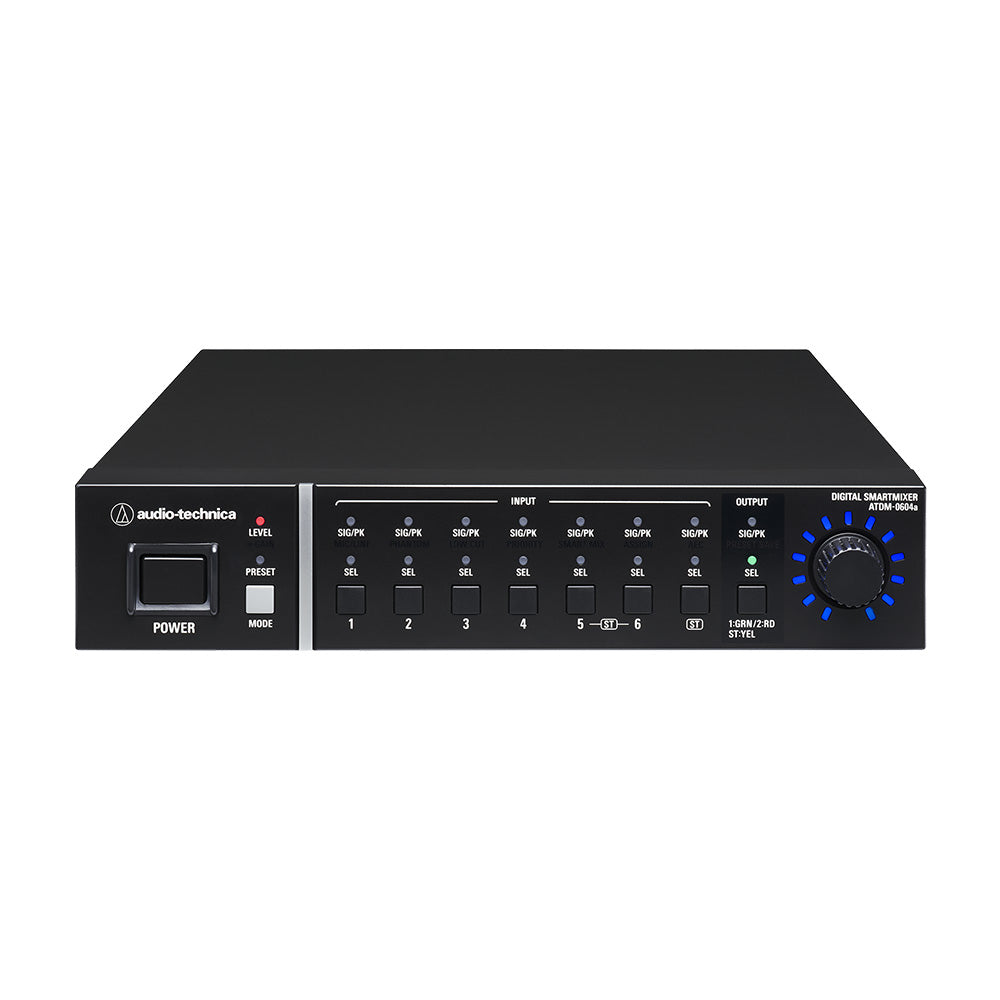

Controls and LED indicators on the mixerÕs front panel allow users to easily adjust input/output and gain levels, set and recall presets, turn on/off phantom power, low-cut filter, automatic mixing and acoustic echo cancellation (AEC), change IP configuration (Auto or Static), and more. The ATDM-0604a also includes Web Remote functionality, which allows users to handle the aforementioned adjustments from a Windows-based PC, Mac, iOS or Android device, plus make additional changes to the input and output settings, select gate or gain sharing mode when using Smart Mix, and adjust other advanced settings.
The mixer is equipped with six balanced Mic/Line inputs and one unbalanced stereo input, along with two balanced and one unbalanced stereo outputs. Network (Cat5e or better) and USB ports are also included, as are A/B Audio-Technica Link ports that let users connect eight mixers sharing audio buses and SmartMix controls via Cat5e cable for simultaneous use within an expanded setup.
The ATDM-0604a is compatible with the Barco ClickShare Conference.
Features:
- 6 mic/line inputs and 1 unbalanced stereo input
- 2 balanced outputs and 1 unbalanced stereo output
- USB audio input/output (1 stereo input, 1 stereo output)
- Remote LED control of ES954 hanging microphone arrays using the GPO terminal
- SmartMixer¨ with selectable gain sharing or gate mode
- High-performance echo canceler for each input channel
- Noise cancellation that can be assigned to any output channel
- Built-in 4-band EQ and compressor/de-esser for each input channel
- Eight 8-band feedback suppressors that can be assigned to mic/line inputs and any output channel
- Built-in 12-band PEQ, compressor, and limiter for each output channel
- Dedicated Audio-Technica LINK terminals are compatible with a wide variety of Audio-Technica LINK-enabled products
- Audio input/output settings can be configured from the front panel in applications without a computer
- Advanced settings can be configured using the web browser or Smart Mixer Manager app GUI in applications with a computer
- IP Protocol-based external remote control
- Compatible with Barco ClickShare Conference
6-Channel SmartMixer¨
Featuring 6 balanced mic/line inputs, 1 unbalanced stereo input, 1 balanced and 1 unbalanced stereo outputs, a 2 channel USB interface, and intuitive local or remote control, the ATDM-0604a gives you the power and flexibility to mix with extreme intelligence.
Web Remote Functionality
While settings can be adjusted on the front panel of the mixer, you are not bound to that. Web Remote functionality allows you to control the mixer from a PC, Mac, iOS or android device.
6-Channel Smart Mix (gate or gain sharing)
Audio-TechnicaÕs SmartMixer¨ technology allows channels to be mixed automatically in gate or gain sharing mode, ensuring consistent, high-quality audio output from all inputs in a setup, without the introduction of feedback, excessive ambient noise, or comb filtering.
| Maximum Gain | 64 dB |
| Frequency Characteristics | 20 Hz to 20 kHz (MIC -16 dBu): +1.0 / -1.0 dB 20 Hz to 20 kHz (MIC -60 dBu): +1.0 / -2.0 dB 20 Hz to 20 kHz (LINE 24 dBu): +1.0 / -1.0 dB 20 Hz to 20 kHz (LINE -40 dBu): +1.0 / -2.0 dB |
| Dynamic Range | 110 dB or higher, A-weighted/ST |
| S/N Ratio | 90 dB or higher, A-weighted/ST |
| Headroom | 20 dB or higher |
| Input Referred Noise | -126 dBu or less, Rs = 150 ohm, DIN |
| Common-Mode Rejection Ratio | 80 dB or higher, 1 kHz |
| Residual Noise | -86 dBu or less, A-weighted |
| Channel Separation | -80 dB or less, 1 kHz unity |
| Total Harmonic Distortion | 0.03% or less, 1 kHz unity |
| Analog Input | MIC 1 to 6 max.: 0 dBu MIC 1 to 6 unity_ -40 dBu LINE 1 to 4 max.: +10 dBV LINE 1 to 4 unity: -10 dBV LINE 5 to 6 max.: +24 dBu LINE 5 to 6 unity: +4 dBu / 0 dBV / -10 dBV / -20 dBV ST max.: +10 dBV ST unity: -10 dBV / -20 dBV |
| Analog Output | UNBAL max.: +10 dBV / -13 dBV UNBAL unity: -10 dBV / -33 dBV BAL 1/L, 2/R max.: +24 dBu / +20 dBV / +10 dBV BAL 1/L, 2/R unity: +4 dBu / 0 dBV / -10 dBV |
| Power Supply | 100 to 240 V AC (50/60 Hz) |
| Power Consumption | 17 W |
| Operating Temperature | 0 to 40ÁC (32 to 104ÁF) |
| Operating Humidity Range | 25 to 85% (with no condensation) |
| Dimensions | 219.3 mm (8.6") _346.3 mm (14") _44 mm (1.7") (W_D_H), including protrusions |
| Weight | 1.89 kg (4.2 lbs) |
| Finish | Front panel: Black with silver lines op/rear/sides: Black |
| Phantom Power | +48V DC |
| PAD (Attenuation Level) | -24 dB |

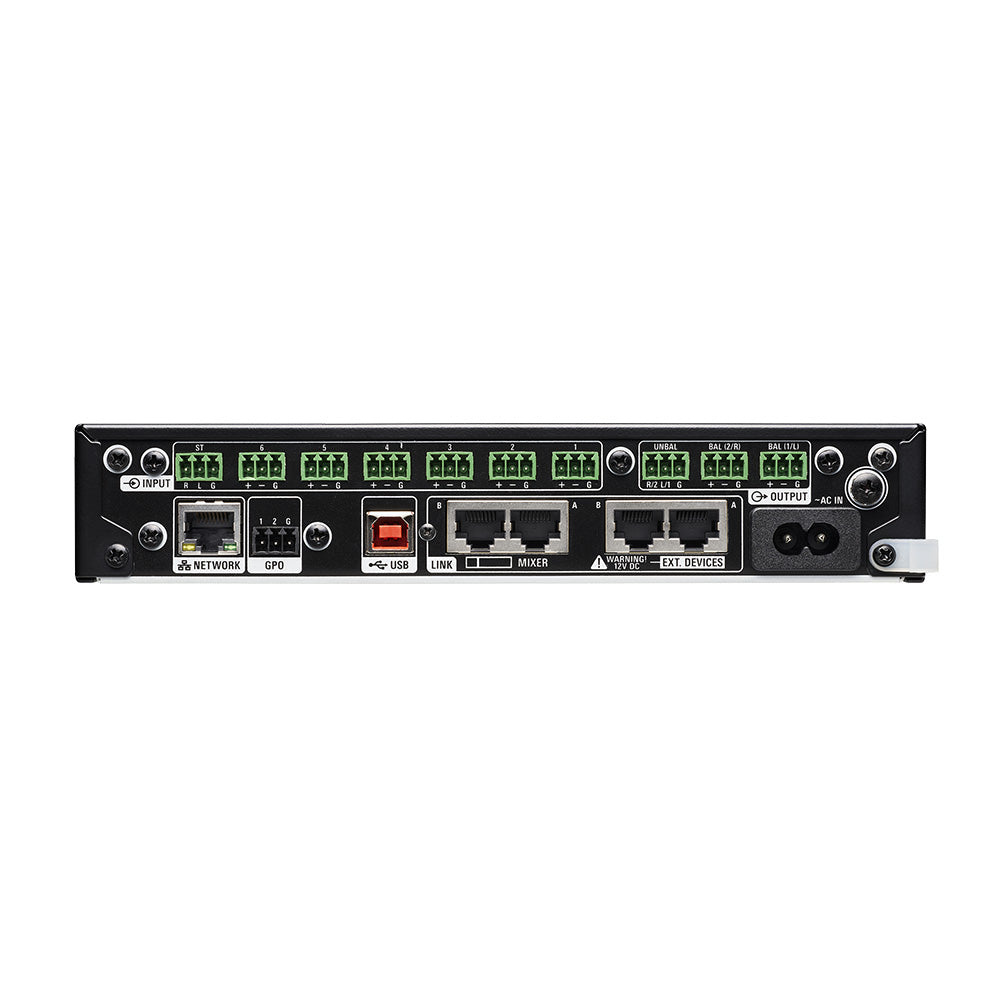

| I/O Connector | INPUT ST: Euroblock connectors (3-pin) INPUT MIC/LINE 1 to 6: Euroblock connectors (3-pin) OUTPUT UNBAL: Euroblock connectors (3-pin) OUTPUT BAL 1/L, 2/R: Euroblock connectors (3-pin) GPO: Euroblock connectors (3-pin) |
| Level Indicator | SIGNAL/PEAK: 1 point (Red/Yellow/Green) Peak indicate (red)_ -5 to 0 dB Peak hold time: 2 sec. |
| Remote Control | IP protocol: RJ-45 _ 1 pc IP address_192.168.33.102 (factory default) Communication speed: 100 Mbps |
| Network | IP protocol: RJ-45 _ 1 pc |
| Link I/O | Audio-Technica LINK_RJ-45 _ 4 pcs Communication speed: 100 Mbps |
| USB Type B | Channel: Stereo input x 1 ch, stereo output x 1 ch (24-bit) Communication speed: High-speed (480 Mbps) |
| A/D Converter | Resolution: 24-bit Dynamic range: 115 dB |
| D/A Converter | Resolution: 24-bit Dynamic range: 115 dB |

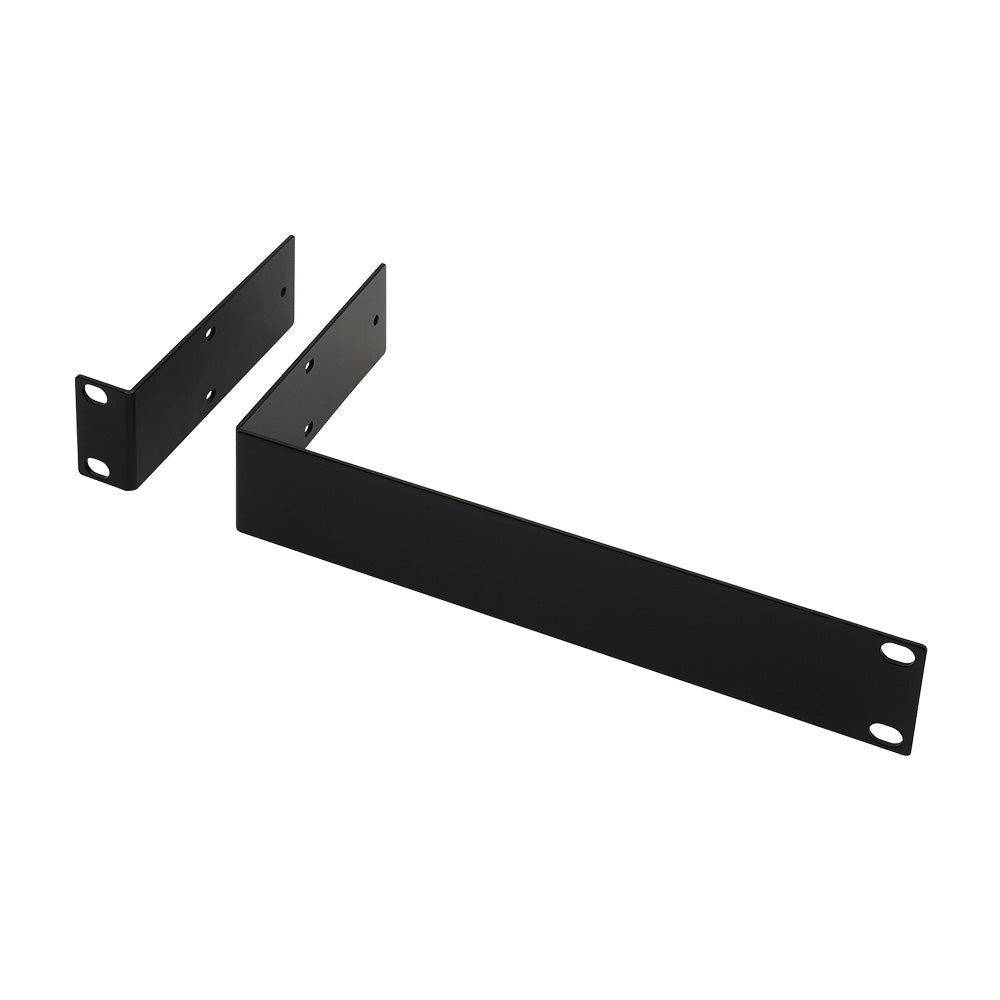

| Accessories Included | Euroblock connector _ 11, Rack-mount (large, small), Rack-mount screw x 6, Power cable, Rubber foot x 4 |
The ATDM-0604a automatic mixer is ideal for meetings, conferences, soft codec applications, courtroom proceedings, radio and TV broadcasts and other applications involving the use of multiple microphones or other media inputs. Audio-Technica's SmartMixer¨ technology allows channels to be mixed automatically in gate or gain sharing mode, ensuring consistent, high-quality audio output from all inputs in a setup, without the introduction of feedback, excessive ambient noise, or comb filtering.
Controls and LED indicators on the mixerÕs front panel allow users to easily adjust input/output and gain levels, set and recall presets, turn on/off phantom power, low-cut filter, automatic mixing and acoustic echo cancellation (AEC), change IP configuration (Auto or Static), and more. The ATDM-0604a also includes Web Remote functionality, which allows users to handle the aforementioned adjustments from a Windows-based PC, Mac, iOS or Android device, plus make additional changes to the input and output settings, select gate or gain sharing mode when using Smart Mix, and adjust other advanced settings.
The mixer is equipped with six balanced Mic/Line inputs and one unbalanced stereo input, along with two balanced and one unbalanced stereo outputs. Network (Cat5e or better) and USB ports are also included, as are A/B Audio-Technica Link ports that let users connect eight mixers sharing audio buses and SmartMix controls via Cat5e cable for simultaneous use within an expanded setup.
The ATDM-0604a is compatible with the Barco ClickShare Conference.
Features:
- 6 mic/line inputs and 1 unbalanced stereo input
- 2 balanced outputs and 1 unbalanced stereo output
- USB audio input/output (1 stereo input, 1 stereo output)
- Remote LED control of ES954 hanging microphone arrays using the GPO terminal
- SmartMixer¨ with selectable gain sharing or gate mode
- High-performance echo canceler for each input channel
- Noise cancellation that can be assigned to any output channel
- Built-in 4-band EQ and compressor/de-esser for each input channel
- Eight 8-band feedback suppressors that can be assigned to mic/line inputs and any output channel
- Built-in 12-band PEQ, compressor, and limiter for each output channel
- Dedicated Audio-Technica LINK terminals are compatible with a wide variety of Audio-Technica LINK-enabled products
- Audio input/output settings can be configured from the front panel in applications without a computer
- Advanced settings can be configured using the web browser or Smart Mixer Manager app GUI in applications with a computer
- IP Protocol-based external remote control
- Compatible with Barco ClickShare Conference
6-Channel SmartMixer¨
Featuring 6 balanced mic/line inputs, 1 unbalanced stereo input, 1 balanced and 1 unbalanced stereo outputs, a 2 channel USB interface, and intuitive local or remote control, the ATDM-0604a gives you the power and flexibility to mix with extreme intelligence.
Web Remote Functionality
While settings can be adjusted on the front panel of the mixer, you are not bound to that. Web Remote functionality allows you to control the mixer from a PC, Mac, iOS or android device.
6-Channel Smart Mix (gate or gain sharing)
Audio-TechnicaÕs SmartMixer¨ technology allows channels to be mixed automatically in gate or gain sharing mode, ensuring consistent, high-quality audio output from all inputs in a setup, without the introduction of feedback, excessive ambient noise, or comb filtering.
| Maximum Gain | 64 dB |
| Frequency Characteristics | 20 Hz to 20 kHz (MIC -16 dBu): +1.0 / -1.0 dB 20 Hz to 20 kHz (MIC -60 dBu): +1.0 / -2.0 dB 20 Hz to 20 kHz (LINE 24 dBu): +1.0 / -1.0 dB 20 Hz to 20 kHz (LINE -40 dBu): +1.0 / -2.0 dB |
| Dynamic Range | 110 dB or higher, A-weighted/ST |
| S/N Ratio | 90 dB or higher, A-weighted/ST |
| Headroom | 20 dB or higher |
| Input Referred Noise | -126 dBu or less, Rs = 150 ohm, DIN |
| Common-Mode Rejection Ratio | 80 dB or higher, 1 kHz |
| Residual Noise | -86 dBu or less, A-weighted |
| Channel Separation | -80 dB or less, 1 kHz unity |
| Total Harmonic Distortion | 0.03% or less, 1 kHz unity |
| Analog Input | MIC 1 to 6 max.: 0 dBu MIC 1 to 6 unity_ -40 dBu LINE 1 to 4 max.: +10 dBV LINE 1 to 4 unity: -10 dBV LINE 5 to 6 max.: +24 dBu LINE 5 to 6 unity: +4 dBu / 0 dBV / -10 dBV / -20 dBV ST max.: +10 dBV ST unity: -10 dBV / -20 dBV |
| Analog Output | UNBAL max.: +10 dBV / -13 dBV UNBAL unity: -10 dBV / -33 dBV BAL 1/L, 2/R max.: +24 dBu / +20 dBV / +10 dBV BAL 1/L, 2/R unity: +4 dBu / 0 dBV / -10 dBV |
| Power Supply | 100 to 240 V AC (50/60 Hz) |
| Power Consumption | 17 W |
| Operating Temperature | 0 to 40ÁC (32 to 104ÁF) |
| Operating Humidity Range | 25 to 85% (with no condensation) |
| Dimensions | 219.3 mm (8.6") _346.3 mm (14") _44 mm (1.7") (W_D_H), including protrusions |
| Weight | 1.89 kg (4.2 lbs) |
| Finish | Front panel: Black with silver lines op/rear/sides: Black |
| Phantom Power | +48V DC |
| PAD (Attenuation Level) | -24 dB |
| I/O Connector | INPUT ST: Euroblock connectors (3-pin) INPUT MIC/LINE 1 to 6: Euroblock connectors (3-pin) OUTPUT UNBAL: Euroblock connectors (3-pin) OUTPUT BAL 1/L, 2/R: Euroblock connectors (3-pin) GPO: Euroblock connectors (3-pin) |
| Level Indicator | SIGNAL/PEAK: 1 point (Red/Yellow/Green) Peak indicate (red)_ -5 to 0 dB Peak hold time: 2 sec. |
| Remote Control | IP protocol: RJ-45 _ 1 pc IP address_192.168.33.102 (factory default) Communication speed: 100 Mbps |
| Network | IP protocol: RJ-45 _ 1 pc |
| Link I/O | Audio-Technica LINK_RJ-45 _ 4 pcs Communication speed: 100 Mbps |
| USB Type B | Channel: Stereo input x 1 ch, stereo output x 1 ch (24-bit) Communication speed: High-speed (480 Mbps) |
| A/D Converter | Resolution: 24-bit Dynamic range: 115 dB |
| D/A Converter | Resolution: 24-bit Dynamic range: 115 dB |
| Accessories Included | Euroblock connector _ 11, Rack-mount (large, small), Rack-mount screw x 6, Power cable, Rubber foot x 4 |
