Description
With its low-profile and rugged-yet-highly-flexible design, The ATND931aWML MicroLine¨ (line cardioid) condenser gooseneck microphone is a perfect fit for boardrooms, school and government settings, teleconferencing, houses of worship and other installed applications. The microphone, which features UniGuard¨ RFI-shielding technology for outstanding rejection of radio frequency interference (RFI), attaches to the provided ATND8734a Dante-enabled wall/ceiling plate power module via a special TA3F-type connector designed to optimize RFI immunity.
The power module is equipped with an 80 Hz low-cut UniSteep¨ filter, three-position input gain level selector (+30 dB, +40 dB, and +50 dB), and a red/green LED status indicator (all controlled remotely via third-party software*). It mounts in a standard metal U.S. 2-gang electrical box, and its RJ45 output jack allows for easy connection to the network via CAT5e (or better) cable.
This gooseneck mic provides a uniform MicroLine¨ polar pattern with narrow 90¡ acceptance angle, comes with a two-stage foam windscreen and is available with low-reflectance black (ATND931aML) or white (ATND931aWML) finish. Additional interchangeable elements - omnidirectional (360¡), cardioid (120¡) and hypercardioid (100¡) - are available separately.
This latest "a" version also offers plug-and-play compatibility with AES67 networks, including those that utilize Livewire, RAVENNA and Q-LAN AoIP technologies, and increases the Dante Domain Manager features, adding role-based security, cross-subnet routing, SNMP alerts and more.
Features:
- Wall/ceiling plate power module with Danteª network output permits permanent installation in standard, 2-gang electrical box and direct connection to the network via Ethernet cable
- Uniform MicroLine¨ polar pattern with narrow 90¡ acceptance angle
- Low-profile design with low-reflectance finish for minimum visibility
- Superior off-axis rejection for maximum gain before feedback
- Logic input accepts external switches for connection to the Dante network
- UniGuard¨ RFI-shielding technology offers outstanding rejection of radio frequency interference (RFI)
- UniSteep¨ filter provides a steep low-frequency attenuation to minimize pickup of undesired ambient noise
- Rugged, easy-to-adjust, small-diameter gooseneck can be positioned quickly into desired shape
- Available interchangeable elements permit angle of acceptance from 90¡ to 360¡
- Ideal for boardrooms, school and government settings, teleconferencing, houses of worship and other installed applications
- Available in two colors: black (ATND931aML) and white (ATND931aWML)
- Plug-and-play compatibility with AES67 networks, including those that utilize Livewire, RAVENNA and Q-LAN AoIP technologies
- Increases Dante Domain Manager features, adding role-based security, cross-subnet routing, SNMP alerts and more
| ELEMENT | Fixed-charge back plate, permanently polarized condenser |
| POLAR PATTERN | MicroLine¬ (line cardioid) |
| FREQUENCY RESPONSE | 30-20,000 Hz |
| LOW FREQUENCY ROLL-OFF | 80 Hz, 18 dB/octave |
| MAXIMUM INPUT SOUND LEVEL | -15 dBu @ +30 dB gain -25 dBu @ +40 dB gain -35 dBu @ +50 dB gain |
| SIGNAL-TO-NOISE RATIO | 73 dB, 1 kHz at 1 Pa |
| WEIGHT (MICROPHONE) | 43 g (1.5 oz) |
| WEIGHT (POWER MODULE) | 330 g (11.6 oz) |
| DIMENSIONS (MICROPHONE) | 271.4 mm (10.7") long, 8.0 mm (0.31") head diameter, 11.6 mm (0.46") base diameter |
| DIMENSIONS (POWER MODULE) | 148.0 mm (5.83") diameter, 47.0 mm (1.85") depth |
| OUTPUT CONNECTOR (POWER MODULE) | RJ-45 |
| CABLE | Power module: CAT5e or better required |
| OPTIONAL INTERCHANGEABLE ELEMENTS | ESE-O omnidirectional (360Á) ESE-C cardioid (120Á) ESE-H hypercardioid (100Á) |

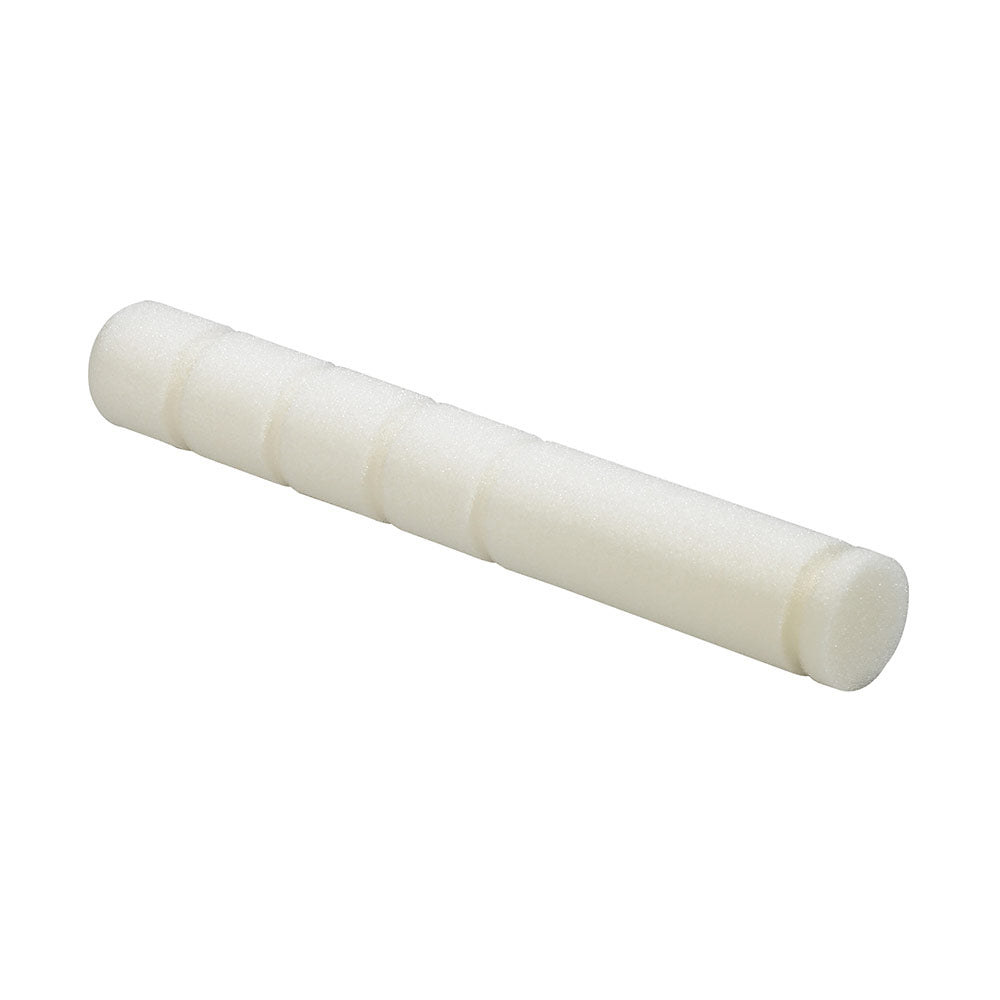

| ACCESSORIES FURNISHED | ATND8734a wall/ceiling plate power module with Dante» network output; AT8138 two-stage foam windscreen |
| AUDIO-TECHNICA CASE STYLE | M42 |
With its low-profile and rugged-yet-highly-flexible design, The ATND931aWML MicroLine¨ (line cardioid) condenser gooseneck microphone is a perfect fit for boardrooms, school and government settings, teleconferencing, houses of worship and other installed applications. The microphone, which features UniGuard¨ RFI-shielding technology for outstanding rejection of radio frequency interference (RFI), attaches to the provided ATND8734a Dante-enabled wall/ceiling plate power module via a special TA3F-type connector designed to optimize RFI immunity.
The power module is equipped with an 80 Hz low-cut UniSteep¨ filter, three-position input gain level selector (+30 dB, +40 dB, and +50 dB), and a red/green LED status indicator (all controlled remotely via third-party software*). It mounts in a standard metal U.S. 2-gang electrical box, and its RJ45 output jack allows for easy connection to the network via CAT5e (or better) cable.
This gooseneck mic provides a uniform MicroLine¨ polar pattern with narrow 90¡ acceptance angle, comes with a two-stage foam windscreen and is available with low-reflectance black (ATND931aML) or white (ATND931aWML) finish. Additional interchangeable elements - omnidirectional (360¡), cardioid (120¡) and hypercardioid (100¡) - are available separately.
This latest "a" version also offers plug-and-play compatibility with AES67 networks, including those that utilize Livewire, RAVENNA and Q-LAN AoIP technologies, and increases the Dante Domain Manager features, adding role-based security, cross-subnet routing, SNMP alerts and more.
Features:
- Wall/ceiling plate power module with Danteª network output permits permanent installation in standard, 2-gang electrical box and direct connection to the network via Ethernet cable
- Uniform MicroLine¨ polar pattern with narrow 90¡ acceptance angle
- Low-profile design with low-reflectance finish for minimum visibility
- Superior off-axis rejection for maximum gain before feedback
- Logic input accepts external switches for connection to the Dante network
- UniGuard¨ RFI-shielding technology offers outstanding rejection of radio frequency interference (RFI)
- UniSteep¨ filter provides a steep low-frequency attenuation to minimize pickup of undesired ambient noise
- Rugged, easy-to-adjust, small-diameter gooseneck can be positioned quickly into desired shape
- Available interchangeable elements permit angle of acceptance from 90¡ to 360¡
- Ideal for boardrooms, school and government settings, teleconferencing, houses of worship and other installed applications
- Available in two colors: black (ATND931aML) and white (ATND931aWML)
- Plug-and-play compatibility with AES67 networks, including those that utilize Livewire, RAVENNA and Q-LAN AoIP technologies
- Increases Dante Domain Manager features, adding role-based security, cross-subnet routing, SNMP alerts and more
| ELEMENT | Fixed-charge back plate, permanently polarized condenser |
| POLAR PATTERN | MicroLine¬ (line cardioid) |
| FREQUENCY RESPONSE | 30-20,000 Hz |
| LOW FREQUENCY ROLL-OFF | 80 Hz, 18 dB/octave |
| MAXIMUM INPUT SOUND LEVEL | -15 dBu @ +30 dB gain -25 dBu @ +40 dB gain -35 dBu @ +50 dB gain |
| SIGNAL-TO-NOISE RATIO | 73 dB, 1 kHz at 1 Pa |
| WEIGHT (MICROPHONE) | 43 g (1.5 oz) |
| WEIGHT (POWER MODULE) | 330 g (11.6 oz) |
| DIMENSIONS (MICROPHONE) | 271.4 mm (10.7") long, 8.0 mm (0.31") head diameter, 11.6 mm (0.46") base diameter |
| DIMENSIONS (POWER MODULE) | 148.0 mm (5.83") diameter, 47.0 mm (1.85") depth |
| OUTPUT CONNECTOR (POWER MODULE) | RJ-45 |
| CABLE | Power module: CAT5e or better required |
| OPTIONAL INTERCHANGEABLE ELEMENTS | ESE-O omnidirectional (360Á) ESE-C cardioid (120Á) ESE-H hypercardioid (100Á) |
| ACCESSORIES FURNISHED | ATND8734a wall/ceiling plate power module with Dante» network output; AT8138 two-stage foam windscreen |
| AUDIO-TECHNICA CASE STYLE | M42 |
