Description
The ES925C/XLR is a modular microphone system designed for professional sound reinforcement and other commercial sound applications. It includes a cardioid condenser microphone element, gooseneck and an XLR power module.Features: Modular microphone system includes a microphone element, gooseneck ... Read MoreSuggested Accessories
Description
The ES925C/XLR is a modular microphone system designed for professional sound reinforcement and other commercial sound applications. It includes a cardioid condenser microphone element, gooseneck and an XLR power module.
Features:

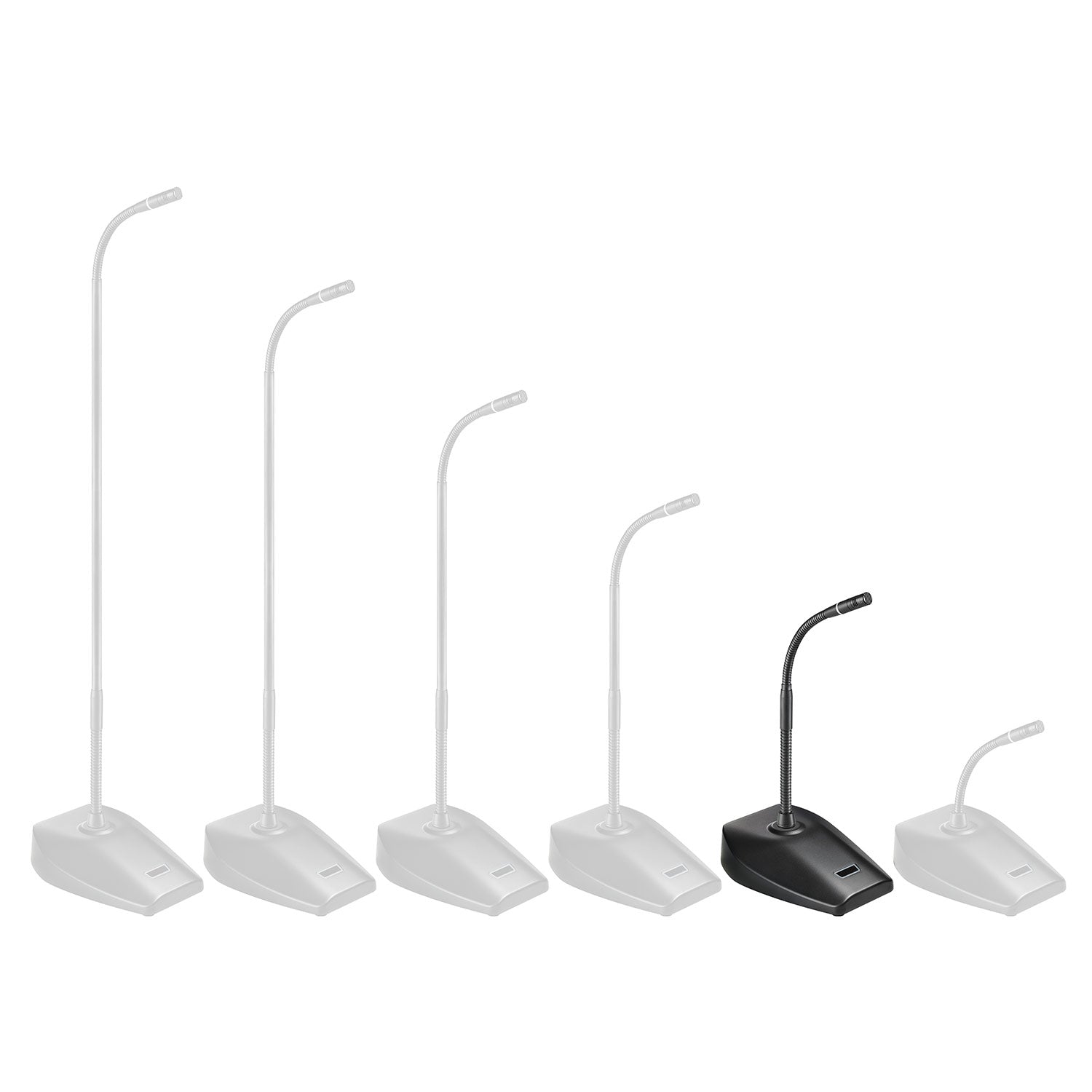

Each component is interchangeable with other ES modular microphone components, allowing you to mix and match power module types (XLR, FM3, FM5, DS5), gooseneck lengths (4.85", 9.08", 12.08", 15.08", 18.08", 21.08"), and microphone polar patterns (MicroLine®, hypercardioid, cardioid, omnidirectional).

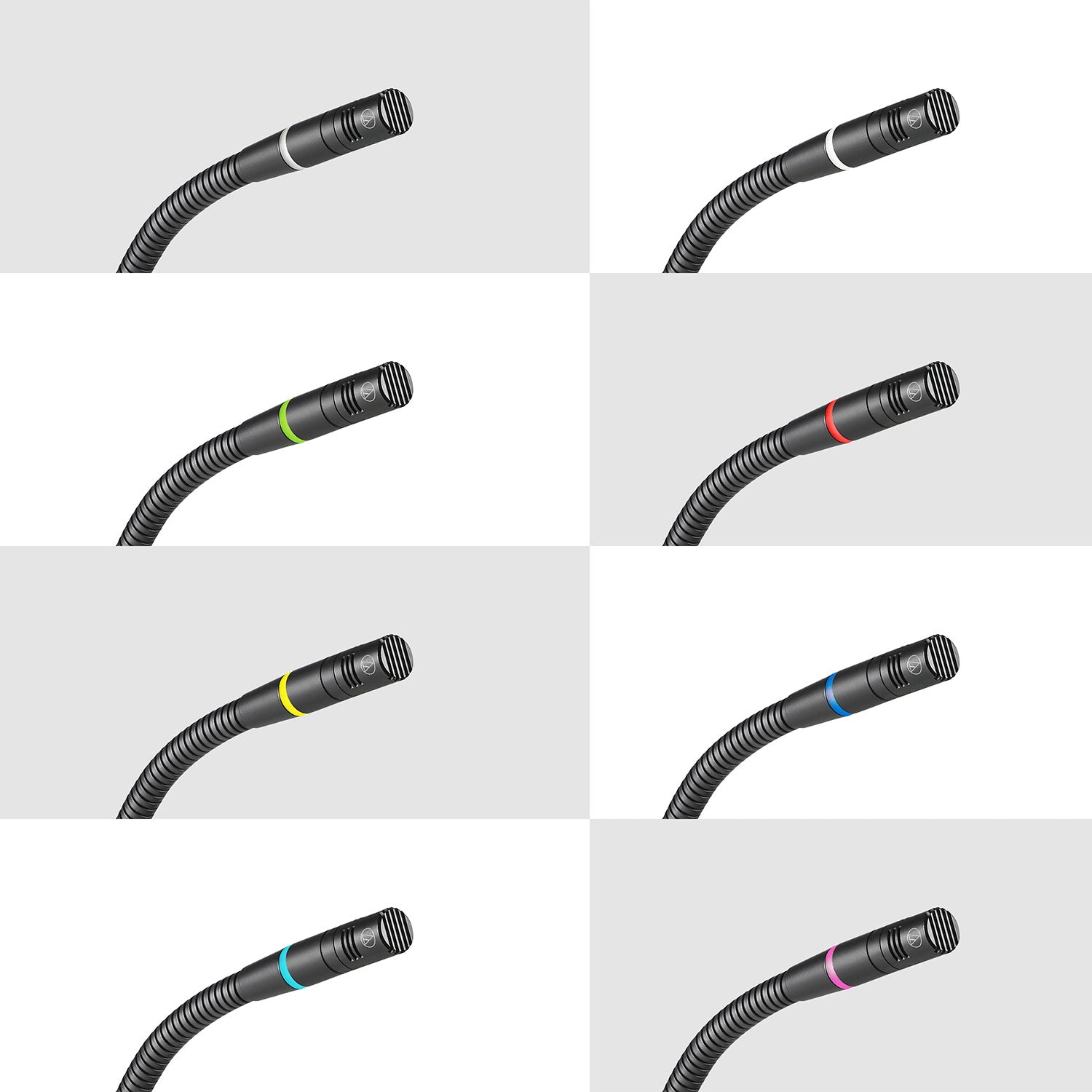

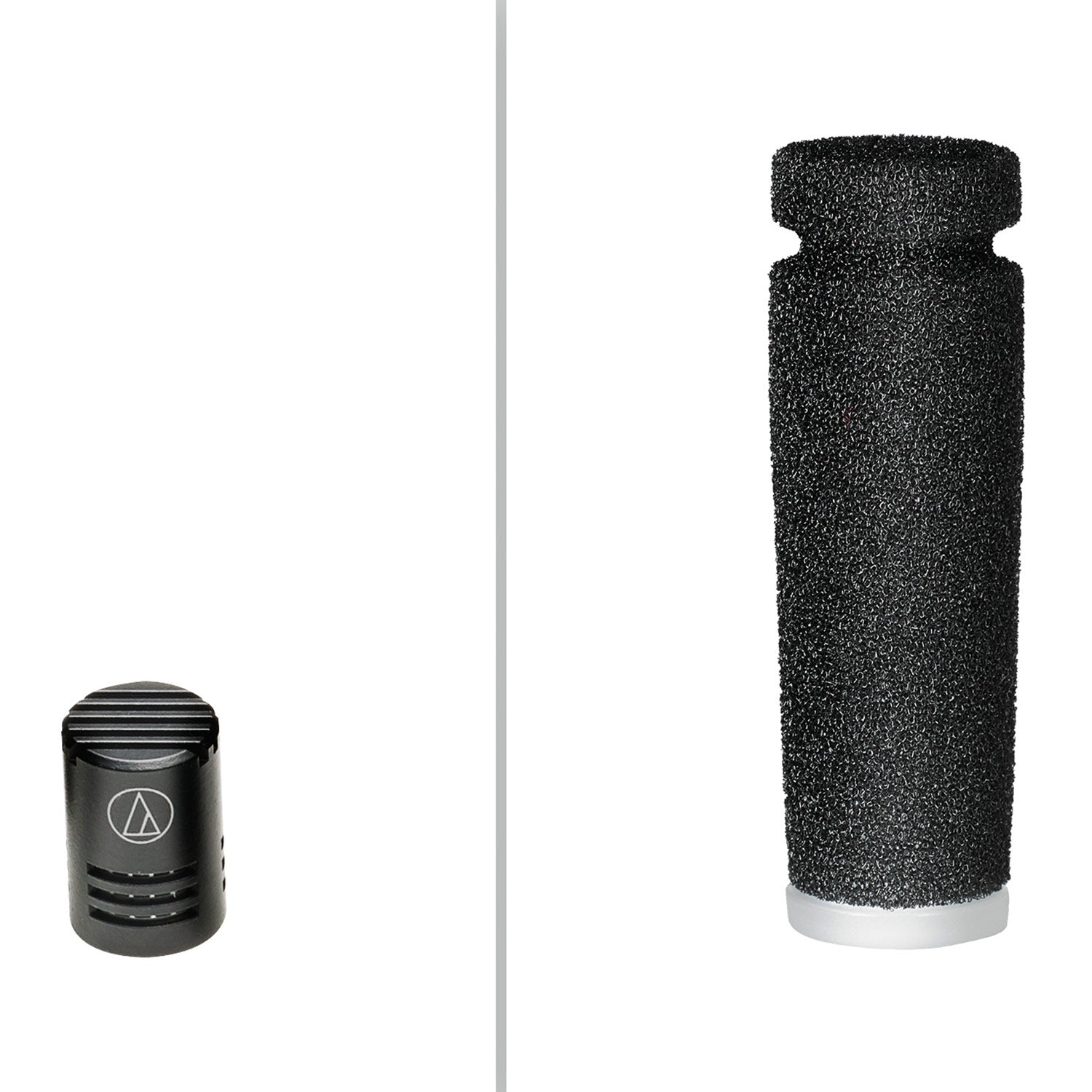

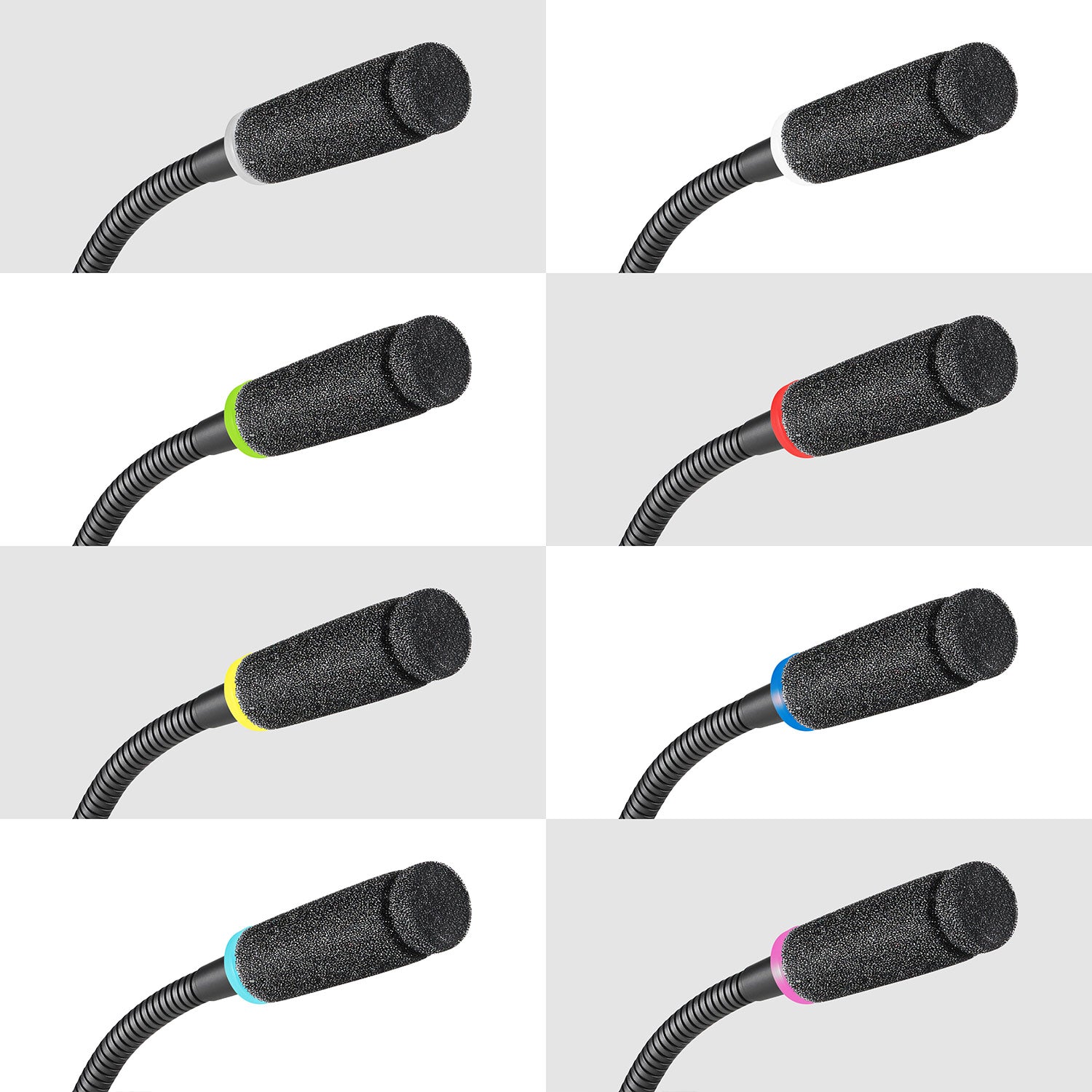

The ES925C/XLR microphone's low-profile element provides a uniform cardioid polar pattern with a 120° acceptance angle. The element housing features a highly visible, single-state RGB LED status indicator that functions seamlessly with ATUC series products and the AT8699R desk stand. A foam windscreen is included to protect against plosives. The microphone element attaches to the small-diameter gooseneck, which offers highly flexible positioning while maintaining a well-contoured appearance. The XLR power module plugs into any standard XLRF-type connector or mounts to 5/8"-27 stands using the included quick-mount stand adapter. UniGuard® innovations offer unsurpassed immunity from radio frequency interference.
More +
Product Specs
ELEMENT | Fixed-charge back plate, permanently polarized condenser |
POLAR PATTERN | Cardioid |
FREQUENCY RESPONSE | 30-20,000 Hz |
LOW FREQUENCY ROLL-OFF | 80 Hz, 18 dB/octave |
OPEN CIRCUIT SENSITIVITY | -40 dB (10.0 mV) re 1V at 1 Pa |
IMPEDANCE | 130 ohms |
MAXIMUM INPUT SOUND LEVEL | 140 dB SPL |
DYNAMIC RANGE (typical) | 112 dB |
SIGNAL-TO-NOISE RATIO | 66 dB |
PHANTOM POWER REQUIREMENTS | 11-52V DC |
SWITCHES | LED Color |
CURRENT CONSUMPTION | 6.7 mA |
WEIGHT | ES925C6/XLR: 102.0 g (3.6 oz) ES925C12/XLR: 126.0 g (4.5 oz) ES925C15/XLR: 131.0 g (4.6 oz) ES925C18/XLR: 136.0 g (4.8 oz) ES925C21/XLR: 141.0 g (5.0 oz) ES925C24/XLR: 146.0 g (5.2 oz) |
DIMENSIONS | ES925C6/XLR: 20.2 mm (0.80") diameter, 197.4 mm (7.77") height ES925C12/XLR: 20.2 mm (0.80") diameter, 304.8 mm (12.00") height ES925C15/XLR: 20.2 mm (0.80") diameter, 381.0 mm (15.00") height ES925C18/XLR: 20.2 mm (0.80") diameter, 457.2 mm (18.00") height ES925C21/XLR: 20.2 mm (0.80") diameter, 533.4 mm (21.00") height ES925C24/XLR: 20.2 mm (0.80") diameter, 609.6 mm (24.00") height |
OUTPUT CONNECTOR | Integral 3-pin XLRM-type |
OPTIONAL INTERCHANGEABLE ELEMENTS | ESE-Ca cardioid (120°) ESE-Ha hypercardioid (100°) ESE-MLa MicroLine® (90°) ESE-Oa omnidirectional (360°) |
ACCESSORIES FURNISHED | AT8109a foam windscreen; AT8474 universal isolation mount; AT8473 quick mount stand adapter; 5/8"-17 to 3/8"-16 threaded adapter; set screw (M2 x 2); hex wrench |
AUDIO-TECHNICA CASE STYLE | M43 |
