Audio-Technica ES925C18/FM3 18" Cardioid Condenser Gooseneck Mic w/ 3-Pin Flush-Mount Power Module
Contact us
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The ES925C/FM3 is a modular microphone system designed for professional sound reinforcement and other commercial sound applications. It includes a cardioid condenser microphone element, gooseneck and a 3-pin flush-mount power module.
Features:
- Modular microphone system includes a microphone element, gooseneck and power module - each interchangeable with components from other ES Modular Microphones

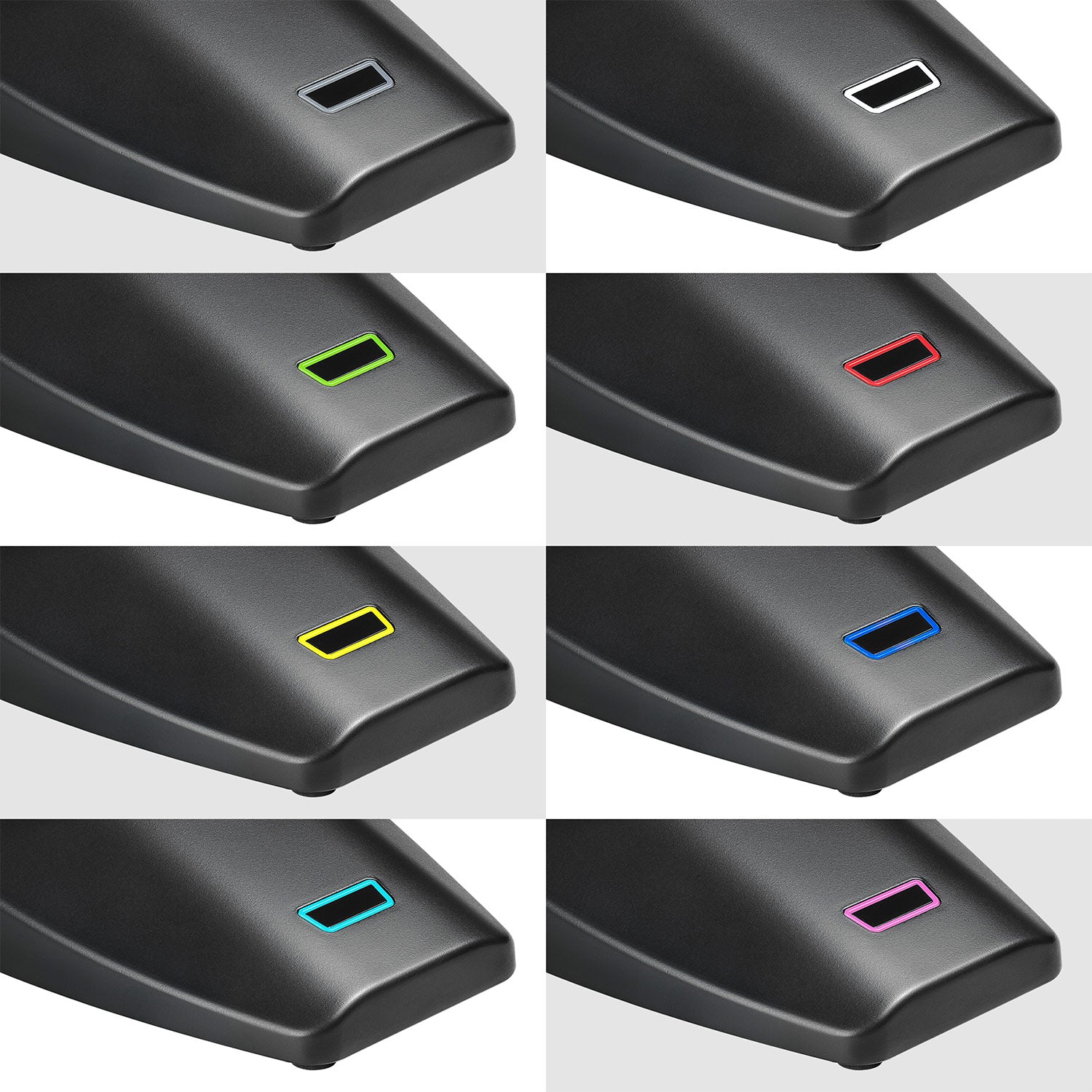

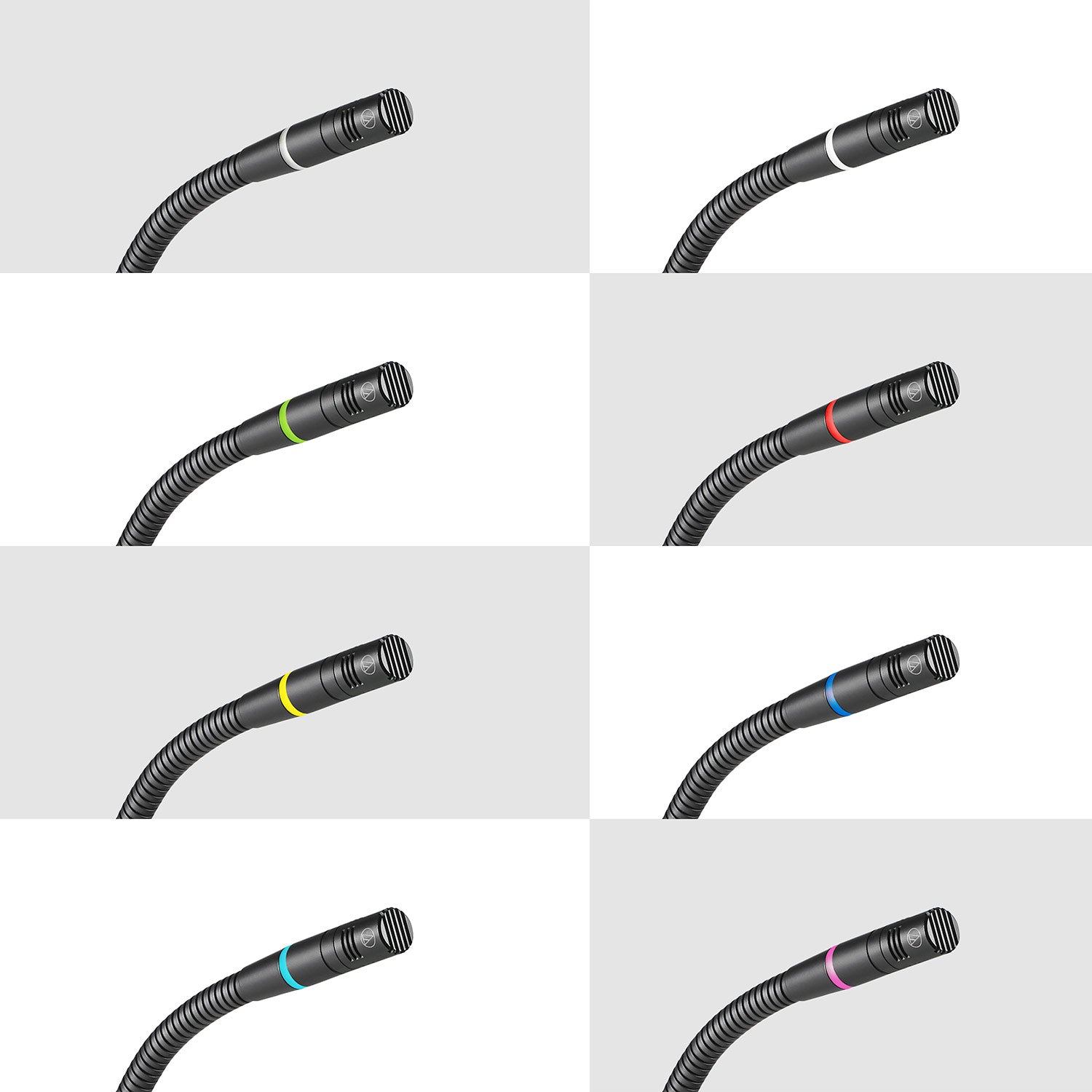

- Flush-mount power module and element housing both feature a highly visible, two-state RGB LED status indicator
- Capacitive touch switch enables local muting of the microphone

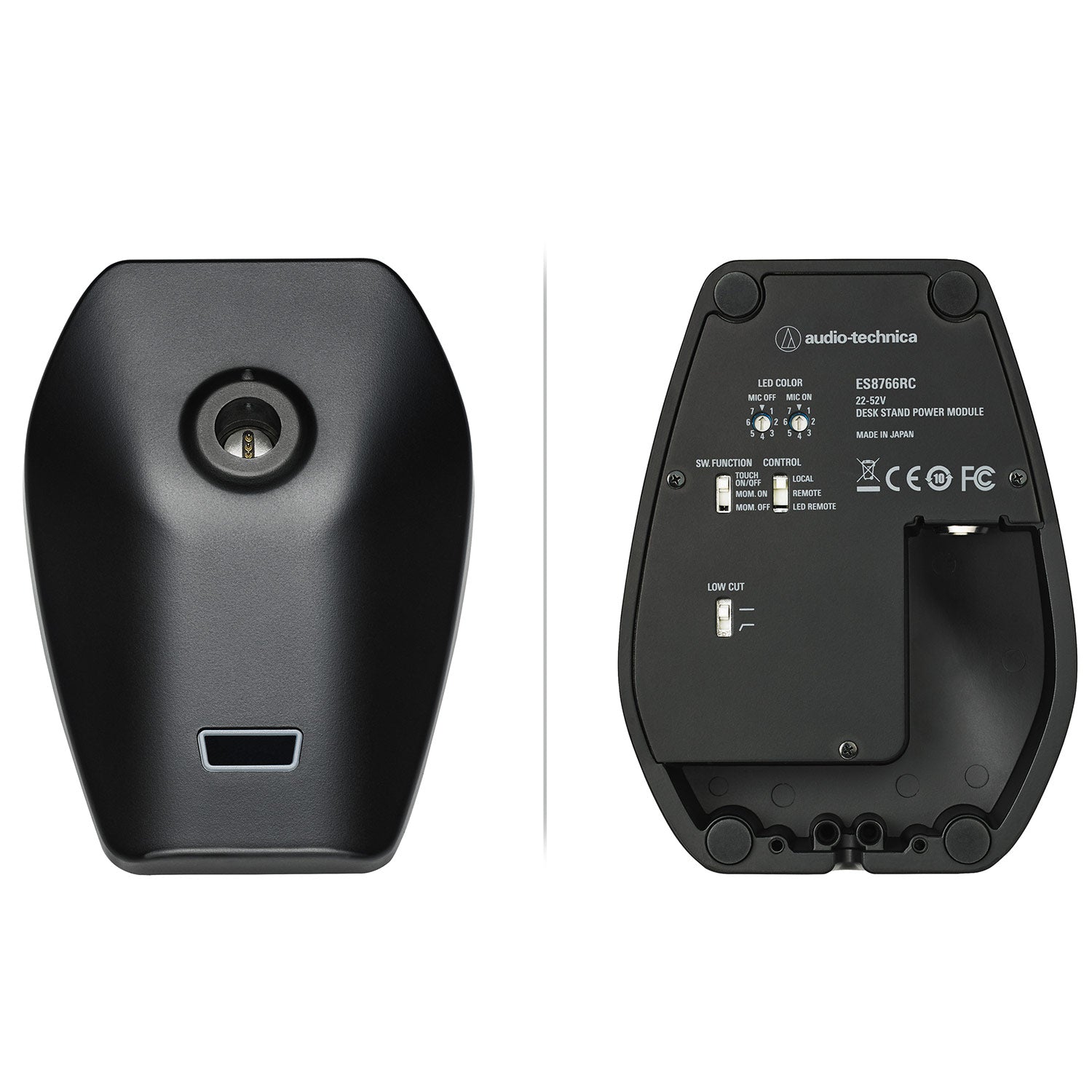

- Power module with 3-pin XLR output mounts unobtrusively in tabletops
- Designed for professional sound reinforcement and other commercial sound applications
- Interchangeable condenser microphone elements provide full-range, natural sound
- Low-profile element provides uniform cardioid polar pattern with 120¡ acceptance angle
- Included isolators provide mechanical dampening of mounting surface vibration
- Available interchangeable elements permit angle of acceptance from 90¡ to 360¡
- Small-diameter gooseneck design permits highly flexible positioning
- Superior off-axis rejection for maximum gain before feedback
- UniGuard¨ RFI-shielding technology offers outstanding rejection of radio frequency interference (RFI)

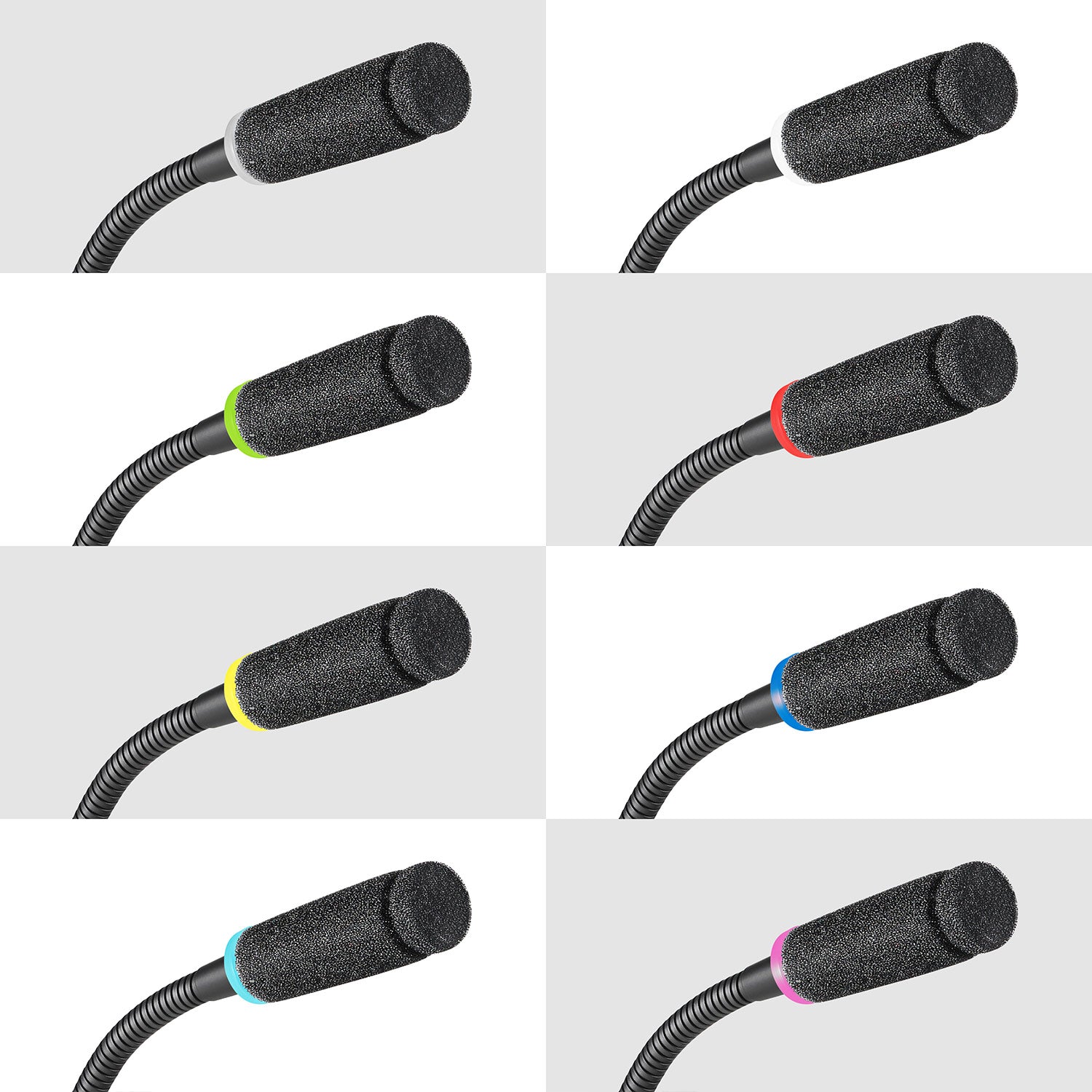

- Includes foam windscreen
- Available in six lengths
Each component is interchangeable with other ES modular microphone components, allowing you to mix and match power module types (XLR, FM3, FM5, DS5), gooseneck lengths (4.85", 9.08", 12.08", 15.08", 18.08", 21.08"), and microphone polar patterns (MicroLine¨, hypercardioid, cardioid, omnidirectional).
The ES925C/FM3 microphone's low-profile element provides a uniform cardioid polar pattern with a 120¡ acceptance angle. It comes with a foam windscreen to protect against plosives. The microphone element attaches to the small-diameter gooseneck, which offers highly flexible positioning while maintaining a well-contoured appearance. The 3-pin flush-mount power module is equipped with a capacitive touch switch that enables local muting of the microphone. The power module mounts unobtrusively in tabletops and comes with isolators that provide mechanical dampening of the mounting surface. Both the power module and the microphone element housing feature a highly visible, two-state RGB LED status indicator. UniGuard¨ innovations offer unsurpassed immunity from radio frequency interference.
| ELEMENT | Fixed-charge back plate, permanently polarized condenser |
| POLAR PATTERN | Cardioid |
| FREQUENCY RESPONSE | 30-20,000 Hz |
| OPEN CIRCUIT SENSITIVITY | -40 dB (10.0 mV) re 1V at 1 Pa |
| IMPEDANCE | 180 ohms |
| MAXIMUM INPUT SOUND LEVEL | 140 dB SPL |
| DYNAMIC RANGE (typical) | 112 dB |
| SIGNAL-TO-NOISE RATIO | 66 dB |
| PHANTOM POWER REQUIREMENTS | 22-52V DC |
| SWITCHES | LED Color x 2: mic on, mic off |
| CURRENT CONSUMPTION | 8 mA |
| WEIGHT | ES925C6/FM3: 110 g (3.9 oz) ES925C12/FM3: 134 g (4.7 oz) ES925C15/FM3: 139 g (4.9 oz) ES925C18/FM3: 144 g (5.1 oz) ES925C21/FM3: 149 g (5.3 oz) ES925C24/FM3: 154 g (5.4 oz) |
| DIMENSIONS | ES925C6/FM3: 38.0 mm (1.50") W x 48.0 mm (1.89") D x 207.6 mm (8.17") H ES925C12/FM3: 38.0 mm (1.50") W x 48.0 mm (1.89") D x 315.0 mm (12.40") H ES925C15/FM3: 38.0 mm (1.50") W x 48.0 mm (1.89") D x 391.2 mm (15.40") H ES925C18/FM3: 38.0 mm (1.50") W x 48.0 mm (1.89") D x 467.4 mm (18.40") H ES925C21/FM3: 38.0 mm (1.50") W x 48.0 mm (1.89") D x 543.6 mm (21.40") H ES925C24/FM3: 38.0 mm (1.50") W x 48.0 mm (1.89") D x 619.8 mm (24.40") H |
| OUTPUT CONNECTOR | Integral 3-pin XLRM-type |

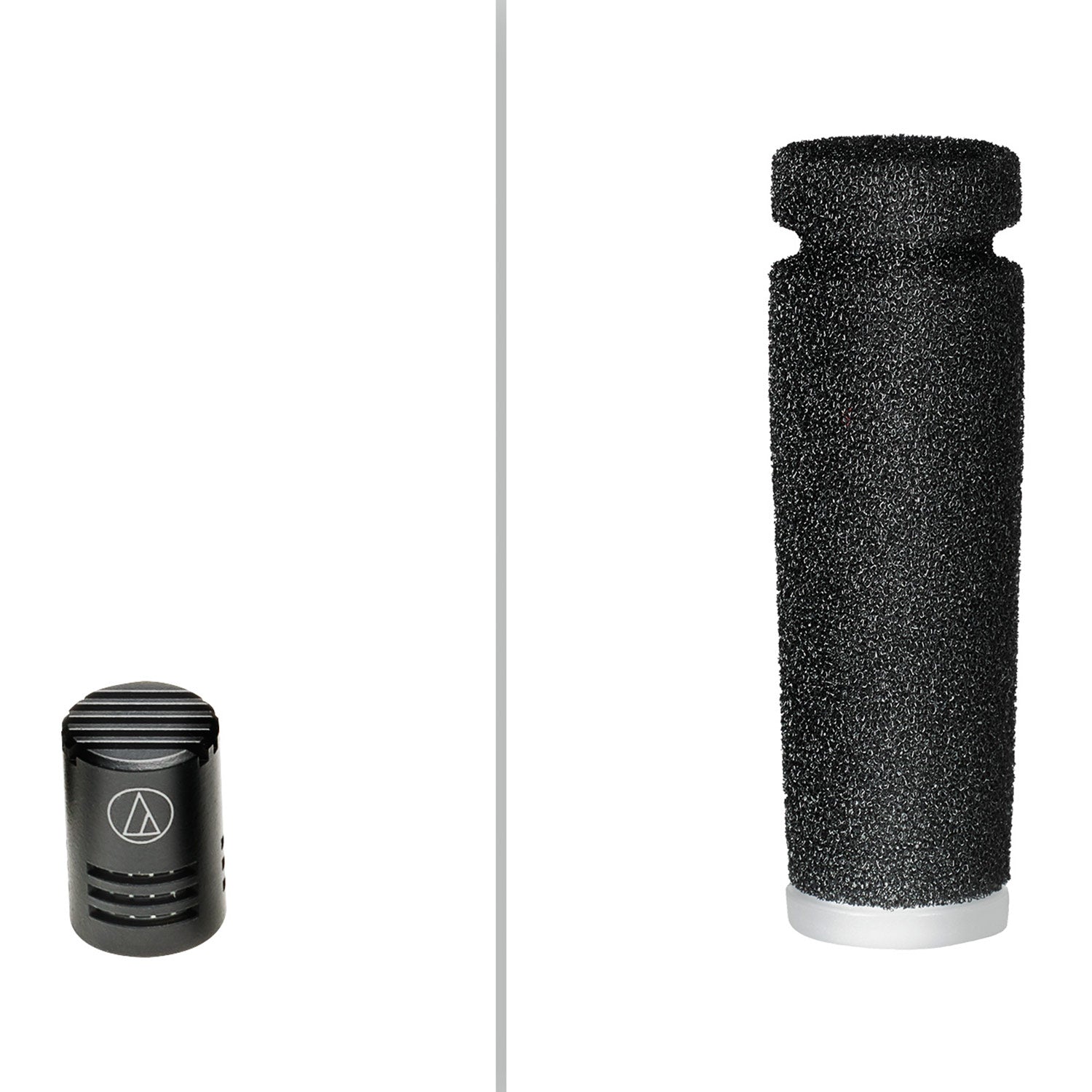

| OPTIONAL INTERCHANGEABLE ELEMENTS | ESE-Ca cardioid (120Á) ESE-Ha hypercardioid (100Á) ESE-MLa MicroLine¬ (90Á) ESE-Oa omnidirectional (360Á) |
| ACCESSORIES FURNISHED | One pair of isolators; nut; AT8109a foam windscreen; set screw (M2 x 2); hex wrench |
| AUDIO-TECHNICA CASE STYLE | M44 |
