Audio-Technica ES925C6/DS5 6" Cardioid Condenser Gooseneck Microphone with XLR Power Module

  • Dale #:

    AUDI-ES925C6XLR
  • Availability:

    In Stock
  • Available for immediate shipment and pick-up from our Jamaica, New York location. In-store pick-up is available Monday through Friday from 9:30 am to 5:30 pm

Description

The ES925C/XLR is a modular microphone system designed for professional sound reinforcement and other commercial sound applications. It includes a cardioid condenser microphone element, gooseneck and an XLR power module.Features: Modular microphone system includes a microphone element, gooseneck ... Read More

Shipping Charges Apply

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

The ES925C/XLR is a modular microphone system designed for professional sound reinforcement and other commercial sound applications. It includes a cardioid condenser microphone element, gooseneck and an XLR power module.

Features:

  • Modular microphone system includes a microphone element, gooseneck and power module - each interchangeable with components from other ES Modular Microphones

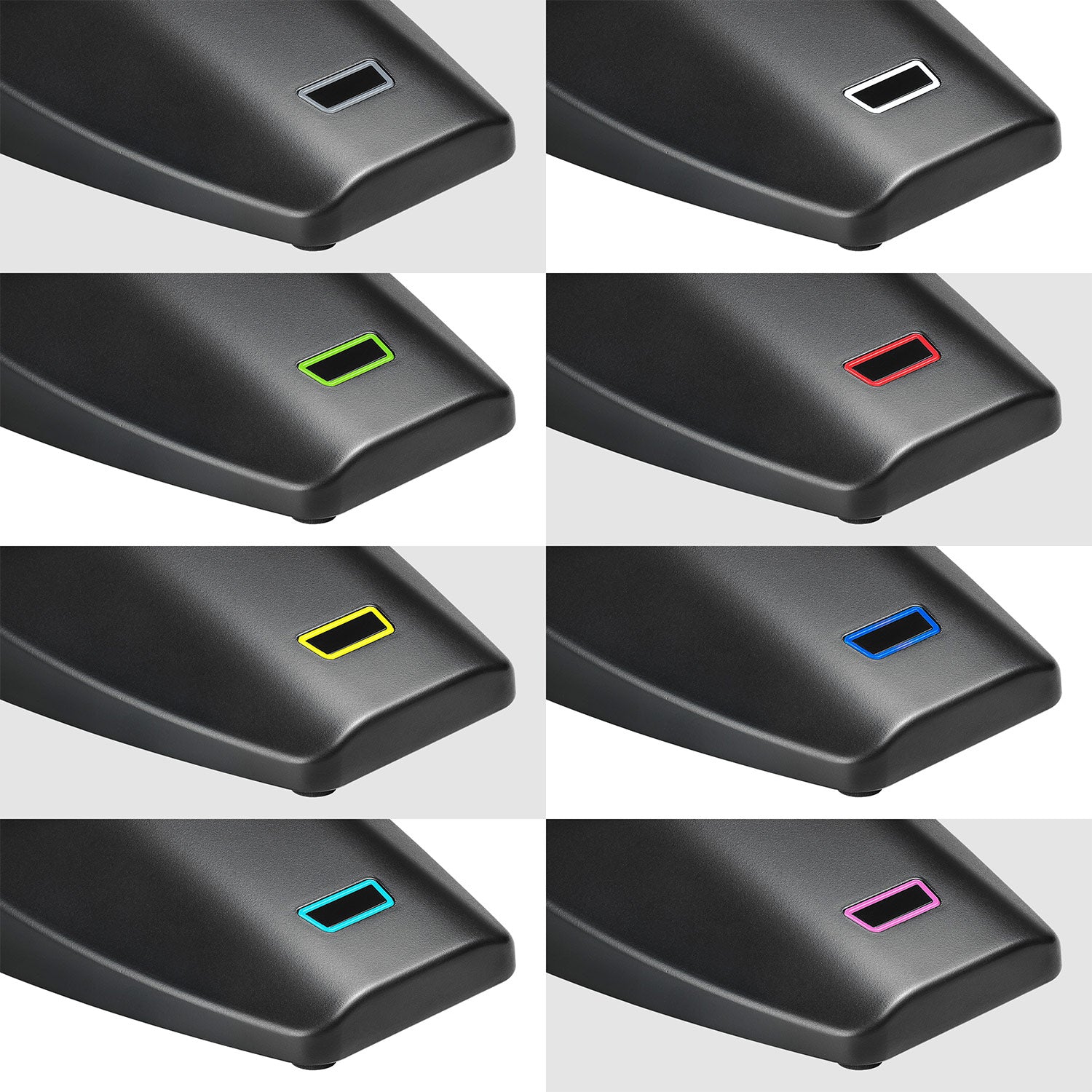

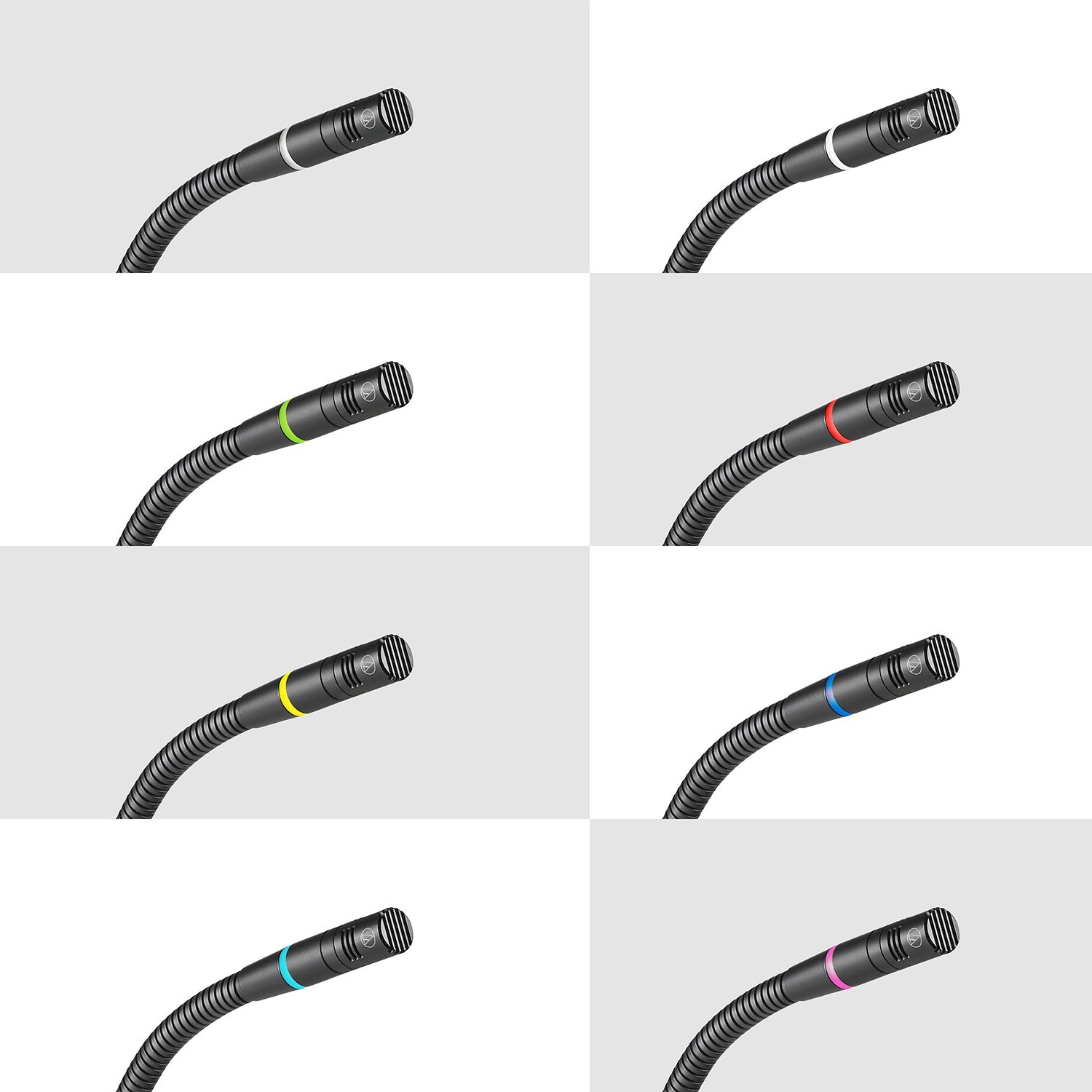

  • Element housing features a highly visible, single-state RGB LED status indicator that functions seamlessly with ATUC series products and AT8699R desk stand
  • Power module plugs into any standard XLRF-type connector or mounts to 5/8"-27 stands using included quick-mount stand adapter
  • Available interchangeable elements permit angle of acceptance from 90° to 360°
  • Designed for professional sound reinforcement and other commercial sound applications
  • Interchangeable condenser microphone elements provide full-range, natural sound
  • Low-profile element provides uniform cardioid polar pattern with 120° acceptance angle
  • Included low-profile universal isolation mount attenuates noise, shock and vibration
  • Small-diameter gooseneck design permits highly flexible positioning
  • Superior off-axis rejection for maximum gain before feedback
  • UniGuard® RFI-shielding technology offers outstanding rejection of radio frequency interference (RFI)

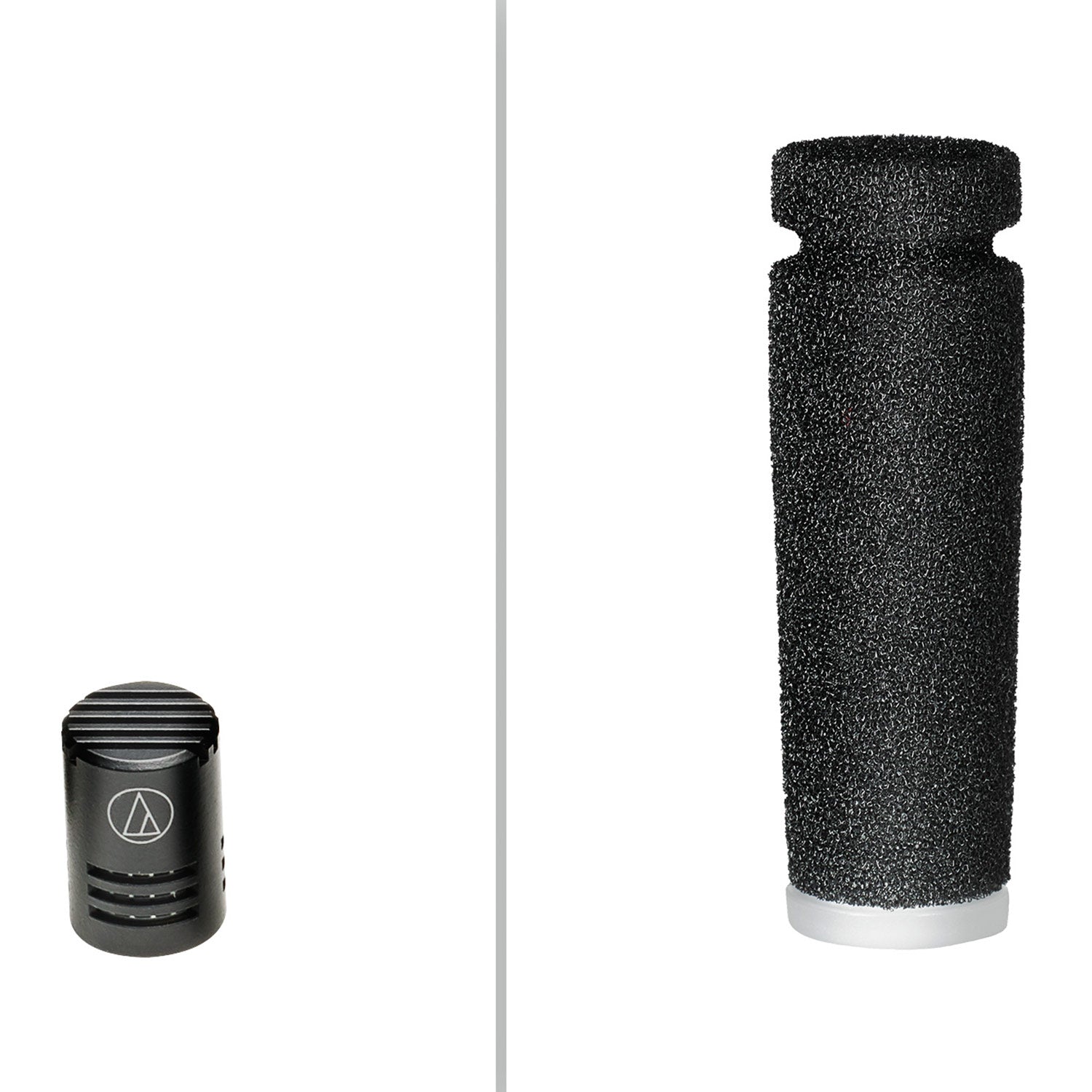

  • Includes foam windscreen

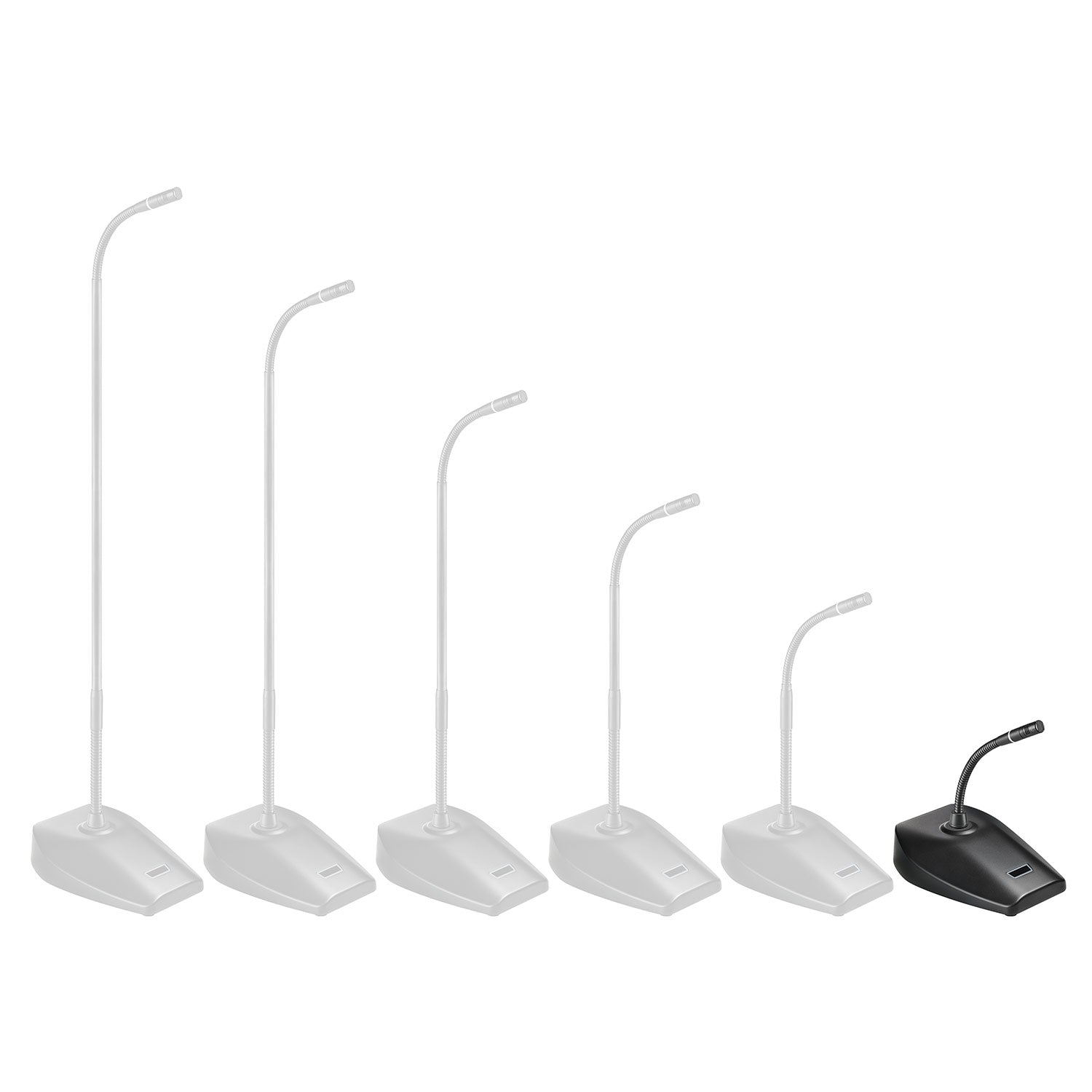

  • Available in six lengths

Each component is interchangeable with other ES modular microphone components, allowing you to mix and match power module types (XLR, FM3, FM5, DS5), gooseneck lengths (4.85", 9.08", 12.08", 15.08", 18.08", 21.08"), and microphone polar patterns (MicroLine®, hypercardioid, cardioid, omnidirectional).

The ES925C/XLR microphone's low-profile element provides a uniform cardioid polar pattern with a 120° acceptance angle. The element housing features a highly visible, single-state RGB LED status indicator that functions seamlessly with ATUC series products and the AT8699R desk stand. A foam windscreen is included to protect against plosives. The microphone element attaches to the small-diameter gooseneck, which offers highly flexible positioning while maintaining a well-contoured appearance. The XLR power module plugs into any standard XLRF-type connector or mounts to 5/8"-27 stands using the included quick-mount stand adapter. UniGuard® innovations offer unsurpassed immunity from radio frequency interference.

More +

Product Specs

ELEMENTFixed-charge back plate, permanently polarized condenser
POLAR PATTERNCardioid
FREQUENCY RESPONSE30-20,000 Hz
LOW FREQUENCY ROLL-OFF80 Hz, 18 dB/octave
OPEN CIRCUIT SENSITIVITY-40 dB (10.0 mV) re 1V at 1 Pa
IMPEDANCE130 ohms
MAXIMUM INPUT SOUND LEVEL140 dB SPL
DYNAMIC RANGE (typical)112 dB
SIGNAL-TO-NOISE RATIO66 dB
PHANTOM POWER REQUIREMENTS11-52V DC
SWITCHESLED Color
CURRENT CONSUMPTION6.7 mA
WEIGHTES925C6/XLR: 102.0 g (3.6 oz)
ES925C12/XLR: 126.0 g (4.5 oz)
ES925C15/XLR: 131.0 g (4.6 oz)
ES925C18/XLR: 136.0 g (4.8 oz)
ES925C21/XLR: 141.0 g (5.0 oz)
ES925C24/XLR: 146.0 g (5.2 oz)
DIMENSIONSES925C6/XLR: 20.2 mm (0.80") diameter, 197.4 mm (7.77") height
ES925C12/XLR: 20.2 mm (0.80") diameter, 304.8 mm (12.00") height
ES925C15/XLR: 20.2 mm (0.80") diameter, 381.0 mm (15.00") height
ES925C18/XLR: 20.2 mm (0.80") diameter, 457.2 mm (18.00") height
ES925C21/XLR: 20.2 mm (0.80") diameter, 533.4 mm (21.00") height
ES925C24/XLR: 20.2 mm (0.80") diameter, 609.6 mm (24.00") height
OUTPUT CONNECTORIntegral 3-pin XLRM-type
OPTIONAL INTERCHANGEABLE ELEMENTSESE-Ca cardioid (120°)
ESE-Ha hypercardioid (100°)
ESE-MLa MicroLine® (90°)
ESE-Oa omnidirectional (360°)
ACCESSORIES FURNISHEDAT8109a foam windscreen; AT8474 universal isolation mount; AT8473 quick mount stand adapter; 5/8"-17 to 3/8"-16 threaded adapter; set screw (M2 x 2); hex wrench
AUDIO-TECHNICA CASE STYLEM43
