DALE SKU # AUDI-ES925ML6XLR

Audio-Technica ES925ML6/XLR 6" MicroLine Condenser Gooseneck Microphone with XLR Power Module

Contact us

  • Availability:

    Special Order Item
  • This item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.


  • LET OUR TEAM OF EXPERTS ASSIST YOU

    Description

    The ES925ML/XLR is a modular microphone system designed for professional sound reinforcement and other commercial sound applications. It includes a MicroLine¨ condenser microphone element, gooseneck and an XLR power module.

    Features:

    • Modular microphone system includes a microphone element, gooseneck and power module - each interchangeable with components from other ES Modular Microphones

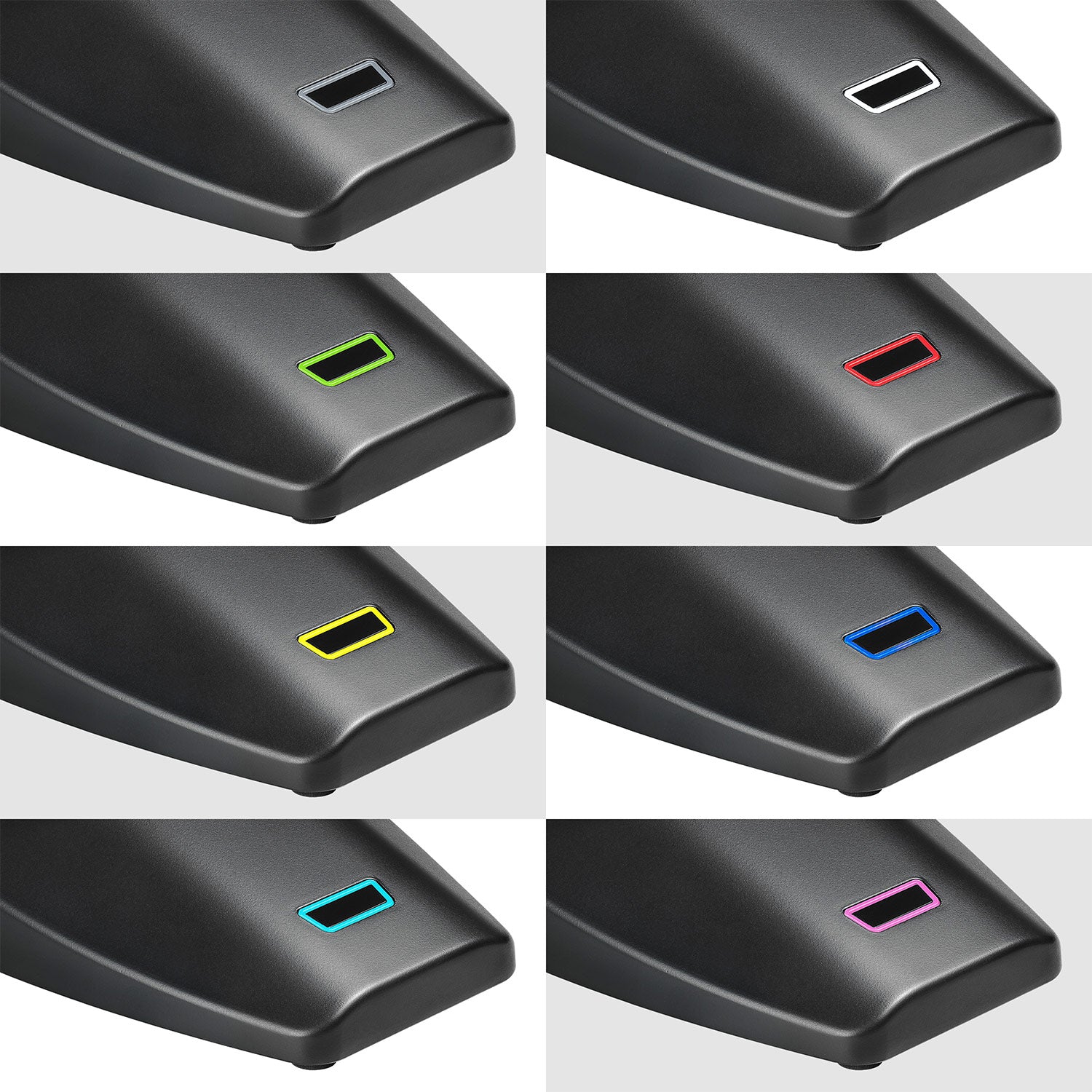

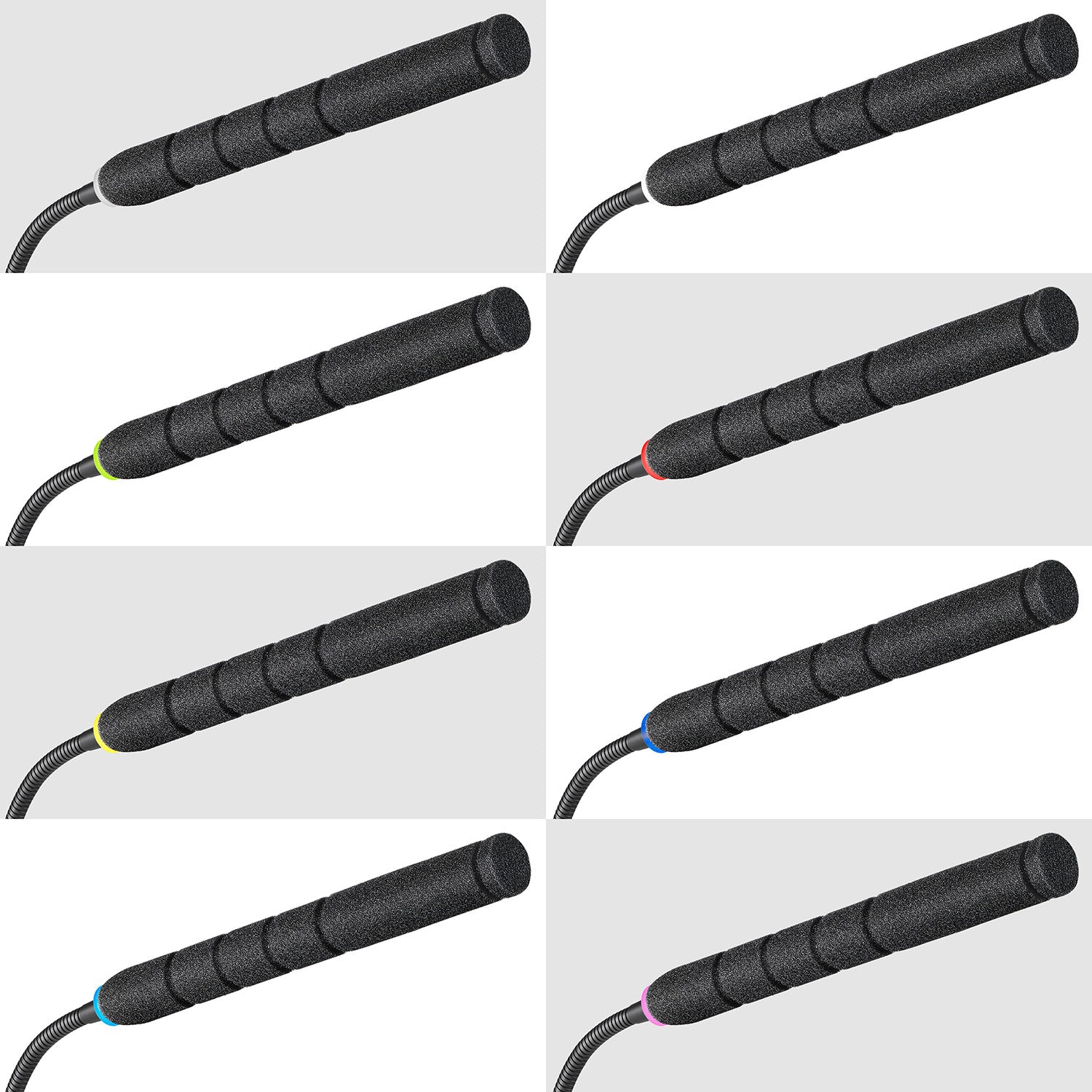

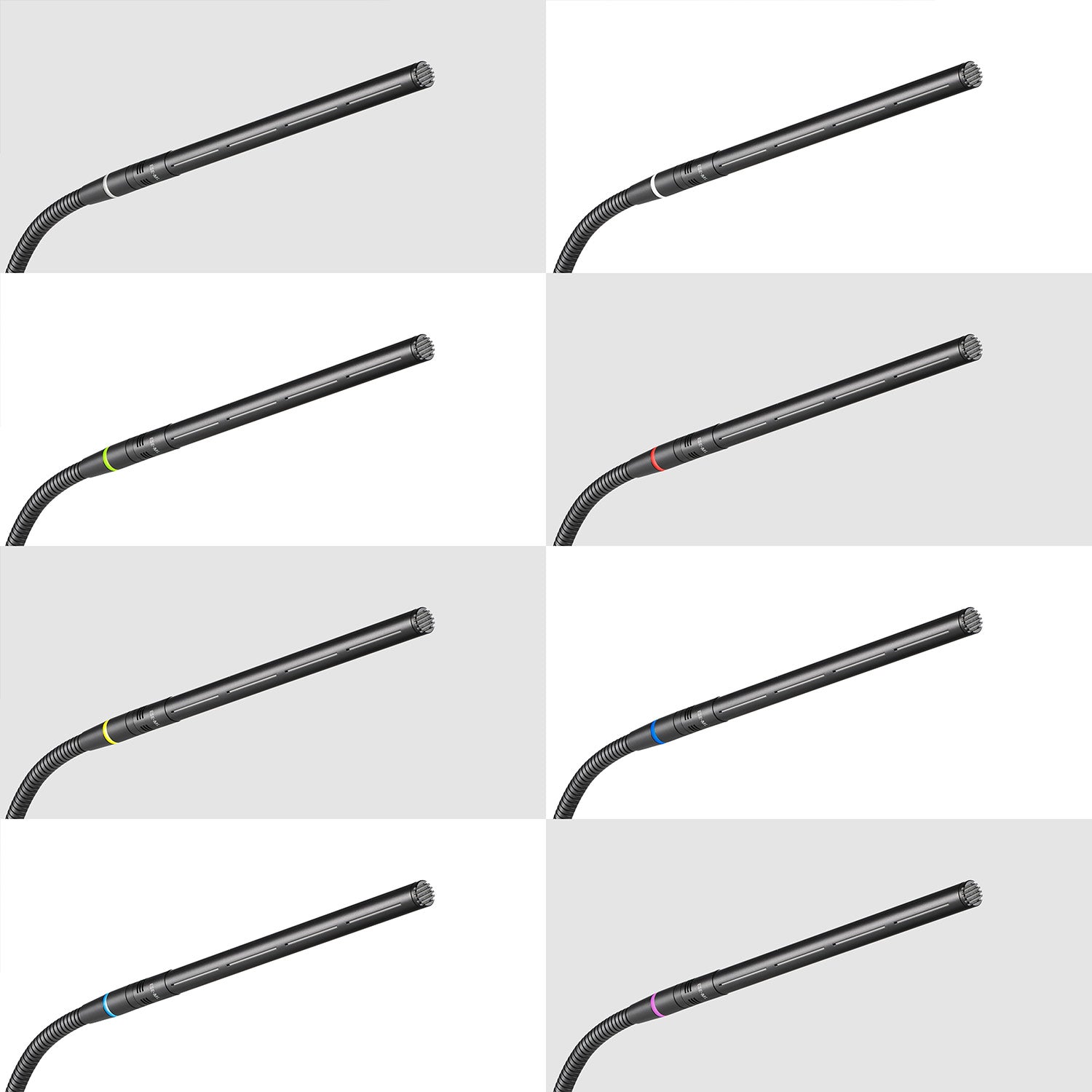

    • Element housing features a highly visible, single-state RGB LED status indicator that functions seamlessly with ATUC series products and AT8699R desk stand
    • Power module plugs into any standard XLRF-type connector or mounts to 5/8"-27 stands using included quick-mount stand adapter
    • Available interchangeable elements permit angle of acceptance from 90¡ to 360¡
    • Designed for professional sound reinforcement and other commercial sound applications
    • Interchangeable condenser microphone elements provide full-range, natural sound
    • Low-profile element provides uniform MicroLine¨ polar pattern with 90¡ acceptance angle
    • Included low-profile universal isolation mount attenuates noise, shock and vibration
    • Small-diameter gooseneck design permits highly flexible positioning
    • Superior off-axis rejection for maximum gain before feedback
    • UniGuard¨ RFI-shielding technology offers outstanding rejection of radio frequency interference (RFI)

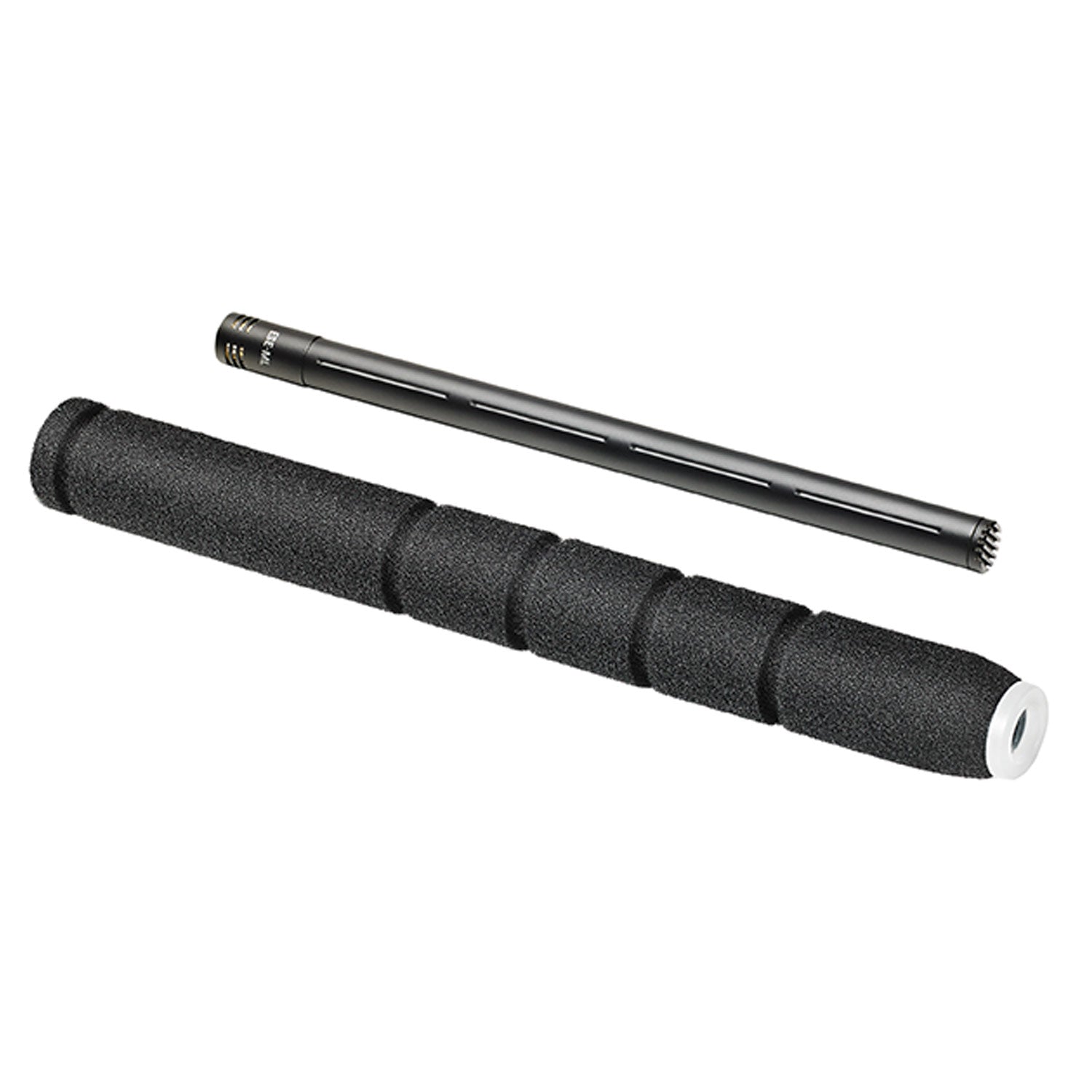

    • Includes foam windscreen

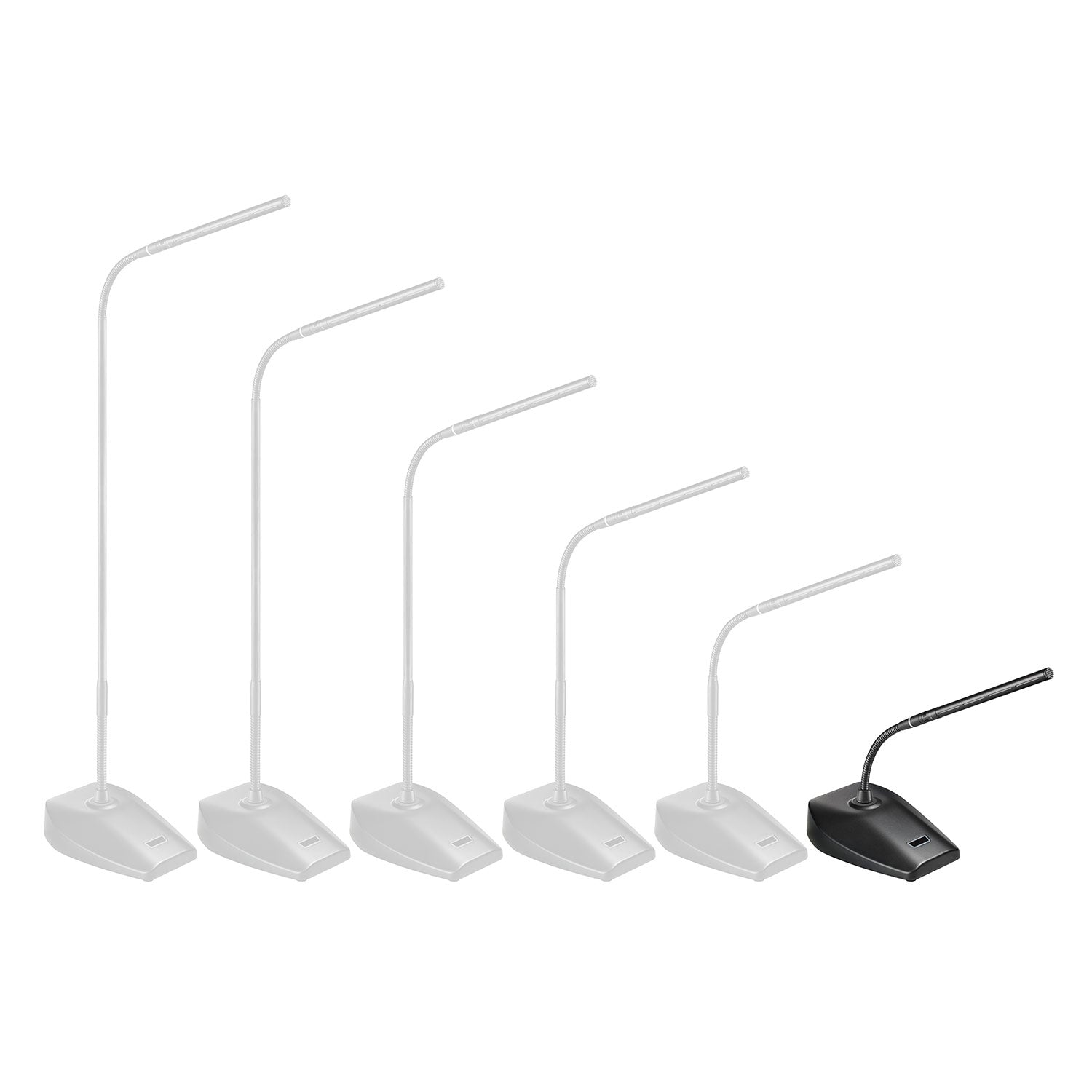

    • Available in six lengths

    Each component is interchangeable with other ES modular microphone components, allowing you to mix and match power module types (XLR, FM3, FM5, DS5), gooseneck lengths (4.85", 9.08", 12.08", 15.08", 18.08", 21.08"), and microphone polar patterns (MicroLine¨, hypercardioid, cardioid, omnidirectional).

    The ES925ML/XLR microphone's low-profile element provides a uniform MicroLine polar pattern with a 90¡ acceptance angle. The element housing features a highly visible, single-state RGB LED status indicator that functions seamlessly with ATUC series products and the AT8699R desk stand. A foam windscreen is included to protect against plosives. The microphone element attaches to the small-diameter gooseneck, which offers highly flexible positioning while maintaining a well-contoured appearance. The XLR power module plugs into any standard XLRF-type connector or mounts to 5/8"-27 stands using the included quick-mount stand adapter. UniGuard¨ innovations offer unsurpassed immunity from radio frequency interference.

    ELEMENTFixed-charge back plate, permanently polarized condenser
    POLAR PATTERNMicroLine¬ (line cardioid)
    FREQUENCY RESPONSE30-20,000 Hz
    LOW FREQUENCY ROLL-OFF-35 dB (17.8 mV) re 1V at 1 Pa
    IMPEDANCE130 ohms
    MAXIMUM INPUT SOUND LEVEL137 dB SPL
    DYNAMIC RANGE (typical)114 dB
    SIGNAL-TO-NOISE RATIO71 dB
    PHANTOM POWER REQUIREMENTS11-52V DC
    SWITCHESLED Color
    CURRENT CONSUMPTION6.7 mA
    WEIGHTES925ML6/XLR: 106.2 g (3.8 oz)
    ES925ML12/XLR: 130.2 g (4.6 oz)
    ES925ML15/XLR: 135.2 g (4.8 oz)
    ES925ML18/XLR: 140.2 g (5.0 oz)
    ES925ML21/XLR: 145.2 g (5.1 oz)
    ES925ML24/XLR: 150.2 g (5.3 oz)
    DIMENSIONSES925ML6/XLR: 20.2 mm (0.80") diameter, 316.3 mm (12.50") height
    ES925ML12/XLR: 20.2 mm (0.80") diameter, 423.8 mm (16.69") height
    ES925ML15/XLR: 20.2 mm (0.80") diameter, 500.0 mm (19.69") height
    ES925ML18/XLR: 20.2 mm (0.80") diameter, 576.2 mm (22.69") height
    ES925ML21/XLR: 20.2 mm (0.80") diameter, 652.4 mm (25.69") height
    ES925ML24/XLR: 20.2 mm (0.80") diameter, 728.6 mm (28.69") height
    OUTPUT CONNECTORIntegral 3-pin XLRM-type
    OPTIONAL INTERCHANGEABLE ELEMENTSESE-Ca cardioid (120Á)
    ESE-Ha hypercardioid (100Á)
    ESE-MLa MicroLine¬ (90Á)
    ESE-Oa omnidirectional (360Á)
    ACCESSORIES FURNISHEDAT8138a foam windscreen; AT8474 universal isolation mount; AT8473 quick mount stand adapter; 5/8"-17 to 3/8"-16 threaded adapter; set screw (M2 x 2); hex wrench
    AUDIO-TECHNICA CASE STYLEM45

    The ES925ML/XLR is a modular microphone system designed for professional sound reinforcement and other commercial sound applications. It includes a MicroLine¨ condenser microphone element, gooseneck and an XLR power module.

    Features:

    • Modular microphone system includes a microphone element, gooseneck and power module - each interchangeable with components from other ES Modular Microphones
    • Element housing features a highly visible, single-state RGB LED status indicator that functions seamlessly with ATUC series products and AT8699R desk stand
    • Power module plugs into any standard XLRF-type connector or mounts to 5/8"-27 stands using included quick-mount stand adapter
    • Available interchangeable elements permit angle of acceptance from 90¡ to 360¡
    • Designed for professional sound reinforcement and other commercial sound applications
    • Interchangeable condenser microphone elements provide full-range, natural sound
    • Low-profile element provides uniform MicroLine¨ polar pattern with 90¡ acceptance angle
    • Included low-profile universal isolation mount attenuates noise, shock and vibration
    • Small-diameter gooseneck design permits highly flexible positioning
    • Superior off-axis rejection for maximum gain before feedback
    • UniGuard¨ RFI-shielding technology offers outstanding rejection of radio frequency interference (RFI)
    • Includes foam windscreen
    • Available in six lengths

    Each component is interchangeable with other ES modular microphone components, allowing you to mix and match power module types (XLR, FM3, FM5, DS5), gooseneck lengths (4.85", 9.08", 12.08", 15.08", 18.08", 21.08"), and microphone polar patterns (MicroLine¨, hypercardioid, cardioid, omnidirectional).

    The ES925ML/XLR microphone's low-profile element provides a uniform MicroLine polar pattern with a 90¡ acceptance angle. The element housing features a highly visible, single-state RGB LED status indicator that functions seamlessly with ATUC series products and the AT8699R desk stand. A foam windscreen is included to protect against plosives. The microphone element attaches to the small-diameter gooseneck, which offers highly flexible positioning while maintaining a well-contoured appearance. The XLR power module plugs into any standard XLRF-type connector or mounts to 5/8"-27 stands using the included quick-mount stand adapter. UniGuard¨ innovations offer unsurpassed immunity from radio frequency interference.

    ELEMENTFixed-charge back plate, permanently polarized condenser
    POLAR PATTERNMicroLine¬ (line cardioid)
    FREQUENCY RESPONSE30-20,000 Hz
    LOW FREQUENCY ROLL-OFF-35 dB (17.8 mV) re 1V at 1 Pa
    IMPEDANCE130 ohms
    MAXIMUM INPUT SOUND LEVEL137 dB SPL
    DYNAMIC RANGE (typical)114 dB
    SIGNAL-TO-NOISE RATIO71 dB
    PHANTOM POWER REQUIREMENTS11-52V DC
    SWITCHESLED Color
    CURRENT CONSUMPTION6.7 mA
    WEIGHTES925ML6/XLR: 106.2 g (3.8 oz)
    ES925ML12/XLR: 130.2 g (4.6 oz)
    ES925ML15/XLR: 135.2 g (4.8 oz)
    ES925ML18/XLR: 140.2 g (5.0 oz)
    ES925ML21/XLR: 145.2 g (5.1 oz)
    ES925ML24/XLR: 150.2 g (5.3 oz)
    DIMENSIONSES925ML6/XLR: 20.2 mm (0.80") diameter, 316.3 mm (12.50") height
    ES925ML12/XLR: 20.2 mm (0.80") diameter, 423.8 mm (16.69") height
    ES925ML15/XLR: 20.2 mm (0.80") diameter, 500.0 mm (19.69") height
    ES925ML18/XLR: 20.2 mm (0.80") diameter, 576.2 mm (22.69") height
    ES925ML21/XLR: 20.2 mm (0.80") diameter, 652.4 mm (25.69") height
    ES925ML24/XLR: 20.2 mm (0.80") diameter, 728.6 mm (28.69") height
    OUTPUT CONNECTORIntegral 3-pin XLRM-type
    OPTIONAL INTERCHANGEABLE ELEMENTSESE-Ca cardioid (120Á)
    ESE-Ha hypercardioid (100Á)
    ESE-MLa MicroLine¬ (90Á)
    ESE-Oa omnidirectional (360Á)
    ACCESSORIES FURNISHEDAT8138a foam windscreen; AT8474 universal isolation mount; AT8473 quick mount stand adapter; 5/8"-17 to 3/8"-16 threaded adapter; set screw (M2 x 2); hex wrench
    AUDIO-TECHNICA CASE STYLEM45
