Description

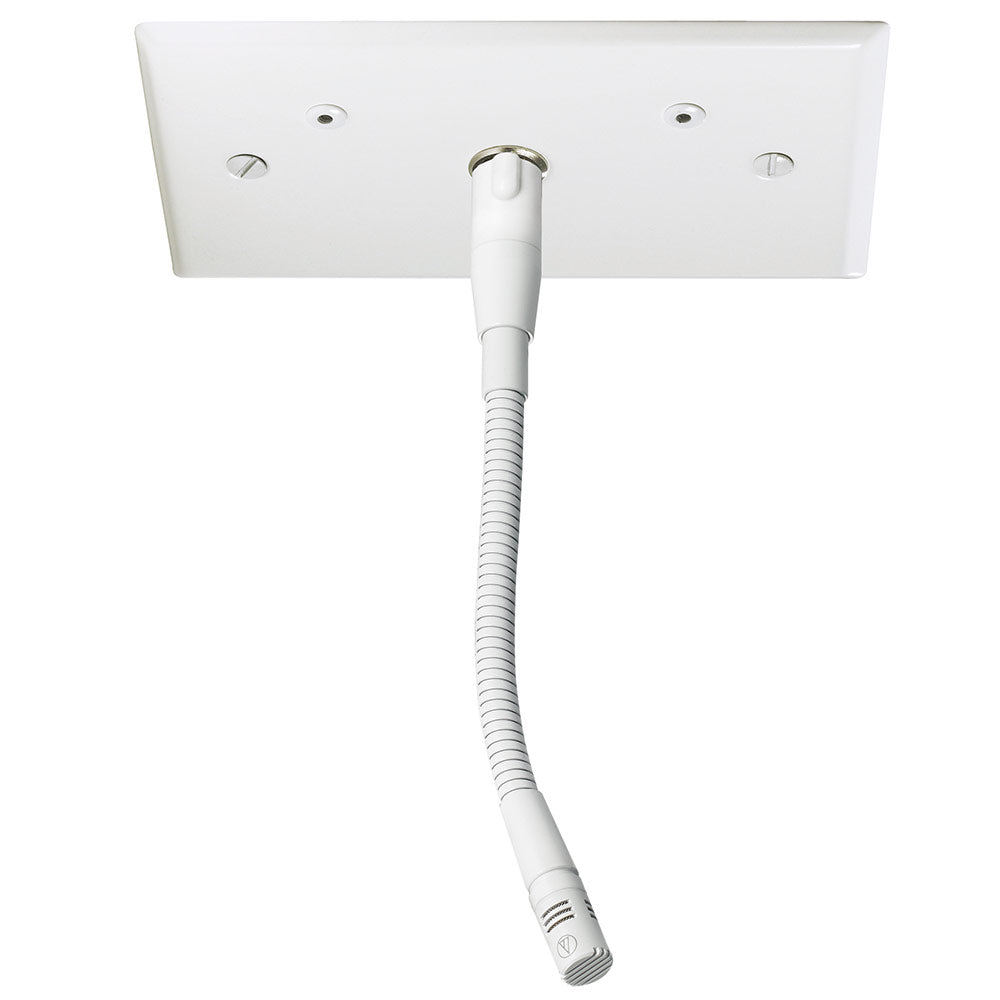

With its low-profile and rugged-yet-highly-flexible design, the ES931PMWH hypercardioid condenser gooseneck microphone is a perfect fit for boardrooms, school and government settings, teleconferencing, houses of worship and other installed applications. The microphone, which features UniGuard® RF... Read MoreOur Price: $219.00
Shipping Charges Apply
Suggested Accessories
Description

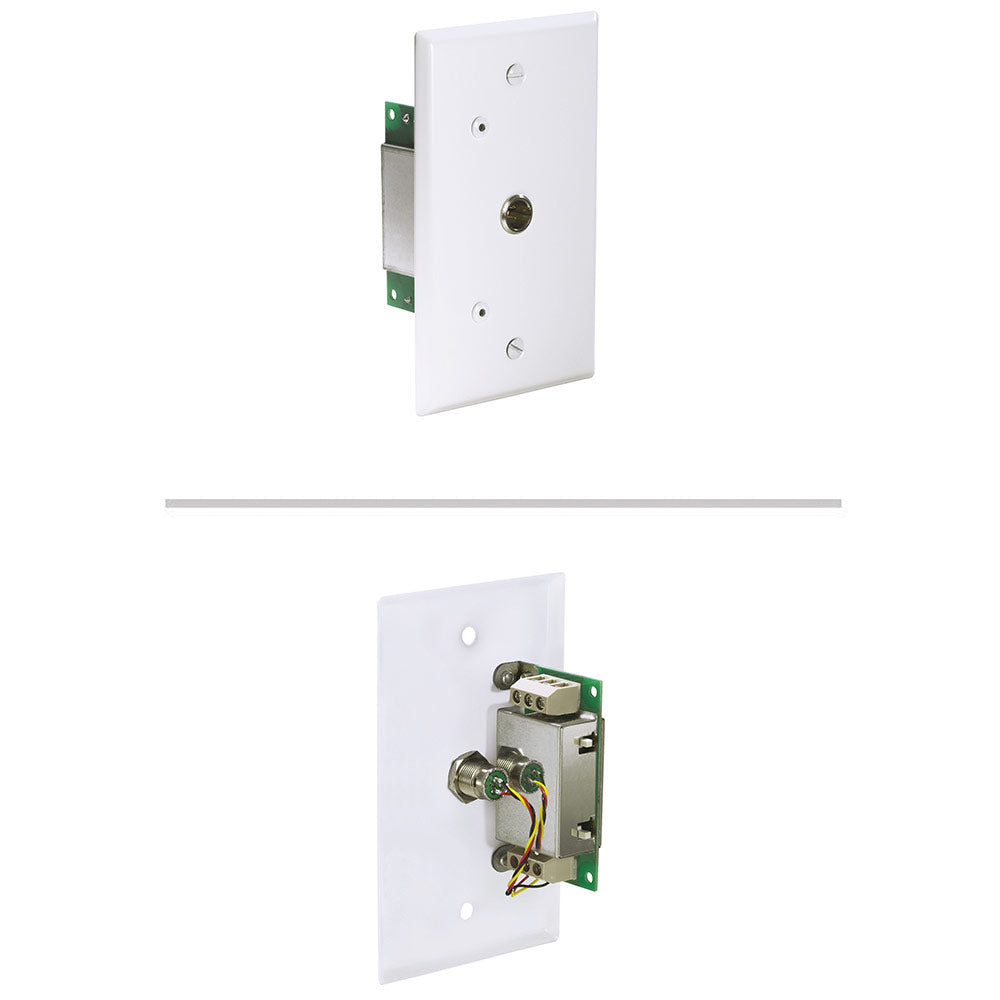

With its low-profile and rugged-yet-highly-flexible design, the ES931PMWH hypercardioid condenser gooseneck microphone is a perfect fit for boardrooms, school and government settings, teleconferencing, houses of worship and other installed applications. The microphone, which features UniGuard® RFI-shielding technology for outstanding rejection of radio frequency interference (RFI), attaches to the provided AT8534 wall/ceiling plate power module via a special TA3F-type connector designed to optimize RFI immunity.
Features:
Switches in the power module permit a +10 dB gain setting for extra sensitive pickup as well as a choice of flat response or low-frequency roll-off (via integral 80 Hz high-pass UniSteep® filter) to help control undesired ambient noise. The power module mounts in a standard metal U.S. single-gang electrical box.
This gooseneck mic provides a uniform hypercardioid polar pattern with 100° acceptance angle, comes with a two-stage foam windscreen and is available with low-reflectance black (ES931PMH) or white (ES931PMWH) finish. Additional interchangeable elements - omnidirectional (360°), cardioid (120°) and MicroLine® (90°) - are available separately.
More +
Product Specs
ELEMENT | Fixed-charge back plate, permanently polarized condenser |
POLAR PATTERN | Hypercardioid |
FREQUENCY RESPONSE | 80-20,000 Hz |
LOW FREQUENCY ROLL-OFF | 80 Hz, 18 dB/octave |
OPEN CIRCUIT SENSITIVITY | -40 dB (10.0 mV) re 1V at 1 Pa |
IMPEDANCE | 200 ohms |
MAXIMUM INPUT SOUND LEVEL | 128 dB SPL, 1 kHz at 1% T.H.D. |
DYNAMIC RANGE (typical) | 102 dB, 1 kHz at Max SPL |
SIGNAL-TO-NOISE RATIO | 68 dB, 1 kHz at 1 Pa |
PHANTOM POWER REQUIREMENTS | 11-52V DC, 4 mA typical |
SWITCHES | Flat, roll-off; 0 dB, +10 dB gain setting |
WEIGHT (MICROPHONE) | 39 g (1.4 oz) |
WEIGHT (POWER MODULE) | 97 g (3.4 oz) |
DIMENSIONS (MICROPHONE) | 152.4 mm (6.0") long (with capsule), 8.4 mm (0.33") head diameter, 11.6 mm (0.46") base diameter |
DIMENSIONS (POWER MODULE) | 71.0 mm (2.80") W x 115.5 mm (4.55") H x 36.0 mm (1.42") D |
OUTPUT CONNECTOR (POWER MODULE) | Screw-terminals |
OPTIONAL INTERCHANGEABLE ELEMENTS | ESE-O omnidirectional (360°) ESE-C cardioid (100°) ESE-ML MicroLine (90°) |
ACCESSORIES FURNISHED | AT8534 wall/ceiling plate power module; AT8109 two-stage foam windscreen |
AUDIO-TECHNICA CASE STYLE | M41 |
