DALE SKU # AUDI-ES931PMWML

Audio-Technica ES931PMWML MicroLine Condenser Gooseneck Microphone (White)

Contact us

  • Availability:

    Special Order Item
  • This item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.


  • LET OUR TEAM OF EXPERTS ASSIST YOU

    Description

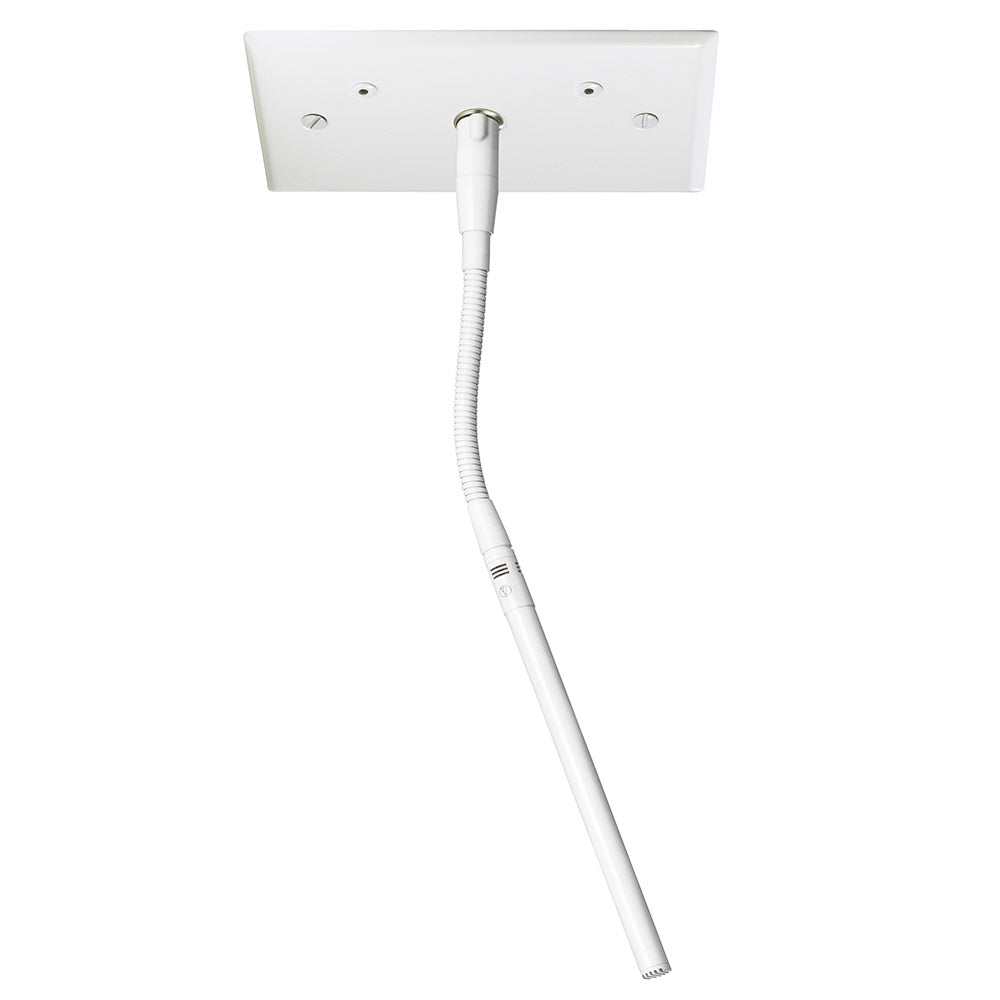

    With its low-profile and rugged-yet-highly-flexible design, the ES931PMWML MicroLine¨ condenser gooseneck microphone is a perfect fit for boardrooms, school and government settings, teleconferencing, houses of worship and other installed applications. The microphone, which features UniGuard¨ RFI-shielding technology for outstanding rejection of radio frequency interference (RFI), attaches to the provided AT8534 wall/ceiling plate power module via a special TA3F-type connector designed to optimize RFI immunity.

    Features:

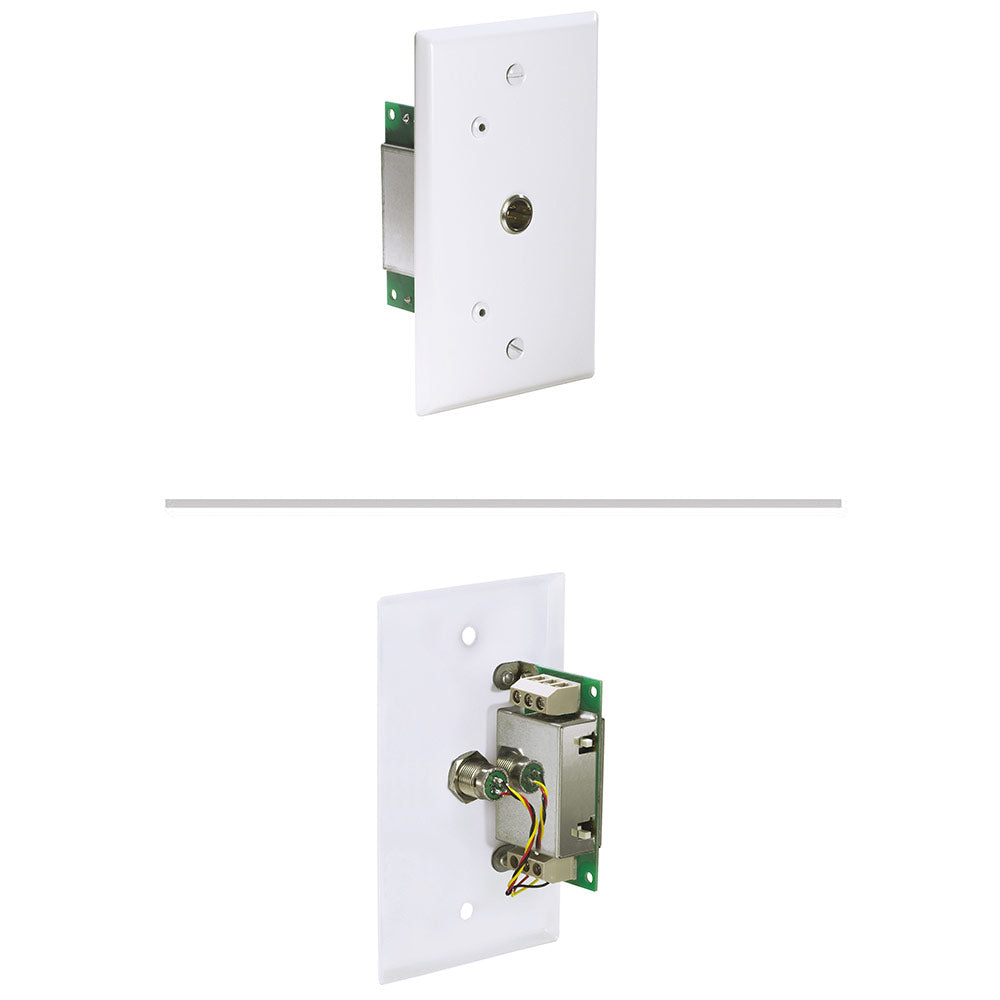

    • Wall/ceiling plate power module permits permanent installation in standard, single-gang electrical box
    • Uniform hypercardioid polar pattern with 90¡ acceptance angle
    • Low-profile design with low-reflectance finish for minimum visibility
    • Superior off-axis rejection for maximum gain before feedback
    • UniGuard¨ RFI-shielding technology offers outstanding rejection of radio frequency interference (RFI)
    • UniSteep¨ filter provides a steep low-frequency attenuation to minimize pickup of undesired ambient noise
    • Rugged, easy-to-adjust, small-diameter gooseneck can be positioned quickly into desired shape
    • Available interchangeable elements permit angle of acceptance from 90¡ to 360¡
    • Ideal for boardrooms, school and government settings, teleconferencing, houses of worship and other installed applications
    • Available in two colors: black (ES931PMML) and white (ES931PMWML)

    Switches in the power module permit a +10 dB gain setting for extra sensitive pickup as well as a choice of flat response or low-frequency roll-off (via integral 80 Hz high-pass UniSteep¨ filter) to help control undesired ambient noise. The power module mounts in a standard metal U.S. single-gang electrical box.

    This gooseneck mic provides a uniform MicroLine¨ polar pattern with narrow 90¡ acceptance angle, comes with a two-stage foam windscreen and is available with low-reflectance black (ES931PMML) or white (ES931PMWML) finish. Additional interchangeable elements - omnidirectional (360¡), cardioid (120¡) and hypercardioid (100¡) - are available separately.

    ELEMENTFixed-charge back plate, permanently polarized condenser
    POLAR PATTERNMicroLine¬ (line cardioid)
    FREQUENCY RESPONSE30-20,000 Hz
    LOW FREQUENCY ROLL-OFF80 Hz, 18 dB/octave
    OPEN CIRCUIT SENSITIVITY-35 dB (17.7 mV) re 1V at 1 Pa
    IMPEDANCE200 ohms
    MAXIMUM INPUT SOUND LEVEL123 dB SPL, 1 kHz at 1% T.H.D.
    DYNAMIC RANGE (typical)102 dB, 1 kHz at Max SPL
    SIGNAL-TO-NOISE RATIO73 dB, 1 kHz at 1 Pa
    PHANTOM POWER REQUIREMENTS11-52V DC, 4 mA typical
    SWITCHESFlat, roll-off; 0 dB, +10 dB gain setting
    WEIGHT (MICROPHONE)43 g (1.5 oz)
    WEIGHT (POWER MODULE)97 g (3.4 oz)
    DIMENSIONS (MICROPHONE)271.4 mm (10.7") long,
    8.0 mm (0.31") head diameter,
    11.6 mm (0.46") base diameter
    DIMENSIONS (POWER MODULE)71.0 mm (2.80") W x 115.5 mm (4.55") H x 36.0 mm (1.42") D
    OUTPUT CONNECTOR (POWER MODULE)Screw-terminals
    OPTIONAL INTERCHANGEABLE ELEMENTSESE-O omnidirectional (360Á)
    ESE-C cardioid (100Á)
    ESE-ML MicroLine (90Á)

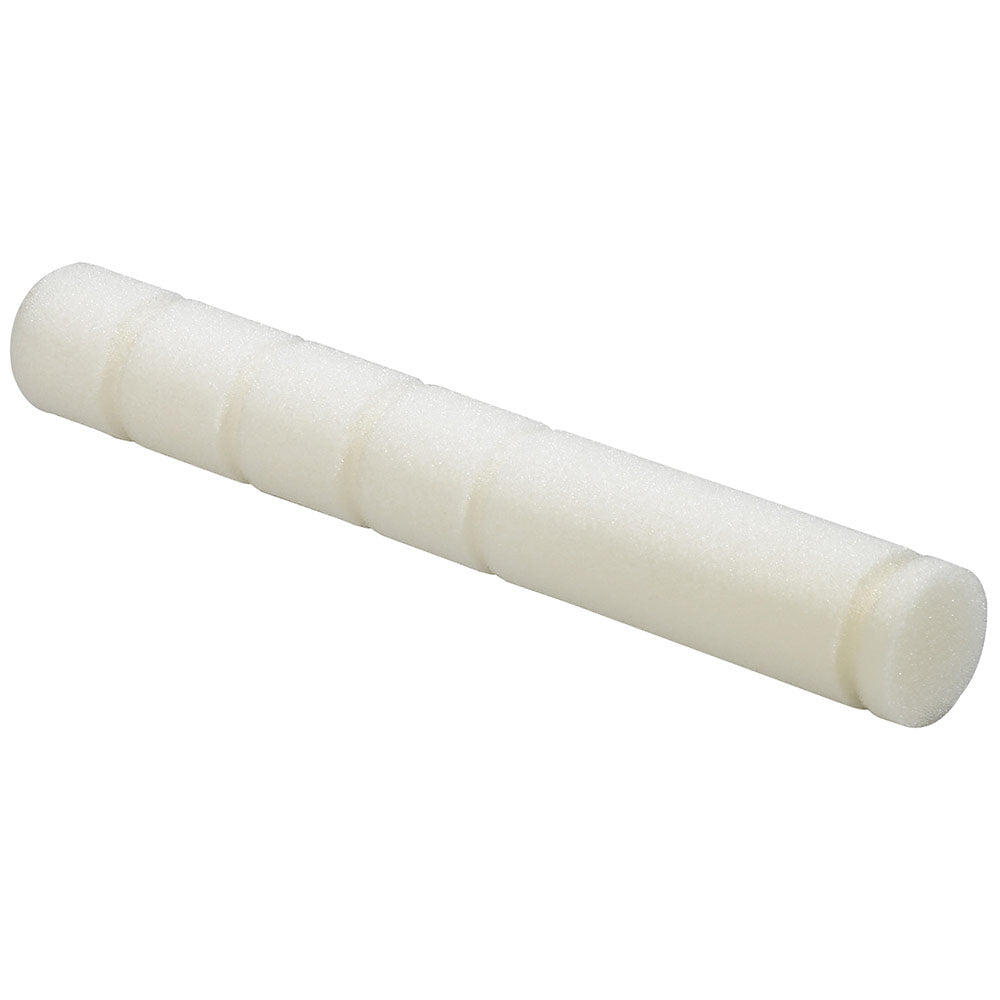

    ACCESSORIES FURNISHEDAT8534 wall/ceiling plate power module; AT8109 two-stage foam windscreen
    AUDIO-TECHNICA CASE STYLEM42

    With its low-profile and rugged-yet-highly-flexible design, the ES931PMWML MicroLine¨ condenser gooseneck microphone is a perfect fit for boardrooms, school and government settings, teleconferencing, houses of worship and other installed applications. The microphone, which features UniGuard¨ RFI-shielding technology for outstanding rejection of radio frequency interference (RFI), attaches to the provided AT8534 wall/ceiling plate power module via a special TA3F-type connector designed to optimize RFI immunity.

    Features:

    • Wall/ceiling plate power module permits permanent installation in standard, single-gang electrical box
    • Uniform hypercardioid polar pattern with 90¡ acceptance angle
    • Low-profile design with low-reflectance finish for minimum visibility
    • Superior off-axis rejection for maximum gain before feedback
    • UniGuard¨ RFI-shielding technology offers outstanding rejection of radio frequency interference (RFI)
    • UniSteep¨ filter provides a steep low-frequency attenuation to minimize pickup of undesired ambient noise
    • Rugged, easy-to-adjust, small-diameter gooseneck can be positioned quickly into desired shape
    • Available interchangeable elements permit angle of acceptance from 90¡ to 360¡
    • Ideal for boardrooms, school and government settings, teleconferencing, houses of worship and other installed applications
    • Available in two colors: black (ES931PMML) and white (ES931PMWML)

    Switches in the power module permit a +10 dB gain setting for extra sensitive pickup as well as a choice of flat response or low-frequency roll-off (via integral 80 Hz high-pass UniSteep¨ filter) to help control undesired ambient noise. The power module mounts in a standard metal U.S. single-gang electrical box.

    This gooseneck mic provides a uniform MicroLine¨ polar pattern with narrow 90¡ acceptance angle, comes with a two-stage foam windscreen and is available with low-reflectance black (ES931PMML) or white (ES931PMWML) finish. Additional interchangeable elements - omnidirectional (360¡), cardioid (120¡) and hypercardioid (100¡) - are available separately.

    ELEMENTFixed-charge back plate, permanently polarized condenser
    POLAR PATTERNMicroLine¬ (line cardioid)
    FREQUENCY RESPONSE30-20,000 Hz
    LOW FREQUENCY ROLL-OFF80 Hz, 18 dB/octave
    OPEN CIRCUIT SENSITIVITY-35 dB (17.7 mV) re 1V at 1 Pa
    IMPEDANCE200 ohms
    MAXIMUM INPUT SOUND LEVEL123 dB SPL, 1 kHz at 1% T.H.D.
    DYNAMIC RANGE (typical)102 dB, 1 kHz at Max SPL
    SIGNAL-TO-NOISE RATIO73 dB, 1 kHz at 1 Pa
    PHANTOM POWER REQUIREMENTS11-52V DC, 4 mA typical
    SWITCHESFlat, roll-off; 0 dB, +10 dB gain setting
    WEIGHT (MICROPHONE)43 g (1.5 oz)
    WEIGHT (POWER MODULE)97 g (3.4 oz)
    DIMENSIONS (MICROPHONE)271.4 mm (10.7") long,
    8.0 mm (0.31") head diameter,
    11.6 mm (0.46") base diameter
    DIMENSIONS (POWER MODULE)71.0 mm (2.80") W x 115.5 mm (4.55") H x 36.0 mm (1.42") D
    OUTPUT CONNECTOR (POWER MODULE)Screw-terminals
    OPTIONAL INTERCHANGEABLE ELEMENTSESE-O omnidirectional (360Á)
    ESE-C cardioid (100Á)
    ESE-ML MicroLine (90Á)
    ACCESSORIES FURNISHEDAT8534 wall/ceiling plate power module; AT8109 two-stage foam windscreen
    AUDIO-TECHNICA CASE STYLEM42
