Audio-Technica ES933H Hypercardioid Condenser Hanging Microphone

  • Dale #:

    AUDI-ES933H
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock, but we can usually ship it within 10-20 days after your order is placed. Your payment will be charged after completing checkout.

Description

The new Engineered Sound. Contractor-exclusive innovations for every acoustical challenge. And safe haven from RFI.With durable construction and unobtrusive appearance, the ES933H offers versatile solutions for speech, theater, orchestra and choir sound reinforcement and recording. The microphone... Read More

Shipping Charges Apply

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

The new Engineered Sound. Contractor-exclusive innovations for every acoustical challenge. And safe haven from RFI.

With durable construction and unobtrusive appearance, the ES933H offers versatile solutions for speech, theater, orchestra and choir sound reinforcement and recording. The microphone's low-profile element provides a uniform hypercardioid polar pattern with 100º acceptance angle. Available in two colors: black (ES933H); white (ES933WH), the microphone offers unsurpassed immunity from radio frequency interference thanks to UniGuard® innovations. The ES933H also offers an 80 Hz low-cut UniSteep® filter that reduces pickup of low-frequency ambient noise.

Features:

  • Designed for quality sound reinforcement, professional recording, television and other demanding sound pickup applications
  • Small size and excellent response are ideal for suspension over choirs, instrumental groups and theater stages
  • Low-profile element provides uniform hypercardioid polar pattern with 100º acceptance angle
  • Available interchangeable elements permit angle of acceptance from 90º to 360º
  • Superior off-axis rejection for maximum gain before feedback
  • Requires 11V to 52V DC phantom power
  • UniGuard® RFI-shielding technology offers outstanding rejection of radio frequency interference (RFI)
  • Integral UniSteep® filter provides a steep low-frequency attenuation to improve sound pickup without affecting voice quality
  • Available in two colors: black (ES933H) and white (ES933WH)
  • RoHS compliant-free from all substances specified in the EU directive on hazardous substances

More +

Product Specs

ELEMENTFixed-charge back plate, permanently polarized condenser
POLAR PATTERNHypercardioid
FREQUENCY RESPONSE80-20,000 Hz
LOW FREQUENCY ROLL-OFF80 Hz, 18 dB/octave
OPEN CIRCUIT SENSITIVITY-40 dB (10.0 mV) re 1V at 1 Pa
IMPEDANCE250 ohms
MAXIMUM INPUT SOUND LEVEL138 dB SPL, 1 kHz at 1% T.H.D.
DYNAMIC RANGE (typical)109 dB, 1 kHz at Max SPL
SIGNAL-TO-NOISE RATIO65 dB, 1 kHz at 1 Pa
PHANTOM POWER REQUIREMENTS11-52V DC, 4 mA typical
SWITCHESFlat, roll-off
WEIGHT (MICROPHONE)5.5 g (0.2 oz)
WEIGHT (POWER MODULE)81 g (2.9 oz)
DIMENSIONS (MICROPHONE)27.5 mm (1.08") long, 8.4 mm (0.33") head diameter
DIMENSIONS (POWER MODULE)92.9 mm (3.66") long, 18.9 mm (0.74") diameter
OUTPUT CONNECTOR (POWER MODULE)Integral 3-pin XLRM-type
CABLE15.2 m (50') long (permanently attached to microphone), 3.2 mm (0.13") diameter, 2-conductor shielded cable, terminated with TA3F-type connector
OPTIONAL INTERCHANGEABLE ELEMENTSESE-O omnidirectional (360°)
ESE-H hypercardioid (100°)
ESE-ML MicroLine (90°)

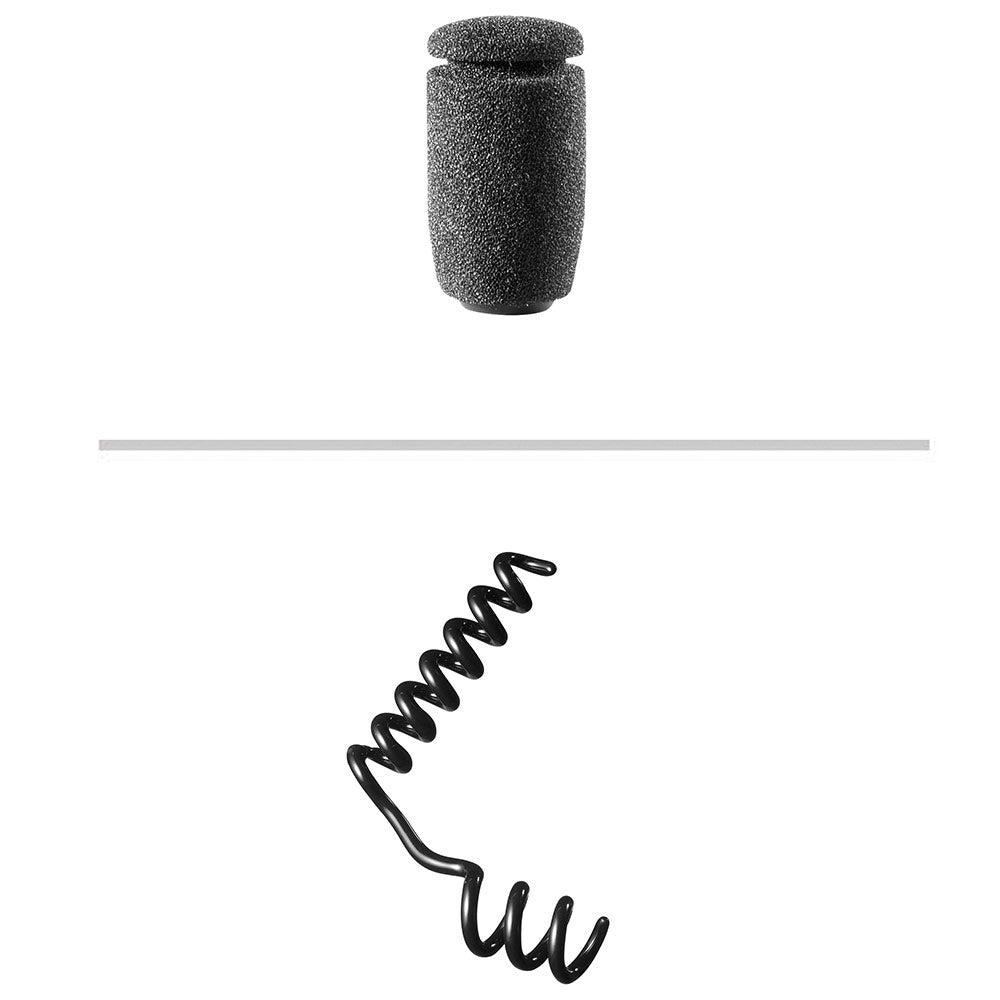

ACCESSORIES FURNISHEDES933H: AT8109 two-stage foam windscreen; AT8452 steel hanger
ES933WH: AT8109(WH) two-stage foam windscreen; AT8452(WH) steel hanger
Both: AT8538 power module
AUDIO-TECHNICA CASE STYLEM25

More +
