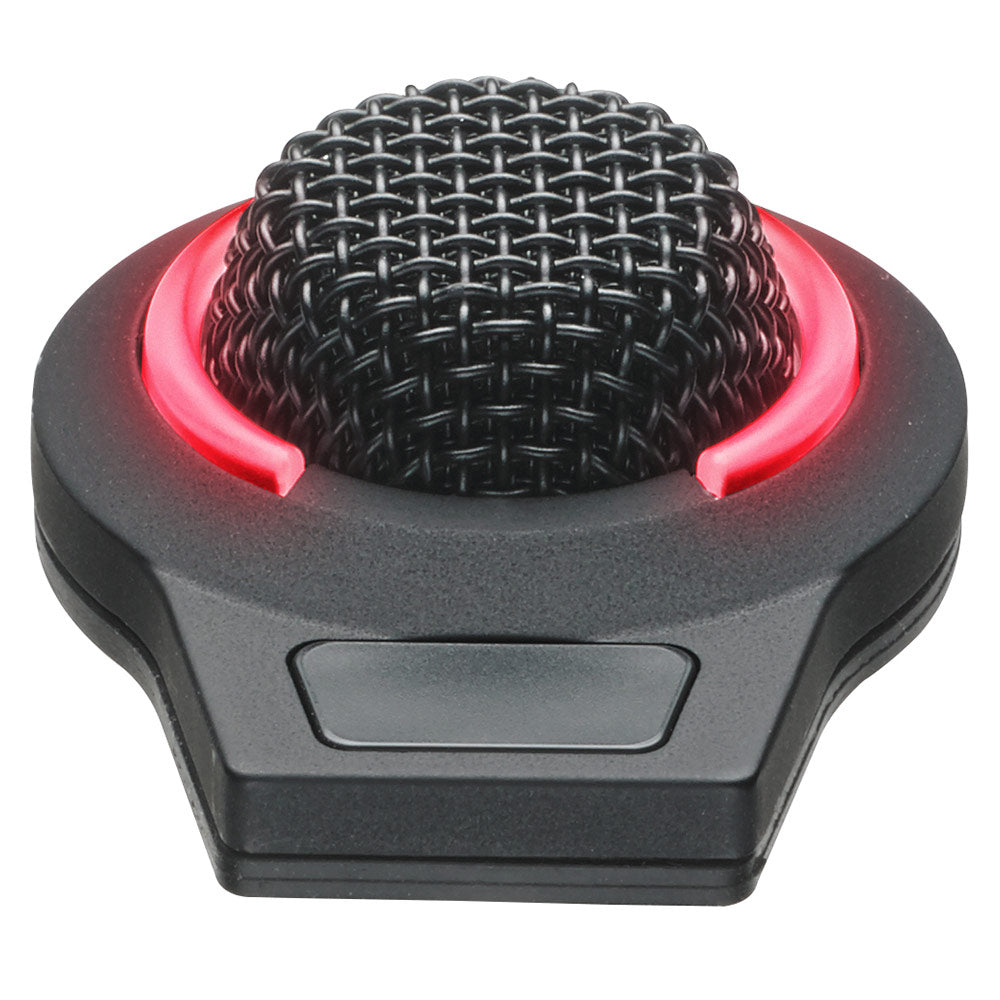

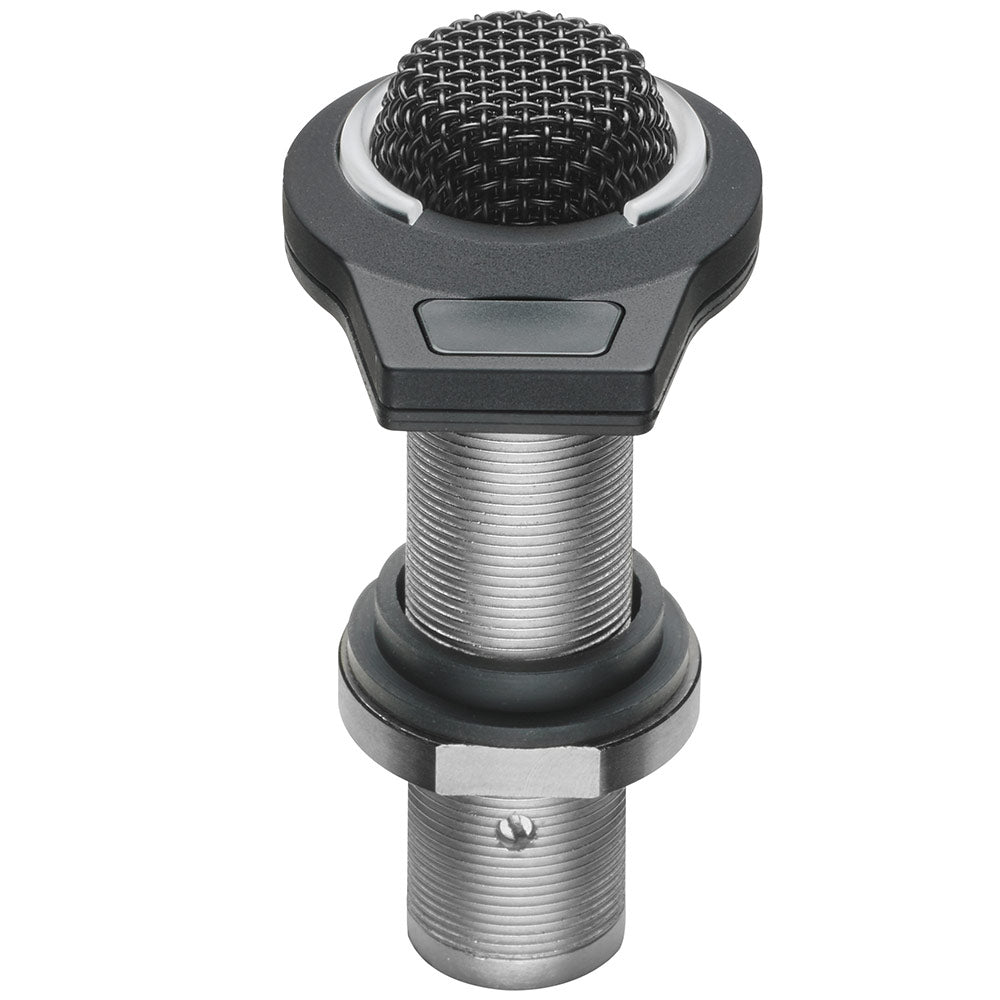

Audio-Technica ES945/LED Omnidirectional Condenser Boundary Mic w/Mute Switch/LED Indicator (Black)
Availability:
In StockAvailable for shipment within one business day, or pickup from our Jamaica, NY warehouse during regular business hours.
Description
With its low-profile design that mounts unobtrusively in tabletops for minimum visibility, the ES945/LED omnidirectional condenser boundary microphone provides clear, highly intelligible audio that is perfect for sound reinforcement, professional recording and teleconferencing, television and other demanding sound pickup applications.
Features:
- Mounts unobtrusively in tabletops
- Capacitive-type touch-sensitive switch allows users to easily mute/un-mute the microphone
- Integral bicolored LED ring indicates mute status - stays green when mic is live, turns red when muted
- Low-profile element provides uniform omnidirectional polar pattern with 360¡ acceptance angle
- Slef-contained power module with XLRM-type output connector
- UniGuard¨ RFI-shielding technology offers outstanding rejection of radio frequency interference (RFI)
- Requires 11V to 52V DC phantom power
- Rugged all-metal case with a two-layer steel mesh grille
- Isolators provide mechanical dampening of mounting surface vibration
- Available in two colors: black (ES945/LED) and silver (ES945SV/LED)
Protected by a rugged all-metal case with a two-layer steel mesh grille, the microphone's omnidirectional polar pattern affords a 360¡ pickup angle, while its UniGuard¨ RFI-shielding technology provides outstanding rejection of radio frequency interference (RFI). Users can easily toggle between mute and live audio thanks to the microphone's capacitive-type touch-sensitive switch. An integral Red/Green LED ring indicates the mute status, staying green when the microphone is live and turning red when it is muted.
Additionally, the ES945/LED is equipped with a self-contained power module with an XLRM-type output connector, eliminating the need for an external power module.
The microphone is available in two colors: black (ES945/LED) and silver (ES945SV/LED). A pair of isolators is included for optional mechanical isolation from the mounting surface.
| ELEMENT | Fixed-charge back plate, permanently polarized condenser |
| POLAR PATTERN | Omnidirectional |
| FREQUENCY RESPONSE | 40-19,000 Hz |
| OPEN CIRCUIT SENSITIVITY | -40 dB (10 mV) re 1V at 1 Pa |
| IMPEDANCE | 200 ohms |
| MAXIMUM INPUT SOUND LEVEL | 142 dB SPL, 1 kHz at 1% T.H.D. |
| DYNAMIC RANGE (typical) | 113 dB, 1 kHz at Max SPL |
| SIGNAL-TO-NOISE RATIO | 65 dB, 1 kHz at 1 Pa |
| PHANTOM POWER REQUIREMENTS | 11-52V DC, 4 mA typical |
| SWITCH | Touch-sensitive control: on/mute |
| WEIGHT | 65 g (2.3 oz) |
| DIMENSIONS | 84.8 mm (3.33") long, 38.0 mm (1.49") diameter, 48.0 mm (1.89") maximum width |
| OUTPUT CONNECTOR | Integral 3-pin XLRM-type |
| ACCESSORIES FURNISHED | One pair isolators |
