DALE SKU # AUDI-ES945W

Audio-Technica ES945W Omnidirectional Condenser Boundary Microphone (White)

Sale price$140.00 Regular price$232.00
Save $92.00

Please Note: Orders will not be available for shipment until on or about Wednesday August, 19.


LET OUR TEAM OF EXPERTS ASSIST YOU

Description

The new Engineered Sound. Contractor-exclusive innovations for every acoustical challenge. And safe haven from Radio Frequency Interference (RFI).

This low-profile omnidirectional condenser boundary microphone is designed for clear, highly intelligible sound reinforcement, professional recording and teleconferencing in table-, ceiling-, or panel-mount applications. The microphone is equipped with a self-contained power module with an XLRM-type output connector, eliminating the need for an external power module. The microphone offers unsurpassed immunity from radio frequency interference thanks to Audio-Technica's UniGuard¨ innovations. Protected by a rugged all-metal case with a two-layer steel mesh grille, the microphone has a 360¡ pickup angle, and is available in two colors: black (ES945) and white (ES945W).

Features:

  • Designed for surface-mount applications such as high-quality sound reinforcement, professional recording and teleconferencing
  • Low-profile element provides uniform omnidirectional polar pattern with 360¼ acceptance angle
  • Mounts unobtrusively in table-tops, ceilings and wall panels
  • Self-contained power module with XLRM-type output connector
  • Rugged all-metal case with a two-layer steel mesh grille
  • Isolators provide mechanical dampening of mounting-surface vibration
  • Requires 11V to 52V DC phantom power
  • UniGuard¨ RFI-shielding technology offers outstanding rejection of radio frequency interference (RFI)
  • Available in two colors: black (ES945) and white (ES945W)
  • RoHS compliant-free from all substances specified in the EU directive on hazardous substances
ELEMENTFixed-charge back plate, permanently polarized condenser
POLAR PATTERNOmnidirectional

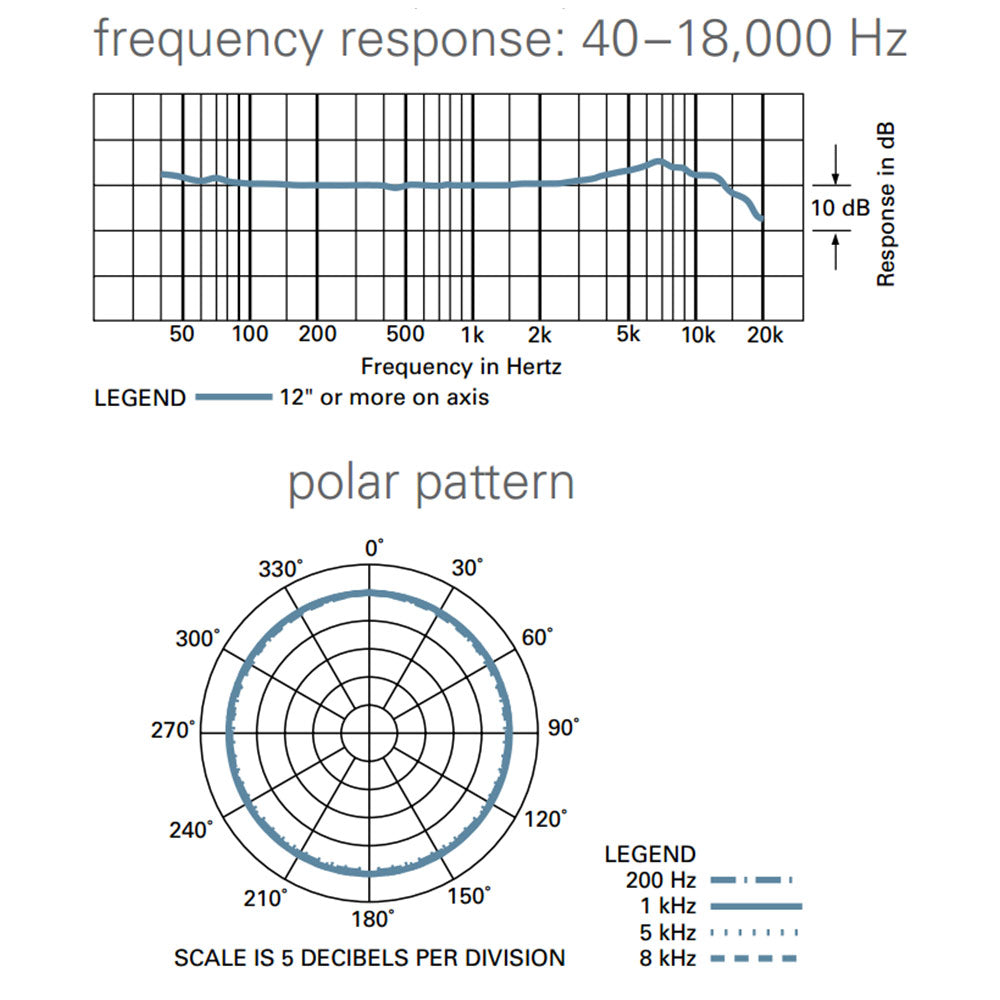

FREQUENCY RESPONSE40-18,000 Hz
OPEN CIRCUIT SENSITIVITY-42 dB (7.9 mV) re 1V at 1 Pa
IMPEDANCE200 ohms
MAXIMUM INPUT SOUND LEVEL142 dB SPL, 1 kHz at 1% T.H.D.
DYNAMIC RANGE (typical)112 dB, 1 kHz at Max SPL
SIGNAL-TO-NOISE RATIO64 dB, 1 kHz at 1 Pa
PHANTOM POWER REQUIREMENTS11-52V DC, 2 mA typical
WEIGHT63 g (2.2 oz)
DIMENSIONS69.0 mm (2.72") long, 28.0 mm (1.10") diameter
OUTPUT CONNECTORIntegral 3-pin XLRM-type
ACCESSORY FURNISHEDOne pair isolators

The new Engineered Sound. Contractor-exclusive innovations for every acoustical challenge. And safe haven from Radio Frequency Interference (RFI).

This low-profile omnidirectional condenser boundary microphone is designed for clear, highly intelligible sound reinforcement, professional recording and teleconferencing in table-, ceiling-, or panel-mount applications. The microphone is equipped with a self-contained power module with an XLRM-type output connector, eliminating the need for an external power module. The microphone offers unsurpassed immunity from radio frequency interference thanks to Audio-Technica's UniGuard¨ innovations. Protected by a rugged all-metal case with a two-layer steel mesh grille, the microphone has a 360¡ pickup angle, and is available in two colors: black (ES945) and white (ES945W).

Features:

  • Designed for surface-mount applications such as high-quality sound reinforcement, professional recording and teleconferencing
  • Low-profile element provides uniform omnidirectional polar pattern with 360¼ acceptance angle
  • Mounts unobtrusively in table-tops, ceilings and wall panels
  • Self-contained power module with XLRM-type output connector
  • Rugged all-metal case with a two-layer steel mesh grille
  • Isolators provide mechanical dampening of mounting-surface vibration
  • Requires 11V to 52V DC phantom power
  • UniGuard¨ RFI-shielding technology offers outstanding rejection of radio frequency interference (RFI)
  • Available in two colors: black (ES945) and white (ES945W)
  • RoHS compliant-free from all substances specified in the EU directive on hazardous substances
ELEMENTFixed-charge back plate, permanently polarized condenser
POLAR PATTERNOmnidirectional
FREQUENCY RESPONSE40-18,000 Hz
OPEN CIRCUIT SENSITIVITY-42 dB (7.9 mV) re 1V at 1 Pa
IMPEDANCE200 ohms
MAXIMUM INPUT SOUND LEVEL142 dB SPL, 1 kHz at 1% T.H.D.
DYNAMIC RANGE (typical)112 dB, 1 kHz at Max SPL
SIGNAL-TO-NOISE RATIO64 dB, 1 kHz at 1 Pa
PHANTOM POWER REQUIREMENTS11-52V DC, 2 mA typical
WEIGHT63 g (2.2 oz)
DIMENSIONS69.0 mm (2.72") long, 28.0 mm (1.10") diameter
OUTPUT CONNECTORIntegral 3-pin XLRM-type
ACCESSORY FURNISHEDOne pair isolators
