Audio-Technica ES947C/FM3 Cardioid Condenser Boundary Microphone with 3-Pin XLR Output and Local Muting
Contact us
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
This phantom-powered cardioid condenser boundary microphone features a 3-pin XLR output connector with a capacitive touch switch that enables local muting of the microphone.

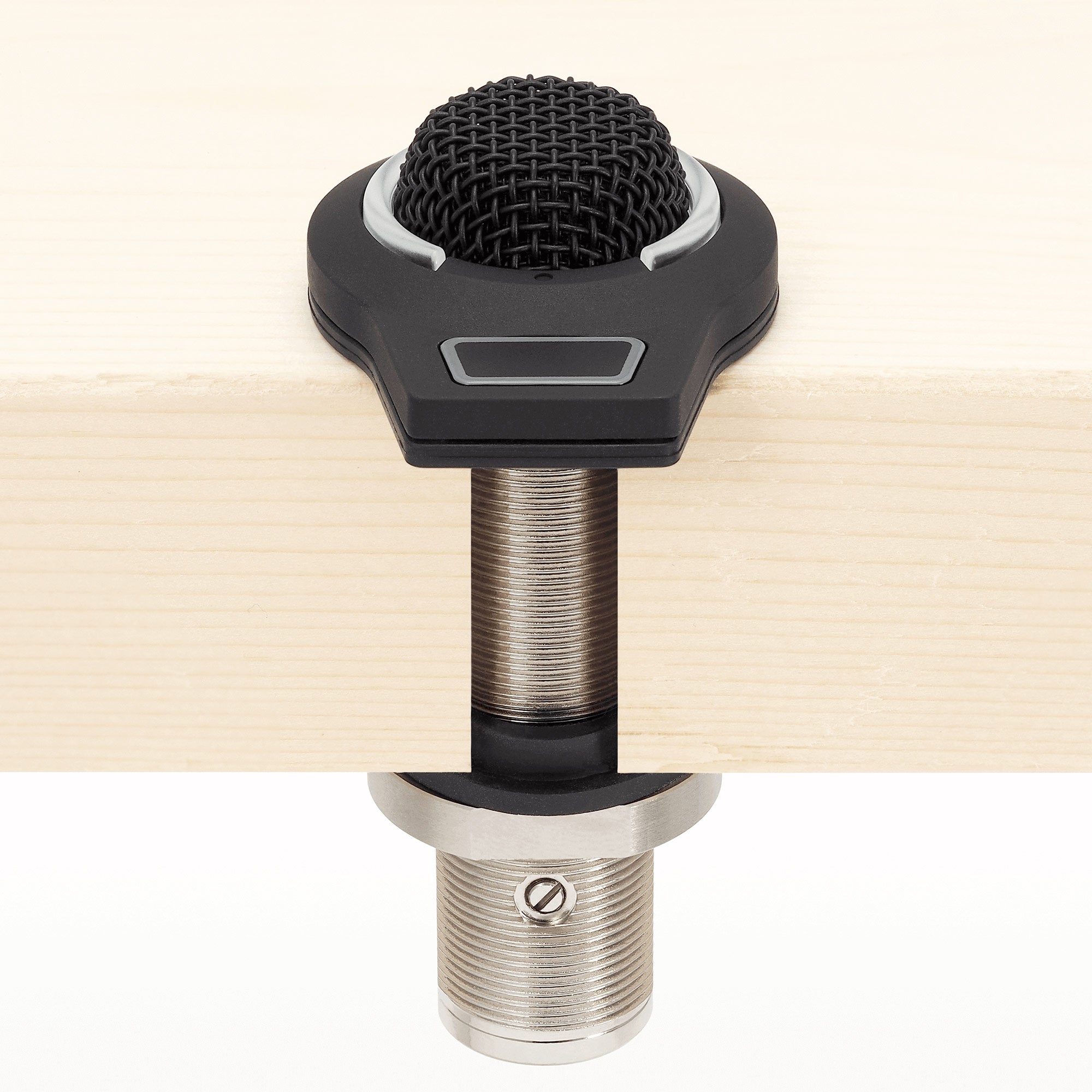

Designed for clear, highly intelligible conferencing, recording, monitoring and other demanding sound pickup applications, the ES947C/FM3 mounts unobtrusively in tabletops or panels, but includes a highly visible two-state RGB LED ring (7 selectable colors + OFF) to indicate mute status.
The microphoneÕs cardioid polar pattern provides a 120¡ pickup angle. A rugged all-metal case with a two-layer steel mesh grille protects the microphone element, while our UniGuard¨ RFI-shielding technology provides outstanding rejection of radio frequency interference (RFI).
The ES947C/FM3 is equipped with a self-contained power module, eliminating the need for an external one, and comes with a pair of rubber isolators for optional mechanical isolation from the mounting surface.
Features:
- Designed for surface-mount applications such as conferencing, recording, monitoring and other demanding sound pickup applications
- Capacitive touch switch enables local muting of the microphone

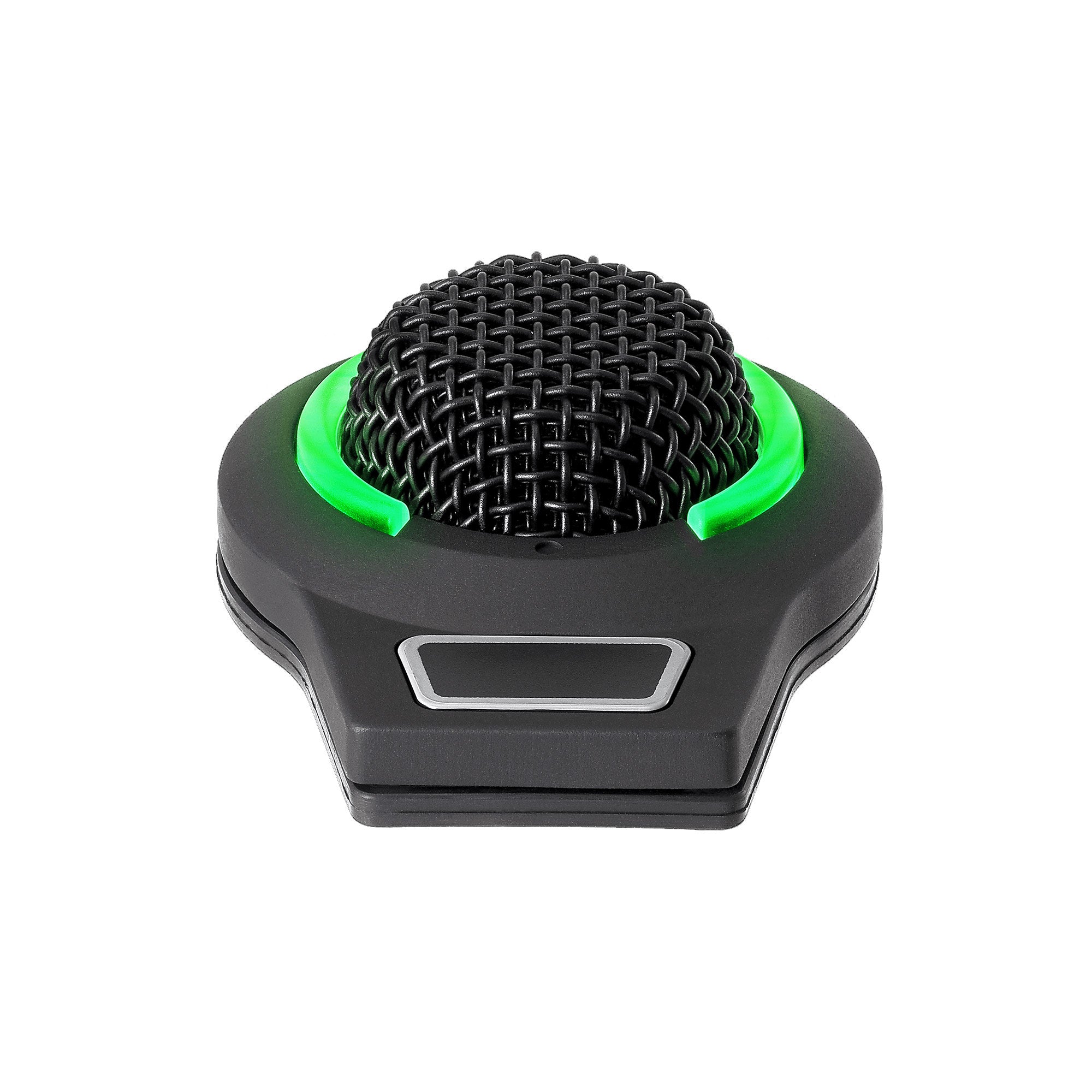

- Highly visible two-state RGB LED ring (7 selectable colors + OFF) indicates mute status
- Low-profile element provides uniform cardioid polar pattern with 120¡ acceptance angle
- Mounts unobtrusively in tabletops and panels

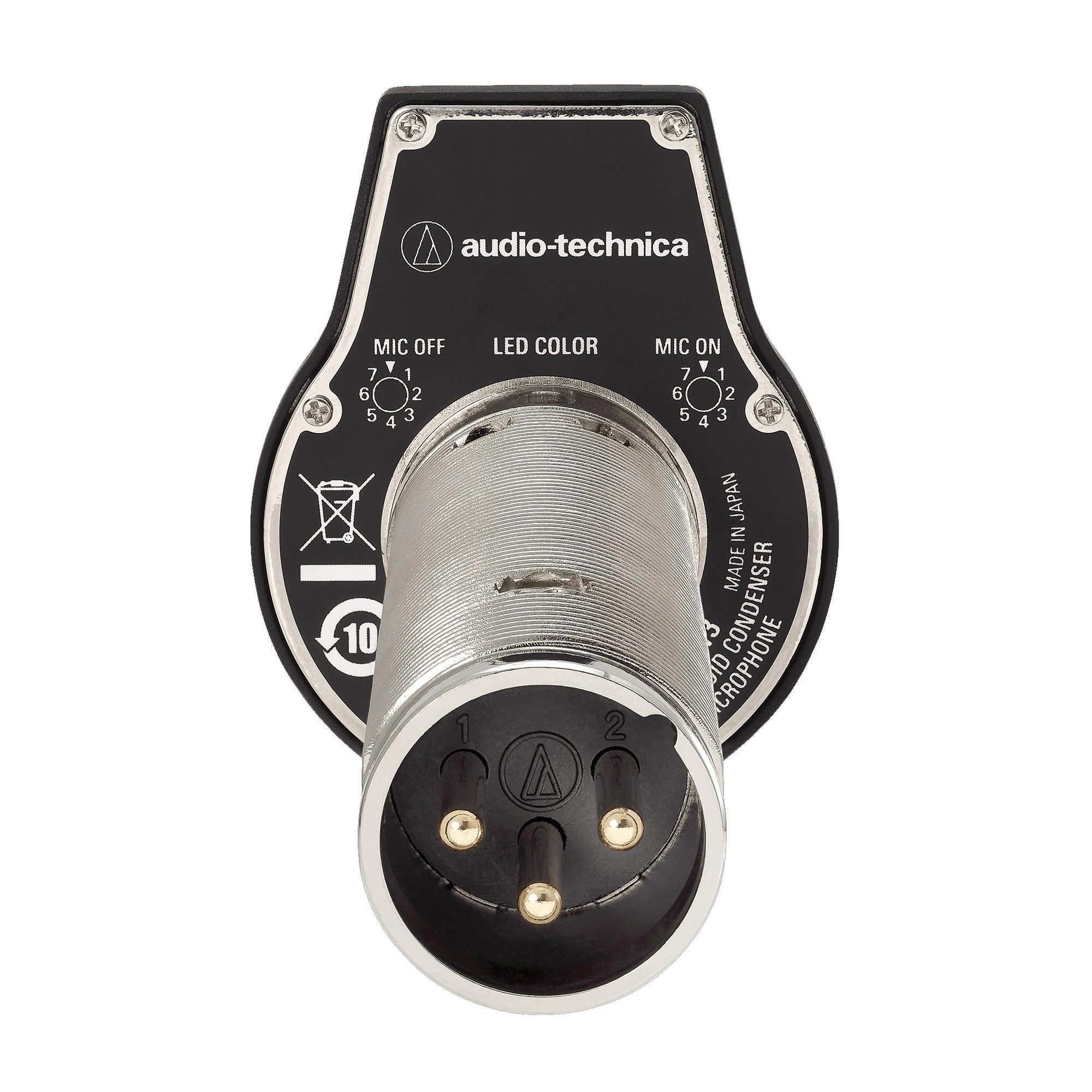

- Self-contained power module with 3-pin XLR output connector
- Rugged all-metal case with a two-layer steel mesh grille
- Rubber Isolators provide mechanical dampening of mounting-surface vibration
- Requires 11V to 52V DC phantom power
- UniGuard¨ RFI-shielding technology offers outstanding rejection of radio frequency interference (RFI)
- RoHS compliantÑfree from all substances specified in the EU directive on hazardous substances
| Element | Fixed-charge back plate, permanently polarized condenser |
| Polar Pattern | Cardioid |
| Frequency Response | 70-15,000 Hz |
| Open Circuit Sensitivity | -37 dB (0 dB = 1V/Pa, 1 kHz) |
| Output Impedance | 60 ohms |
| Maximum Input Sound Level | 134 dB SPL (1 kHz at 1% THD) |
| Dynamic Range | (typical) 110 dB (1 kHz at max SPL) |
| Signal-to-Noise Ratio | 70 dB (1 kHz at 1 Pa, A-weighted) |
| Phantom Power Requirements | 11-52V DC, 2 mA |
| Weight | 59 g (2.1 oz) |
| Dimensions | 38.0 mm (1.50") W x 48.0 mm (1.89") D x 84.8 mm (3.34") H |
| Output Connector | 3-pin XLRM-type |
| Accessories Included | Rubber isolators (two types), nut |
This phantom-powered cardioid condenser boundary microphone features a 3-pin XLR output connector with a capacitive touch switch that enables local muting of the microphone.
Designed for clear, highly intelligible conferencing, recording, monitoring and other demanding sound pickup applications, the ES947C/FM3 mounts unobtrusively in tabletops or panels, but includes a highly visible two-state RGB LED ring (7 selectable colors + OFF) to indicate mute status.
The microphoneÕs cardioid polar pattern provides a 120¡ pickup angle. A rugged all-metal case with a two-layer steel mesh grille protects the microphone element, while our UniGuard¨ RFI-shielding technology provides outstanding rejection of radio frequency interference (RFI).
The ES947C/FM3 is equipped with a self-contained power module, eliminating the need for an external one, and comes with a pair of rubber isolators for optional mechanical isolation from the mounting surface.
Features:
- Designed for surface-mount applications such as conferencing, recording, monitoring and other demanding sound pickup applications
- Capacitive touch switch enables local muting of the microphone
- Highly visible two-state RGB LED ring (7 selectable colors + OFF) indicates mute status
- Low-profile element provides uniform cardioid polar pattern with 120¡ acceptance angle
- Mounts unobtrusively in tabletops and panels
- Self-contained power module with 3-pin XLR output connector
- Rugged all-metal case with a two-layer steel mesh grille
- Rubber Isolators provide mechanical dampening of mounting-surface vibration
- Requires 11V to 52V DC phantom power
- UniGuard¨ RFI-shielding technology offers outstanding rejection of radio frequency interference (RFI)
- RoHS compliantÑfree from all substances specified in the EU directive on hazardous substances
| Element | Fixed-charge back plate, permanently polarized condenser |
| Polar Pattern | Cardioid |
| Frequency Response | 70-15,000 Hz |
| Open Circuit Sensitivity | -37 dB (0 dB = 1V/Pa, 1 kHz) |
| Output Impedance | 60 ohms |
| Maximum Input Sound Level | 134 dB SPL (1 kHz at 1% THD) |
| Dynamic Range | (typical) 110 dB (1 kHz at max SPL) |
| Signal-to-Noise Ratio | 70 dB (1 kHz at 1 Pa, A-weighted) |
| Phantom Power Requirements | 11-52V DC, 2 mA |
| Weight | 59 g (2.1 oz) |
| Dimensions | 38.0 mm (1.50") W x 48.0 mm (1.89") D x 84.8 mm (3.34") H |
| Output Connector | 3-pin XLRM-type |
| Accessories Included | Rubber isolators (two types), nut |
