Audio-Technica ES947C/XLR Water-resistant Cardioid Condenser Boundary Microphone with XLR Output

  • Dale #:

    AUDI-ES947CXLR
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock and needs to be ordered from the manufacturer. Your payment will be charged after completing checkout. We will strive to ship as soon as possible, pending availability.

Description

With its low-profile design that mounts unobtrusively in tabletops, ceilings or panels for minimum visibility, the ES947C/XLR cardioid condenser boundary microphone provides clear, highly intelligible audio that is perfect for conferencing, recording, monitoring and other demanding sound pickup a... Read More

Shipping Charges Apply

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

With its low-profile design that mounts unobtrusively in tabletops, ceilings or panels for minimum visibility, the ES947C/XLR cardioid condenser boundary microphone provides clear, highly intelligible audio that is perfect for conferencing, recording, monitoring and other demanding sound pickup applications.

Protected by a rugged all-metal case with a two-layer perforated grille, the microphone’s cardioid polar pattern affords a 120° pickup angle, while its UniGuard® RFI-shielding technology provides outstanding rejection of radio frequency interference (RFI). The microphone also offers IPX4 water resistance to protect it from splashes of water, and has a small front-of-mic indicator to ensure proper orientation.

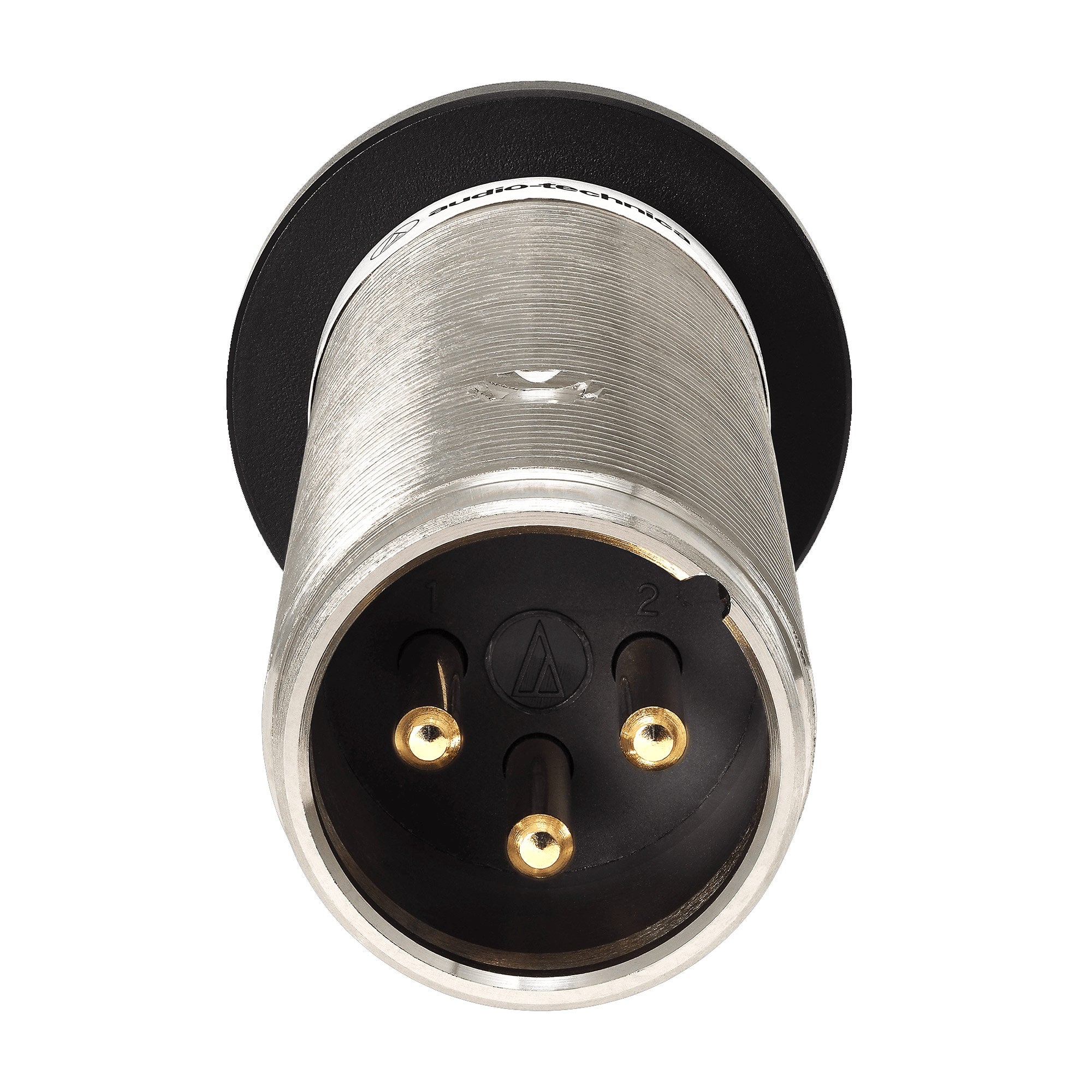

The ES947C/XLR is equipped with a self-contained power module with an XLRM-type output connector, eliminating the need for an external power module. It is available in black (ES947C/XLR) and white (ES947WC/XLR), and comes with a pair of rubber isolators for optional mechanical isolation from the mounting surface.

Features:

  • Designed for surface-mount applications such as conferencing, recording, monitoring and other demanding sound pickup applications
  • Low-profile element provides uniform cardioid polar pattern with 120° acceptance angle

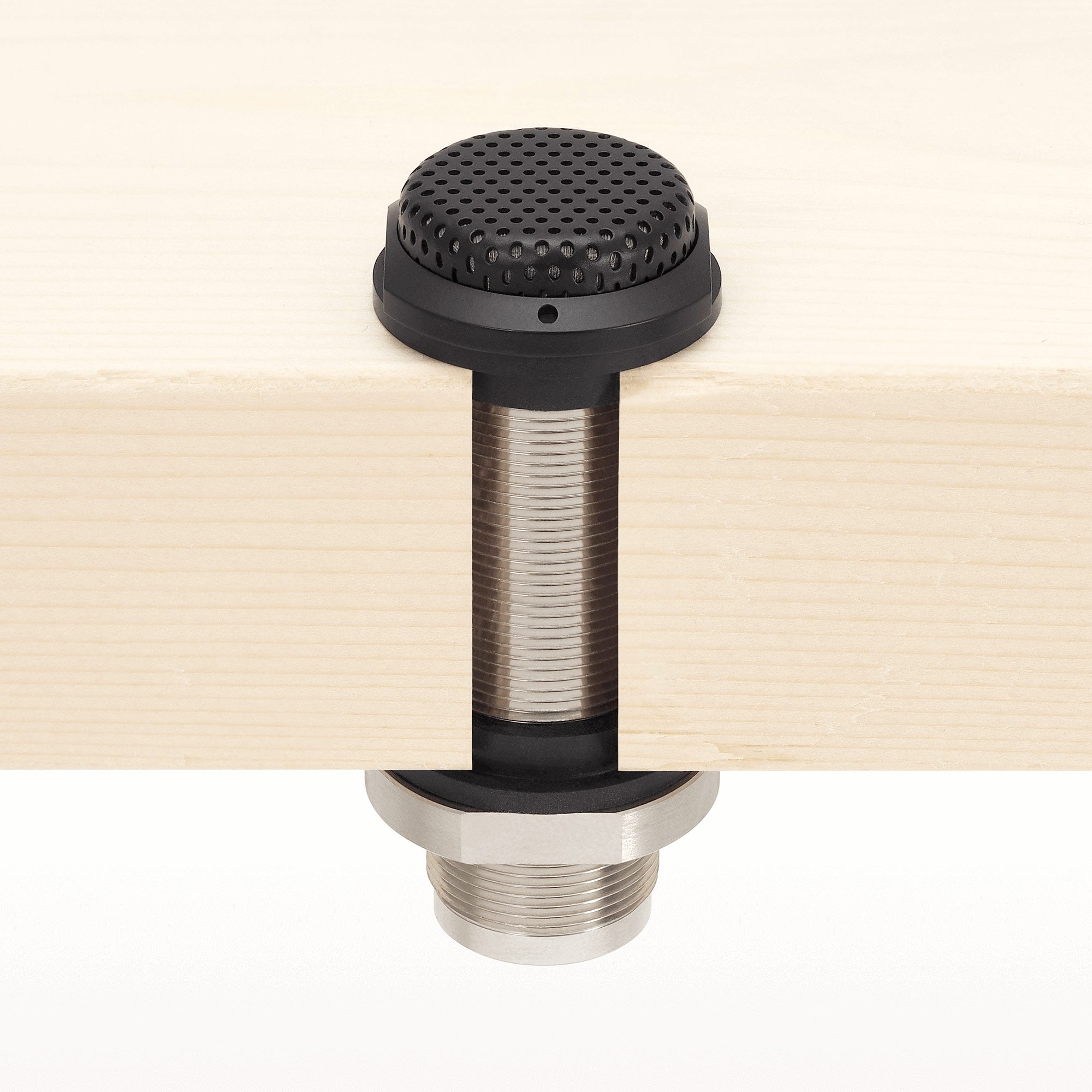

  • Mounts unobtrusively in tabletops, ceilings and panels
  • IPX4 water resistance protects the microphone from splashes of water
  • Self-contained power module with XLRM-type output connector
  • Rugged all-metal case with a two-layer perforated grille
  • Rubber Isolators provide mechanical dampening of mounting-surface vibration
  • Requires 11V to 52V DC phantom power
  • UniGuard® RFI-shielding technology offers outstanding rejection of radio frequency interference (RFI)
  • Available in two colors: black (ES947C/XLR) and white (ES947WC/XLR)
  • RoHS compliant—free from all substances specified in the EU directive on hazardous substances

More +

Product Specs

Element Fixed-charge back plate, permanently polarized condenser
Polar Pattern Cardioid
Frequency Response 70-8,500 Hz
Open Circuit Sensitivity -37 dB (0 dB = 1V/Pa, 1 kHz)
Output Impedance 100 ohms
Maximum Input Sound Level 134 dB SPL (1 kHz at 1% THD)
Dynamic Range 110 dB (1 kHz at max SPL)
Signal-to-Noise Ratio 70 dB (1 kHz at 1 Pa, A-weighted)
Phantom Power Requirements 11-52V DC, 2 mA
Weight 62 g (2.2 oz)
Dimensions 26.0 mm (1.02") W x 30.0 mm (1.18") D x 69.0 mm (2.72") H
Output Connector 3-pin XLRM-type
Accessories Included Rubber isolator (x 2), nut
