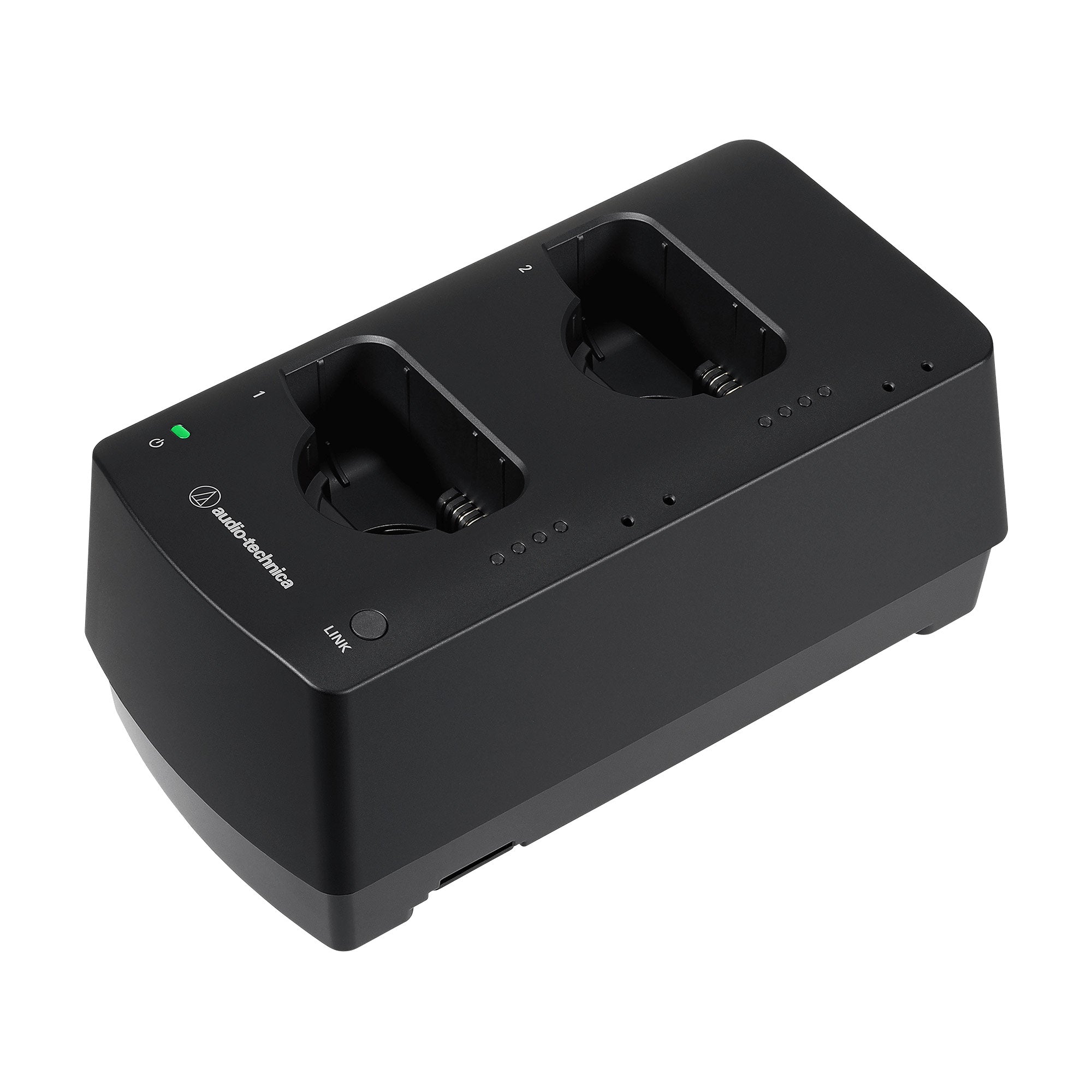

Audio-Technica ESW-CHG4 - Two-Bay Charging Station for Engineered Sound Wireless (with AC Adapter)
Contact us
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The ESW-CHG4 is a two-bay charging station for any combination of Engineered Sound bodypack or handheld transmitters. Available with or without an AC adapter, as up to four units can be powered off of a single supply and Cat5e cable.
Features:
- Rapid recharge support (approx. 2 hours for ESW-T4101; approx. 3 hours for ESW-T4102)
- Link up to 4 charging stations with just one AC adapter and Cat 5e cable
- Charging status and battery level appear in A-T Wireless Manager software
- Microphone hanger included for convenient lavalier microphone storage
- Ability to update firmware remotely on all docked transmitters
| Power Supply | 12 V DC, 3.0 A |
| Charging Output | When charging one to four transmitters: 4.2 V DC, 1.5 A When charging five or six transmitters: 4.2 V DC, 1.1 A When charging seven or eight transmitters: 4.2 V DC, 0.7 A |
| Power Consumption | When charging two transmitters: 15.6 W When charging eight transmitters in four linked charging stations: 30.6 W |
| Charging Time (ESW-T4101) | When charging one to four transmitters: Approx. 50 minutes (50% charged), approx. 2 hours (100% charged) When charging five or six transmitters: Approx. 1 hour 10 minutes (50% charged), approx. 2 hours 50 minutes (100% charged) When charging seven or eight transmitters: Approx. 1 hour 40 minutes (50% charged), approx. 3 hours 40 minutes (100% charged) This varies depending on usage conditions. |
| Charging Time (ESW-T4102) | When charging one to four transmitters: Approx. 1 hour 20 minutes (50% charged), approx. 3 hours (100% charged) When charging five or six transmitters: Approx. 1 hour 40 minutes (50% charged), approx. 4 hours 10 minutes (100% charged) When charging seven or eight transmitters: Approx. 2 hours 20 minutes (50% charged), approx. 5 hours 20 minutes (100% charged) This varies depending on usage conditions. |
| Network | IP Control: 100 Mbps |
| Operating Temperature Range | 0? C to 40? C (32? F to 104? F) |
| Dimensions | 95 mm (3.7") x 180 mm (7.1") x 78.5 mm (3.1") (W x D x H) |
| Weight | 532 g (19 oz) |
| Included Accessories | Link cable, link plate, link plate screws, mic holder |
The ESW-CHG4 is a two-bay charging station for any combination of Engineered Sound bodypack or handheld transmitters. Available with or without an AC adapter, as up to four units can be powered off of a single supply and Cat5e cable.
Features:
- Rapid recharge support (approx. 2 hours for ESW-T4101; approx. 3 hours for ESW-T4102)
- Link up to 4 charging stations with just one AC adapter and Cat 5e cable
- Charging status and battery level appear in A-T Wireless Manager software
- Microphone hanger included for convenient lavalier microphone storage
- Ability to update firmware remotely on all docked transmitters
| Power Supply | 12 V DC, 3.0 A |
| Charging Output | When charging one to four transmitters: 4.2 V DC, 1.5 A When charging five or six transmitters: 4.2 V DC, 1.1 A When charging seven or eight transmitters: 4.2 V DC, 0.7 A |
| Power Consumption | When charging two transmitters: 15.6 W When charging eight transmitters in four linked charging stations: 30.6 W |
| Charging Time (ESW-T4101) | When charging one to four transmitters: Approx. 50 minutes (50% charged), approx. 2 hours (100% charged) When charging five or six transmitters: Approx. 1 hour 10 minutes (50% charged), approx. 2 hours 50 minutes (100% charged) When charging seven or eight transmitters: Approx. 1 hour 40 minutes (50% charged), approx. 3 hours 40 minutes (100% charged) This varies depending on usage conditions. |
| Charging Time (ESW-T4102) | When charging one to four transmitters: Approx. 1 hour 20 minutes (50% charged), approx. 3 hours (100% charged) When charging five or six transmitters: Approx. 1 hour 40 minutes (50% charged), approx. 4 hours 10 minutes (100% charged) When charging seven or eight transmitters: Approx. 2 hours 20 minutes (50% charged), approx. 5 hours 20 minutes (100% charged) This varies depending on usage conditions. |
| Network | IP Control: 100 Mbps |
| Operating Temperature Range | 0? C to 40? C (32? F to 104? F) |
| Dimensions | 95 mm (3.7") x 180 mm (7.1") x 78.5 mm (3.1") (W x D x H) |
| Weight | 532 g (19 oz) |
| Included Accessories | Link cable, link plate, link plate screws, mic holder |
