Audio-Technica ESW-R4180DAN - Eight-Channel Receiver for Engineered Sound Wireless
Contact us
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
Eight-channel receiver for the Engineered Sound Wireless System. Audio-TechnicaÕs Engineered Sound Wireless System is a DECT wireless system that offers simple, smart, and scalable high-quality audio. This system overcomes many challenges of conventional wireless microphones, such as frequency coordination and the limited number of simultaneous microphones. Seamless setup and management is controlled via Audio-TechnicaÕs Wireless Manager software.
Features:

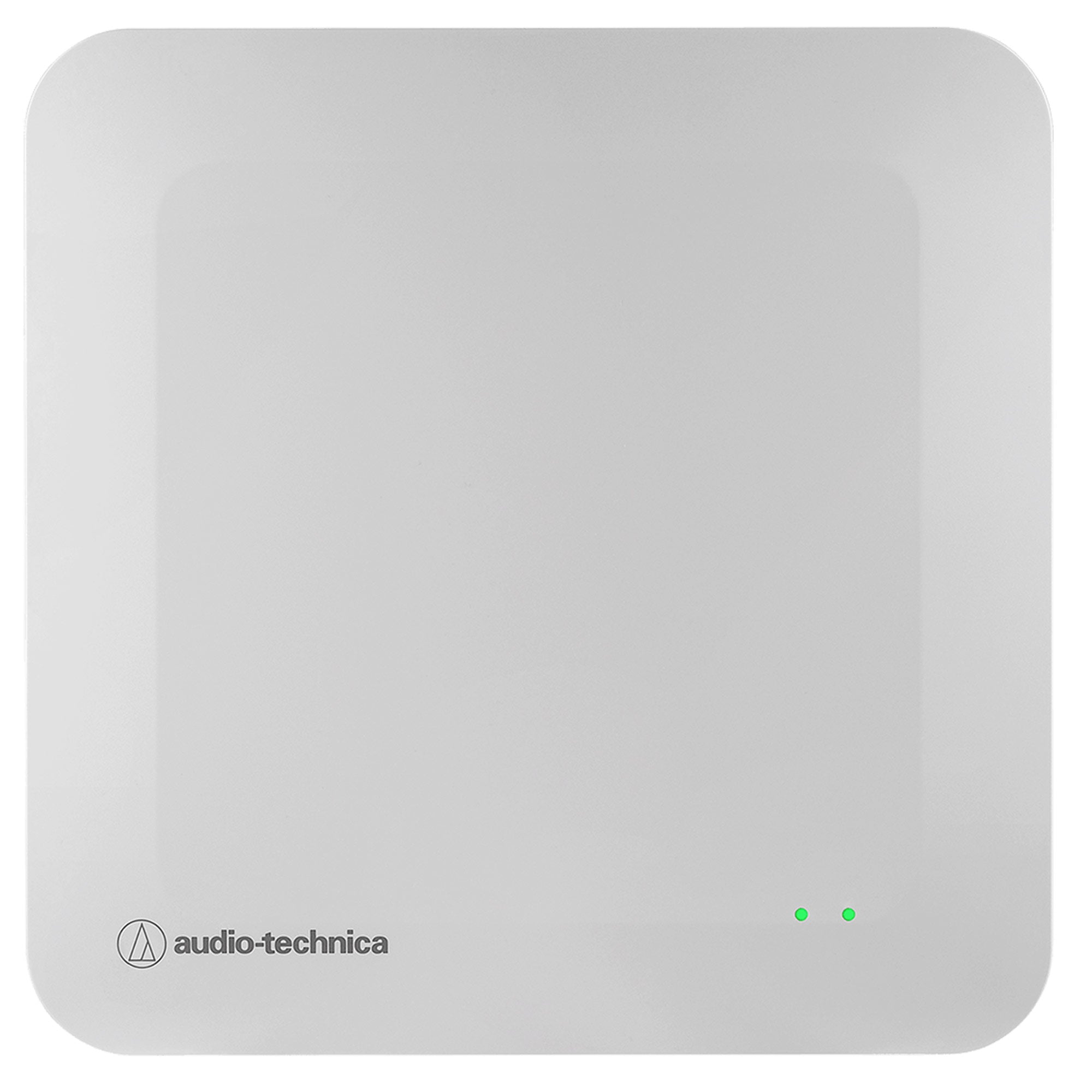

- Low-profile white housing blends in with interior dŽcor
- Onboard LEDs verify link status at a glance
- A standard Cat 5e cable supplies 8-channel Dante audio output

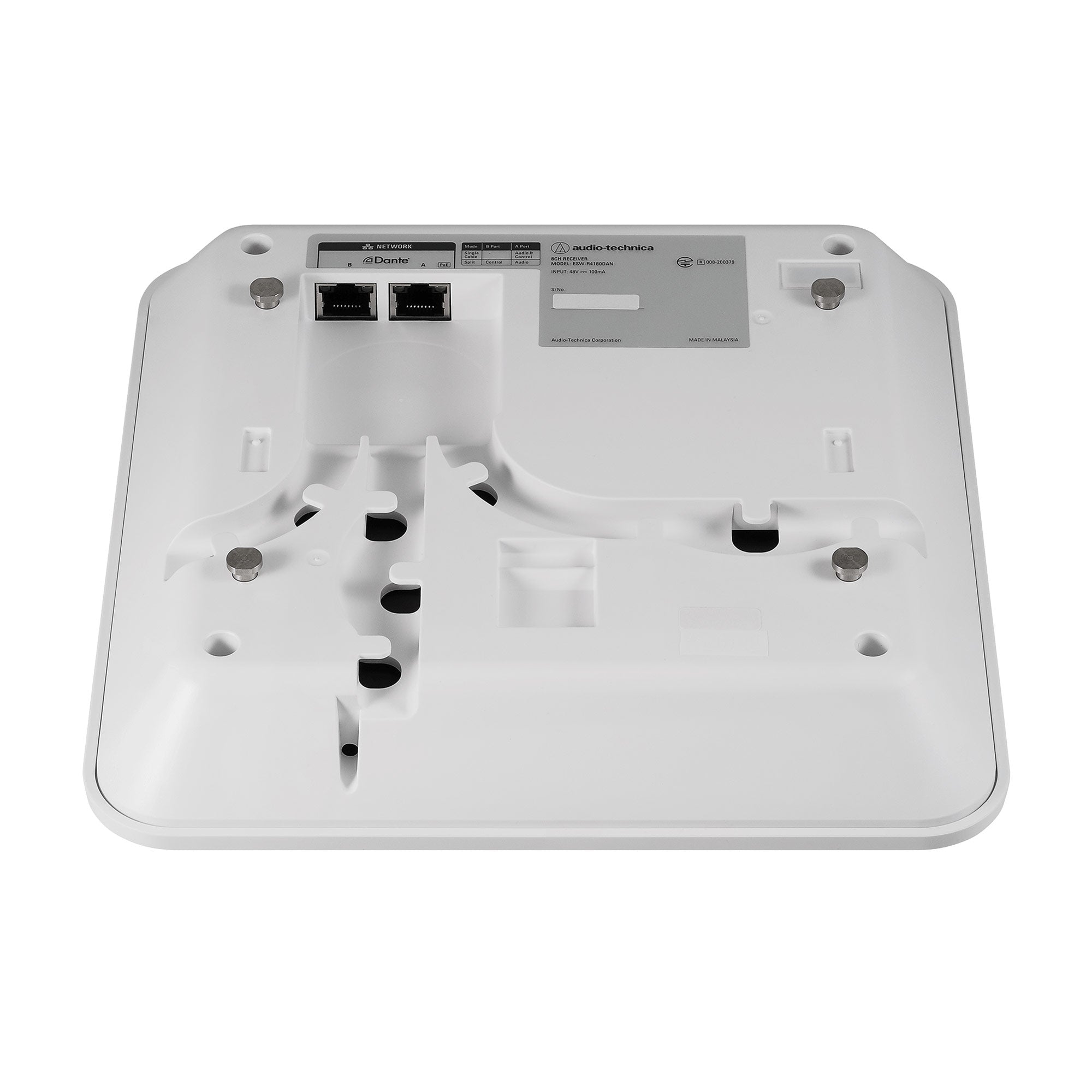

- Dual network ports allow Dante and IP control separation
- Supports mixed output for situations with limited input channels
- High-pass filtering and volume for each channel
- Monitor transmitter status, audio level, remaining battery time, and other information in A-T Wireless Manager
| OVERALL SYSTEM | |
| Operating Frequencies | DECT Mode 00 (Europe, Asia): 1,880 to 1,900 MHz DECT Mode 01 (America): 1,920 to 1,930 MHz DECT Mode 03 (Taiwan): 1,880 to 1,895 MHz DECT Mode 21 (Japan): 1,894 to 1,906 MHz DECT Mode 24 (Australia): 1,880 to 1,900 MHz This product is set to the DECT Mode matching the laws and regulations of the country where it will be used. |
| Operating Range | Max. 100 m (328.1'; with RF Power set to Mid) Open range environment with no interfering signals. |
| Dynamic Range | > 105 dB (A-weighted), typical |
| Total Harmonic Distortion | < 1.0% |
| Maximum Simultaneous Use (recommended) | Standard: 96 channels* HD mode: 192 channels* In DECT Mode 00/24. *Depending on the region and environment. |
| System Frequency Response | Standard: 20 to 20,000 Hz HD mode: 20 to 20,000 Hz Depending on microphone element to attach. |
| Receiving System | True diversity |
| Latency | Standard: 16.7 ms typ. HD mode: 24.0 ms typ. |
| Audio Sampling Rate | Standard: 24 bits, 48 kHz HD mode: 24 bits, 48 kHz |
| Encryption System | AES256 |
| RF Output Power | Max: 250mW, High: 100 mW, Mid: 30 mW, Low: 10 mW, Min: 2 mW (switchable) Depending on the region and environment. |
| ESW-R4180DAN 8-CHANNEL RECEIVER | |
| Modulation Mode | A-field: ? / 2-BPSK B-field: ? / 8-8PSK |
| RF Sensitivity | < - 90 dBm |
| Network | Dante: 1 Gbps IP Control: 100 Mbps |
| I/O Connector | Network/Dante: RJ-45 |
| Power Consumption | 4.8 W |
| Power Supply | PoE (IEEE 802.3af Class 0) |
| Operating Temperature Range | -10? C to +50? C (14? F to 122? F) |
| Dimensions | 228.6 mm (9.0") x 228.6 mm (9.0") x 43.5 mm (1.7") (W x D x H) |
| Weight (without included accessories) | 620 g (22 oz) |
| Included Accessory | Bracket |
