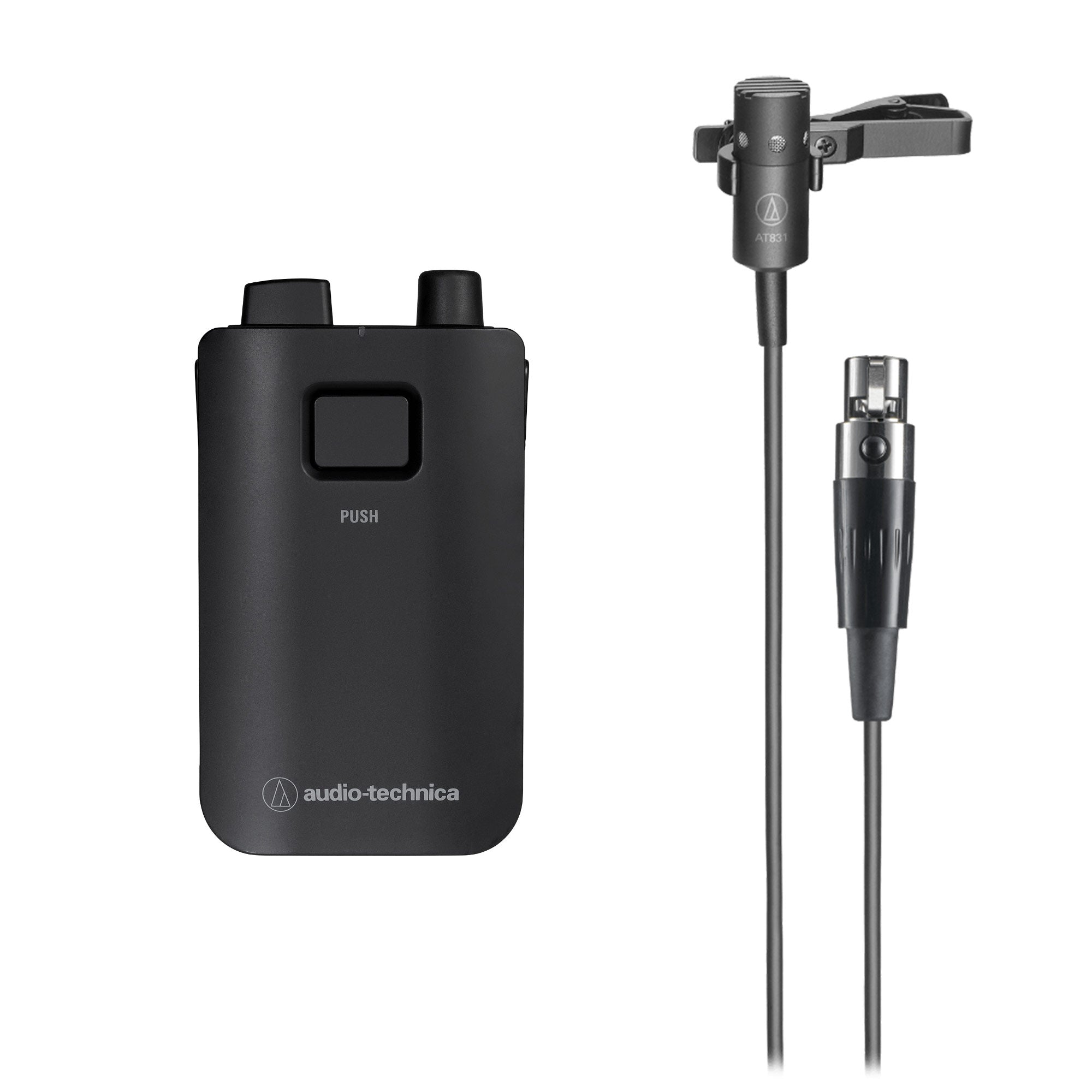

Audio-Technica ESW-T4101 - Bodypack Transmitter for Engineered Sound Wireless (with Lavalier)
Contact us
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description

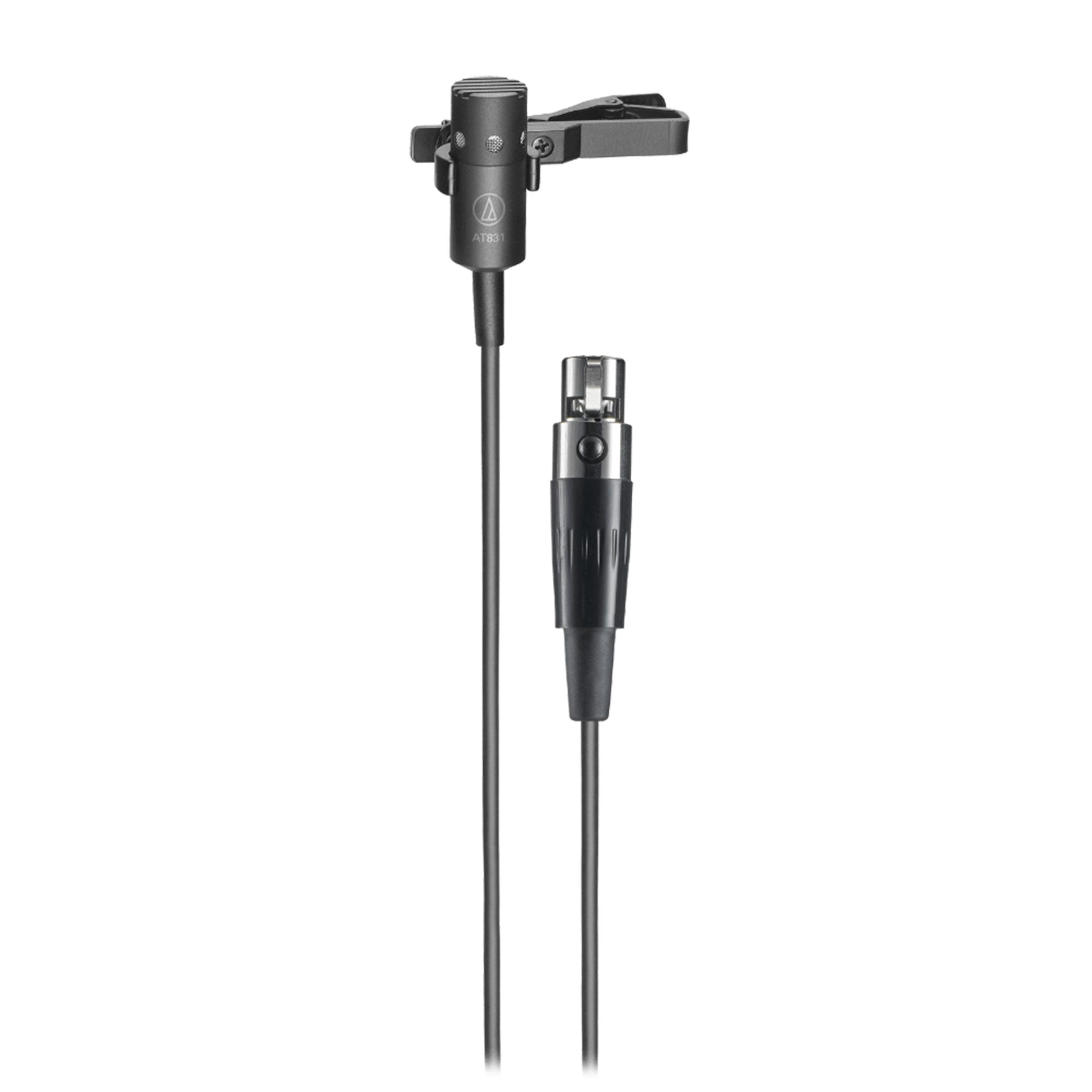

Includes the AT831 lavalier microphone. The ESW-T4101 is a bodypack transmitter for the Engineered Sound Wireless System. Perfectly suited to presentation applications, you can use either the built-in microphone, or connect any variety of cH-type models.
Features:
- Built-in high-quality microphone

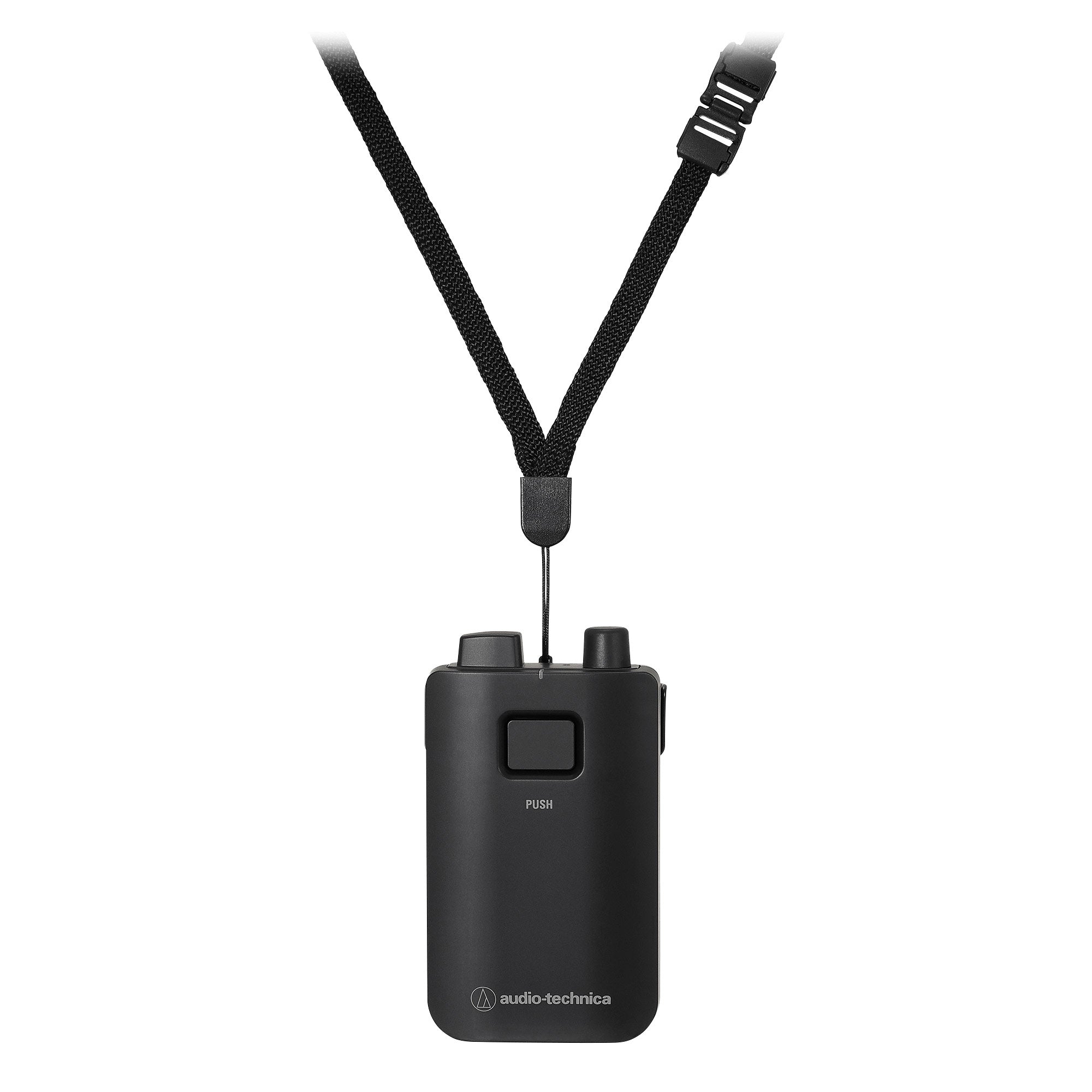

- Transmitter neck strap included
- Lightweight design

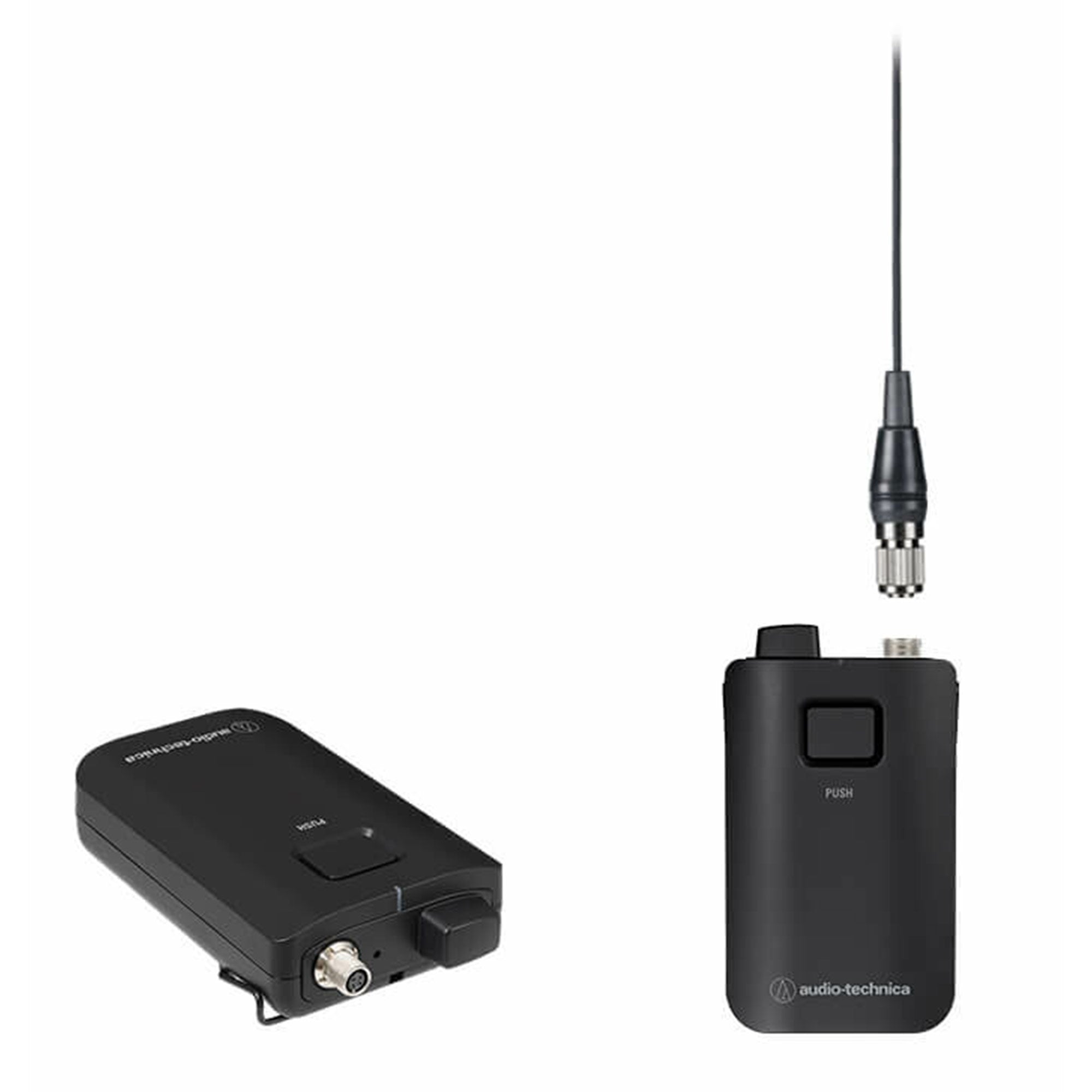

- Compact, sweat-resistant cH-type connectors for use with a variety of Audio-Technica microphones
| OVERALL SYSTEM | |
| Operating Frequencies | DECT Mode 00 (Europe, Asia): 1,880 to 1,900 MHz DECT Mode 01 (America): 1,920 to 1,930 MHz DECT Mode 03 (Taiwan): 1,880 to 1,895 MHz DECT Mode 21 (Japan): 1,894 to 1,906 MHz DECT Mode 24 (Australia): 1,880 to 1,900 MHz This product is set to the DECT Mode matching the laws and regulations of the country where it will be used. |
| Operating Range | Max. 100 m (328.1'; with RF Power set to Mid) Open range environment with no interfering signals. |
| Dynamic Range | > 105 dB (A-weighted), typical |
| Total Harmonic Distortion | < 1.0% |
| Maximum Simultaneous Use (recommended) | Standard: 96 channels* HD mode: 192 channels* In DECT Mode 00/24. *Depending on the region and environment. |
| System Frequency Response | Standard: 20 to 20,000 Hz HD mode: 20 to 20,000 Hz Depending on microphone element to attach. |
| Receiving System | True diversity |
| Latency | Standard: 16.7 ms typ. HD mode: 24.0 ms typ. |
| Audio Sampling Rate | Standard: 24 bits, 48 kHz HD mode: 24 bits, 48 kHz |
| Encryption System | AES256 |
| RF Output Power | Max: 250mW, High: 100 mW, Mid: 30 mW, Low: 10 mW, Min: 2 mW (switchable) Depending on the region and environment. |
| Notes | For product improvement, the product is subject to modification without notice. |
| ESW-T4101 BODY-PACK TRANSMITTER | |
| Frequency Response (internal microphone) | 20 to 20,000 Hz |
| Modulation Mode | A-field: ? / 2-BPSK B-field: ? / 4-QPSK |
| Input Connection | Four pin locking connector Pin 1: GND Pin 2: MIC DETECTION Pin 3: MIC INPUT Pin 4: DC BIAS +5 V |
| Battery | Lithium-ion battery LI-220 (included) |
| Battery Life | 25 hours This varies depending on usage conditions. |
| Operating Temperature Range | -5? C to +45? C (23? F to 113? F) |
| Dimensions | 56 mm (2.2") x 23.5 mm (0.93") x 90 mm (3.5") (W x D x H) |
| Weight (with battery) | 112.3 g (3.96 oz) |
| Included Accessory | Neck strap |
Includes the AT831 lavalier microphone. The ESW-T4101 is a bodypack transmitter for the Engineered Sound Wireless System. Perfectly suited to presentation applications, you can use either the built-in microphone, or connect any variety of cH-type models.
Features:
- Built-in high-quality microphone
- Transmitter neck strap included
- Lightweight design
- Compact, sweat-resistant cH-type connectors for use with a variety of Audio-Technica microphones
| OVERALL SYSTEM | |
| Operating Frequencies | DECT Mode 00 (Europe, Asia): 1,880 to 1,900 MHz DECT Mode 01 (America): 1,920 to 1,930 MHz DECT Mode 03 (Taiwan): 1,880 to 1,895 MHz DECT Mode 21 (Japan): 1,894 to 1,906 MHz DECT Mode 24 (Australia): 1,880 to 1,900 MHz This product is set to the DECT Mode matching the laws and regulations of the country where it will be used. |
| Operating Range | Max. 100 m (328.1'; with RF Power set to Mid) Open range environment with no interfering signals. |
| Dynamic Range | > 105 dB (A-weighted), typical |
| Total Harmonic Distortion | < 1.0% |
| Maximum Simultaneous Use (recommended) | Standard: 96 channels* HD mode: 192 channels* In DECT Mode 00/24. *Depending on the region and environment. |
| System Frequency Response | Standard: 20 to 20,000 Hz HD mode: 20 to 20,000 Hz Depending on microphone element to attach. |
| Receiving System | True diversity |
| Latency | Standard: 16.7 ms typ. HD mode: 24.0 ms typ. |
| Audio Sampling Rate | Standard: 24 bits, 48 kHz HD mode: 24 bits, 48 kHz |
| Encryption System | AES256 |
| RF Output Power | Max: 250mW, High: 100 mW, Mid: 30 mW, Low: 10 mW, Min: 2 mW (switchable) Depending on the region and environment. |
| Notes | For product improvement, the product is subject to modification without notice. |
| ESW-T4101 BODY-PACK TRANSMITTER | |
| Frequency Response (internal microphone) | 20 to 20,000 Hz |
| Modulation Mode | A-field: ? / 2-BPSK B-field: ? / 4-QPSK |
| Input Connection | Four pin locking connector Pin 1: GND Pin 2: MIC DETECTION Pin 3: MIC INPUT Pin 4: DC BIAS +5 V |
| Battery | Lithium-ion battery LI-220 (included) |
| Battery Life | 25 hours This varies depending on usage conditions. |
| Operating Temperature Range | -5? C to +45? C (23? F to 113? F) |
| Dimensions | 56 mm (2.2") x 23.5 mm (0.93") x 90 mm (3.5") (W x D x H) |
| Weight (with battery) | 112.3 g (3.96 oz) |
| Included Accessory | Neck strap |
