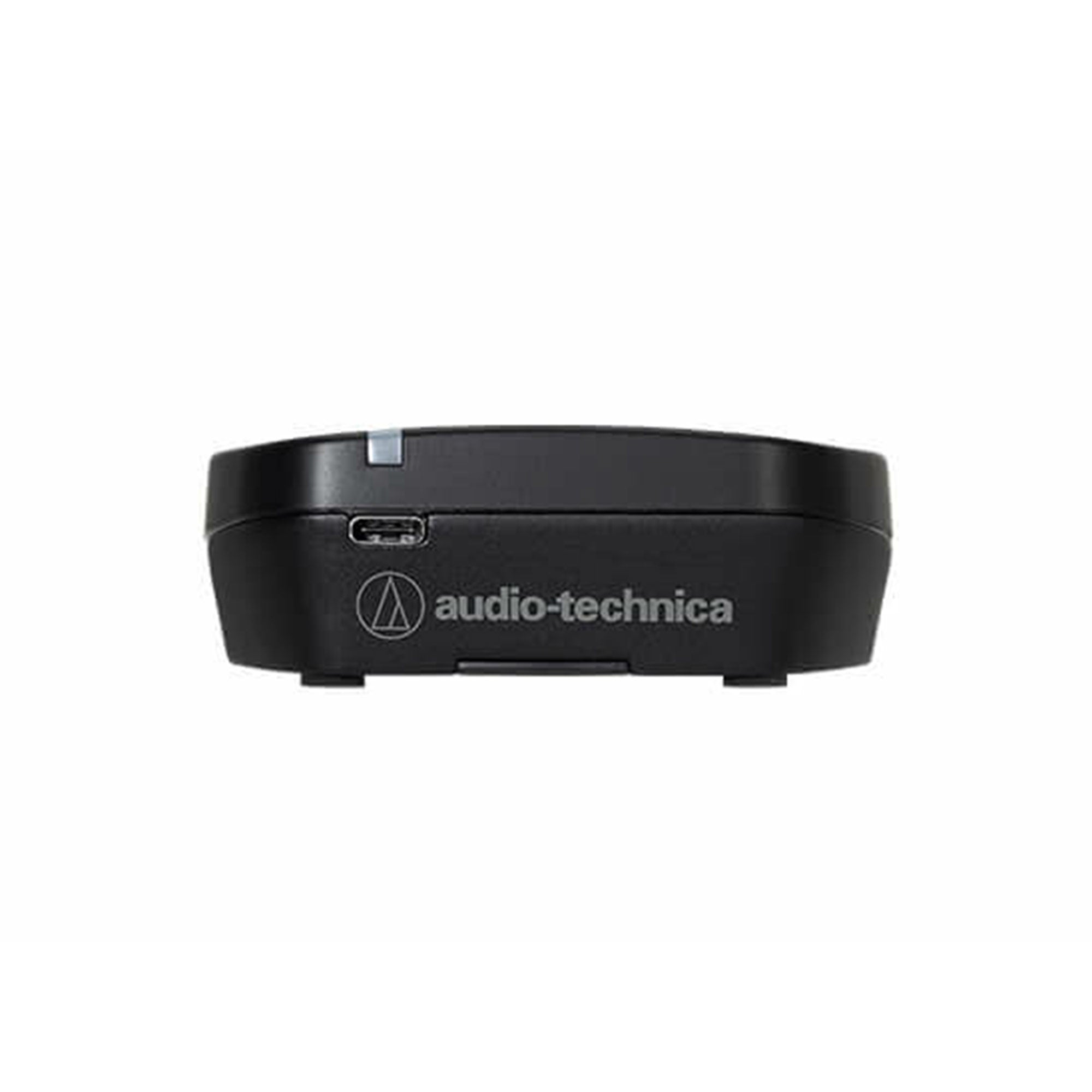

Audio-Technica ESW-T4106 - Boundary Transmitter for Engineered Sound Wireless
Contact us
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The ESW-T4106 is a boundary microphone transmitter for the Engineered Sound Wireless System. It's useful for pickup in meetings or conferences. A switchable poalr pattern lets it be as versatile as your needs demand. It also has three different operational modes to fit different applications.
Audio-TechnicaÕs Engineered Sound Wireless System is a DECT wireless system that offers simple, smart, and scalable high-quality audio. This system overcomes many challenges of conventional wireless microphones, such as frequency coordination and the limited number of simultaneous microphones.
Features:
- Selectable omnidirectional and cardioid polar patterns
- 2-state RGB LED mute status indicator (7 selectable colors or off)
- Selectable mute operation (toggle, touch-to-talk, or touch-to-mute)
- Transmitter can be set to start either muted or unmuted
- Transmitter can be used while charging via USB-C type connection
| Overall System | |
| Operating Frequencies | DECT Mode 00 (Europe, Asia): 1,880 to 1,900 MHz DECT Mode 01 (America): 1,920 to 1,930 MHz DECT Mode 03 (Taiwan): 1,880 to 1,895 MHz DECT Mode 21 (Japan): 1,894 to 1,906 MHz DECT Mode 24 (Australia): 1,880 to 1,900 MHz This product is set to the DECT Mode matching the laws and regulations of the country where it will be used. |
| Operating Range | Max. 100 m (328.1'; with RF Power set to Mid) Open range environment with no interfering signals. |
| Dynamic Range | > 105 dB (A-weighted), typical |
| Total Harmonic Distortion | < 1.0% |
| Maximum Simultaneous Use (recommended) | Standard: 96 channels* HD mode: 192 channels* In DECT Mode 00/24. *Depending on the region and environment. |
| System Frequency Response | Standard: 20 to 20,000 Hz HD mode: 20 to 20,000 Hz Depending on microphone element to attach. |
| Receiving System | True diversity |
| Latency | Standard: 16.7 ms typ. HD mode: 24.0 ms typ. |
| Audio Sampling Rate | Standard: 24 bits, 48 kHz HD mode: 24 bits, 48 kHz |
| Encryption System | AES256 |
| RF Output Power | Max: 250mW, High: 100 mW, Mid: 30 mW, Low: 10 mW, Min: 2 mW (switchable) Depending on the region and environment. |
| ESW-T4106 BOUNDARY MICROPHONE TRANSMITTER | |
| Frequency Response | Omnidirectional: 20 to 18,000 Hz Cardioid: 20 to 18,000 Hz |
| Modulation Mode | A-field: ? / 2-BPSK B-field: ? / 4-QPSK |
| Microphone Polar Pattern | Cardioid, Omnidirectional (selectable) |
| Battery | Lithium-ion battery LI-220 (included) |
| Battery Life | 22 hours This varies depending on usage conditions. |
| Charging Time (USB) | Approx. 2 hours 40 minutes This varies depending on usage conditions. |
| USB Charging Connector | USB Type-C (USB 3.0) |
| Operating Temperature Range | - 5? C to +45? C (23? F to 113? F) |
| Dimensions | 90.5 mm (3.6") x 129.4 mm (5.1") x 31.9 mm (1.3") (W x D x H) |
| Weight (with battery) | 500 g (18 oz) |
The ESW-T4106 is a boundary microphone transmitter for the Engineered Sound Wireless System. It's useful for pickup in meetings or conferences. A switchable poalr pattern lets it be as versatile as your needs demand. It also has three different operational modes to fit different applications.
Audio-TechnicaÕs Engineered Sound Wireless System is a DECT wireless system that offers simple, smart, and scalable high-quality audio. This system overcomes many challenges of conventional wireless microphones, such as frequency coordination and the limited number of simultaneous microphones.
Features:
- Selectable omnidirectional and cardioid polar patterns
- 2-state RGB LED mute status indicator (7 selectable colors or off)
- Selectable mute operation (toggle, touch-to-talk, or touch-to-mute)
- Transmitter can be set to start either muted or unmuted
- Transmitter can be used while charging via USB-C type connection
| Overall System | |
| Operating Frequencies | DECT Mode 00 (Europe, Asia): 1,880 to 1,900 MHz DECT Mode 01 (America): 1,920 to 1,930 MHz DECT Mode 03 (Taiwan): 1,880 to 1,895 MHz DECT Mode 21 (Japan): 1,894 to 1,906 MHz DECT Mode 24 (Australia): 1,880 to 1,900 MHz This product is set to the DECT Mode matching the laws and regulations of the country where it will be used. |
| Operating Range | Max. 100 m (328.1'; with RF Power set to Mid) Open range environment with no interfering signals. |
| Dynamic Range | > 105 dB (A-weighted), typical |
| Total Harmonic Distortion | < 1.0% |
| Maximum Simultaneous Use (recommended) | Standard: 96 channels* HD mode: 192 channels* In DECT Mode 00/24. *Depending on the region and environment. |
| System Frequency Response | Standard: 20 to 20,000 Hz HD mode: 20 to 20,000 Hz Depending on microphone element to attach. |
| Receiving System | True diversity |
| Latency | Standard: 16.7 ms typ. HD mode: 24.0 ms typ. |
| Audio Sampling Rate | Standard: 24 bits, 48 kHz HD mode: 24 bits, 48 kHz |
| Encryption System | AES256 |
| RF Output Power | Max: 250mW, High: 100 mW, Mid: 30 mW, Low: 10 mW, Min: 2 mW (switchable) Depending on the region and environment. |
| ESW-T4106 BOUNDARY MICROPHONE TRANSMITTER | |
| Frequency Response | Omnidirectional: 20 to 18,000 Hz Cardioid: 20 to 18,000 Hz |
| Modulation Mode | A-field: ? / 2-BPSK B-field: ? / 4-QPSK |
| Microphone Polar Pattern | Cardioid, Omnidirectional (selectable) |
| Battery | Lithium-ion battery LI-220 (included) |
| Battery Life | 22 hours This varies depending on usage conditions. |
| Charging Time (USB) | Approx. 2 hours 40 minutes This varies depending on usage conditions. |
| USB Charging Connector | USB Type-C (USB 3.0) |
| Operating Temperature Range | - 5? C to +45? C (23? F to 113? F) |
| Dimensions | 90.5 mm (3.6") x 129.4 mm (5.1") x 31.9 mm (1.3") (W x D x H) |
| Weight (with battery) | 500 g (18 oz) |
