Description

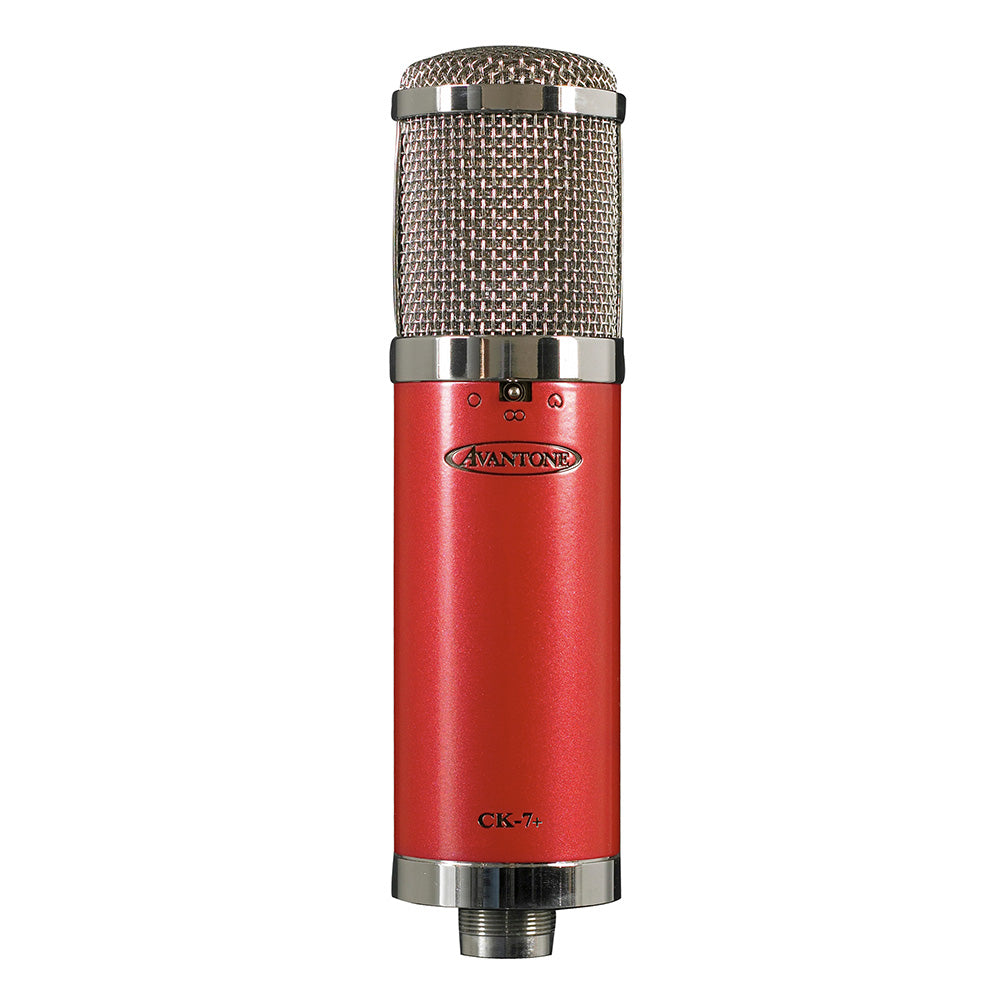

The Avantone "Cabernet (C-series)" mics are designed to offer true professional performance at an absolutely unbeatable price. Featuring high grade Polystyrene and Metalized Polypropylene capacitors in the audio path as well as a proprietary edge terminated dual backplate 34mm 6 micron capsule, the CK7+ has the component set that is normally attributed to modded or hot rodded microphones.
This new premium capsule with a transformer coupled circuit allows an incredibly airy open top end with a solid and thick low end, making the CK7+ the most versatile microphone at its price point. Milled from a single piece solid brass, the body of the CK7+ was designed to give the microphone a solid feel and the included custom retro shock mount prevents unwanted vibrations from traveling up into the microphone.
The CK7+ has separate -10 dB pad & 80 Hz LF roll off switches....The -10dB attenuation switch can be engaged when miking very high SPL sources to keep from overloading the electronics. The 80Hz high-pass filter switch can be engaged to reduce rumble and to keep unwanted low frequencies from "muddying up" the track.
The CK7+ also features 3 separate polar patterns, it's versatility allows it to be a fantastic tool for a variety of situations. All of these features come together to give you a fully professional microphone and a completely unbeatable value.
Uses Include: Studio vocals, acoustic guitar, mandolin, drum overheads, piano, room mic, etc...

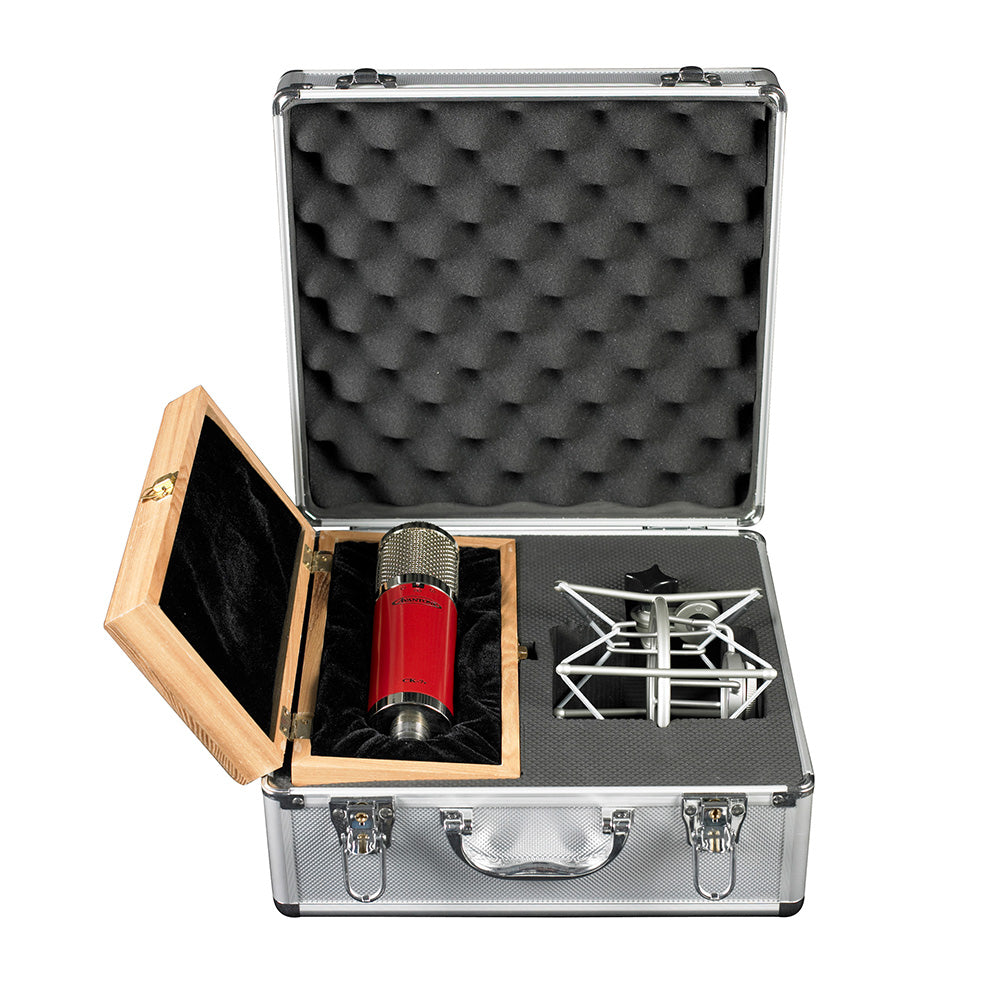

Standard Items Supplied:
- Avantone CK-7 Multi-Pattern FET Microphone
- Avantone Custom Retro Shockmount
- Elegant padded genuine wooden Mic box
- Padded Aluminum storage / travel case
- Owners Manual
Type | True Condenser |
Polar Patterns | Cardioid , Omni , Figure 8 |
Capsule | 34mm 6 micron capsule |
Frequency Response | 20-20,000 Hz +/- 3dB |
Output Impedance | <=250 Ohms |
Sensitivity | -38 dB (0 dB=1V/Pa) |
S/N Ratio | 77dB re 1Pa |
Maximum SPL | 139dB (0.5% THD @1000Hz) |
Equivalent Noise Level | (A-Weighted per IEC 286-4) < 16 dB |
Output Connector | Male XLR 3-pin |
High-Pass Switch | 80 Hz 6dB/octave |
Attenuation Switch | -10 dB |
Power Requirement | Standard 48 Volt Phantom / 5mA |
Included Accessories | Shockmount Wooden Box in Metal Carrying Case |
Dimensions | 187mm x 51mm / 7.5" x 2" |
Weight | .65 kgs / 1.4 lbs |
Finish | Polished Nickel trim / Metallic Cabernet Red Body |
The Avantone "Cabernet (C-series)" mics are designed to offer true professional performance at an absolutely unbeatable price. Featuring high grade Polystyrene and Metalized Polypropylene capacitors in the audio path as well as a proprietary edge terminated dual backplate 34mm 6 micron capsule, the CK7+ has the component set that is normally attributed to modded or hot rodded microphones.
This new premium capsule with a transformer coupled circuit allows an incredibly airy open top end with a solid and thick low end, making the CK7+ the most versatile microphone at its price point. Milled from a single piece solid brass, the body of the CK7+ was designed to give the microphone a solid feel and the included custom retro shock mount prevents unwanted vibrations from traveling up into the microphone.
The CK7+ has separate -10 dB pad & 80 Hz LF roll off switches....The -10dB attenuation switch can be engaged when miking very high SPL sources to keep from overloading the electronics. The 80Hz high-pass filter switch can be engaged to reduce rumble and to keep unwanted low frequencies from "muddying up" the track.
The CK7+ also features 3 separate polar patterns, it's versatility allows it to be a fantastic tool for a variety of situations. All of these features come together to give you a fully professional microphone and a completely unbeatable value.
Uses Include: Studio vocals, acoustic guitar, mandolin, drum overheads, piano, room mic, etc...
Standard Items Supplied:
- Avantone CK-7 Multi-Pattern FET Microphone
- Avantone Custom Retro Shockmount
- Elegant padded genuine wooden Mic box
- Padded Aluminum storage / travel case
- Owners Manual
Type | True Condenser |
Polar Patterns | Cardioid , Omni , Figure 8 |
Capsule | 34mm 6 micron capsule |
Frequency Response | 20-20,000 Hz +/- 3dB |
Output Impedance | <=250 Ohms |
Sensitivity | -38 dB (0 dB=1V/Pa) |
S/N Ratio | 77dB re 1Pa |
Maximum SPL | 139dB (0.5% THD @1000Hz) |
Equivalent Noise Level | (A-Weighted per IEC 286-4) < 16 dB |
Output Connector | Male XLR 3-pin |
High-Pass Switch | 80 Hz 6dB/octave |
Attenuation Switch | -10 dB |
Power Requirement | Standard 48 Volt Phantom / 5mA |
Included Accessories | Shockmount Wooden Box in Metal Carrying Case |
Dimensions | 187mm x 51mm / 7.5" x 2" |
Weight | .65 kgs / 1.4 lbs |
Finish | Polished Nickel trim / Metallic Cabernet Red Body |
