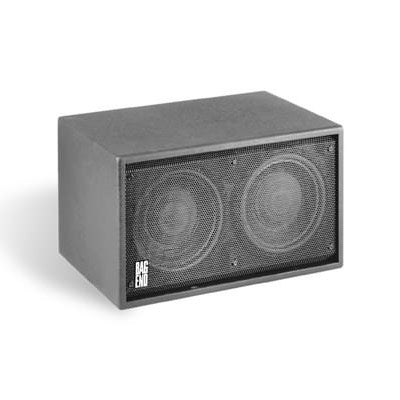

Bag End D10E-I Double 10" INFRA Sub-Bass Subwoofer
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The D10E-I is a high output INFRA subwoofer system designed to provide high fidelity extended low frequency audio reproduction from a relatively small enclosure. The D10E-I provides perfectly flat response down to 8 Hertz when used in conjunction with the 8 Hertz Integrator. Designed for permanent installation, the D10E-I offers a flat black painted finish and a black coated steel grille.
| System Type | Infrasub sealed chamber 1.4 ft3 |
| Enclosure | 18 mm 13-ply birch plywood |
| Finish | Black Ro Tex True water born environmental finish |
| Grille | 16 Gauge black power coated perforated stee |
| Low Frequency Components | 2 - EL-10 10” Transducers, Infra cone, 2.5” Voice coil, 68 oz. Magnet |
| Input Connector | Cinch 142 screw terminal barrier strip |
| Hardware | Optional F2 Fly points available |
| Fly Points Safe Working Load | 200 lbs |
| Crossover Type | Requires external Infra Integrator |
| Sensitivity | 92 dB SPL @ 80 Hz (2.83 V @ 1m) |
| Frequency Response | 60 Hz to 250 Hz ±3 dB 8 Hz to 95 Hz ±3 dB with external Infra Integrator |
| Low Frequency Limit | 8 Hz |
| Maximum Calculated Continuous Acoustic Output | Half Space @ 1 Meter 10 Hz - 84 dBSPL 20 Hz - 96 dBSPL 40 Hz - 108 dBSPL 80 Hz - 119 dBSPL |
| Power Handling | 400 W continuous (AES) 800 W program |
| Recommended Amplifier Power | 400 to 800 W at rated impedance |
| Rated Impedence | 4 Ohms |
| Polarity | A positive asymmetrical signal applied to the + terminal will result in a positive asymmetrical acoustical pressure |
| Dimensions | 13”h x 22.5”w x 13”d 33 cm x 57 cm x 33 cm |
| Weight | 44 lbs 20 kg |
The D10E-I is a high output INFRA subwoofer system designed to provide high fidelity extended low frequency audio reproduction from a relatively small enclosure. The D10E-I provides perfectly flat response down to 8 Hertz when used in conjunction with the 8 Hertz Integrator. Designed for permanent installation, the D10E-I offers a flat black painted finish and a black coated steel grille.
| System Type | Infrasub sealed chamber 1.4 ft3 |
| Enclosure | 18 mm 13-ply birch plywood |
| Finish | Black Ro Tex True water born environmental finish |
| Grille | 16 Gauge black power coated perforated stee |
| Low Frequency Components | 2 - EL-10 10” Transducers, Infra cone, 2.5” Voice coil, 68 oz. Magnet |
| Input Connector | Cinch 142 screw terminal barrier strip |
| Hardware | Optional F2 Fly points available |
| Fly Points Safe Working Load | 200 lbs |
| Crossover Type | Requires external Infra Integrator |
| Sensitivity | 92 dB SPL @ 80 Hz (2.83 V @ 1m) |
| Frequency Response | 60 Hz to 250 Hz ±3 dB 8 Hz to 95 Hz ±3 dB with external Infra Integrator |
| Low Frequency Limit | 8 Hz |
| Maximum Calculated Continuous Acoustic Output | Half Space @ 1 Meter 10 Hz - 84 dBSPL 20 Hz - 96 dBSPL 40 Hz - 108 dBSPL 80 Hz - 119 dBSPL |
| Power Handling | 400 W continuous (AES) 800 W program |
| Recommended Amplifier Power | 400 to 800 W at rated impedance |
| Rated Impedence | 4 Ohms |
| Polarity | A positive asymmetrical signal applied to the + terminal will result in a positive asymmetrical acoustical pressure |
| Dimensions | 13”h x 22.5”w x 13”d 33 cm x 57 cm x 33 cm |
| Weight | 44 lbs 20 kg |
