Bag End S18E-I 18 Inch INFRA Bass Passive Subwoofer - 8-95 Hz - 400 Watts at 8 Ohms
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description

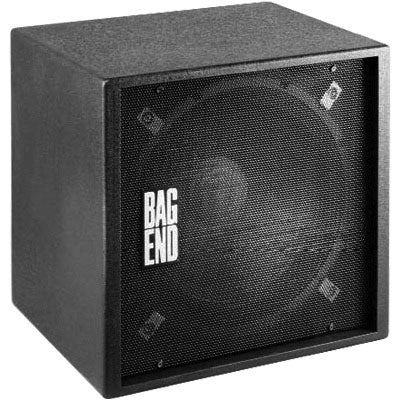

The P-S18E-I is a high output self powered subwoofer system designed to provide high fidelity extended low frequency audio reproduction from a relatively small enclosure. The P-S18E-I provides perfectly flat response down to 8 Hertz when used in conjunction with the 8 Hertz Integrator. Designed for permanent installation, the P-S18E-I offers a flat black textured finish and a black coated steel grille.
Applications:- Film & Video Post Production
- 5.1 Digital Format Subwoofer
- PA System Installations
- Recording Studios & Mastering Facilities
- Home Theater
- Discotheque
| Enclosure | 18 mm 13-ply birch plywood |
| Low Frequency Transducer | 18 INFRA cone 3 Voice coil 120 oz. Magnet |
| Input Connectors | Cinch 142 screw terminal barrier strip |
| Grille | 16 Gauge black vinyl coated perforated steel |
| Standard Hardware | 4 - Machined aluminum speaker mounting clamps |
| Optional Hardware: | Rigging points |
| Acoustic and Electrical | |
| System Type | Infrasub sealed chamber (3 ft3) |
| Impedance | 8 ohms |
| Crossover Network | Requires INFRA Integrator |
| Frequency Response | 8 Hz to 95 Hz ±3 dB (2π Steradians, with 8 Hertz Integrator) |
| Sensitivity | 96 dB SPL @ 80 Hz (1W @ 1m) (for additional information, see INFRA Speaker Sensitivity Technical Note) |
| Power Handling | 400 W continuous sine wave, 400 W instantaneous peak |
| Physical | |
| Finish | Black paint |
| Dimensions | 21h x 22w x 18d 54 cm x 56 cm x 46 cm |
| Weight | 64 lbs |
| Shipping Dimensions | 24 x 25 x 21 61 cm x 64 cm x 54 cm |
| Shipping Weight | 72 lbs |
