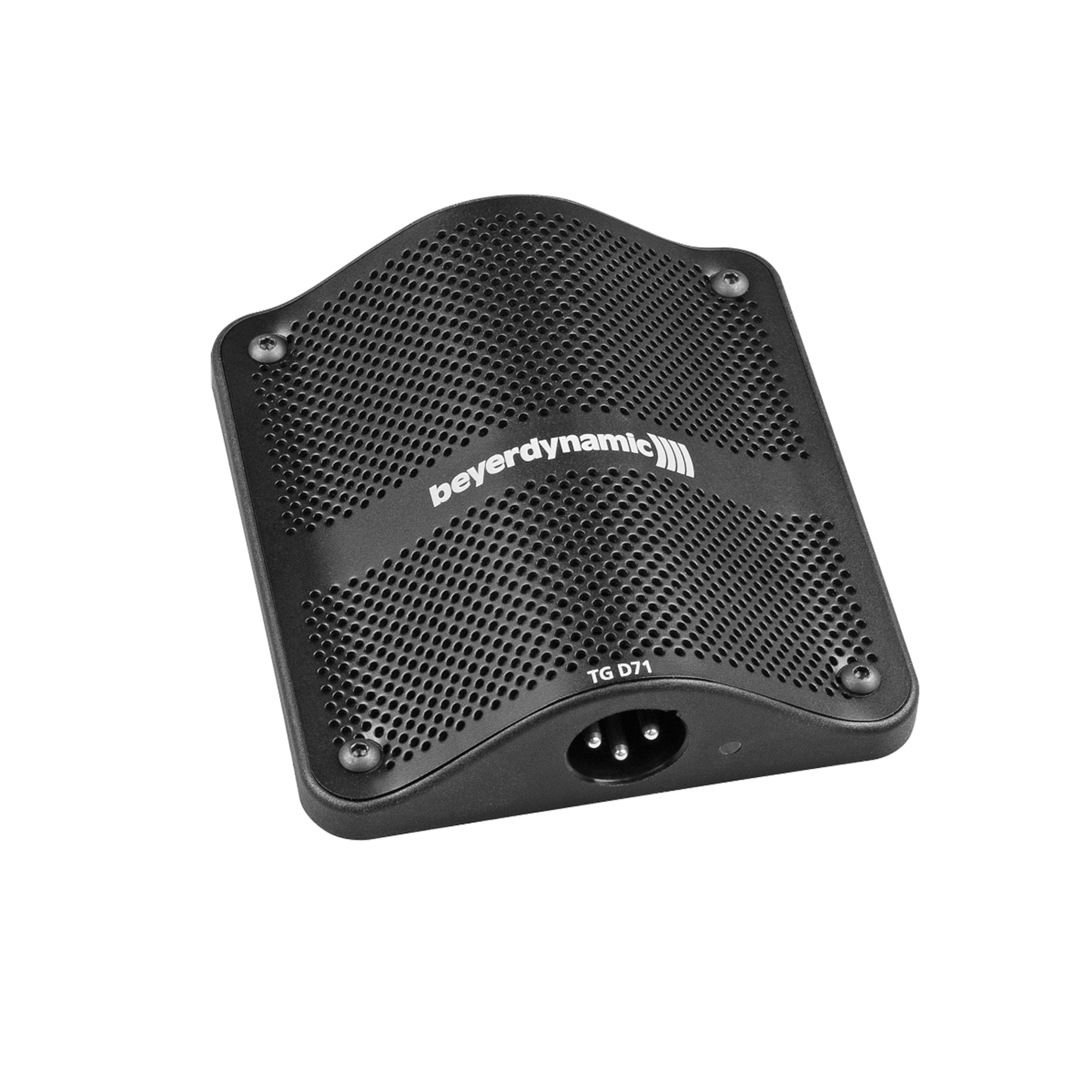

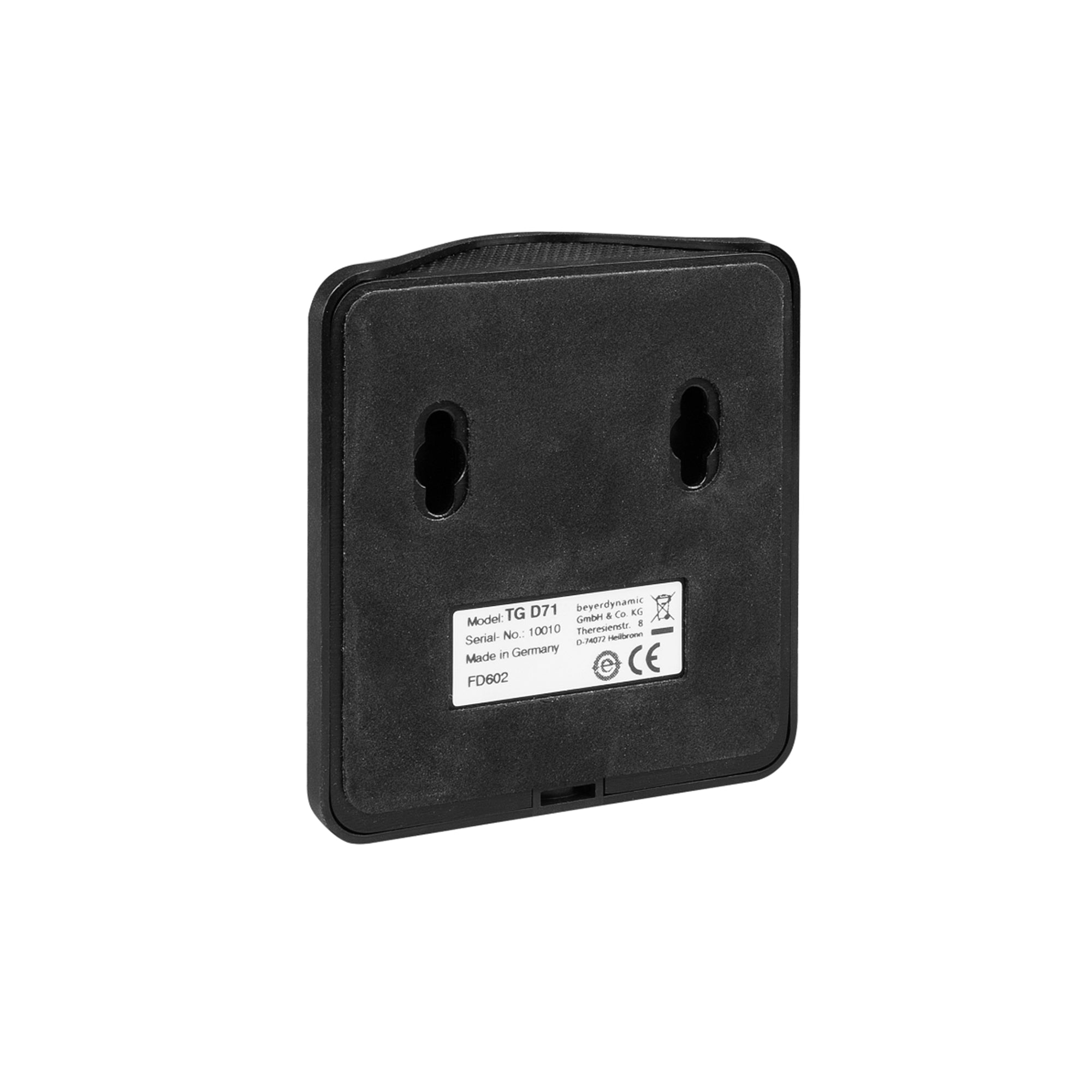

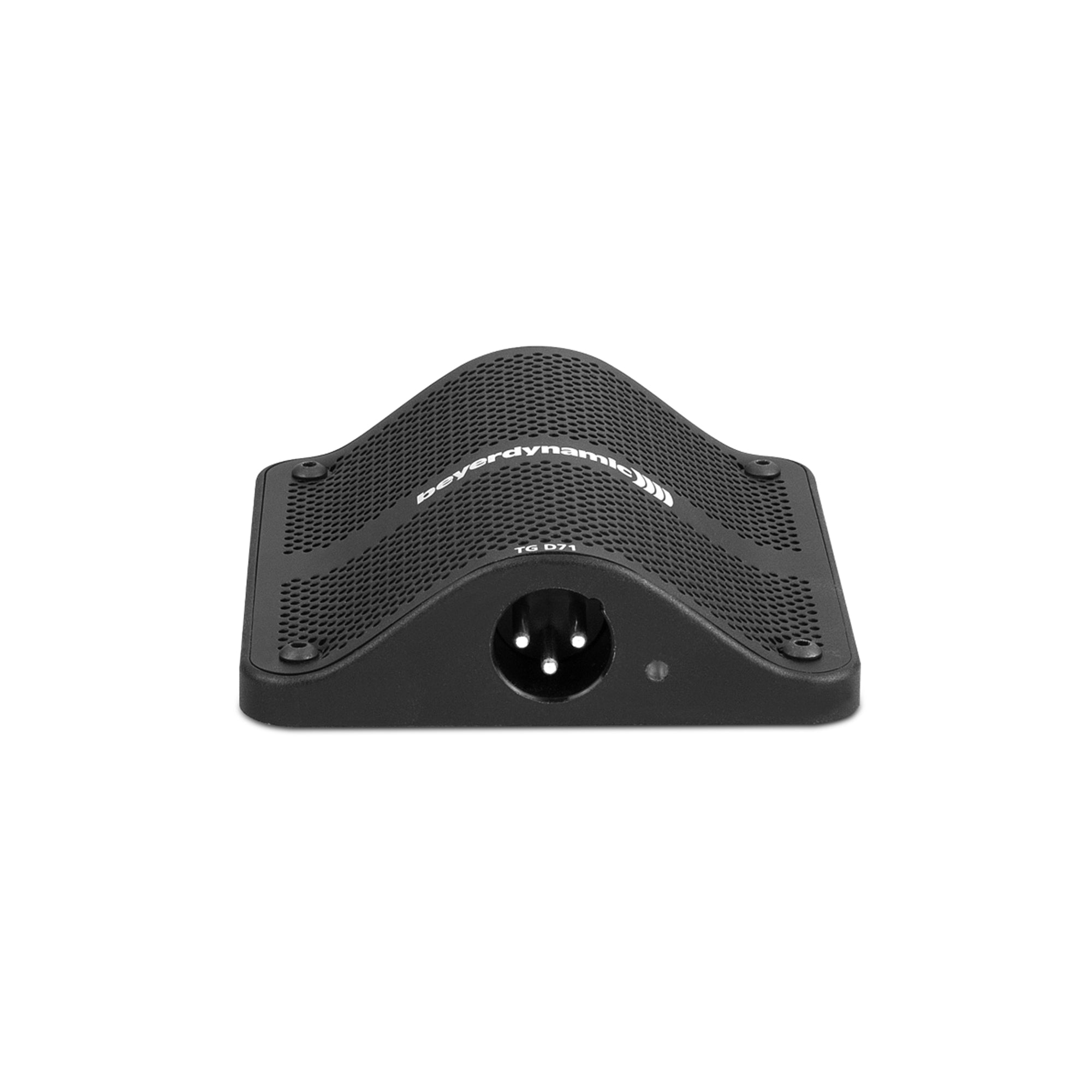

Beyerdynamic TG D71 - Semi-Cardioid Boundary Microphone
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
Simple positioning, an unparalleled lean and robust design and exceptional sound qualities turn the boundary microphone TG D71 into the consummate companion on stage, in rehearsal rooms or in home studios. The microphone takes sound quality to the next level when it is used on kick drums and cajóns. Well-considered features like the helpful status LED and the rubber underside enhance the microphone’s emphatic design. Its simple handling is also reflected in the sound itself: Painstaking fiddling with the equalizer becomes a thing of the past when the TG D71 is put to use.
Features:
- An extremely tough housing with a compact, lean design
- Perfect for kick drums, cajóns and grand pianos with a non-slip rubber underside
- Powerful, natural sound
- Made in Germany
| Transducer type | Condenser (back electret) |
| Operating principle | Pressure gradient |
| Polar pattern | Half-cardioid |
| Frequency response | 25 - 20,000 Hz |
| Open circuit voltage | 1.5 mV/Pa (-56 dBV) |
| Nominal impedance | 200 ? |
| Load impedance | ? 1 k? |
| Max. SPL at 1 kHz | 148 dB [SPL@1% THD] |
| Signal-to-noise ratio | 63 dB [A, RMS] 50 dB [CCIR, Q-Peak] |
| Noise voltage | 1.1 µV [A, RMS], 4.9 µV [CCIR, Q-Peak] |
| A-weighted equivalent SPL | 31.2 dB |
| Polarity | Positive pressure produces positive voltage on pin 2 in relation to pin 3 |
| Wiring | bal. with 3-pin XLR male |
| Connection | XLR, 3-pin, male |
| Power supply | Phantom power P48 (+48 VDC ±4 VDC, 6.8 k? ±20%, current consumption: < 3.2 mA) P24 (+24 VDC ±4 VDC, 1.2 k? ±20%, current consumption: < 3.2 mA) P12 (+12 VDC ±4 VDC, 680 ? ±20%, current consumption: < 3.2 mA) |
| Dimensions without connector (L x W x H) | 90 x 86 x 27 mm |
| Weight | 413 g |
Simple positioning, an unparalleled lean and robust design and exceptional sound qualities turn the boundary microphone TG D71 into the consummate companion on stage, in rehearsal rooms or in home studios. The microphone takes sound quality to the next level when it is used on kick drums and cajóns. Well-considered features like the helpful status LED and the rubber underside enhance the microphone’s emphatic design. Its simple handling is also reflected in the sound itself: Painstaking fiddling with the equalizer becomes a thing of the past when the TG D71 is put to use.
Features:
- An extremely tough housing with a compact, lean design
- Perfect for kick drums, cajóns and grand pianos with a non-slip rubber underside
- Powerful, natural sound
- Made in Germany
| Transducer type | Condenser (back electret) |
| Operating principle | Pressure gradient |
| Polar pattern | Half-cardioid |
| Frequency response | 25 - 20,000 Hz |
| Open circuit voltage | 1.5 mV/Pa (-56 dBV) |
| Nominal impedance | 200 ? |
| Load impedance | ? 1 k? |
| Max. SPL at 1 kHz | 148 dB [SPL@1% THD] |
| Signal-to-noise ratio | 63 dB [A, RMS] 50 dB [CCIR, Q-Peak] |
| Noise voltage | 1.1 µV [A, RMS], 4.9 µV [CCIR, Q-Peak] |
| A-weighted equivalent SPL | 31.2 dB |
| Polarity | Positive pressure produces positive voltage on pin 2 in relation to pin 3 |
| Wiring | bal. with 3-pin XLR male |
| Connection | XLR, 3-pin, male |
| Power supply | Phantom power P48 (+48 VDC ±4 VDC, 6.8 k? ±20%, current consumption: < 3.2 mA) P24 (+24 VDC ±4 VDC, 1.2 k? ±20%, current consumption: < 3.2 mA) P12 (+12 VDC ±4 VDC, 680 ? ±20%, current consumption: < 3.2 mA) |
| Dimensions without connector (L x W x H) | 90 x 86 x 27 mm |
| Weight | 413 g |
