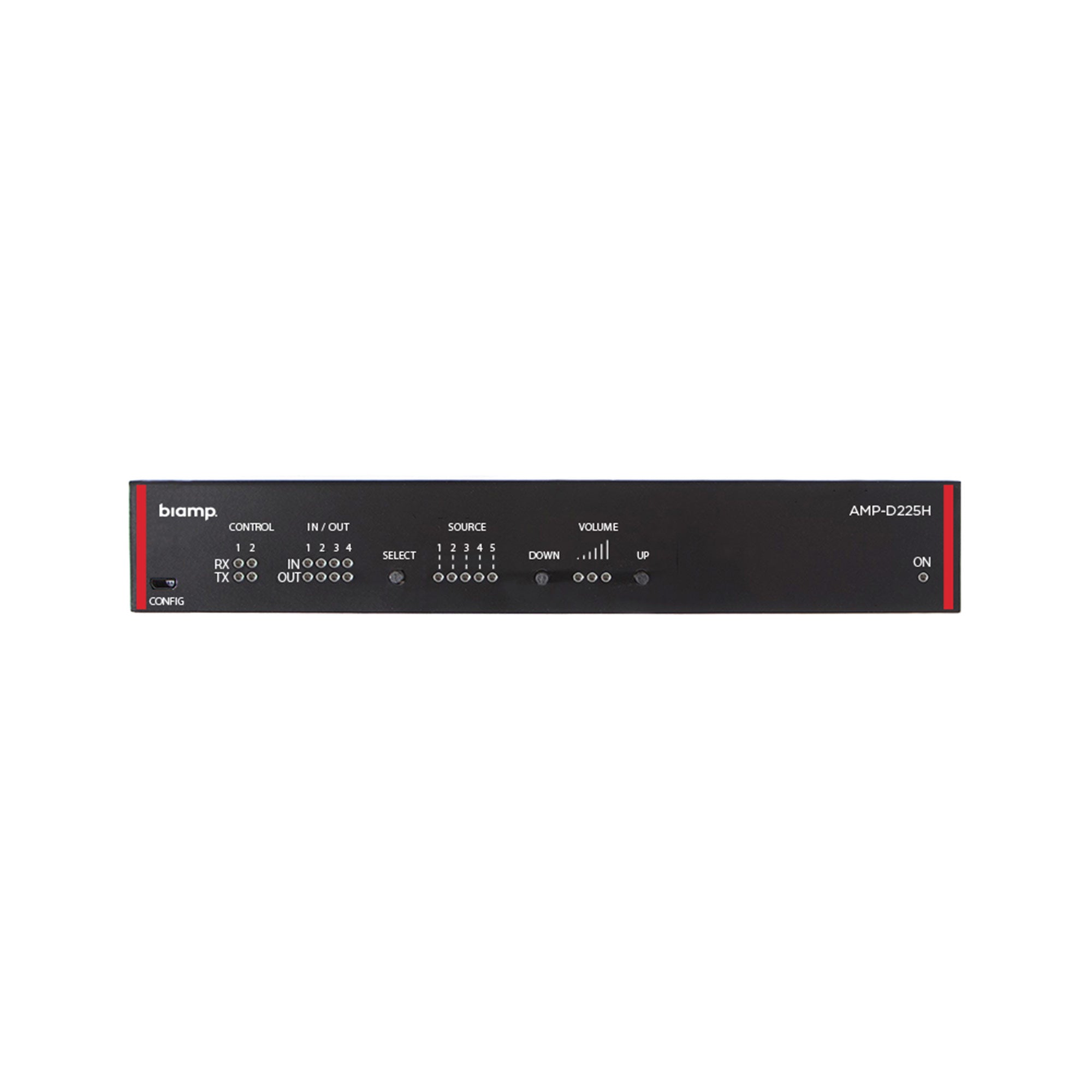

Biamp AMP-D225H - Two-Channel Class D Install Power Amplifier
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The AMP-D225H is a two-channel class D amplifier delivering 25 watts per channel in a sleek, compact design. Because there is no need for internal cooling fans, the AMP-D225H can be placed in a conference room with virtually no audible noise. The ability to bridge channels gives even more power and flexibility to the AMP-D225H. The AMP-D225H is also equipped with four stereo inputs, four GPIO, and two RS-232 interfaces. It integrates easily with a variety of control systems and the USB input enables direct audio connection and volume control from a computer. It’s audio performance, ease-of-use, and versatile feature set makes the AMP-D225H ideal for a variety of professional audio applications.
Features:
- Two channels; 25W per channel
- Bridgeable channels
- Class D amplifier topology
- Supports 4Ω and 8Ω outputs
- 4 GPIO for control of relays, switches, and sensors
- 3 band equalizer for bass, mid and treble control
- Auto standby mode
- CE marked, UL listed, and RoHS compliant
- Covered by Biamp Systems’ five-year warranty
| Network Connection | RJ-45 with Ethernet (CAT5e or better) |
| INPUTS | |
| Number of Inputs | 4 (stereo) |
| Connector | RCA |
| Input Impedance | < 100k½ |
| Max Input Level | 2 Vrms |
| Input Gain (adjustable) | ± 12 dB |
| Wake on Signal | Adjustable level |
| OUTPUTS | |
| Number of Channels | 2 |
| Maximum Rated Output | Single Channel, 4½: 35W Single Channel, 8½: 25W Bridged, 4½: 55W Bridged, 8½: 35W |
| Minimum Operational Load | 2½ |
| THD+N (20 Hz - 20 kHz, @ 1W) | < 0.1 % |
| Connector | 4-pin, 0.3-inch Euroblock |
| USB | |
| Connector | USB 2.0 Type-B |
| Bit Depth | 16-bit |
| Sample Rate | 48kHz |
| GPIO | |
| Number of Ports | 4 |
| Connector | 5-pin, 0.3-inch Euroblock |
| Type | Open drain |
| Input Trigger Low | < 1V DC |
| Input Trigger High | > 4V DC |
| Isolated Output | No |
| Max Voltage | 24V DC |
| Max Current | 0.5 A |
| RS-232 / IR | |
| Number of Ports | 2 (bidirectional) |
| Connector | 3-pin, 0.3-inch Euroblock |
| Baud Rate | 1200 Ð 115200 bit/sec |
| Data Bits | 7, 8 |
| Parity | Even, Odd, None |
| Stop Bits | 1, 2 |
| IR Frequency Range | 400 Hz to 500 kHz |
| Physical | |
| Power | 24V DC 50W |
| Cooling | Convection |
| Overall Dimensions | Height: 1.5 inches (37 mm) Width: 8.6 inches (218 mm) Depth: 2.8 inches (70 mm) |
| Weight | 1.1 lbs (0.5 kg) |
| Environmental | |
| Ambient Operating Temperature Range | 32 - 86¡ F (0 Ð 30¡ C) |
| Humidity | 10-90% relative humidity (non-condensing) |
| Altitude | 0-6,600 ft (0-2000m) MSL |
| Compliance | FCC Part 15B (USA) UL listed (USA and Canada) CE Marked (Europe) RoHS Directive (Europe) |
The AMP-D225H is a two-channel class D amplifier delivering 25 watts per channel in a sleek, compact design. Because there is no need for internal cooling fans, the AMP-D225H can be placed in a conference room with virtually no audible noise. The ability to bridge channels gives even more power and flexibility to the AMP-D225H. The AMP-D225H is also equipped with four stereo inputs, four GPIO, and two RS-232 interfaces. It integrates easily with a variety of control systems and the USB input enables direct audio connection and volume control from a computer. It’s audio performance, ease-of-use, and versatile feature set makes the AMP-D225H ideal for a variety of professional audio applications.
Features:
- Two channels; 25W per channel
- Bridgeable channels
- Class D amplifier topology
- Supports 4Ω and 8Ω outputs
- 4 GPIO for control of relays, switches, and sensors
- 3 band equalizer for bass, mid and treble control
- Auto standby mode
- CE marked, UL listed, and RoHS compliant
- Covered by Biamp Systems’ five-year warranty
| Network Connection | RJ-45 with Ethernet (CAT5e or better) |
| INPUTS | |
| Number of Inputs | 4 (stereo) |
| Connector | RCA |
| Input Impedance | < 100k½ |
| Max Input Level | 2 Vrms |
| Input Gain (adjustable) | ± 12 dB |
| Wake on Signal | Adjustable level |
| OUTPUTS | |
| Number of Channels | 2 |
| Maximum Rated Output | Single Channel, 4½: 35W Single Channel, 8½: 25W Bridged, 4½: 55W Bridged, 8½: 35W |
| Minimum Operational Load | 2½ |
| THD+N (20 Hz - 20 kHz, @ 1W) | < 0.1 % |
| Connector | 4-pin, 0.3-inch Euroblock |
| USB | |
| Connector | USB 2.0 Type-B |
| Bit Depth | 16-bit |
| Sample Rate | 48kHz |
| GPIO | |
| Number of Ports | 4 |
| Connector | 5-pin, 0.3-inch Euroblock |
| Type | Open drain |
| Input Trigger Low | < 1V DC |
| Input Trigger High | > 4V DC |
| Isolated Output | No |
| Max Voltage | 24V DC |
| Max Current | 0.5 A |
| RS-232 / IR | |
| Number of Ports | 2 (bidirectional) |
| Connector | 3-pin, 0.3-inch Euroblock |
| Baud Rate | 1200 Ð 115200 bit/sec |
| Data Bits | 7, 8 |
| Parity | Even, Odd, None |
| Stop Bits | 1, 2 |
| IR Frequency Range | 400 Hz to 500 kHz |
| Physical | |
| Power | 24V DC 50W |
| Cooling | Convection |
| Overall Dimensions | Height: 1.5 inches (37 mm) Width: 8.6 inches (218 mm) Depth: 2.8 inches (70 mm) |
| Weight | 1.1 lbs (0.5 kg) |
| Environmental | |
| Ambient Operating Temperature Range | 32 - 86¡ F (0 Ð 30¡ C) |
| Humidity | 10-90% relative humidity (non-condensing) |
| Altitude | 0-6,600 ft (0-2000m) MSL |
| Compliance | FCC Part 15B (USA) UL listed (USA and Canada) CE Marked (Europe) RoHS Directive (Europe) |
