Biamp Desono C-IC6 - Two-Way Conferencing Ceiling Loudspeaker (Red)
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
Priced individually, but sold in pairs.

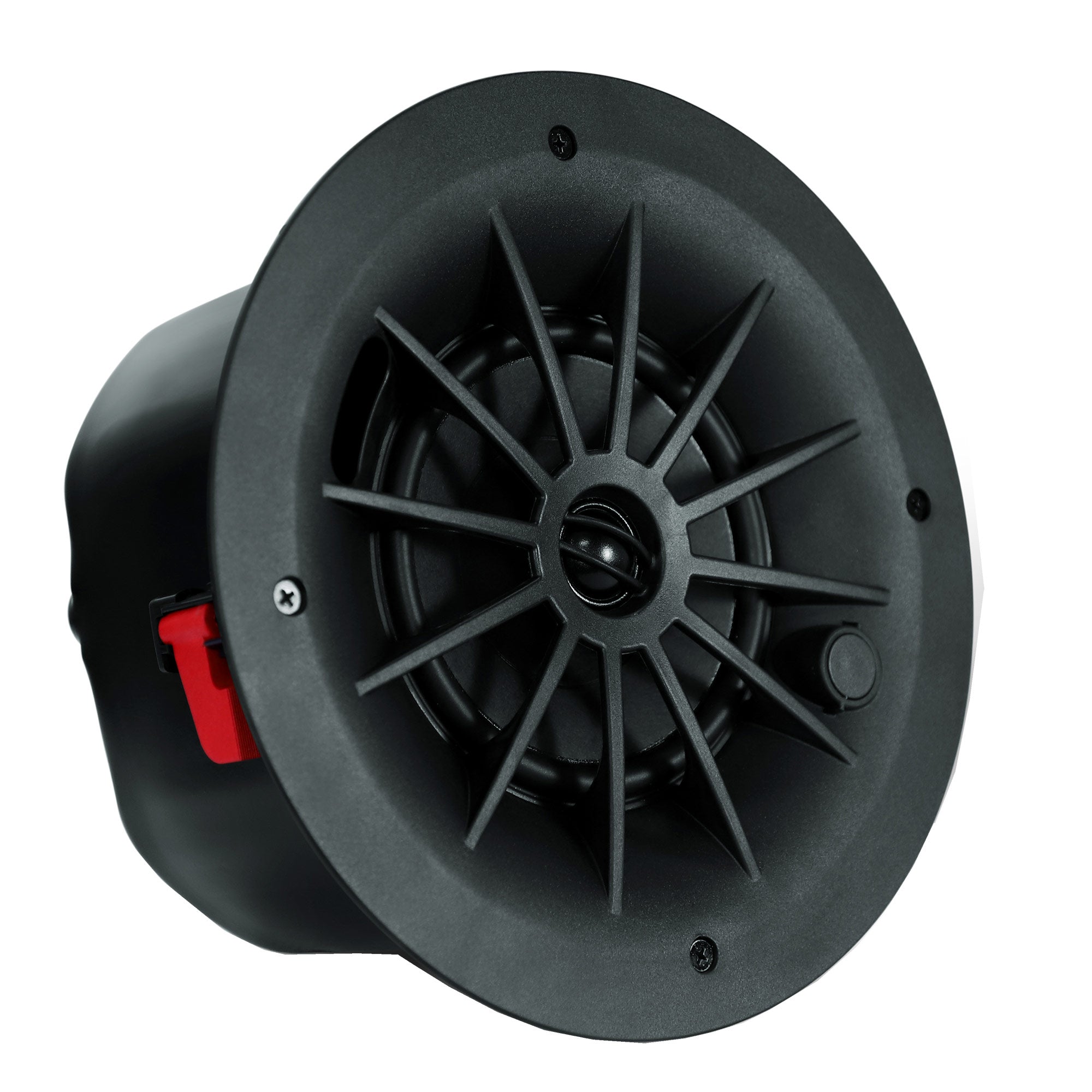

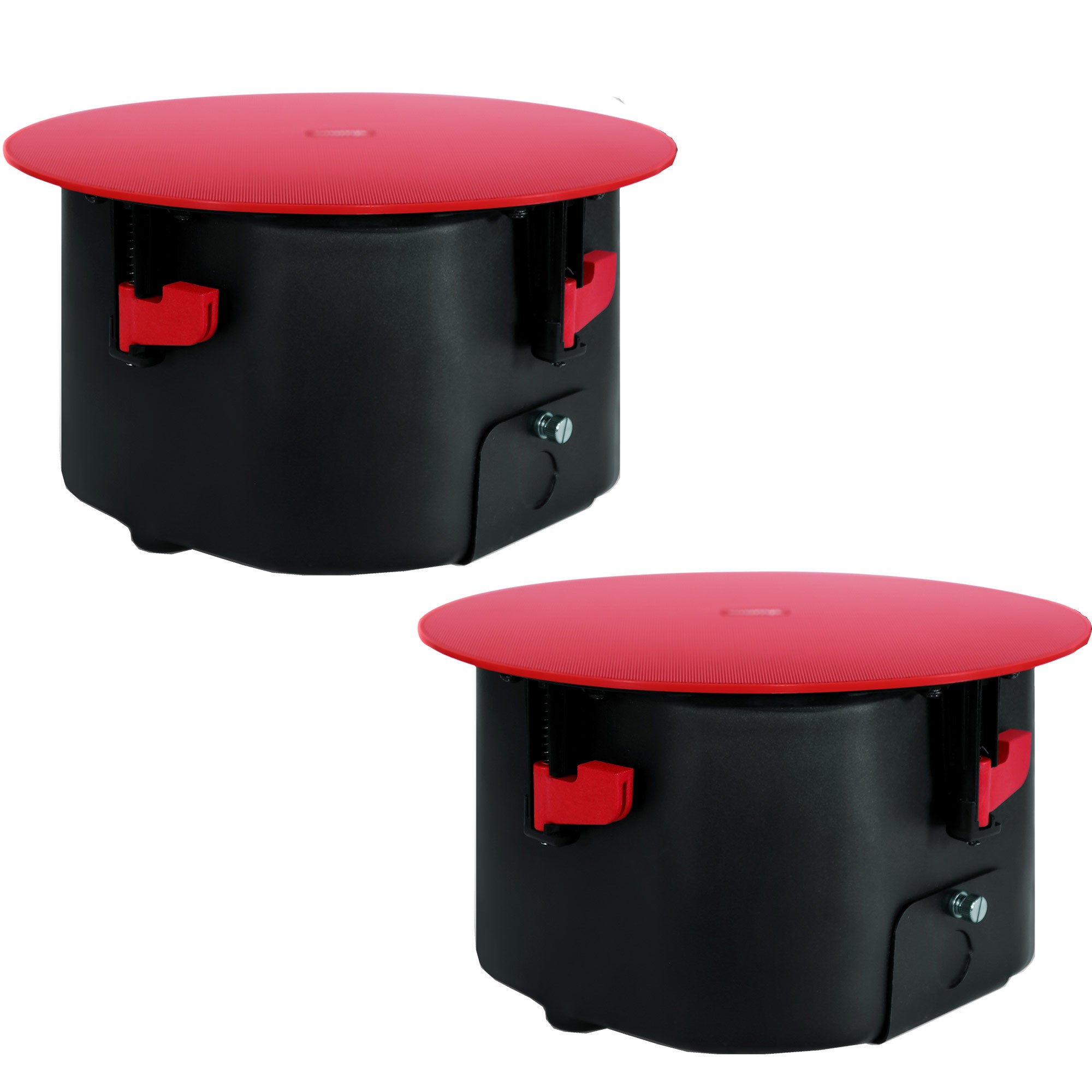

The Desono C-IC6 is a low-profile, two-way passive coaxial loudspeaker optimized for speech reproduction in conferencing applications. Designed with the installer in mind, the C-IC6 loudspeaker supports audio connections via either standard category cable or traditional speaker cable. They can be blind-mounted from below the ceiling, and feature a magnetic grille for easy toolless installation and removal. The grille plates are available in white, black, or red, or can be painted to match the room decor. The C-IC6 also directly integrates with the Tesira AMP-450BP - a four-channel "backpack" PoE+ amplifier - which reduces wiring requirements and installation time. The Desono C-IC6 loudspeakers are an ideal choice for any conferencing space that demands superior speech reproduction.
Features:
- Low profile passive loudspeaker, less than 6 inches (155 mm) total depth
- Supports both CAT cables and standard speaker wiring
- Designed to be integrated with the AMP-450BP (backpack PoE+ amplifier)
- 8-ohm nominal impedance allows for daisy chaining
- Bridge-mounted 1-inch soft dome tweeter
- 2-way 6.5-inch treated paper woofer, mechanically isolated and independent of tweeter
- 130-degree coverage optimized for low ceilings
- 60W with a peak power of 120W
| Operating Mode | Passive with DSP |
| Operating Environment | Indoor in climate-controlled environments |
| Operating Range (-10dB) | 60 Hz to 20 kHz |
| Nominal Beamwidth (H x V) | 130 deg., conical |
| Transducers | LF 1 x 6.5" (165 mm) treated paper cone HF 1 x 1" (25 mm) soft dome |
| Continuous Power Handling @ Nominal Impedance | 22V 60W @ 8 ohm (240W peak) |
| Nominal Sensitivity @ 1m | @ 1W 88 dB @ 2.83V 88 dB |
| Nominal Maximum SPL @ 1m | Peak 112 dB Continuous 106 dB |
| Recommended Amplifiers | 60W - 120W @ 8 ohm (22V - 31V); Tesira AMP-450BP |
| Input Connection | One 4-pole Euroblock connector for two pair of parallel connections [up to 16AWG] Two RJ-45 connectors |
| Mounting Provisions | 4 mounting clamps with 36 mm (1.4") grip range |
| Compliance | ETL listed to comply with UL 1480A and UL 2043 Certified to CSA C22.2#62368-1 Suitable for use in air handling spaces per NFPA 70, NFPA 90 Conforms with City of Chicago Codes |
| Dimensions H x Dia | 151 mm x 276 mm (5.9" x 10.9") |
| Cutout Diameter | 248 mm (9.75") |
| Weight | 3.5 kg (7.8 lbs) |
| Finish | PC/ABS V-0 plastic Matte finish, black |
| Grille | Powder-coated perforated steel Black, White, or Red |
| Accessories (included) | C Ring; Tile Bridge; Paintable Metal Grille |
| Accessories (option) | BPAK backpack adapter kit C-IC6-GK-12PK grille kits (black, white, or red) |
