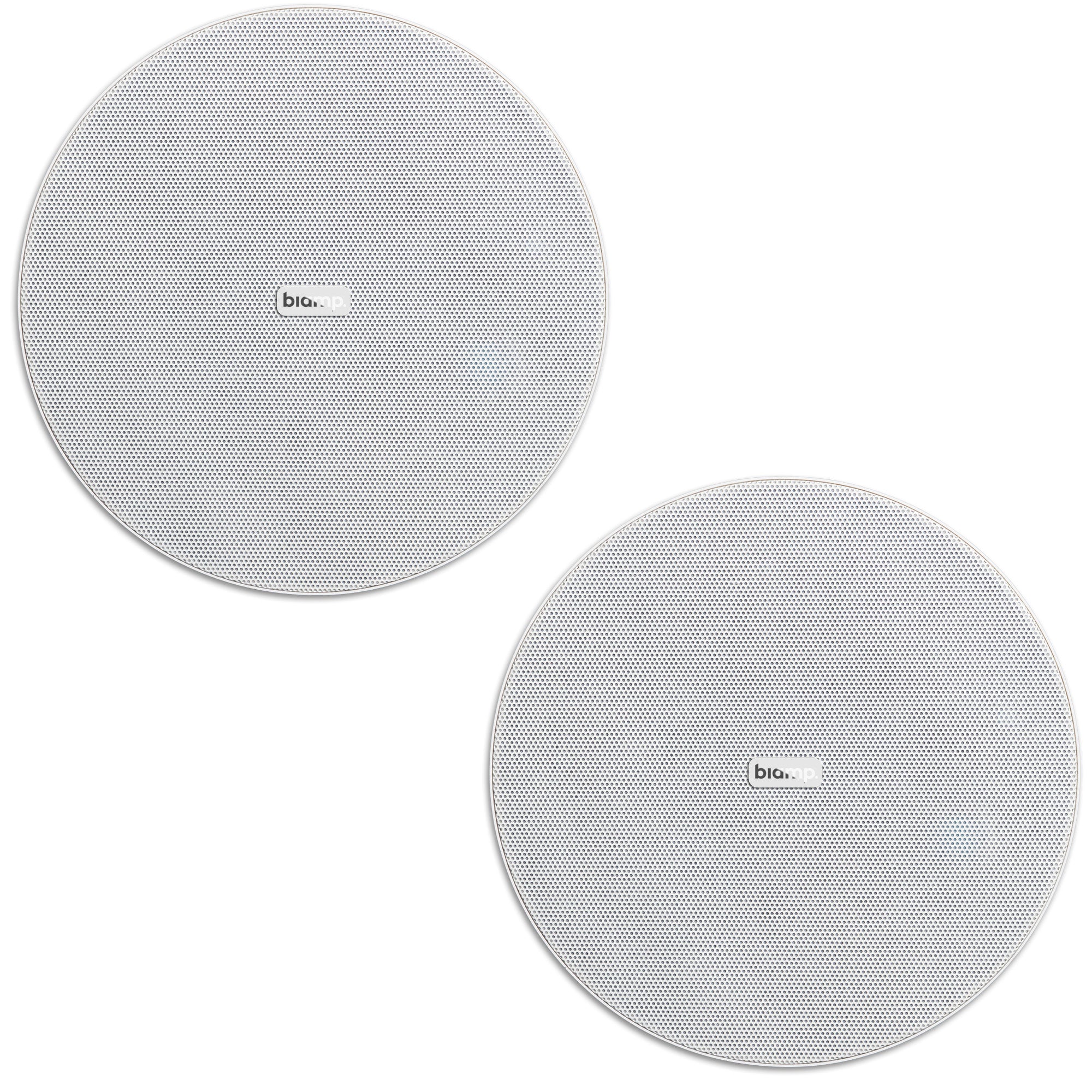

Biamp Desono CMT20DTS - Two-Way 4.25-Inch Ceiling Loudspeaker (White)
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
Priced individually, but sold in pairs.
The versatile Desono CM20DTS 4.25" two-way design built-in ceiling loudspeaker produces a dynamic and warm sound ideal for high-quality background music and voice reproduction. The back can with only 83.5mm (3.287") built-in depth is probably the shallowest in his kind. The uncompromised sound quality and controlled sound performance makes it suitable for any kind of ceiling structure. The CM20DTS has a rotatable 70/100-volt power tapping selector on the front and offers 16 ohms connectivity. The thin edge grill with integrated neodymium grill fixing magnets will blend this top-notch loudspeaker in any design environment.
Features:
- Low profile, requires only 3.3" (84 mm) mounting depth
- High speech intelligibility coupled with full-range music reproduction
- Thin-edge, magnetically attached grille
- Tap switch allows for 70V/100V or 16 ohm low impedance operation
- Tuned bass reflex port for optimized low frequency performance
- Loudspeaker overload protection for 24/7 failsafe operation
- ETL listed to conform with UL Std 1480A and UL 2043; Certified to CSA C22.2#62368-1
| Operating Mode | Passive |
| Operating Environment | Indoor |
| Operating Range (-10dB) | 90 Hz to 22 kHz |
| Nominal Beamwidth (H x V) | 150 deg. x 100 deg. |
| Transducers | LF 1 x 4.25" (108 mm) treated paper cone HF 1 x 1" (25 mm) soft dome |
| Continuous Power Handling @ Nominal Impedance | 25V 40W @ 16 ohm (160W peak) |
| Nominal Sensitivity @ 1m | @ 1W 87 dB @ 2.83V 84 dB |
| Nominal Maximum SPL @ 1m | Peak 109 dB Continuous 103 dB |
| Transformer | 70V: 20W, 10W, 5W, 2.5W, 1.25W 100V: 20W, 10W, 5W, 2.5W |
| Protection | 3-step self-resetting protection |
| Recommended Amplifiers | 40W - 80W @ 16 ohm (25V - 36V) |
| Input Connection | (1) 4-way Euroblock connector with permanent pass-through |
| Mounting Provisions | 2 mounting clamps with grip range of 0.2" - 1.6" (3 - 41 mm); Cover plate with 0.75" (22 mm) NPT knockout for conduit connectors |
| Safety Features | 2 hang points |
| Compliance | ETL listed to comply with UL 1480A and UL 2043 Certified to CSA C22.2#62368-1 Suitable for use in air handling spaces per NFPA 70, NFPA 90 Conforms with City of Chicago Codes |
| Dimensions H x Dia. | 3.3" x 8.8" (84 mm x 223 mm) |
| Cutout Diameter | 7.6" (193 mm) |
| Weight | 4.4 lbs (2.0 kg) |
| Finish | Steel, matte finish |
| Grille | Steel, White (RAL 9010) finish |
| Accessories (included) | Tile rails; tile rail spacers; cutout template |
| Accessories (option) | SQGR square grille |
