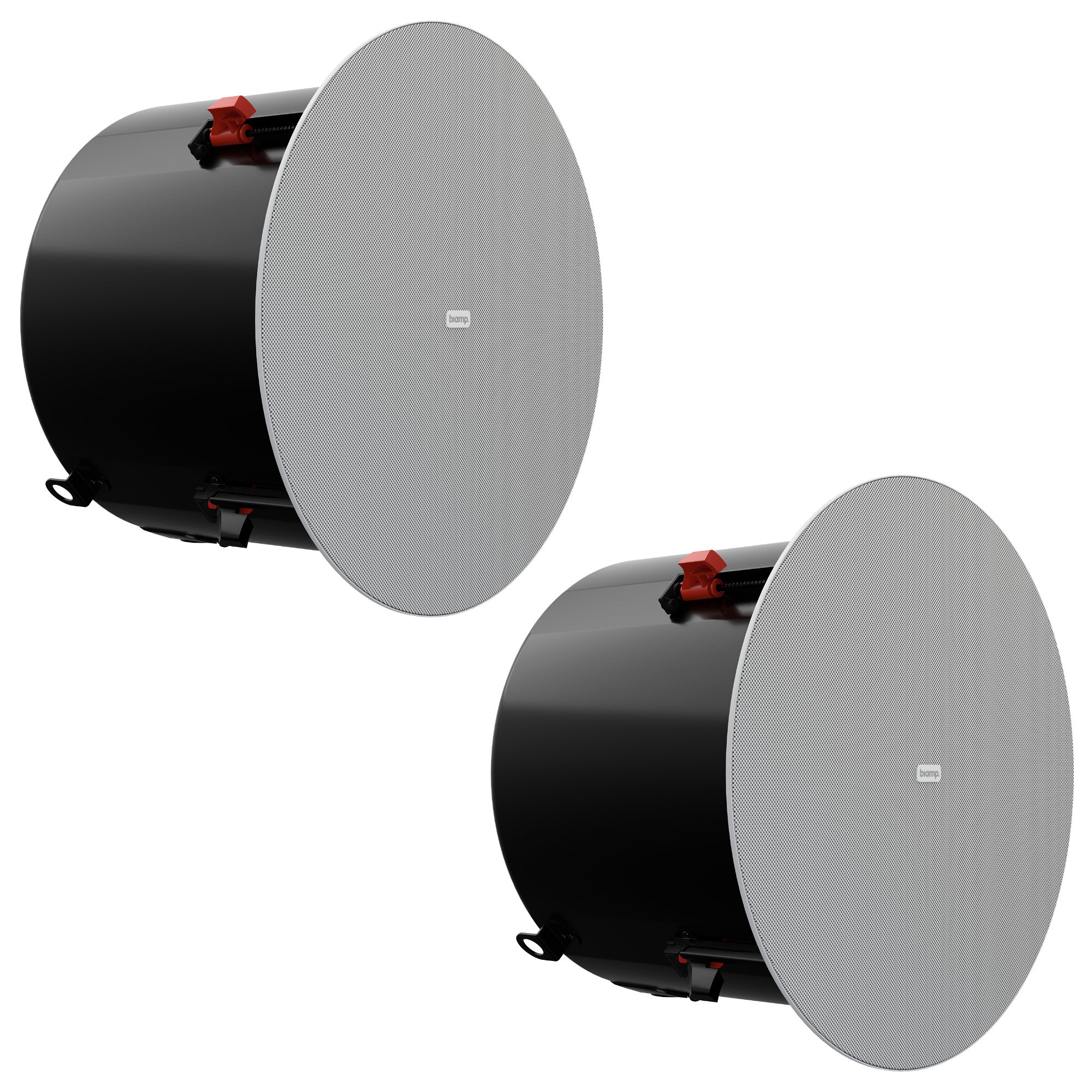

Biamp Desono DX-IC10 - Two-Way 10-Inch Ceiling Loudspeaker (White)
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
Priced individually, but sold in pairs.
The flagship model Desono DX-IC10 exceeds the performance of competing high-ceiling models. The DX-IC10 provides high-level foreground music, loud-and-clear paging (even in noisy environments), and readily supports large systems in sports facilities, clubs, or concert venues for delay and zone fill. Compact, affordable replacement for typical 12-inch competitor ceiling speakers.
DX-IC10s can readily be combined with smaller members of the Desono DX family due to Biamp's uniform voicing technology, providing additional power and LF response in areas that require it. Featuring genuine coaxial design with separate magnets for the LF and HF drivers, the DX-IC10 exhibits reduced distortion and industry-leading sensitivity permitting 3 dB to 6 dB greater output level, while requiring half the amplification power of competing products.
Features:
- High intelligibility with exceptional uniform coverage
- Fast installation with SpringLockª mounting clamps
- Consistent, wide dispersion up to 16 kHz
- Attractive edgeless magnetic grille design
- Conduit knock-outs on the input cover meet plenum air space handling requirements
| Operating Mode | Passive with DSP |
| Operating Environment | Indoor |
| Operating Range (-10dB) | 58 Hz to 22 kHz |
| Nominal Beamwidth (H x V) | 90 deg., conical |
| Transducers | LF 1 x 10" (254_mm) HF 1 x 1.25" (32_mm) exit compression driver |
| Sensitivity | 98_dB (2.83_V) 98_dB (1W at rated impedance 8 ohm) |
| Nominal Continuous Power Handling | 40_V (200W @ 8_ ohm) |
| Nominal Maximum SPL | Peak 127_dB Continuous 121_dB |
| Autoformer | 70V: 200_W, 100_W, 50_W, 25_W 100V: 200_W, 100_W, 50_W |
| Recommended Amplifiers | 200_W - 400W @ 8_ ohm, (40_V - 57__V) |
| Crossover Frequency | 1.0 kHz |
| Required Accessory | 58 Hz Electronic high pass filter |
| Input Connection | 4-position Euroblock connector |
| Controls | Front-face wattage / low impedance selector switch |
| Mounting Provisions | 4 SpringLock mounting clamps with 3-inch grip range |
| Certifications | ETL listed to comply with UL1480, UL2043 and CSA62368-1 Suitable for use in air handling spaces per NFPA 70 and NFPA 90 |
| Dimensions W x D | 394 mm x 263 mm (15.51" x 10.37") |
| Weight | TBD |
| Finish | Back Can: Black, Matte finish Steel Face: Reflex loaded UL 94V-0 rated ABS plastic, paintable Black finish. |
| Grille | Powder-coated perforated steel backed with color-matched woven fabric with safety line. White finish. |
| Cutout Diameter | 360 mm (14.17") |
| Accessories (included) | C-Ring supporting plate, tile support bridge rails, grille, paint mask, cut-out template, flat screwdriver |
| Accessories (optional) | New Construction Brackets (SPA-NC600) Black Grilles (SPA-GRB600) High Humidity Grilles (SPA-GHH600) 48" Tile Rails (SPA-RAIL48) Plenum-rated Dual-RJ45 Adapter (SPA-CCA200) |
Priced individually, but sold in pairs.
The flagship model Desono DX-IC10 exceeds the performance of competing high-ceiling models. The DX-IC10 provides high-level foreground music, loud-and-clear paging (even in noisy environments), and readily supports large systems in sports facilities, clubs, or concert venues for delay and zone fill. Compact, affordable replacement for typical 12-inch competitor ceiling speakers.
DX-IC10s can readily be combined with smaller members of the Desono DX family due to Biamp's uniform voicing technology, providing additional power and LF response in areas that require it. Featuring genuine coaxial design with separate magnets for the LF and HF drivers, the DX-IC10 exhibits reduced distortion and industry-leading sensitivity permitting 3 dB to 6 dB greater output level, while requiring half the amplification power of competing products.
Features:
- High intelligibility with exceptional uniform coverage
- Fast installation with SpringLockª mounting clamps
- Consistent, wide dispersion up to 16 kHz
- Attractive edgeless magnetic grille design
- Conduit knock-outs on the input cover meet plenum air space handling requirements
| Operating Mode | Passive with DSP |
| Operating Environment | Indoor |
| Operating Range (-10dB) | 58 Hz to 22 kHz |
| Nominal Beamwidth (H x V) | 90 deg., conical |
| Transducers | LF 1 x 10" (254_mm) HF 1 x 1.25" (32_mm) exit compression driver |
| Sensitivity | 98_dB (2.83_V) 98_dB (1W at rated impedance 8 ohm) |
| Nominal Continuous Power Handling | 40_V (200W @ 8_ ohm) |
| Nominal Maximum SPL | Peak 127_dB Continuous 121_dB |
| Autoformer | 70V: 200_W, 100_W, 50_W, 25_W 100V: 200_W, 100_W, 50_W |
| Recommended Amplifiers | 200_W - 400W @ 8_ ohm, (40_V - 57__V) |
| Crossover Frequency | 1.0 kHz |
| Required Accessory | 58 Hz Electronic high pass filter |
| Input Connection | 4-position Euroblock connector |
| Controls | Front-face wattage / low impedance selector switch |
| Mounting Provisions | 4 SpringLock mounting clamps with 3-inch grip range |
| Certifications | ETL listed to comply with UL1480, UL2043 and CSA62368-1 Suitable for use in air handling spaces per NFPA 70 and NFPA 90 |
| Dimensions W x D | 394 mm x 263 mm (15.51" x 10.37") |
| Weight | TBD |
| Finish | Back Can: Black, Matte finish Steel Face: Reflex loaded UL 94V-0 rated ABS plastic, paintable Black finish. |
| Grille | Powder-coated perforated steel backed with color-matched woven fabric with safety line. White finish. |
| Cutout Diameter | 360 mm (14.17") |
| Accessories (included) | C-Ring supporting plate, tile support bridge rails, grille, paint mask, cut-out template, flat screwdriver |
| Accessories (optional) | New Construction Brackets (SPA-NC600) Black Grilles (SPA-GRB600) High Humidity Grilles (SPA-GHH600) 48" Tile Rails (SPA-RAIL48) Plenum-rated Dual-RJ45 Adapter (SPA-CCA200) |
