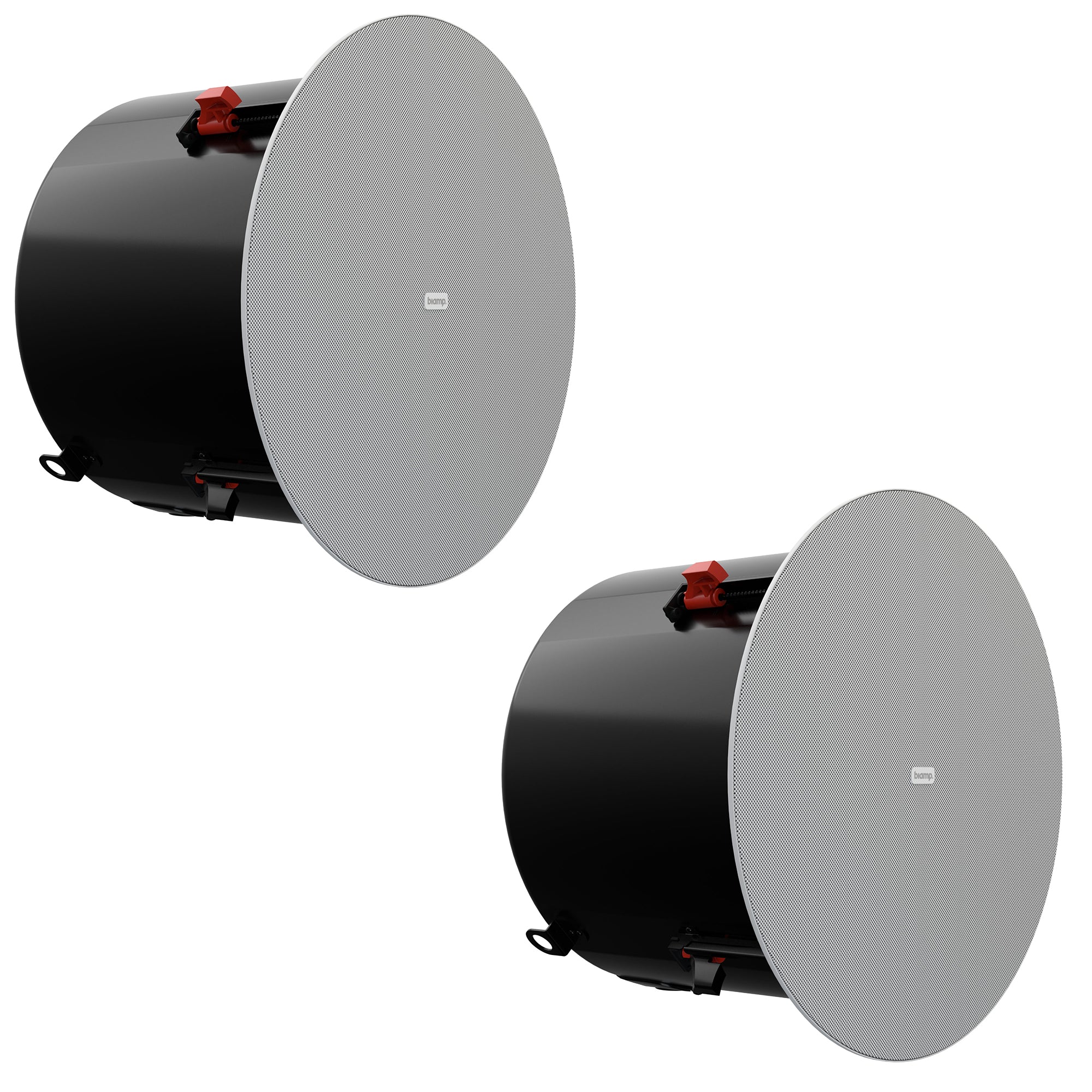

Biamp Desono DX-IC10SUB - 10-Inch Ceiling Subwoofer (White)
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
Priced individually, but sold in pairs.
The Desono DX-IC10SUB ceiling mount subwoofer provides a powerful, high-impact bass response intended to augment any combination of Desono DX full-range models. By including a complement of DX-IC10SUBs into a distributed system, musical results that equal or exceed that of much larger and more costly surface-mount systems can readily be achieved. The DX-IC10SUB's clean, clear bass response provides a compelling attraction for shoppers in a retail environment, and a memorable experience for bar, pub, and restaurant patrons.
Dependent on program content and the size of the full-range DX models, the ratio of DX-IC10SUBs to full-range models may vary from as few as 1:6 to as many as 1:1. For example, one DX-IC10SUB will provide a strong supporting bass response for six DX-IC4s, while four DX-IC10SUBs will better complement six of the more powerful DX-IC8s or DX-IC10s.
Features:
- High intelligibility with exceptional uniform coverage
- Fast installation with SpringLockª mounting clamps
- Consistent, wide dispersion up to 16 kHz
- Attractive edgeless magnetic grille design
- Conduit knock-outs on the input cover meet plenum air space handling requirements
| Operating Mode | Passive with DSP |
| Operating Environment | Indoor |
| Operating Range (-10dB) | 42 Hz to 200_Hz |
| Nominal Beamwidth (H x V) | omnidirectional |
| Transducers | LF 1 x 10" (254_mm) |
| Sensitivity | 93_dB (2.83_V) 93_dB (1W at rated impedance 8 ohm) |
| Nominal Continuous Power Handling | 40_V (200W @ 8_ ohm) |
| Nominal Maximum SPL | Peak 122_dB Continuous 116_dB |
| Autoformer | 70V: 200_W, 100_W, 50_W, 25_W 100V: 200_W, 100_W, 50_W |
| Recommended Amplifiers | 200_W - 400W @ 8_ ohm, (40_V - 57__V) |
| Required Accessory | 41 Hz Electronic high pass filter |
| Input Connection | 4-position Euroblock connector |
| Controls | Front-face wattage / low impedance selector switch |
| Mounting Provisions | 4 SpringLock mounting clamps with 3-inch grip range |
| Certifications | ETL listed to comply with UL1480, UL2043 and CSA62368-1 Suitable for use in air handling spaces per NFPA 70 and NFPA 90 |
| Dimensions W x D | 394 mm x 263 mm (15.51" x 10.37") |
| Weight | TBD |
| Finish | Back Can: Black, Matte finish Steel Face: Reflex loaded UL 94V-0 rated ABS plastic, paintable Black finish. |
| Grille | Powder-coated perforated steel backed with color-matched woven fabric with safety line. White finish. |
| Cutout Diameter | 360 mm (14.17") |
| Accessories (included) | C-Ring supporting plate, tile support bridge rails, grille, paint mask, cut-out template, flat screwdriver |
| Model | DX-IC10SUB-W - loudspeaker with White grille |
| Accessories (optional) | New Construction Brackets (SPA-NC600) Black Grilles (SPA-GRB600) High Humidity Grilles (SPA-GHH600) 48" Tile Rails (SPA-RAIL48) Plenum-rated Dual-RJ45 Adapter (SPA-CCA200) |
