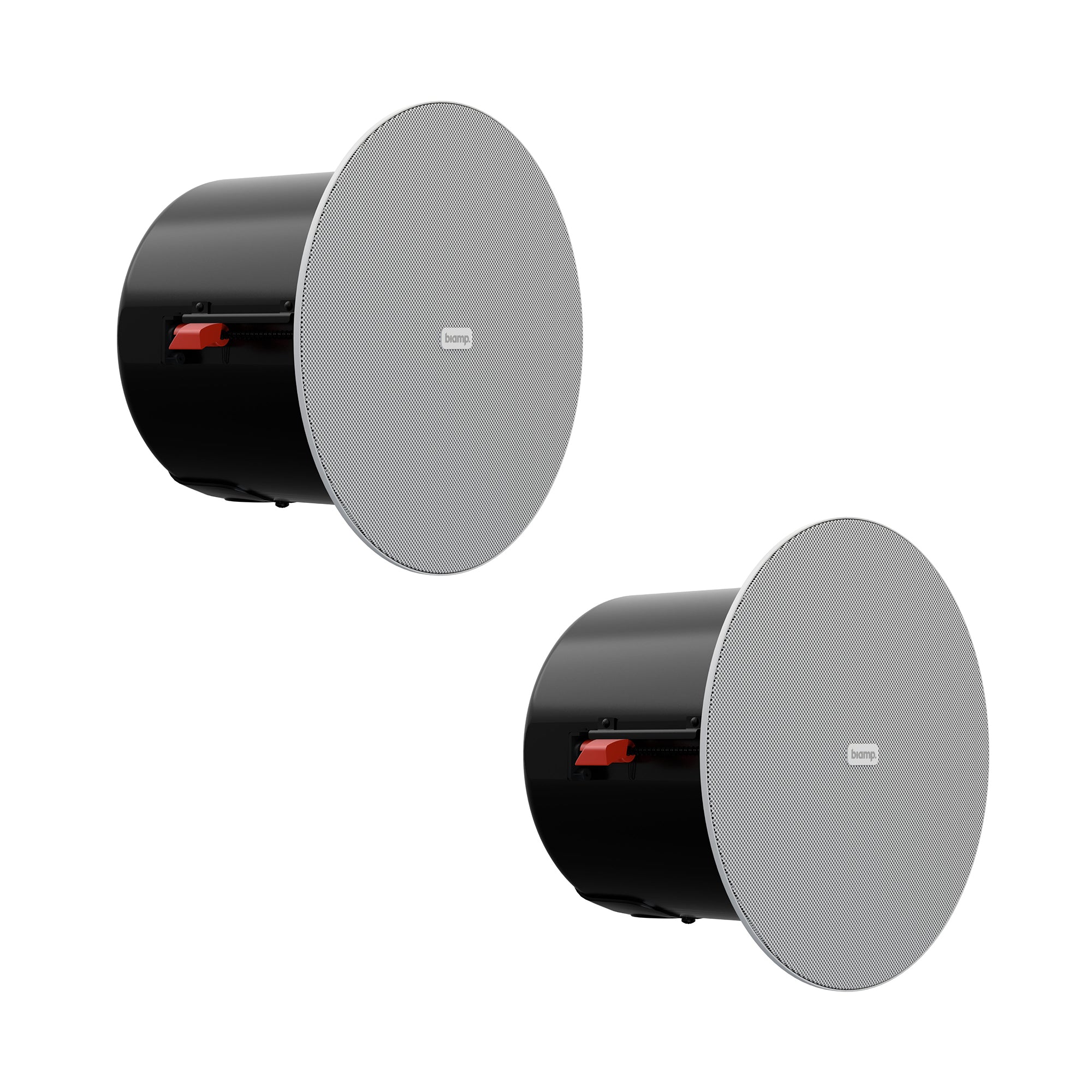

Biamp Desono DX-IC4 - Two-Way 4.5-Inch Ceiling Loudspeaker (White)
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
Priced individually, but sold in pairs.
The smallest member of the Desono's DX ceiling loudspeakers, the DX-IC4 possesses the advanced features of its larger siblings with performance that belies its small size. Suitable for paging, background music, or to augment larger systems, the DX-IC4 is a versatile performer. It installs quickly and provides exceptionally uniform coverage with excellent sonic properties.
Uniform voicing among the Desono DX product family makes for an easy match to the other models in the series, while a host of design innovations set the DX-IC4 apart from other products in its size and price range. Featuring genuine coaxial design with separate magnets for the LF and HF drivers, the DX-IC4 exhibits reduced distortion and industry-leading sensitivity permitting 3 dB to 6 dB greater output level, while requiring half the amplification power of competing products.
Features:
- High intelligibility with exceptional uniform coverage
- Fast installation with SpringLockª mounting clamps
- Consistent, wide dispersion up to 16 kHz
- Attractive edgeless magnetic grille design
- Conduit knock-outs on the input cover meet plenum air space handling requirements
| Operating Mode | Passive with DSP |
| Operating Environment | Indoor |
| Operating Range (-10dB) | 62 Hz to 18.5 kHz |
| Nominal Beamwidth (H x V) | 130 deg., conical |
| Transducers | LF 1 x 4.5" (114_mm) HF 1 x 0.75" (19_mm) exit compression driver |
| Sensitivity | 91_dB (2.83_V) 91_dB (1W at rated impedance 8 ohm) |
| Nominal Continuous Power Handling | 22_V (60W @ 8_ ohm) |
| Nominal Maximum SPL | Peak 115_dB Continuous 109_dB |
| Autoformer | 70V: 30_W, 15_W, 7.5_W, 3.75_W 100V: 30_W, 15_W, 7.5_W |
| Recommended Amplifiers | 60W - 120W @ 8_ ohm, (22V - 31V) |
| Crossover Frequency | 2 kHz |
| Required Accessory | 62 Hz Electronic high pass filter |
| Input Connection | 4-position Euroblock connector |
| Controls | Front-face wattage / low impedance selector switch |
| Mounting Provisions | 2 SpringLock mounting clamps with 3-inch grip range |
| Certifications | ETL listed to comply with UL1480, UL2043 and CSA62368-1 Suitable for use in air handling spaces per NFPA 70 and NFPA 90 |
| Dimensions W x D | 258 mm x 172 mm ( 10.16" x 6.76") |
| Weight | TBD |
| Finish | Back Can: Black, Matte finish Steel Face: Reflex loaded UL 94V-0 rated ABS plastic, paintable Black finish |
| Grille | Powder-coated perforated steel backed with color-matched woven fabric with safety line. White finish. |
| Cutout Diameter | 222 mm (8.75") |
| Accessories (included) | C-Ring supporting plate, tile support bridge rails, grille, paint mask, cut-out template, flat screwdriver |
| Accessories (optional) | New Construction Brackets (SPA-NC300) Trim Rings (SPA-TR300) Black Grilles (SPA-GRB200) High Humidity Grilles (SPA-GHH200) 48" Tile Rails (SPA-RAIL48) Plenum-rated Dual-RJ45 Adapter (SPA-CCA200) |
