DALE SKU # BIAM-DXIC6W

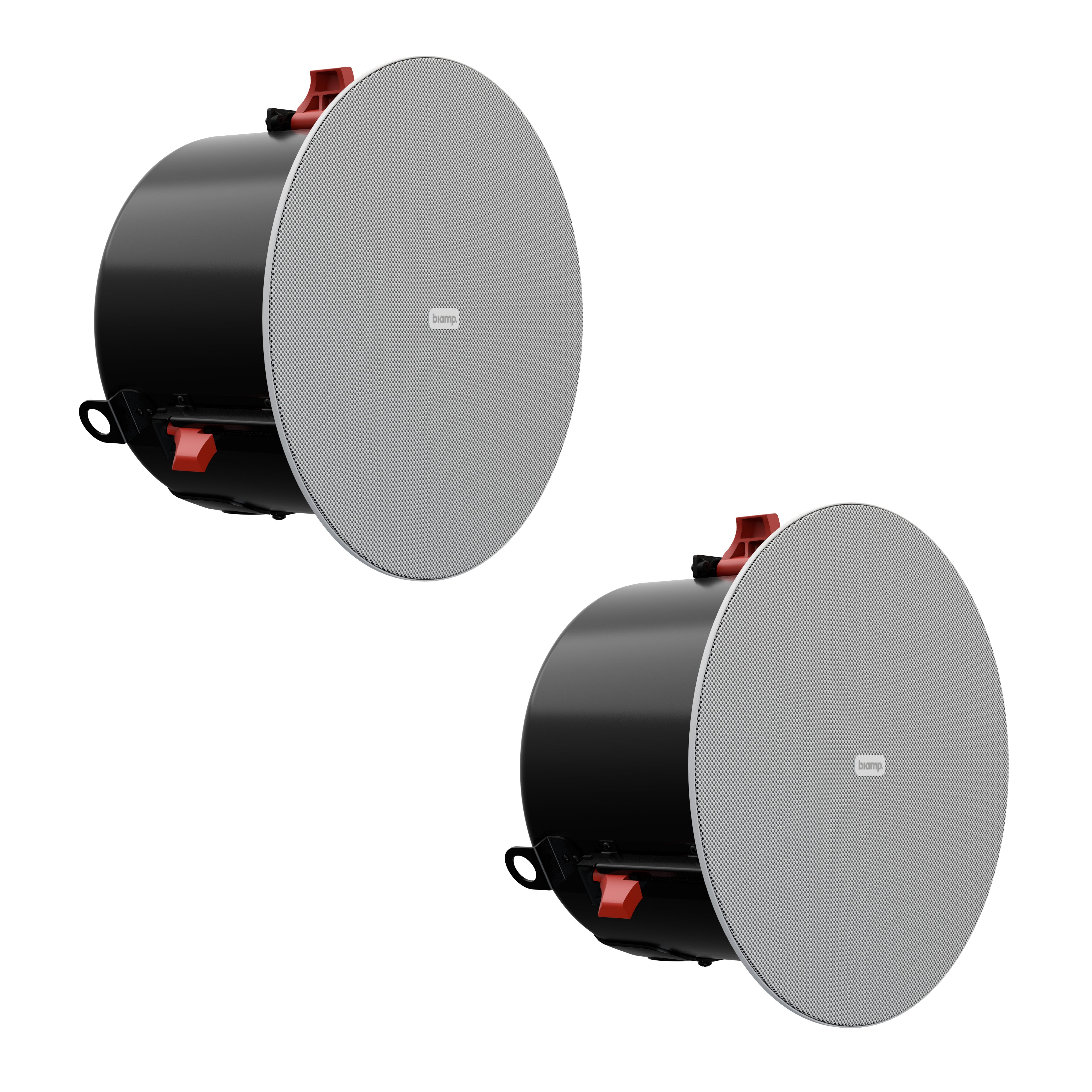

Biamp Desono DX-IC6 - Two-Way 6.5-Inch Ceiling Loudspeaker (White)

Sale price$290.00
  • Availability:

    Special Order Item
  • This item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.


  • LET OUR TEAM OF EXPERTS ASSIST YOU

    Description

    Priced individually, but sold in pairs.

    Available in standard white or black finish, the powerful and versatile Desono DX-IC6 provides high-quality paging and musical performance suitable for numerous applications where the importance of sonic quality cannot be ignored. Particularly effective when supported by the DX-IC10SUB, a DX-IC6 system is capable of meeting demanding needs at a cost usually associated with much smaller loudspeakers. It installs quickly and provides exceptionally uniform coverage with excellent sonic properties.

    Uniform voicing among the Desono DX product family makes for an easy match to the other models in the series, while a host of design innovations set the DX-IC6 apart from other products in its size and price range. Featuring a genuine coaxial design with separate magnets for the LF and HF drivers, the DX-IC6 exhibits reduced distortion and industry-leading sensitivity permitting 3 dB to 6 dB greater output level, while requiring half the amplification power of competing products.

    Features:

    • High intelligibility with exceptional uniform coverage
    • Fast installation with SpringLockª mounting clamps
    • Consistent, wide dispersion up to 16 kHz
    • Attractive edgeless magnetic grille design
    • Conduit knock-outs on the input cover meet plenum air space handling requirements
    Operating ModePassive with DSP
    Operating EnvironmentIndoor
    Operating Range (-10dB)65 Hz to 20 kHz
    Nominal Beamwidth (H x V)115 deg., conical
    TransducersLF 1 x 6.5" (165_mm)
    HF 1 x 1.0" (25_mm) exit compression driver
    Sensitivity94_dB (2.83_V)
    94dB (1W at rated impedance 8 ohm)
    Nominal Continuous Power Handling28_V (100W @ 8_ ohm)
    Nominal Maximum SPLPeak 120_dB
    Continuous 114_dB
    Autoformer70V: 60_W, 30_W, 15_W, 7.5_W
    100V: 60_W, 30_W, 15_W
    Recommended Amplifiers100W - 200W @ 8_ ohm, (31V - 44V)
    Crossover Frequency1.2 kHz
    Required Accessory65 Hz Electronic high pass filter
    Input Connection4-position Euroblock connector
    ControlsFront-face wattage / low impedance selector switch
    Mounting Provisions3 SpringLock mounting clamps with 3-inch grip range
    CertificationsETL listed to comply with UL1480, UL2043 and CSA62368-1
    Suitable for use in air handling spaces per NFPA 70 and NFPA 90
    Dimensions W x D291 mm x 171 mm (11.46" x 6.75")
    WeightTBD
    FinishBack Can: Black, Matte finish Steel
    Face: Reflex loaded UL 94V-0 rated ABS plastic, paintable Black finish.
    GrillePowder-coated perforated steel backed with color-matched woven fabric with safety line. White or Black finish.
    Cutout Diameter260 mm (10.25")
    Accessories (included)C-Ring supporting plate, tile support bridge rails, grille, paint mask, cut-out template, flat screwdriver
    Accessories (optional)New Construction Brackets (SPA-NC400)
    Trim Rings (SPA-TR400)
    High Humidity Grilles (SPA-GHH400)
    48" Tile Rails (SPA-RAIL48)
    Plenum-rated Dual-RJ45 Adapter (SPA-CCA200)

    Priced individually, but sold in pairs.

    Available in standard white or black finish, the powerful and versatile Desono DX-IC6 provides high-quality paging and musical performance suitable for numerous applications where the importance of sonic quality cannot be ignored. Particularly effective when supported by the DX-IC10SUB, a DX-IC6 system is capable of meeting demanding needs at a cost usually associated with much smaller loudspeakers. It installs quickly and provides exceptionally uniform coverage with excellent sonic properties.

    Uniform voicing among the Desono DX product family makes for an easy match to the other models in the series, while a host of design innovations set the DX-IC6 apart from other products in its size and price range. Featuring a genuine coaxial design with separate magnets for the LF and HF drivers, the DX-IC6 exhibits reduced distortion and industry-leading sensitivity permitting 3 dB to 6 dB greater output level, while requiring half the amplification power of competing products.

    Features:

    • High intelligibility with exceptional uniform coverage
    • Fast installation with SpringLockª mounting clamps
    • Consistent, wide dispersion up to 16 kHz
    • Attractive edgeless magnetic grille design
    • Conduit knock-outs on the input cover meet plenum air space handling requirements
    Operating ModePassive with DSP
    Operating EnvironmentIndoor
    Operating Range (-10dB)65 Hz to 20 kHz
    Nominal Beamwidth (H x V)115 deg., conical
    TransducersLF 1 x 6.5" (165_mm)
    HF 1 x 1.0" (25_mm) exit compression driver
    Sensitivity94_dB (2.83_V)
    94dB (1W at rated impedance 8 ohm)
    Nominal Continuous Power Handling28_V (100W @ 8_ ohm)
    Nominal Maximum SPLPeak 120_dB
    Continuous 114_dB
    Autoformer70V: 60_W, 30_W, 15_W, 7.5_W
    100V: 60_W, 30_W, 15_W
    Recommended Amplifiers100W - 200W @ 8_ ohm, (31V - 44V)
    Crossover Frequency1.2 kHz
    Required Accessory65 Hz Electronic high pass filter
    Input Connection4-position Euroblock connector
    ControlsFront-face wattage / low impedance selector switch
    Mounting Provisions3 SpringLock mounting clamps with 3-inch grip range
    CertificationsETL listed to comply with UL1480, UL2043 and CSA62368-1
    Suitable for use in air handling spaces per NFPA 70 and NFPA 90
    Dimensions W x D291 mm x 171 mm (11.46" x 6.75")
    WeightTBD
    FinishBack Can: Black, Matte finish Steel
    Face: Reflex loaded UL 94V-0 rated ABS plastic, paintable Black finish.
    GrillePowder-coated perforated steel backed with color-matched woven fabric with safety line. White or Black finish.
    Cutout Diameter260 mm (10.25")
    Accessories (included)C-Ring supporting plate, tile support bridge rails, grille, paint mask, cut-out template, flat screwdriver
    Accessories (optional)New Construction Brackets (SPA-NC400)
    Trim Rings (SPA-TR400)
    High Humidity Grilles (SPA-GHH400)
    48" Tile Rails (SPA-RAIL48)
    Plenum-rated Dual-RJ45 Adapter (SPA-CCA200)
