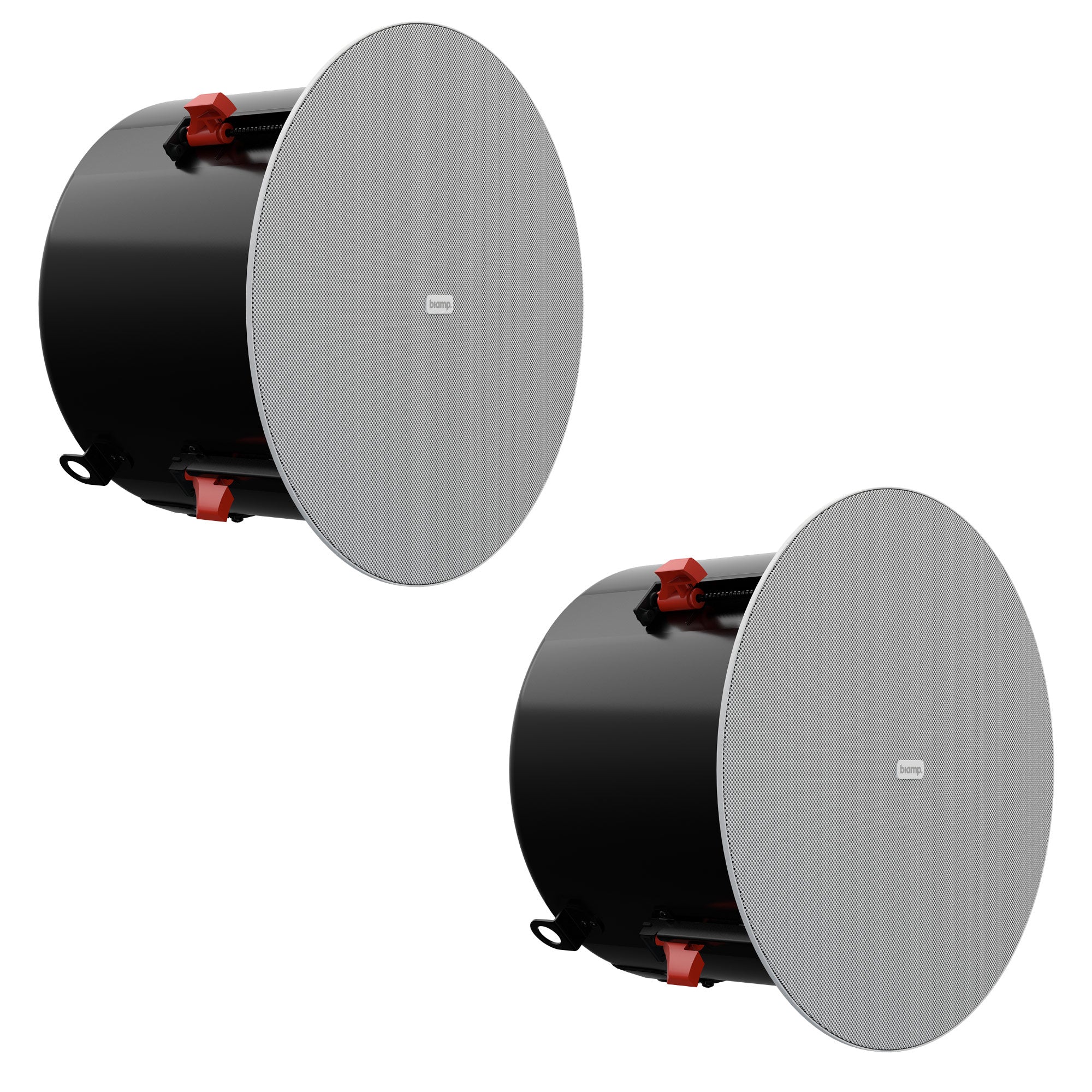

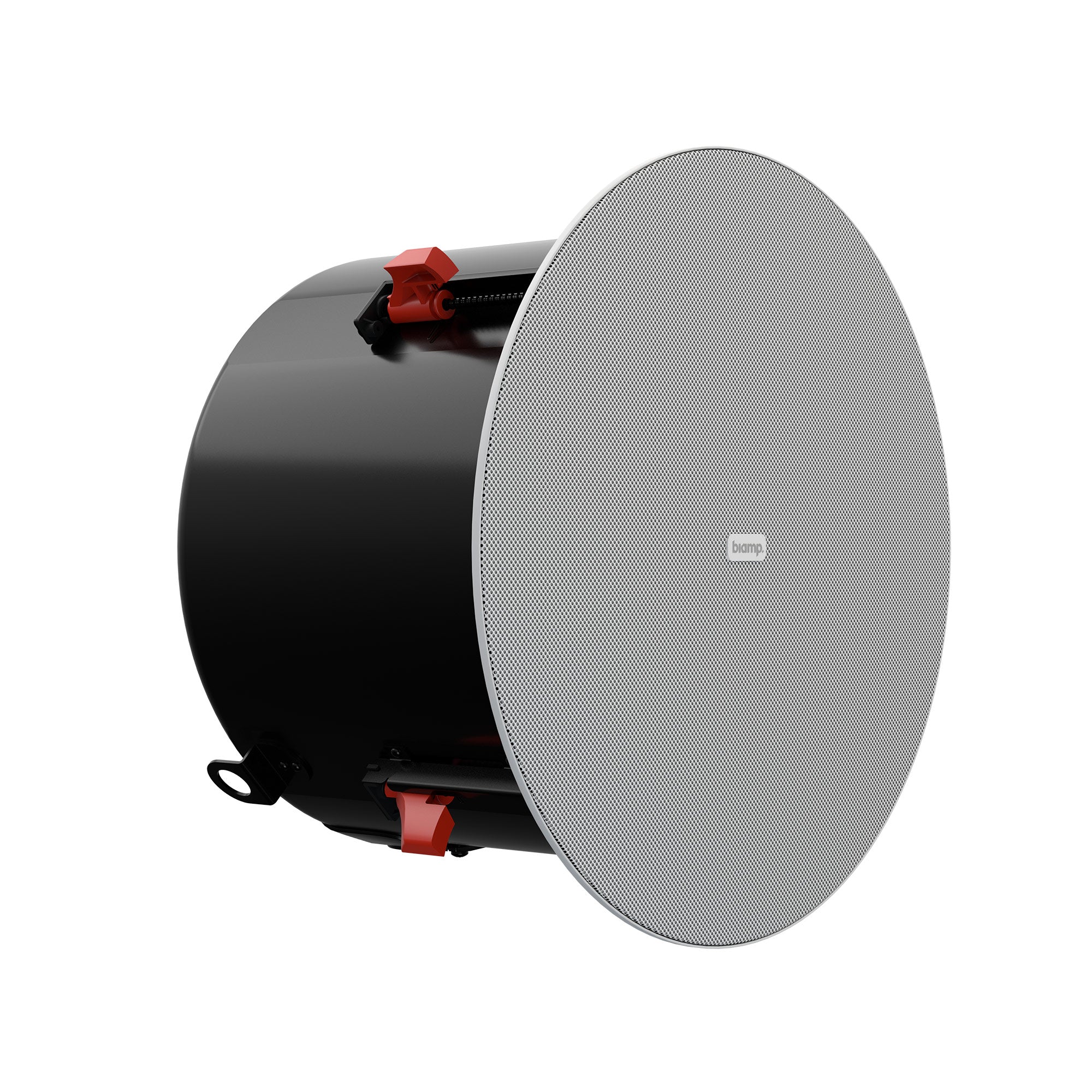

Biamp Desono DX-IC8 - Two-Way 8-Inch Ceiling Loudspeaker (White)
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
Priced individually, but sold in pairs.
The Desono DX-IC8 rewrites the cost-to-performance equation for high-end ceiling loudspeakers. Able to fulfill a wide variety of needs, the DX-IC8 exceeds the performance of competing high-ceiling models. Foreground music, high-level paging, and augmentation of large music systems as a delay or fill speaker in ancillary zones are all within the capability of this versatile performer. It is ideal for high ceiling applications.
Uniform voicing among the Desono DX product family makes for an easy match to the other models in the series, while a host of design innovations set the DX-IC8 apart from other products in its size and price range. Featuring a genuine coaxial design with separate magnets for the LF and HF drivers, the DX-IC8 exhibits reduced distortion and industry-leading sensitivity permitting 3 dB to 6 dB greater output level, while requiring half the amplification power of competing products.
Features:
- High intelligibility with exceptional uniform coverage
- Fast installation with SpringLockª mounting clamps
- Consistent, wide dispersion up to 16 kHz
- Attractive edgeless magnetic grille design
- Conduit knock-outs on the input cover meet plenum air space handling requirements
| Operating Mode | Passive with DSP |
| Operating Environment | Indoor |
| Operating Range (-10dB) | 60 Hz to 20 kHz |
| Nominal Beamwidth (H x V) | 100 deg., conical |
| Transducers | LF 1 x 8" (165_mm) HF 1 x 1.25" (32_mm) exit compression driver |
| Sensitivity | 95_dB (2.83_V) 95_dB (1W at rated impedance 8 ohm) |
| Nominal Continuous Power Handling | 28_V (150W @ 8_ ohm) |
| Nominal Maximum SPL | Peak 123_dB Continuous 117_dB |
| Autoformer | 70V: 120_W, 60_W, 30_W, 15_W 100V: 120_W, 60_W, 30_W |
| Recommended Amplifiers | 150_W - 300W @ 8_ ohm, (35V - 49V) |
| Crossover Frequency | 1.3 kHz |
| Required Accessory | 60 Hz Electronic high pass filter |
| Input Connection | 4-position Euroblock connector |
| Controls | Front-face wattage / low impedance selector switch |
| Mounting Provisions | 4 SpringLock mounting clamps with 3-inch grip range |
| Certifications | ETL listed to comply with UL1480, UL2043 and CSA62368-1 Suitable for use in air handling spaces per NFPA 70 and NFPA 90 |
| Dimensions W x D | 341 mm x 216 mm (13.43" x 8.51") |
| Weight | TBD |
| Finish | Back Can: Black, Matte finish Steel Face: Reflex loaded UL 94V-0 rated ABS plastic, paintable Black finish. |
| Grille | Powder-coated perforated steel backed with color-matched woven fabric with safety line. White finish. |
| Cutout Diameter | 310 mm (12.20") |
| Accessories (included) | C-Ring supporting plate, tile support bridge rails, grille, paint mask, cut-out template, flat screwdriver |
| Accessories (optional) | New Construction Brackets (SPA-NC500) Black Grilles (SPA-GRB500) High Humidity Grilles (SPA-GHH500) 48" Tile Rails (SPA-RAIL48) Plenum-rated Dual-RJ45 Adapter (SPA-CCA200) |
Priced individually, but sold in pairs.
The Desono DX-IC8 rewrites the cost-to-performance equation for high-end ceiling loudspeakers. Able to fulfill a wide variety of needs, the DX-IC8 exceeds the performance of competing high-ceiling models. Foreground music, high-level paging, and augmentation of large music systems as a delay or fill speaker in ancillary zones are all within the capability of this versatile performer. It is ideal for high ceiling applications.
Uniform voicing among the Desono DX product family makes for an easy match to the other models in the series, while a host of design innovations set the DX-IC8 apart from other products in its size and price range. Featuring a genuine coaxial design with separate magnets for the LF and HF drivers, the DX-IC8 exhibits reduced distortion and industry-leading sensitivity permitting 3 dB to 6 dB greater output level, while requiring half the amplification power of competing products.
Features:
- High intelligibility with exceptional uniform coverage
- Fast installation with SpringLockª mounting clamps
- Consistent, wide dispersion up to 16 kHz
- Attractive edgeless magnetic grille design
- Conduit knock-outs on the input cover meet plenum air space handling requirements
| Operating Mode | Passive with DSP |
| Operating Environment | Indoor |
| Operating Range (-10dB) | 60 Hz to 20 kHz |
| Nominal Beamwidth (H x V) | 100 deg., conical |
| Transducers | LF 1 x 8" (165_mm) HF 1 x 1.25" (32_mm) exit compression driver |
| Sensitivity | 95_dB (2.83_V) 95_dB (1W at rated impedance 8 ohm) |
| Nominal Continuous Power Handling | 28_V (150W @ 8_ ohm) |
| Nominal Maximum SPL | Peak 123_dB Continuous 117_dB |
| Autoformer | 70V: 120_W, 60_W, 30_W, 15_W 100V: 120_W, 60_W, 30_W |
| Recommended Amplifiers | 150_W - 300W @ 8_ ohm, (35V - 49V) |
| Crossover Frequency | 1.3 kHz |
| Required Accessory | 60 Hz Electronic high pass filter |
| Input Connection | 4-position Euroblock connector |
| Controls | Front-face wattage / low impedance selector switch |
| Mounting Provisions | 4 SpringLock mounting clamps with 3-inch grip range |
| Certifications | ETL listed to comply with UL1480, UL2043 and CSA62368-1 Suitable for use in air handling spaces per NFPA 70 and NFPA 90 |
| Dimensions W x D | 341 mm x 216 mm (13.43" x 8.51") |
| Weight | TBD |
| Finish | Back Can: Black, Matte finish Steel Face: Reflex loaded UL 94V-0 rated ABS plastic, paintable Black finish. |
| Grille | Powder-coated perforated steel backed with color-matched woven fabric with safety line. White finish. |
| Cutout Diameter | 310 mm (12.20") |
| Accessories (included) | C-Ring supporting plate, tile support bridge rails, grille, paint mask, cut-out template, flat screwdriver |
| Accessories (optional) | New Construction Brackets (SPA-NC500) Black Grilles (SPA-GRB500) High Humidity Grilles (SPA-GHH500) 48" Tile Rails (SPA-RAIL48) Plenum-rated Dual-RJ45 Adapter (SPA-CCA200) |
