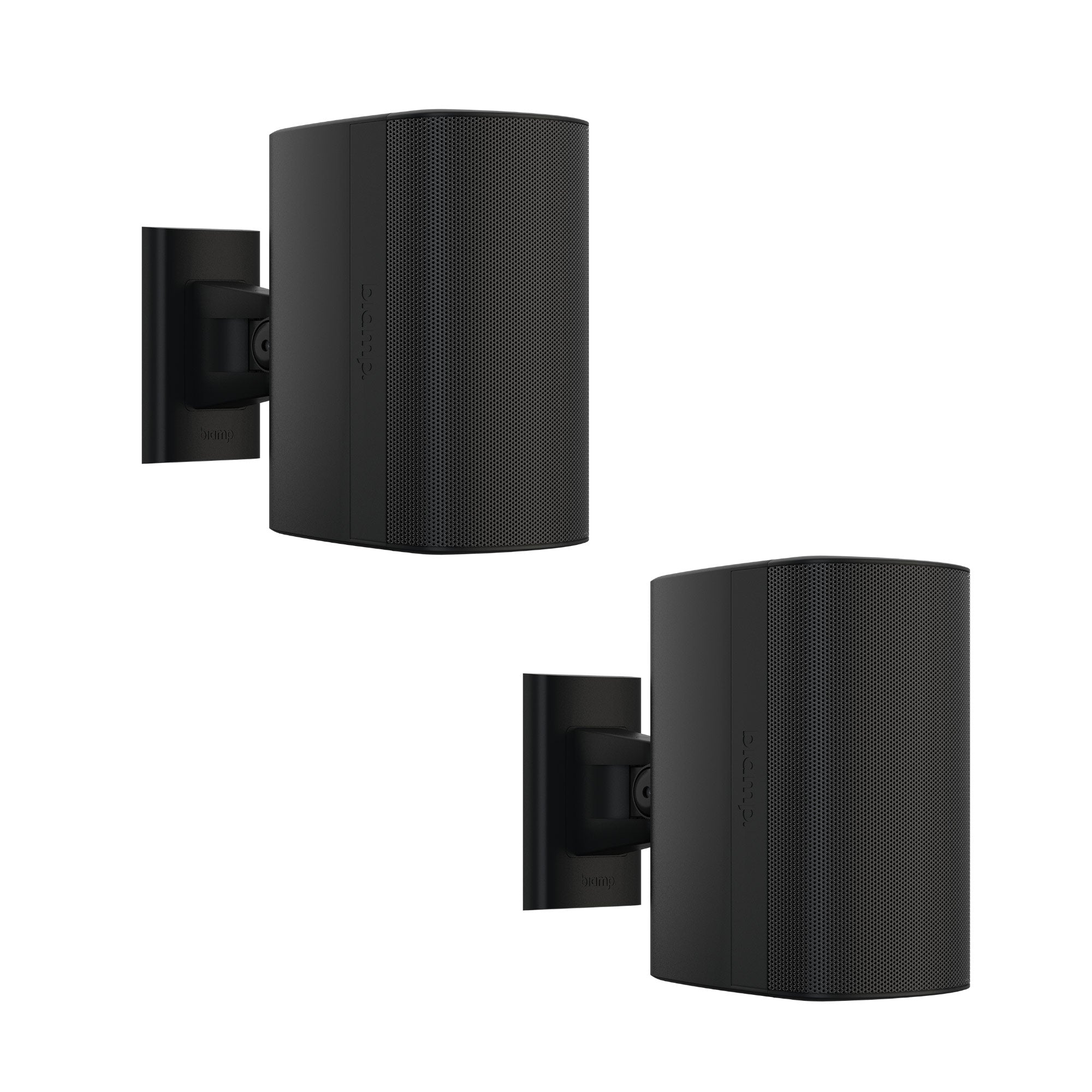

Biamp Desono DX-S5 - Two-Way 5-Inch Surface Mount Loudspeaker (Black)
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
Priced individually, but sold in pairs.
The Desonoª DX surface mount loudspeakers provide high efficiency, high output, high intelligibility and low distortion in an attractive design. These loudspeakers install quickly and have the same components and voicing as the DX ceiling loudspeakers. The DX surface mount loudspeakers are equipped with a built-in 70 V/100 V autoformer and low impedance input.
Easily outperforming loudspeakers of a larger size format, the DX-S5 is ideal for installations where space is a premium. With a modern appearance that merges well in most environments, combined with weather-resistant capability suitable for direct outdoor use, the DX-S5 can be used in a wide variety of speech and music applications.
Features:
- High efficiency, high output, high intelligibility, low distortion
- Uniform coverage from coaxially mounted HF/LF drivers
- Innovative ClickMountª pan-tilt bracket makes installation and aiming easy
- Uniform voicing with DX ceiling loudspeakers
- ETL listed to comply with UL 1480A, CE marked, and RoHS compliant
| Operating Mode | Passive with DSP |
| Operating Environment | Indoor / Outdoor |
| Operating Range (-10dB) | 65 Hz to 20 kHz |
| Nominal Beamwidth (H x V) | 130 deg., conical |
| Transducers | LF 1 x 5" (127_mm) HF 1 x 1.0" (25_mm) exit compression driver |
| Sensitivity | 93__dB (2.83_V) 93__dB (1_W at rated impedance 8 ohm) |
| Nominal Continuous Power Handling | 28_V (100_W @ 8_ ohm) |
| Nominal Maximum SPL | Peak 119_dB Continuous 113_dB |
| Autoformer | 70V: 60_W, 30_W, 15_W, 7.5_W 100V: 60_W, 30_W, 15_W |
| Recommended Amplifiers | 100_W - 200_W @ 8__ ohm, (28_V - 40_V) |
| Crossover Frequency | 1.6 kHz |
| Required Accessory | 65 Hz 24 dB/ Oct Electronic high pass filter |
| Input Connection | Lever-actuated wire clamping 4-position terminal block with pass-through |
| Controls | Wattage / low impedance selector switch |
| Mounting Provisions | ClickMount pan-tilt bracket |
| Certifications | ETL listed to comply with UL 1480A and CSA 62368-1 |
| Environmental Rating | IP54 per IEC 60529, IEC 60068-2-5 (Solar Radiation), IEC 60068-2-11 (Salt Mist), IEC 60068-2-42 (SO2), IEC 60068-2-60 (Chlorine) |
| Dimensions H x W x D | 280 x 180 x 185 mm ( 11.03" x 7.09" x 7.28") |
| Weight | TBD |
| Finish | ABS plastic, paintable Black or White finish. |
| Grille | Powder-coated perforated aluminum backed with woven fabric. Black or White finish. |
| Accessories (included) | ClickMount wall mount |
| Accessories (optional) | ClickMount U-Bracket with ClickPlug (SPA-UBDX100 -B/-W) |
