Biamp Desono ENT-750T - Autoformer for ENT-FR or ENT-LF (White)
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description

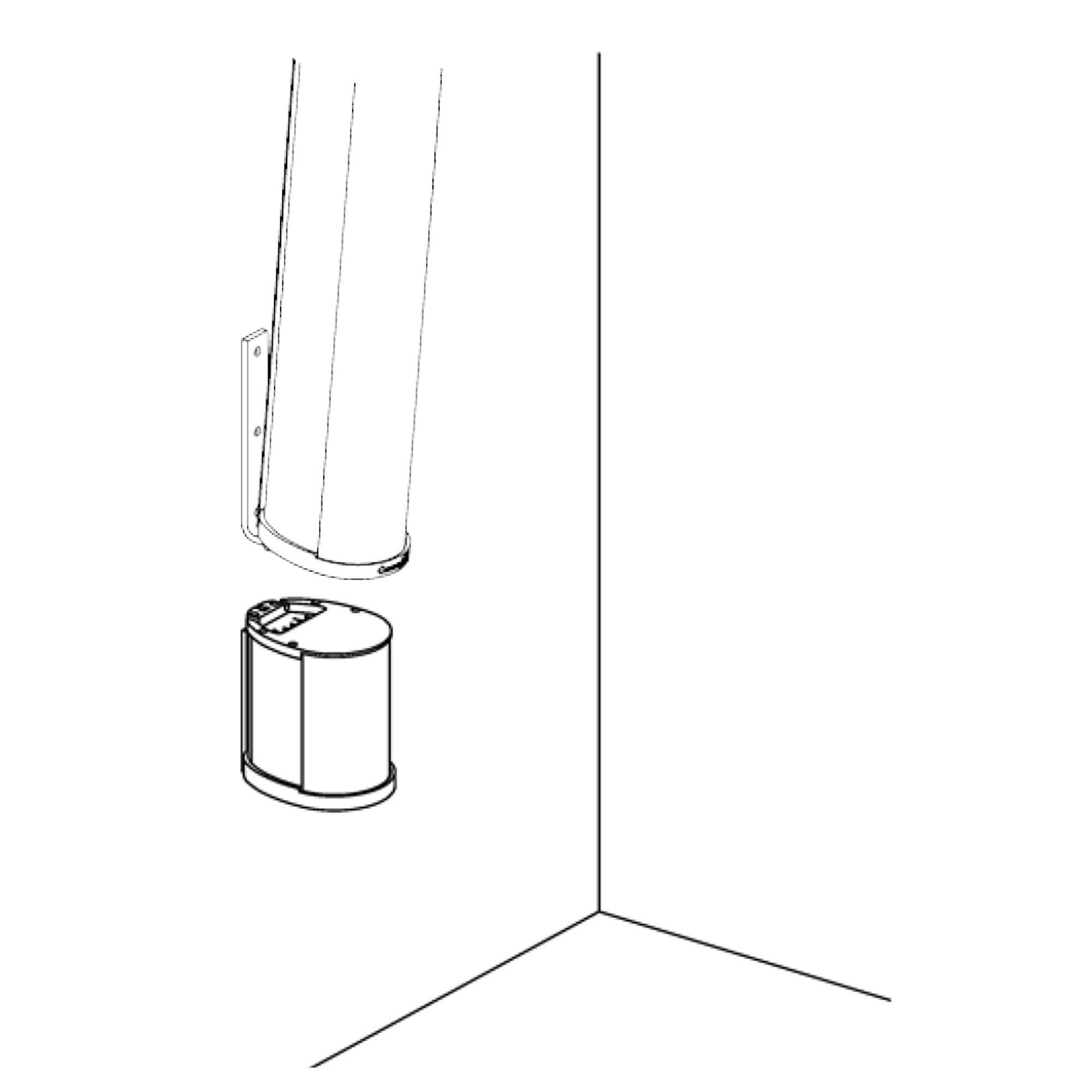

The ENT 750 W autoformer is a step-down auto-transformer for use with the ENT-FR or ENT-LF in constant voltage distribution systems. Designated the ENT-750T, it can be used to minimize the I2R losses of long cable runs by converting the distributed high voltage, low current signal to a lower voltage, higher current signal that can effectively drive the ENT-FR/LF column loudspeakers. The ENT-750T is available in either black (ENT-750T) or white (ENT-750TW) to match the color of the enclosure(s). A matching autoformer mounting bracket is also included.
| Frequency Response | 200 Hz - 15 kHz |
| Insertion Loss | 0.5 dB |
| Low Frequency Limit at Maximum Input | 100 Hz |
| Recommended HP Filter | 200 Hz, 24 dB/octave |
| Input Connection | Top: Barrier Strip Terminals Bottom: (1) Dual Banana Jack (female) |

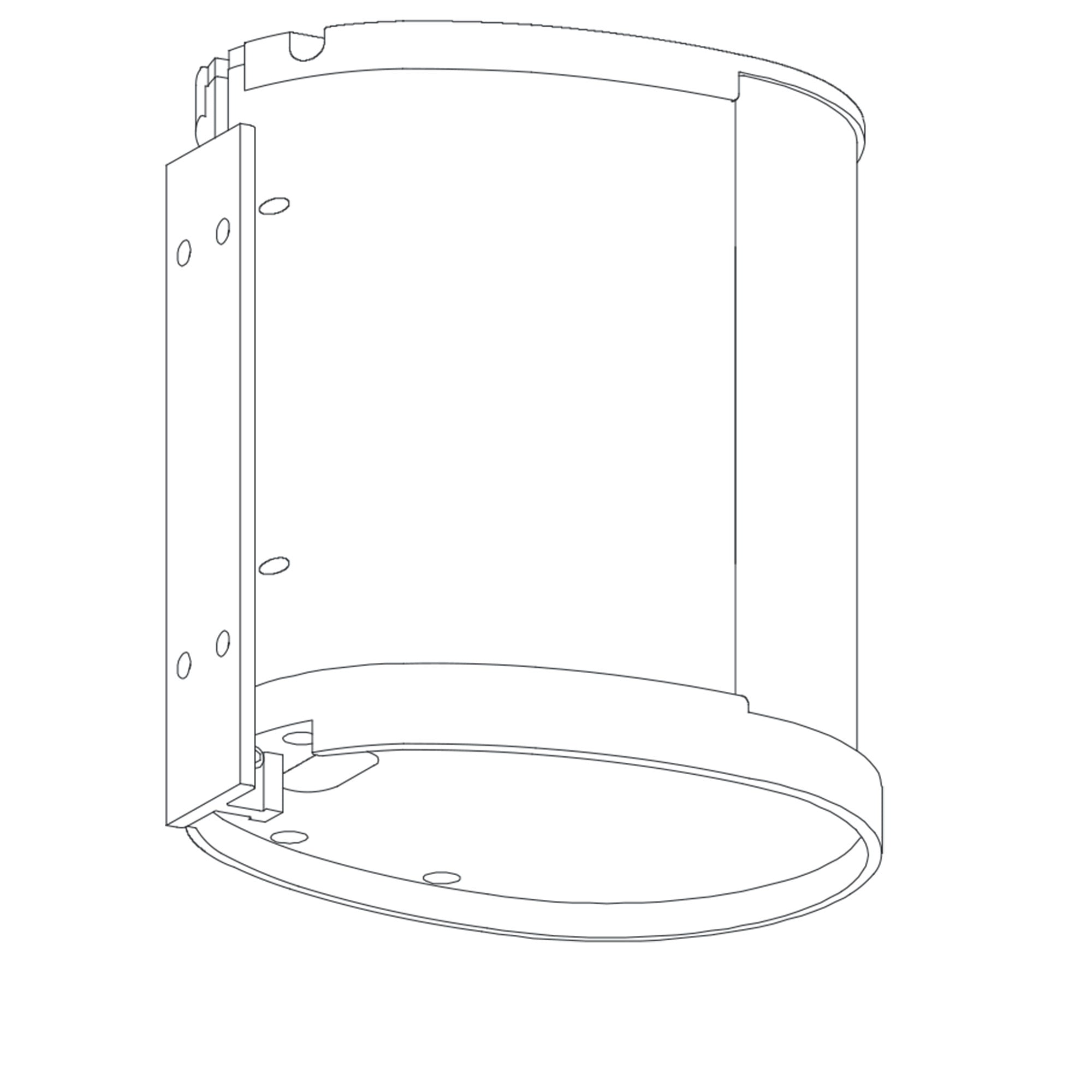

| Mounting Provisions | "T" Mounting bracket (included) |
| Enclosure | One piece aluminum extrusion with molded nylon end caps |
| Finish | Black or White |
| Dimensions H x W x D | 7.67" x 5.5" x 7.36" (195 x 140 x 187 mm) |
The ENT 750 W autoformer is a step-down auto-transformer for use with the ENT-FR or ENT-LF in constant voltage distribution systems. Designated the ENT-750T, it can be used to minimize the I2R losses of long cable runs by converting the distributed high voltage, low current signal to a lower voltage, higher current signal that can effectively drive the ENT-FR/LF column loudspeakers. The ENT-750T is available in either black (ENT-750T) or white (ENT-750TW) to match the color of the enclosure(s). A matching autoformer mounting bracket is also included.
| Frequency Response | 200 Hz - 15 kHz |
| Insertion Loss | 0.5 dB |
| Low Frequency Limit at Maximum Input | 100 Hz |
| Recommended HP Filter | 200 Hz, 24 dB/octave |
| Input Connection | Top: Barrier Strip Terminals Bottom: (1) Dual Banana Jack (female) |
| Mounting Provisions | "T" Mounting bracket (included) |
| Enclosure | One piece aluminum extrusion with molded nylon end caps |
| Finish | Black or White |
| Dimensions H x W x D | 7.67" x 5.5" x 7.36" (195 x 140 x 187 mm) |
