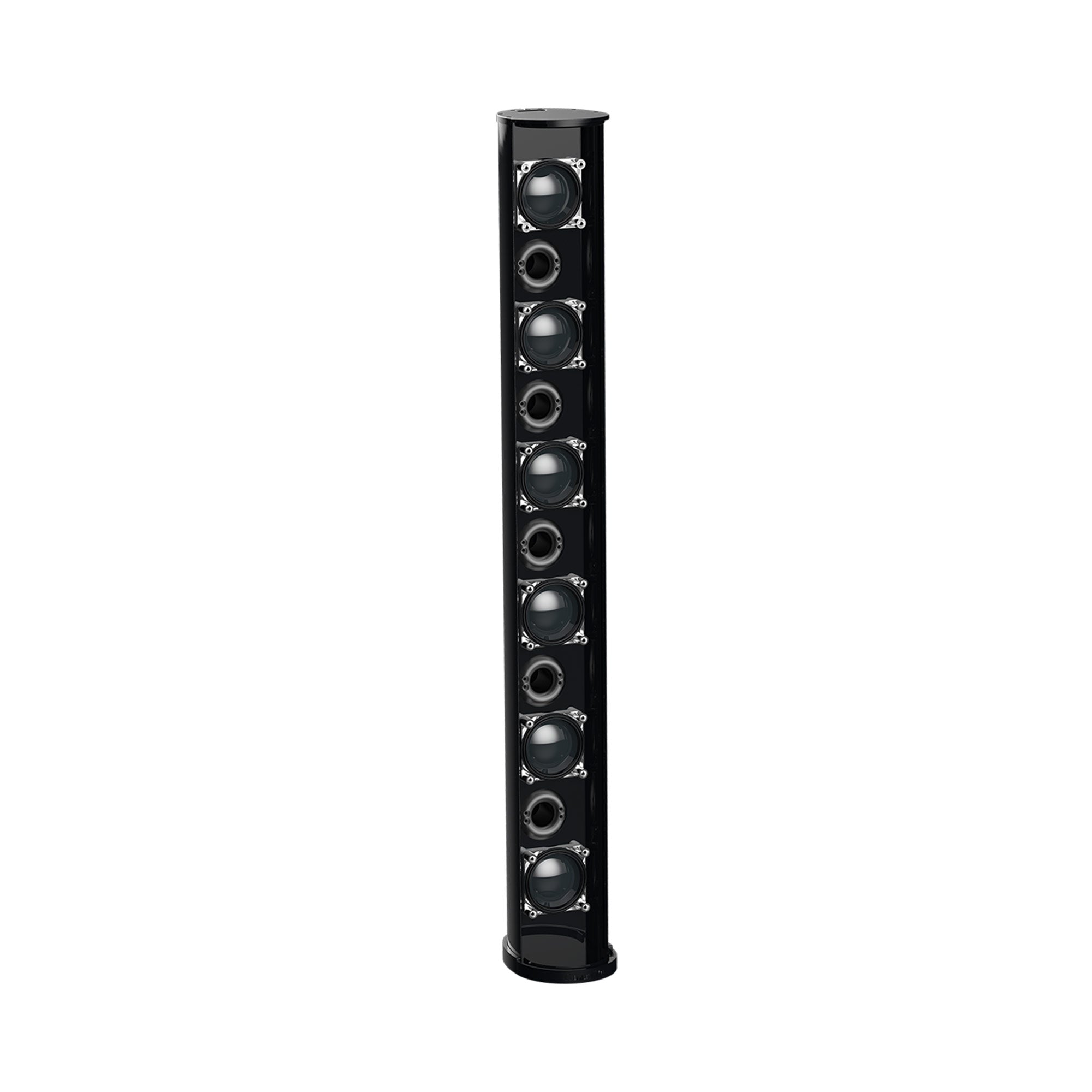

Biamp Desono ENT-LF - Low Frequency Column Array Loudspeaker (Black)


  • Dale #:

    BIAM-DESONOENTLF
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock and needs to be ordered from the manufacturer. Your payment will be charged after completing checkout. We will strive to ship as soon as possible, pending availability.

Description

Desono ENT-LF offers superior performance, high output and high power handling capability in architecturally appealing enclosures. The scalable design supports configurations of loudspeakers from singles to floor-to-ceiling arrays of any length, meeting the acoustical design needs of nearly any a... Read More

Shipping Charges Apply

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

Desono ENT-LF offers superior performance, high output and high power handling capability in architecturally appealing enclosures. The scalable design supports configurations of loudspeakers from singles to floor-to-ceiling arrays of any length, meeting the acoustical design needs of nearly any application. The ENT-LF is a low frequency column in the same size enclosure as the ENT-FR, and is designed to extend low frequency pattern control while minimizing overall system costs.

ENT-LF is most beneficial in medium to large highly reverberant spaces. As a modular true line source, an array of nearly any length can be assembled. Longer arrays minimize sound reflections, reducing reverberation and increasing speech intelligibility. The ENT-LF is equally suited for indoor and outdoor direct exposure applications. A wide range of mounting brackets is available to fit nearly every installation.

AMPLIFIED LOUDSPEAKER CONTROLLERS
Community ALC1604D is recommended for this product. Higher power ALC models may be used safely as well.

Features:

  • Modular design for versatile coverage, free of unwanted lobes
  • Wide frequency range and high output level
  • Highly intelligible voice reproduction and excellent musical sound quality
  • Simple installation using a variety of versatile mounting accessories
  • Integrated T-Bar mounting bracket included with each column

More +

Product Specs

Operating Mode Passive
Operating Environment Indoor or outdoor direct exposure
Operating Range 200 Hz - 1.6 kHz
Nominal Beamwidth (H x V) Using the LF column (s) enhances vertical pattern control at lower frequencies
Transducers LF: Six 3.5” drivers with optimized spacing, allows extension of the narrow vertical beamwidth into the lower frequencies
Continuous Power Handling @ Nominal Impedance 85V, 600W @ 12Ω (2400W Peak)
Nominal Sensitivity 90 dB
Nominal Maximum SPL (Single unit) 116 dB
Typical SPL at 100 feet (30 meters) Dependent on LF configuration
Required Accessories Digital Signal Processor / 200 Hz High Pass Filter
Recommended Amplifiers 600W - 1200W @ 12Ω (85V - 120V)
Baffle Form Straight
Input Connection Top: (1) Dual Banana (male)
Bottom: (1) NL4 locking connector (2) Terminal strip (1) Banana (female)
Included Accessories (1) T-Bar mounting bracket (1) Input wiring cover (1) Top connector cover
Environmental IP54 per IEC 60529, designed in accordance with MIL-STD-810G.
Included ABS plastic rain cover with integrated cable inlet and 1” (25.4 mm) knockout for conduit ingress
Dimensions H x W x D 44.5" x 5.5" x 7.36" (1129 mm x 140 mm x 187 mm)
Weight 25 lbs (11.3 kg)
Finish Black or White high gloss extruded paintable PVC
Grille Powder-coated perforated marine-grade aluminum backed with color-matched foam or fabric backing. Black (RAL#9004) or White (RAL#9003)
Options ENT-PB Pan Bracket Kit
ENT-PT Pan-Tilt Bracket Kit
ENT-FK Fly Kit
ENT-CB Coupler Bracket
ENT-750T 750W autoformer
