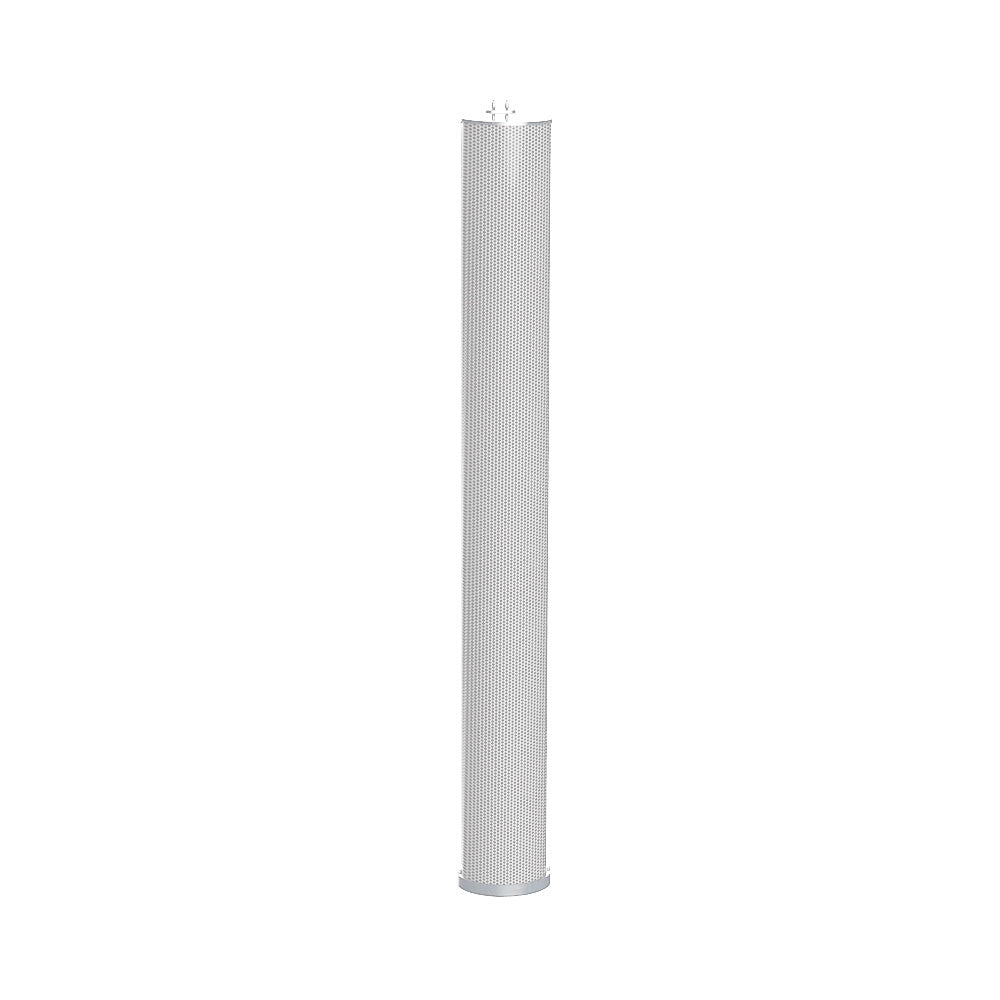

Biamp Desono ENT-LF - Low Frequency Column Array Loudspeaker (White)
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
Desono ENT-LF offers superior performance, high output and high power handling capability in architecturally appealing enclosures. The scalable design supports configurations of loudspeakers from singles to floor-to-ceiling arrays of any length, meeting the acoustical design needs of nearly any application. The ENT-LF is a low frequency column in the same size enclosure as the ENT-FR, and is designed to extend low frequency pattern control while minimizing overall system costs.
ENT-LF is most beneficial in medium to large highly reverberant spaces. As a modular true line source, an array of nearly any length can be assembled. Longer arrays minimize sound reflections, reducing reverberation and increasing speech intelligibility. The ENT-LF is equally suited for indoor and outdoor direct exposure applications. A wide range of mounting brackets is available to fit nearly every installation.
AMPLIFIED LOUDSPEAKER CONTROLLERS
Community ALC1604D is recommended for this product. Higher power ALC models may be used safely as well.
Features:
- Modular design for versatile coverage, free of unwanted lobes
- Wide frequency range and high output level
- Highly intelligible voice reproduction and excellent musical sound quality
- Simple installation using a variety of versatile mounting accessories
- Integrated T-Bar mounting bracket included with each column
| Operating Mode | Passive |
| Operating Environment | Indoor or outdoor direct exposure |
| Operating Range | 200 Hz - 1.6 kHz |
| Nominal Beamwidth (H x V) | Using the LF column (s) enhances vertical pattern control at lower frequencies |
| Transducers | LF: Six 3.5Ó drivers with optimized spacing, allows extension of the narrow vertical beamwidth into the lower frequencies |
| Continuous Power Handling @ Nominal Impedance | 85V, 600W @ 12½ (2400W Peak) |
| Nominal Sensitivity | 90 dB |
| Nominal Maximum SPL (Single unit) | 116 dB |
| Typical SPL at 100 feet (30 meters) | Dependent on LF configuration |
| Required Accessories | Digital Signal Processor / 200 Hz High Pass Filter |
| Recommended Amplifiers | 600W - 1200W @ 12½ (85V - 120V) |
| Baffle Form | Straight |
| Input Connection | Top: (1) Dual Banana (male) Bottom: (1) NL4 locking connector (2) Terminal strip (1) Banana (female) |
| Included Accessories | (1) T-Bar mounting bracket (1) Input wiring cover (1) Top connector cover |
| Environmental | IP54 per IEC 60529, designed in accordance with MIL-STD-810G. Included ABS plastic rain cover with integrated cable inlet and 1Ó (25.4 mm) knockout for conduit ingress |
| Dimensions H x W x D | 44.5" x 5.5" x 7.36" (1129 mm x 140 mm x 187 mm) |
| Weight | 25 lbs (11.3 kg) |
| Finish | Black or White high gloss extruded paintable PVC |
| Grille | Powder-coated perforated marine-grade aluminum backed with color-matched foam or fabric backing. Black (RAL#9004) or White (RAL#9003) |
| Options | ENT-PB Pan Bracket Kit ENT-PT Pan-Tilt Bracket Kit ENT-FK Fly Kit ENT-CB Coupler Bracket ENT-750T 750W autoformer |
Desono ENT-LF offers superior performance, high output and high power handling capability in architecturally appealing enclosures. The scalable design supports configurations of loudspeakers from singles to floor-to-ceiling arrays of any length, meeting the acoustical design needs of nearly any application. The ENT-LF is a low frequency column in the same size enclosure as the ENT-FR, and is designed to extend low frequency pattern control while minimizing overall system costs.
ENT-LF is most beneficial in medium to large highly reverberant spaces. As a modular true line source, an array of nearly any length can be assembled. Longer arrays minimize sound reflections, reducing reverberation and increasing speech intelligibility. The ENT-LF is equally suited for indoor and outdoor direct exposure applications. A wide range of mounting brackets is available to fit nearly every installation.
AMPLIFIED LOUDSPEAKER CONTROLLERS
Community ALC1604D is recommended for this product. Higher power ALC models may be used safely as well.
Features:
- Modular design for versatile coverage, free of unwanted lobes
- Wide frequency range and high output level
- Highly intelligible voice reproduction and excellent musical sound quality
- Simple installation using a variety of versatile mounting accessories
- Integrated T-Bar mounting bracket included with each column
| Operating Mode | Passive |
| Operating Environment | Indoor or outdoor direct exposure |
| Operating Range | 200 Hz - 1.6 kHz |
| Nominal Beamwidth (H x V) | Using the LF column (s) enhances vertical pattern control at lower frequencies |
| Transducers | LF: Six 3.5Ó drivers with optimized spacing, allows extension of the narrow vertical beamwidth into the lower frequencies |
| Continuous Power Handling @ Nominal Impedance | 85V, 600W @ 12½ (2400W Peak) |
| Nominal Sensitivity | 90 dB |
| Nominal Maximum SPL (Single unit) | 116 dB |
| Typical SPL at 100 feet (30 meters) | Dependent on LF configuration |
| Required Accessories | Digital Signal Processor / 200 Hz High Pass Filter |
| Recommended Amplifiers | 600W - 1200W @ 12½ (85V - 120V) |
| Baffle Form | Straight |
| Input Connection | Top: (1) Dual Banana (male) Bottom: (1) NL4 locking connector (2) Terminal strip (1) Banana (female) |
| Included Accessories | (1) T-Bar mounting bracket (1) Input wiring cover (1) Top connector cover |
| Environmental | IP54 per IEC 60529, designed in accordance with MIL-STD-810G. Included ABS plastic rain cover with integrated cable inlet and 1Ó (25.4 mm) knockout for conduit ingress |
| Dimensions H x W x D | 44.5" x 5.5" x 7.36" (1129 mm x 140 mm x 187 mm) |
| Weight | 25 lbs (11.3 kg) |
| Finish | Black or White high gloss extruded paintable PVC |
| Grille | Powder-coated perforated marine-grade aluminum backed with color-matched foam or fabric backing. Black (RAL#9004) or White (RAL#9003) |
| Options | ENT-PB Pan Bracket Kit ENT-PT Pan-Tilt Bracket Kit ENT-FK Fly Kit ENT-CB Coupler Bracket ENT-750T 750W autoformer |
