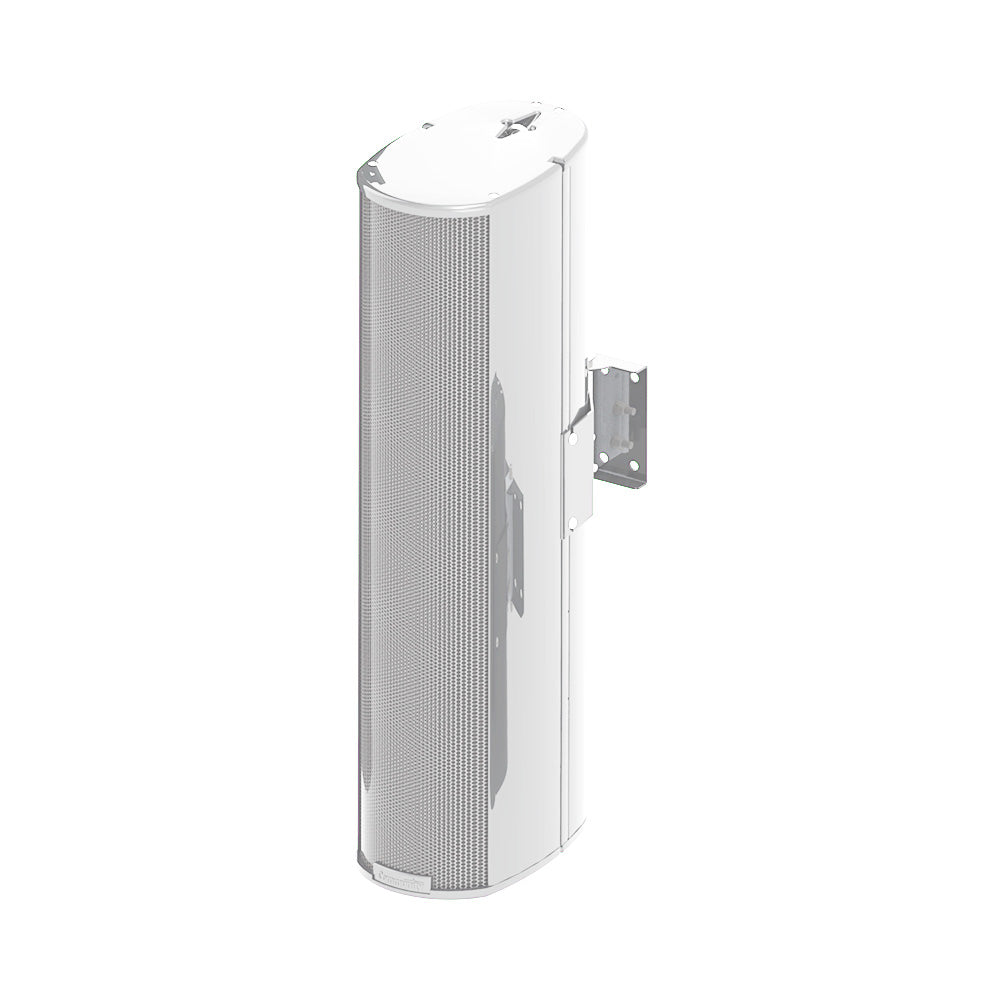

Biamp Desono ENT206 - Column Point Source Loudspeaker (White)
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The ENT206 is an all-weather, column array loudspeaker housed in an attractive, heavy duty extruded PVC enclosure. Double the height of the smaller ENT203, the ENT206 provides directional control at significantly lower frequencies than the ENT203, along with enough power to effectively cover much larger areas while still remaining unobtrusive. Ideally suited to applications such as music and speech reinforcement for reverberant houses of worship, hotel lobbies, assembly rooms, transit stations, indoor/outdoor swimming pools, outdoor smoking areas, bowling alleys, and much more, the ENT206 is a solid performer that belies its small size. Like the ENT203, the ENT206 also can be utilized to support larger systems for delay and area fill. The ENT206 employs six high-power LF cone drivers and two Community CRE (Compact Ribbon Emulator) HF tweeter arrays in a two-way, single-amped configuration.
All ENTASYS 200 models are available in standard black or white finishes, include selectable low impedance or 70/100-volt operation, a rugged pan-tilt mounting bracket and a permanently mounted safety eyebolt. The paintable enclosures share a 4-5/8-inch wide by 7-1/2-inch deep "teardrop" footprint.
AMPLIFIED LOUDSPEAKER CONTROLLERS
Community ALC404D is recommended for this product. Higher power ALC models may be used safely as well.
Features:
- Advanced passive crossover technology and dynamic protection circuitry
- Compact Ribbon Emulator high frequency technology for narrow, well-behaved directivity control
- All-weather construction for indoor/outdoor use
- Simple installation using the included pan-tilt mounting bracket
- Selectable low impedance or 70V/100V operation
| Operating Mode | Passive |
| Operating Environment | Indoor or outdoor |
| Operating Range | 120 Hz to 22 kHz |
| Nominal Beamwidth (H x V) | 140¡ x 20¡ |
| Transducers | LF 6 x 80mm long excursion mylar driver HF 2 x 3-element Compact Ribbon Emulator |
| Continuous Power Handling @ Nominal Impedance | 35V 150W @ 8½ (600W peak) |
| Autoformer | 70V: 60W 30W 15W 7.5W 3.75W 100V: 60W 30W 15W 7.5W |
| Nominal Sensitivity | @ 1W 94 dB @ 2.83V 94 dB |
| Nominal Maximum SPL (Whole Space) | Peak 122 dB Continuous 116 dB |
| Equalized Sensitivity | @ 1W 93 dB @ 2.83V 93 dB |
| Equalized Maximum SPL | Peak 121 dB Continuous 115 dB |
| Required Accessories | External High Pass Filter - 120 Hz, 24 dB /octave Digital Signal Processor |
| Recommended Amplifiers | 150W - 300W @ 8½ (35V - 49V) |
| Input Connection | NL4-type connector for low impedance operation, and 8-position terminal strip for low impedance or constant voltage operation |
| Mounting Points | Small pan-tilt mounting bracket included (14¡ down-tilt, ± 55¡ panning) |
| Environmental | P54 per IEC 60529, designed in accordance with MIL-STD-810G Included ABS plastic rain cover with integrated cable inlet and 1" (25.4mm) knockout for conduit ingress |
| Dimensions H x W x D | 19.93" x 4.63" x 7.48" (506 mm x 118 mm x 190 mm) |
| Weight | 15 lbs (6.8 kg) |
| Finish | Black or White high gloss extruded paintable PVC |
| Grille | Powder-coated perforated marine-grade aluminum backed with color-matched foam or fabric backing. Black (RAL#9004) or White (RAL#9003) |
| Optional | E200-UMK universal mounting kit E200-SAK stand adapter kit |
The ENT206 is an all-weather, column array loudspeaker housed in an attractive, heavy duty extruded PVC enclosure. Double the height of the smaller ENT203, the ENT206 provides directional control at significantly lower frequencies than the ENT203, along with enough power to effectively cover much larger areas while still remaining unobtrusive. Ideally suited to applications such as music and speech reinforcement for reverberant houses of worship, hotel lobbies, assembly rooms, transit stations, indoor/outdoor swimming pools, outdoor smoking areas, bowling alleys, and much more, the ENT206 is a solid performer that belies its small size. Like the ENT203, the ENT206 also can be utilized to support larger systems for delay and area fill. The ENT206 employs six high-power LF cone drivers and two Community CRE (Compact Ribbon Emulator) HF tweeter arrays in a two-way, single-amped configuration.
All ENTASYS 200 models are available in standard black or white finishes, include selectable low impedance or 70/100-volt operation, a rugged pan-tilt mounting bracket and a permanently mounted safety eyebolt. The paintable enclosures share a 4-5/8-inch wide by 7-1/2-inch deep "teardrop" footprint.
AMPLIFIED LOUDSPEAKER CONTROLLERS
Community ALC404D is recommended for this product. Higher power ALC models may be used safely as well.
Features:
- Advanced passive crossover technology and dynamic protection circuitry
- Compact Ribbon Emulator high frequency technology for narrow, well-behaved directivity control
- All-weather construction for indoor/outdoor use
- Simple installation using the included pan-tilt mounting bracket
- Selectable low impedance or 70V/100V operation
| Operating Mode | Passive |
| Operating Environment | Indoor or outdoor |
| Operating Range | 120 Hz to 22 kHz |
| Nominal Beamwidth (H x V) | 140¡ x 20¡ |
| Transducers | LF 6 x 80mm long excursion mylar driver HF 2 x 3-element Compact Ribbon Emulator |
| Continuous Power Handling @ Nominal Impedance | 35V 150W @ 8½ (600W peak) |
| Autoformer | 70V: 60W 30W 15W 7.5W 3.75W 100V: 60W 30W 15W 7.5W |
| Nominal Sensitivity | @ 1W 94 dB @ 2.83V 94 dB |
| Nominal Maximum SPL (Whole Space) | Peak 122 dB Continuous 116 dB |
| Equalized Sensitivity | @ 1W 93 dB @ 2.83V 93 dB |
| Equalized Maximum SPL | Peak 121 dB Continuous 115 dB |
| Required Accessories | External High Pass Filter - 120 Hz, 24 dB /octave Digital Signal Processor |
| Recommended Amplifiers | 150W - 300W @ 8½ (35V - 49V) |
| Input Connection | NL4-type connector for low impedance operation, and 8-position terminal strip for low impedance or constant voltage operation |
| Mounting Points | Small pan-tilt mounting bracket included (14¡ down-tilt, ± 55¡ panning) |
| Environmental | P54 per IEC 60529, designed in accordance with MIL-STD-810G Included ABS plastic rain cover with integrated cable inlet and 1" (25.4mm) knockout for conduit ingress |
| Dimensions H x W x D | 19.93" x 4.63" x 7.48" (506 mm x 118 mm x 190 mm) |
| Weight | 15 lbs (6.8 kg) |
| Finish | Black or White high gloss extruded paintable PVC |
| Grille | Powder-coated perforated marine-grade aluminum backed with color-matched foam or fabric backing. Black (RAL#9004) or White (RAL#9003) |
| Optional | E200-UMK universal mounting kit E200-SAK stand adapter kit |
