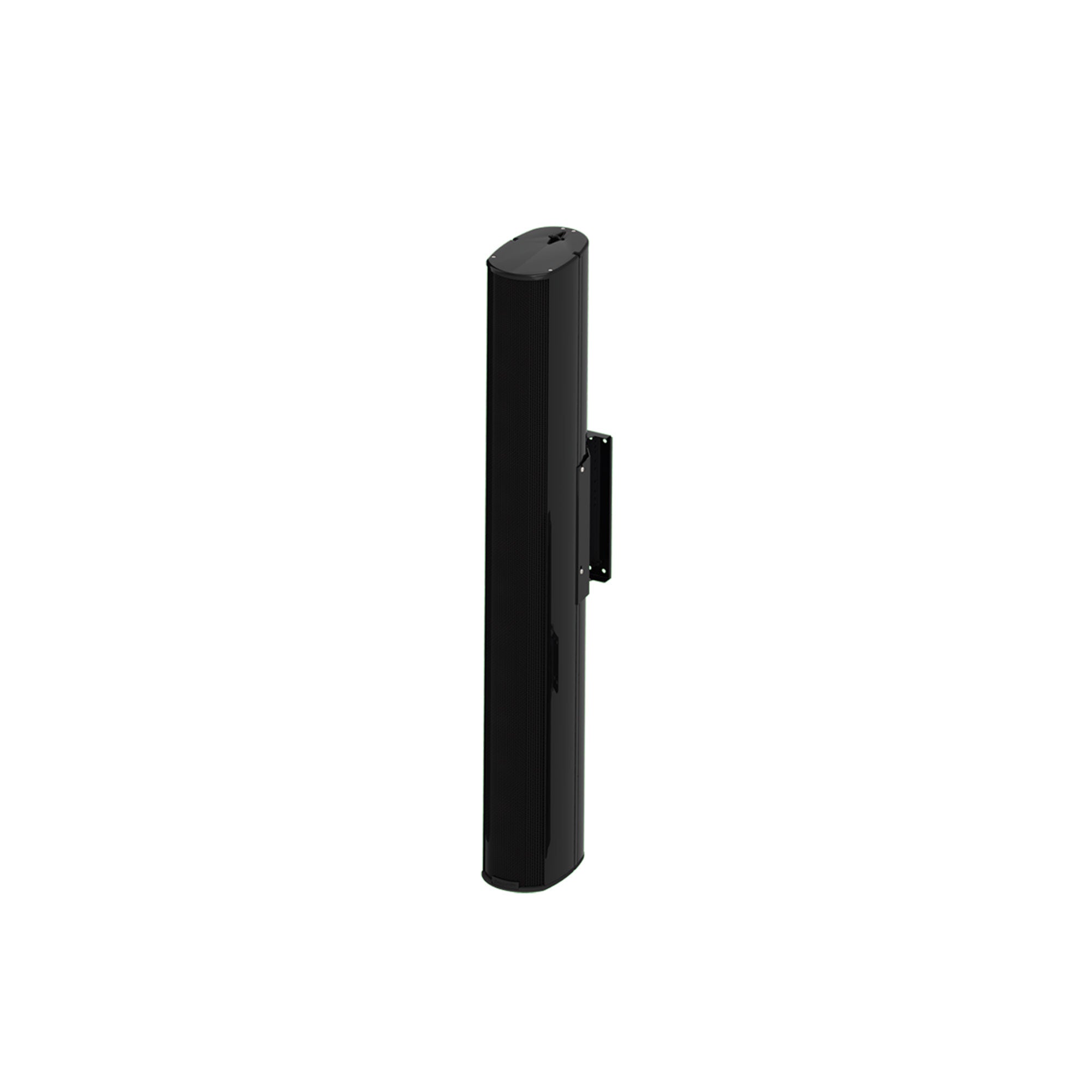

Biamp Desono ENT212 - Column Point Source Loudspeaker (Black)


  • Dale #:

    BIAM-DESONOENT212B
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock and needs to be ordered from the manufacturer. Your payment will be charged after completing checkout. We will strive to ship as soon as possible, pending availability.

Description

The ENT212 is an all-weather column line array housed in an attractive, heavy duty extruded PVC enclosure. Twice the height of the ENT206, the ENT212 provides vertical directional control at far lower frequencies than the ENT206, plus enough power to cover medium-sized venues as the primary syste... Read More

Shipping Charges Apply

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

The ENT212 is an all-weather column line array housed in an attractive, heavy duty extruded PVC enclosure. Twice the height of the ENT206, the ENT212 provides vertical directional control at far lower frequencies than the ENT206, plus enough power to cover medium-sized venues as the primary system. The ENT212 excels in noisy environments - gymnasiums and other athletic venues are just two of many examples - while its high-fidelity response makes it suitable for more subtle applications such as scholastic auditoriums, houses of worship, jazz and folk music clubs, corporate AV presentations, and much more. The excellent vertical directivity conquers large, reverberant spaces, providing excellent intelligibility and musicality. With the addition of subwoofers, an ENT212 system is capable of meeting a vast range of requirements, from the soccer stadium to the performing arts center. The ENT212 employs twelve high-power LF cone drivers and four Community CRE (Compact Ribbon Emulator) HF tweeter arrays in a single-amped configuration that employs a 4-way frequency shaded crossover.

All ENTASYS 200 models are available in standard black or white finishes, include selectable low impedance or 70/100-volt operation, a rugged pan-tilt mounting bracket and a permanently mounted safety eyebolt. The paintable enclosures share a 4-5/8-inch wide by 7-1/2-inch deep “teardrop” footprint.

AMPLIFIED LOUDSPEAKER CONTROLLERS
Community ALC404D is recommended for this product. Higher power ALC models may be used safely as well.

Features:

  • Advanced passive crossover technology and dynamic protection circuitryCompact Ribbon Emulator high frequency technology for narrow, well-behaved directivity control
  • All-weather construction for indoor/outdoor use
  • Simple installation using the included pan-tilt mounting bracket
  • Selectable low impedance or 70V/100V operation

More +

Product Specs

Operating Mode Passive
Operating Environment Indoor or outdoor
Operating Range 120 Hz to 22 kHz
Nominal Beamwidth (H x V) 140° x  15°
Transducers LF 12 x 80mm long excursion mylar driver
HF 4 x 3-element Compact Ribbon Emulator
Continuous Power Handling @ Nominal Impedance 51V 325W @ 8Ω (1300W peak)
Autoformer 70V: 120W 60W 30W 15W 7.5W
100V: 120W 60W 30W 15W
Nominal Sensitivity @ 1W 97 dB
@ 2.83V 97 dB
Nominal Maximum SPL (Whole Space) Peak 128 dB
Continuous 122 dB
Equalized Sensitivity @ 1W 97 dB
@ 2.83V 97 dB
Equalized Maximum SPL Peak 128 dB
Continuous 122 dB
Required Accessories External High Pass Filter - 100 Hz, 24 dB /octave
Digital Signal Processor
Recommended Amplifiers 325W - 650W @ 8Ω (51V - 72V)
Input Connection NL4-type connector for low impedance operation, and 8-position terminal strip for low impedance or constant voltage operation
Mounting Points Small pan-tilt mounting bracket included; (up to 10.8° down-tilt, ± 55° panning)
Environmental IP54 per IEC 60529, designed in accordance with MIL-STD-810G
Included ABS plastic rain cover with integrated cable inlet and 1" (25.4mm) knockout for conduit ingress
Dimensions H x W x D 39.11" x 4.63" x 7.48" (993 mm x 118 mm x 190 mm)
Weight 28 lbs (12.7 kg)
Finish Black or White high gloss extruded paintable PVC
Grille Powder-coated perforated marine-grade aluminum backed with color-matched foam or fabric backing. Black (RAL#9004) or White (RAL#9003)
Optional E200-UMK universal mounting kit
E200-SAK stand adapter kit

More +
