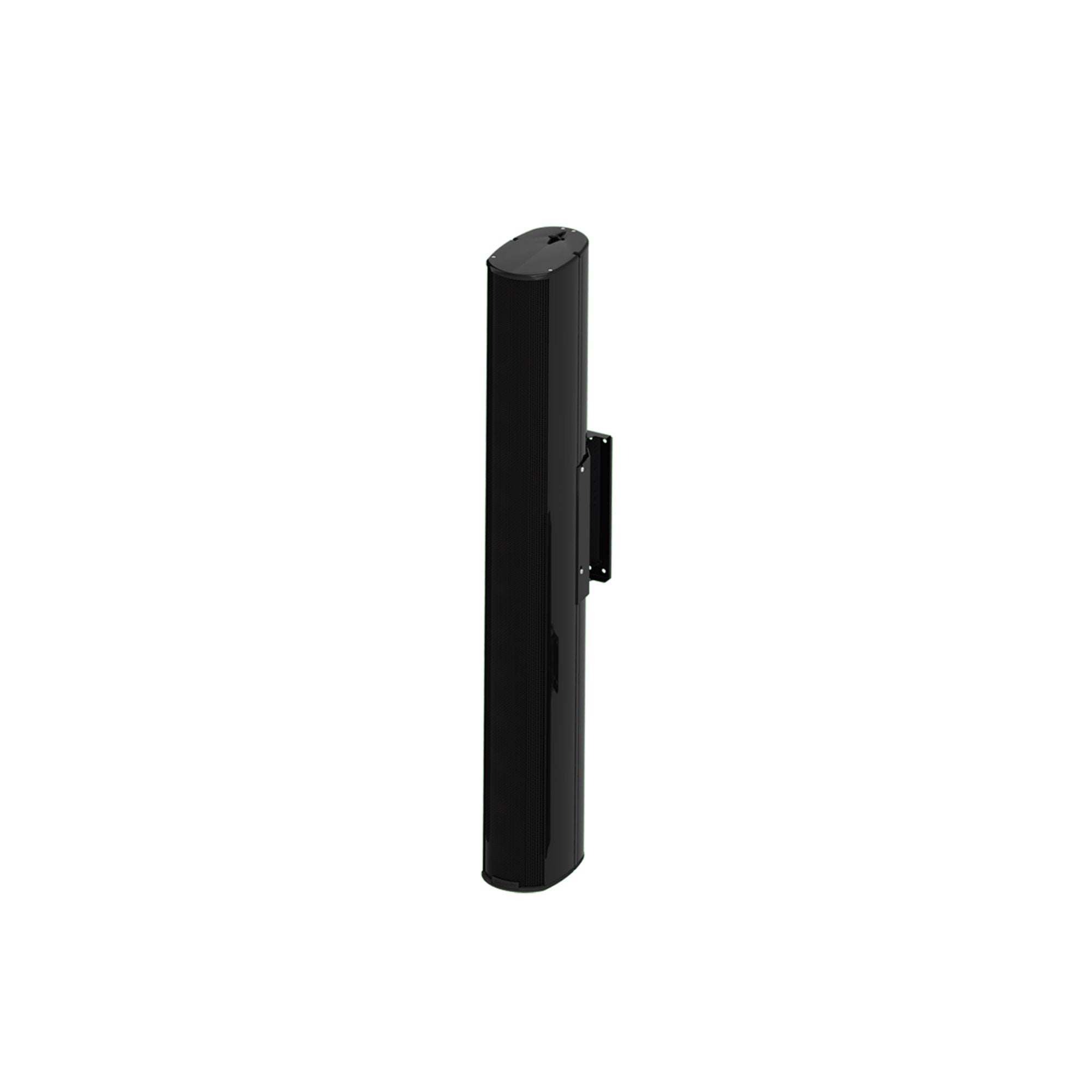

Biamp Desono ENT220 - Column Point Source Loudspeaker (Black)


  • Dale #:

    BIAM-ENT220B
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock and needs to be ordered from the manufacturer. Your payment will be charged after completing checkout. We will strive to ship as soon as possible, pending availability.

Description

The ENT220 is an all-weather, column line array loudspeaker housed in an attractive, heavy duty extruded PVC enclosure. The largest member of the ENTASYS 200 family, the ENT220 provides exceptional directional control in the vertical axis to tame extremely difficult acoustic environments. With en... Read More

Shipping Charges Apply

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

The ENT220 is an all-weather, column line array loudspeaker housed in an attractive, heavy duty extruded PVC enclosure. The largest member of the ENTASYS 200 family, the ENT220 provides exceptional directional control in the vertical axis to tame extremely difficult acoustic environments. With enough power to cover medium and large venues, a system of well-placed ENT220 columns is capable of providing intelligibility and superb musical reproduction, while barely being visible. Noisy environments, excessive reverberation, and other suboptimal acoustical conditions are handled effortlessly by the ENT220. Houses of worship, music venues and corporate AV presentations will benefit from the high performance and versatility of the ENT220.

At the top of the line is the ENT220 features twenty LF drivers to enhance low frequency pattern control, output and impact. The ENT220 LF extension is equal to many 12-inch loudspeakers while its output is equal or greater than most 15-inch 2-way box loudspeakers. Passive crossovers with unique dynamic protection circuitry provide flat frequency responses while guarding against abusive conditions without harming sonic quality.

AMPLIFIED LOUDSPEAKER CONTROLLERS
Community ALC404D is recommended for this product. Higher power ALC models may be used safely as well.

Features:

  • Advanced passive crossover technology and dynamic protection circuitry
  • Compact Ribbon Emulator high frequency technology for narrow, well-behaved directivity control
  • All-weather construction for indoor/outdoor use
  • Simple installation using the included pan-tilt mounting bracket
  • Selectable low impedance or 70V/100V operation

More +

Product Specs

Operating Mode Passive
Operating Environment Indoor or outdoor
Operating Range 80 Hz to 22 kHz
Nominal Beamwidth (H x V) 140° x  15°
Transducers LF 20 x 80mm long excursion mylar driver
HF 4 x 3-element Compact Ribbon Emulator
Continuous Power Handling @ Nominal Impedance 63V 500W @ 8Ω (2000W peak)
Autoformer 70V: 120W 60W 30W 15W 7.5W
100V: 120W 60W 30W 15W
Nominal Sensitivity @ 1W 99dB
@ 2.83V 99 dB
Nominal Maximum SPL (Whole Space) Peak: 132 dB
Continuous: 126 dB
Equalized Sensitivity @ 1W 99 dB
@ 2.83V 99 dB
Equalized Maximum SPL Peak 132 dB
Continuous 126 dB
Required Accessories External High Pass Filter - 80 Hz, 24 dB /octave
Digital Signal Processor
Recommended Amplifiers 500W - 1000W @ 8Ω (63V - 89V)
Input Connection NL4-type connector for low impedance operation, and 8-position terminal strip for low impedance or constant voltage operation
Mounting Points Small pan-tilt mounting bracket included; (up to 10.8° down-tilt, ± 55° panning)
Environmental IP54 per IEC 60529, designed in accordance with MIL-STD-810G
Included ABS plastic rain cover with integrated cable inlet and 1" (25.4mm) knockout for conduit ingress
Dimensions H x W x D 64.69" x 4.63" x 7.48" (1643 mm x 118 mm x 190 mm)
Weight 41 lbs (18 kg)
Finish Black or White high gloss extruded paintable PVC
Grille Powder-coated perforated marine-grade aluminum backed with color-matched foam or fabric backing. Black (RAL#9004) or White (RAL#9003)
Options E200-UMK universal mounting kit
E200-SAK stand adapter kit

More +
