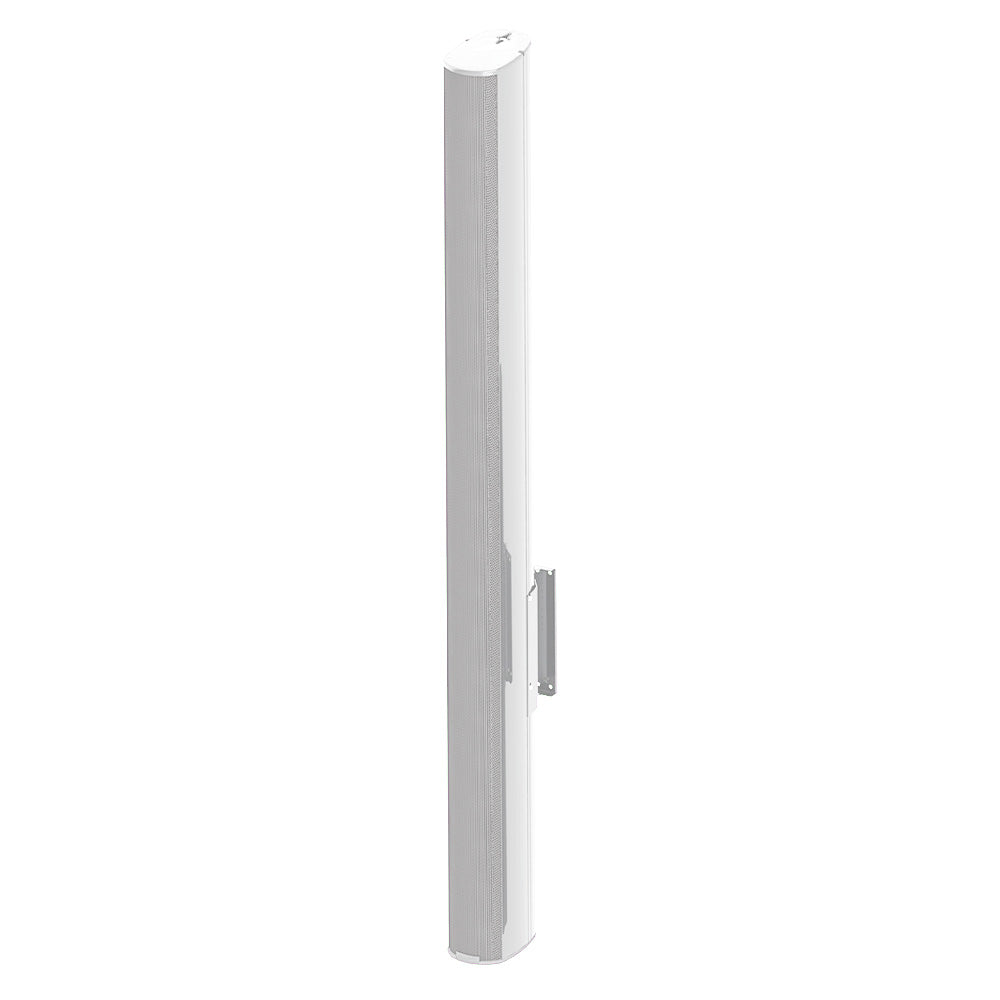

Biamp Desono ENT220 - Column Point Source Loudspeaker (White)
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The ENT220 is an all-weather, column line array loudspeaker housed in an attractive, heavy duty extruded PVC enclosure. The largest member of the ENTASYS 200 family, the ENT220 provides exceptional directional control in the vertical axis to tame extremely difficult acoustic environments. With enough power to cover medium and large venues, a system of well-placed ENT220 columns is capable of providing intelligibility and superb musical reproduction, while barely being visible. Noisy environments, excessive reverberation, and other suboptimal acoustical conditions are handled effortlessly by the ENT220. Houses of worship, music venues and corporate AV presentations will benefit from the high performance and versatility of the ENT220.
At the top of the line is the ENT220 features twenty LF drivers to enhance low frequency pattern control, output and impact. The ENT220 LF extension is equal to many 12-inch loudspeakers while its output is equal or greater than most 15-inch 2-way box loudspeakers. Passive crossovers with unique dynamic protection circuitry provide flat frequency responses while guarding against abusive conditions without harming sonic quality.
AMPLIFIED LOUDSPEAKER CONTROLLERS
Community ALC404D is recommended for this product. Higher power ALC models may be used safely as well.
Features:
- Advanced passive crossover technology and dynamic protection circuitry
- Compact Ribbon Emulator high frequency technology for narrow, well-behaved directivity control
- All-weather construction for indoor/outdoor use
- Simple installation using the included pan-tilt mounting bracket
- Selectable low impedance or 70V/100V operation
| Operating Mode | Passive |
| Operating Environment | Indoor or outdoor |
| Operating Range | 80 Hz to 22 kHz |
| Nominal Beamwidth (H x V) | 140¡ x 15¡ |
| Transducers | LF 20 x 80mm long excursion mylar driver HF 4 x 3-element Compact Ribbon Emulator |
| Continuous Power Handling @ Nominal Impedance | 63V 500W @ 8½ (2000W peak) |
| Autoformer | 70V: 120W 60W 30W 15W 7.5W 100V: 120W 60W 30W 15W |
| Nominal Sensitivity | @ 1W 99dB @ 2.83V 99 dB |
| Nominal Maximum SPL (Whole Space) | Peak: 132 dB Continuous: 126 dB |
| Equalized Sensitivity | @ 1W 99 dB @ 2.83V 99 dB |
| Equalized Maximum SPL | Peak 132 dB Continuous 126 dB |
| Required Accessories | External High Pass Filter - 80 Hz, 24 dB /octave Digital Signal Processor |
| Recommended Amplifiers | 500W - 1000W @ 8½ (63V - 89V) |
| Input Connection | NL4-type connector for low impedance operation, and 8-position terminal strip for low impedance or constant voltage operation |
| Mounting Points | Small pan-tilt mounting bracket included; (up to 10.8¡ down-tilt, ± 55¡ panning) |
| Environmental | IP54 per IEC 60529, designed in accordance with MIL-STD-810G Included ABS plastic rain cover with integrated cable inlet and 1" (25.4mm) knockout for conduit ingress |
| Dimensions H x W x D | 64.69" x 4.63" x 7.48" (1643 mm x 118 mm x 190 mm) |
| Weight | 41 lbs (18 kg) |
| Finish | Black or White high gloss extruded paintable PVC |
| Grille | Powder-coated perforated marine-grade aluminum backed with color-matched foam or fabric backing. Black (RAL#9004) or White (RAL#9003) |
| Options | E200-UMK universal mounting kit E200-SAK stand adapter kit |
The ENT220 is an all-weather, column line array loudspeaker housed in an attractive, heavy duty extruded PVC enclosure. The largest member of the ENTASYS 200 family, the ENT220 provides exceptional directional control in the vertical axis to tame extremely difficult acoustic environments. With enough power to cover medium and large venues, a system of well-placed ENT220 columns is capable of providing intelligibility and superb musical reproduction, while barely being visible. Noisy environments, excessive reverberation, and other suboptimal acoustical conditions are handled effortlessly by the ENT220. Houses of worship, music venues and corporate AV presentations will benefit from the high performance and versatility of the ENT220.
At the top of the line is the ENT220 features twenty LF drivers to enhance low frequency pattern control, output and impact. The ENT220 LF extension is equal to many 12-inch loudspeakers while its output is equal or greater than most 15-inch 2-way box loudspeakers. Passive crossovers with unique dynamic protection circuitry provide flat frequency responses while guarding against abusive conditions without harming sonic quality.
AMPLIFIED LOUDSPEAKER CONTROLLERS
Community ALC404D is recommended for this product. Higher power ALC models may be used safely as well.
Features:
- Advanced passive crossover technology and dynamic protection circuitry
- Compact Ribbon Emulator high frequency technology for narrow, well-behaved directivity control
- All-weather construction for indoor/outdoor use
- Simple installation using the included pan-tilt mounting bracket
- Selectable low impedance or 70V/100V operation
| Operating Mode | Passive |
| Operating Environment | Indoor or outdoor |
| Operating Range | 80 Hz to 22 kHz |
| Nominal Beamwidth (H x V) | 140¡ x 15¡ |
| Transducers | LF 20 x 80mm long excursion mylar driver HF 4 x 3-element Compact Ribbon Emulator |
| Continuous Power Handling @ Nominal Impedance | 63V 500W @ 8½ (2000W peak) |
| Autoformer | 70V: 120W 60W 30W 15W 7.5W 100V: 120W 60W 30W 15W |
| Nominal Sensitivity | @ 1W 99dB @ 2.83V 99 dB |
| Nominal Maximum SPL (Whole Space) | Peak: 132 dB Continuous: 126 dB |
| Equalized Sensitivity | @ 1W 99 dB @ 2.83V 99 dB |
| Equalized Maximum SPL | Peak 132 dB Continuous 126 dB |
| Required Accessories | External High Pass Filter - 80 Hz, 24 dB /octave Digital Signal Processor |
| Recommended Amplifiers | 500W - 1000W @ 8½ (63V - 89V) |
| Input Connection | NL4-type connector for low impedance operation, and 8-position terminal strip for low impedance or constant voltage operation |
| Mounting Points | Small pan-tilt mounting bracket included; (up to 10.8¡ down-tilt, ± 55¡ panning) |
| Environmental | IP54 per IEC 60529, designed in accordance with MIL-STD-810G Included ABS plastic rain cover with integrated cable inlet and 1" (25.4mm) knockout for conduit ingress |
| Dimensions H x W x D | 64.69" x 4.63" x 7.48" (1643 mm x 118 mm x 190 mm) |
| Weight | 41 lbs (18 kg) |
| Finish | Black or White high gloss extruded paintable PVC |
| Grille | Powder-coated perforated marine-grade aluminum backed with color-matched foam or fabric backing. Black (RAL#9004) or White (RAL#9003) |
| Options | E200-UMK universal mounting kit E200-SAK stand adapter kit |
